Usable area: 121.27 m2 / The cost of the realization: 133 000 EUR
Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (8) Detailed drawings
List of materials
Comments (3)

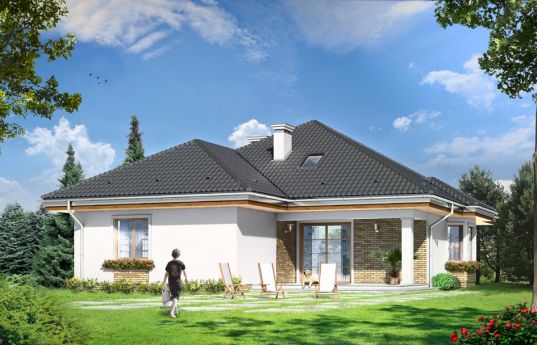

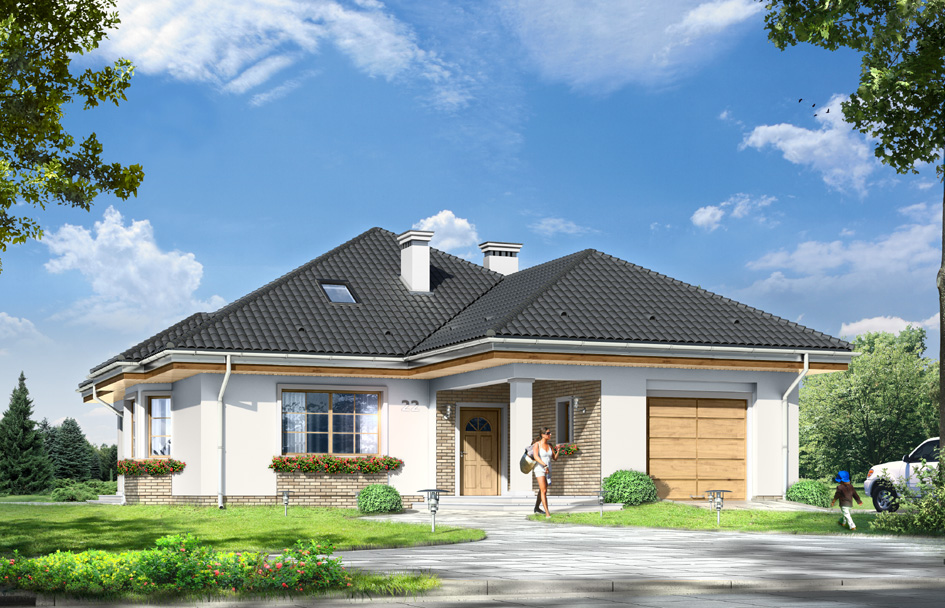

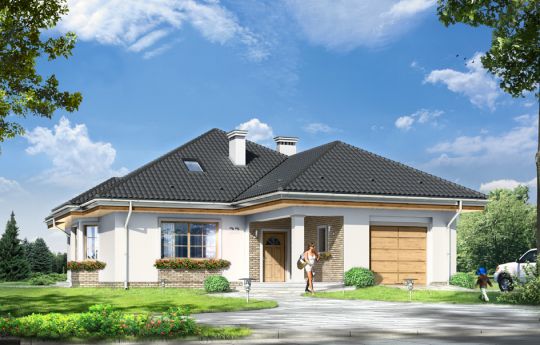

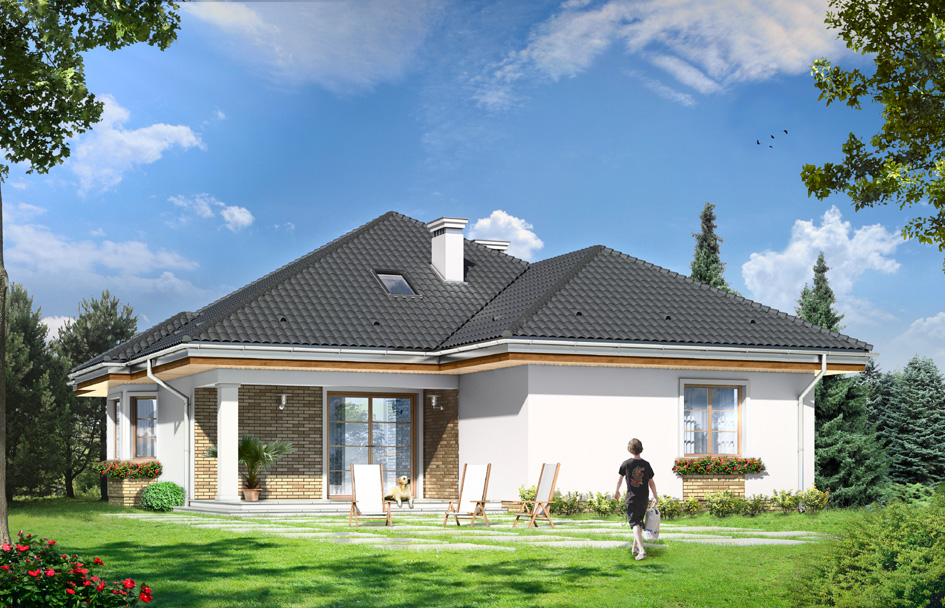

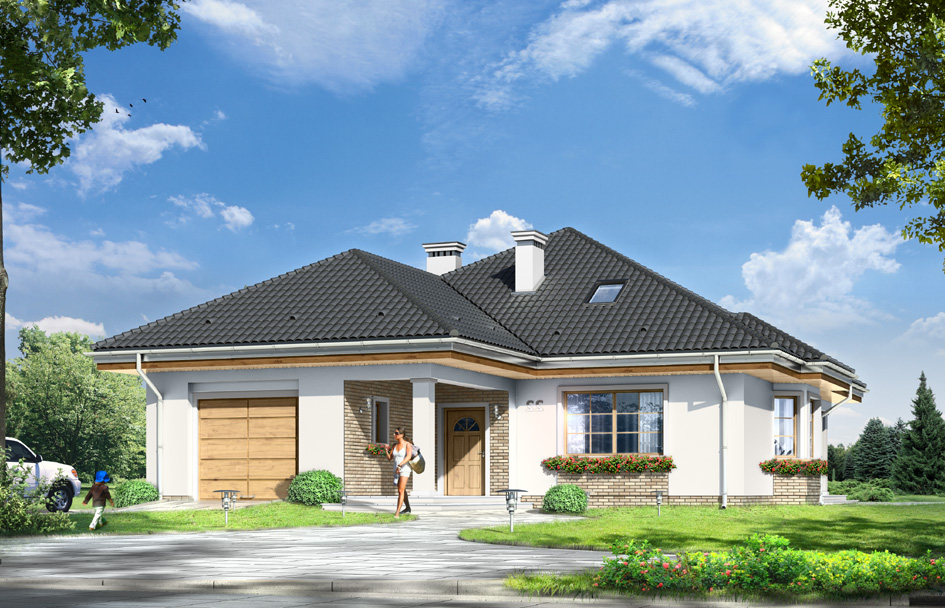

Natalia 4 is a variant version of the popular house plan Natalia. This time the house is narrower, adapted to the narrow plot. This is a one storey building covered by an envelope roof with two build parts - garage from the front and bedrooms from the garden side. Above the ground floor is an attic that can be adapted in the second stage as usable attic. Outside architecture of Natalia 4 is unpretentious and it combines the traditional form of Polish "tile" with modern detail and materials. The whole thing is light and retains in a human scale. The house fits perfectly into the environment and maintains in contact with the garden. Inside is a single space of living area - with a living room, hall, large open kitchen and a night part - with three bedrooms and a bathroom, and utility part - with a garage and boiler room. Living room with dining area and bay window, corner fireplace, television exposed wall or wide glass doors to the partially covered terrace and garden, is a connector all the rooms and main living space of the household. From here we move to the bedroom or to attic, which can be adapted to usable attic. There is also a mirror version of the Natalie 4 house plan.
Specifications:
- Cubature: 718 m3 / 25352,58 ft3
- Built-up area: 186,32 m2 / 2004,80 ft2
- Total area: 226,87 m2 / 2441,12 ft2
- Net area: 128,03 m2 + garage / 1377,60 ft2 + garage
- Usable area: 121,27 m2 / 1304,87 ft2
- Roof area: 301,71 m2 / 3246,40 ft2
- Roof slope: 30 degrees
- Height of the building: 7,12 m (7,42 m with foundation) / 23,35 ft (24,34 ft with foundation)
- Wide of the building: 12,8 m / 41,98 ft
- Length of the building: 20,6 m / 67,57 ft
- Minimum plot width: 20,8 m / 68,22 ft
- Minimum plot length: 28,6 m / 93,80 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 52 200,00 EUR |
| The raw state closed | 69 900,00 EUR |
| The cost of finishing works | 63 200,00 EUR |
| Execution of turnkey home | 133 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Natalie 4 - detailed file
House plan Natalie 4 - detailed file - mirror
