Extensive 2 house plan

Usable area: 182.75 m2   /   The cost of the realization: 187 100 EUR

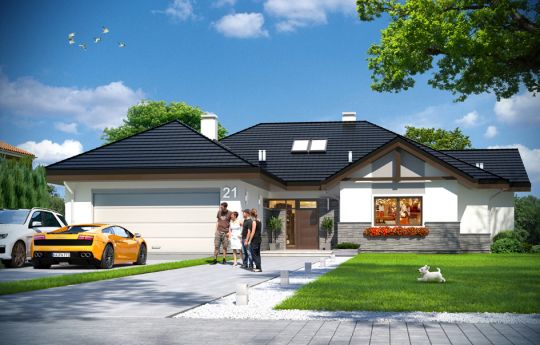

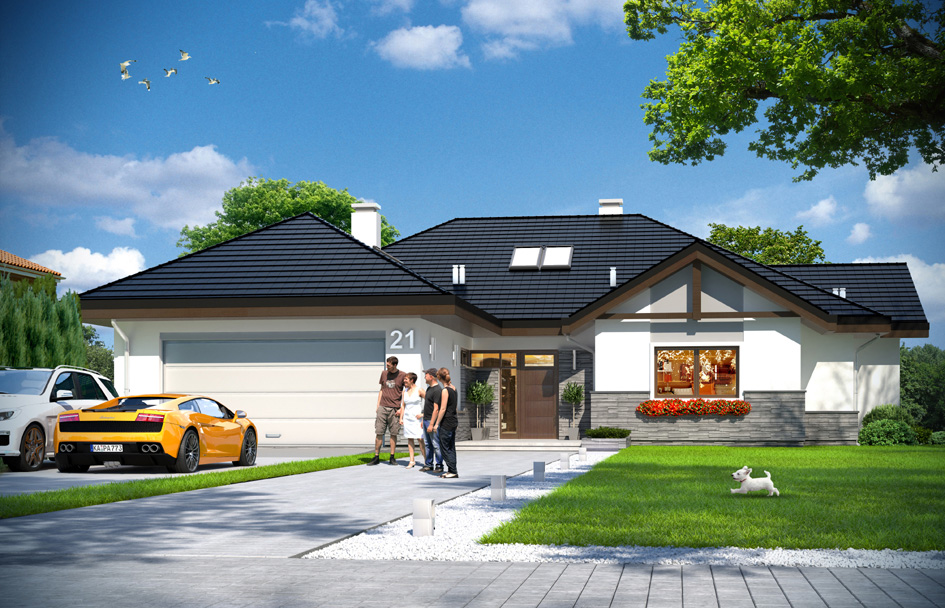

House plan Extensive 2 - front visualization

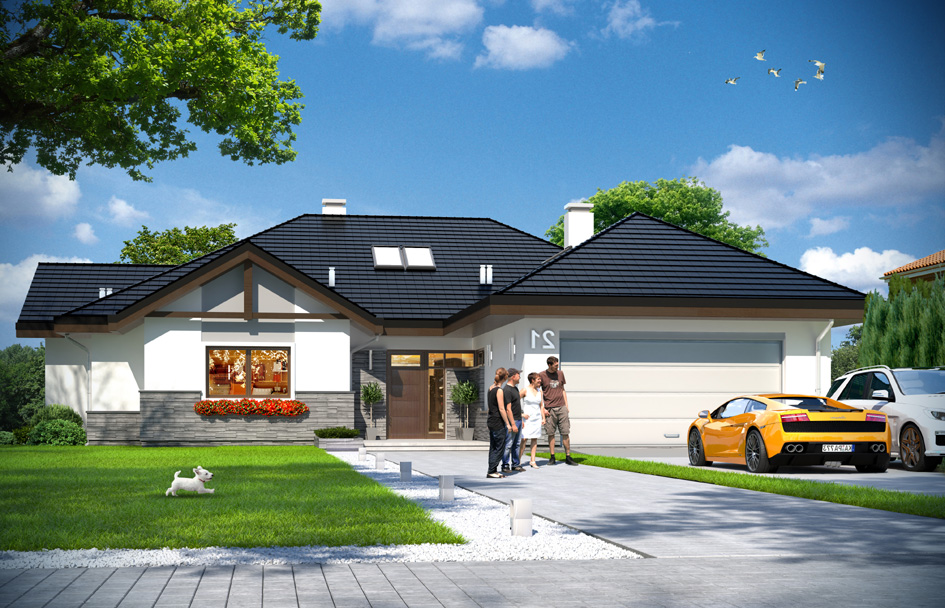

Show mirror image


Extensive 2 house plan is the next variant version of the popular project extensive. This time, house gained a new functional layout, a different distribution of the interior and a new form and details of finishing the building facade. House is a bungalow, designed for a family of four to six people. Its extensive bungalow provide a comfortable, even luxurious living conditions. Architecturally, house combines modern form and details with traditional lump with hipped roof. Building will fit perfectly in both urban land and further suburbs. The block is decorated with interesting harmoniously placed windows. Dark roof, contrasting with light-colored walls is balanced by stone façade cladding. House gives the impression of a large representative villa even though it is not a great residence. The interior has been designed with an open division for the single-space surface of the living room, dining room, hall and kitchen, and separate bedrooms and technical part with a garage. Living room has a beautiful opening in the roof until slant of the roof, so that the room is even greater. Together with kitchen and hall, daily space has almost 90 m2. other rooms are three bedrooms (including parents bedrooms with dressing), bathroom, living room / office work, and laundry room, boiler room, pantry and garage. Many economic storage compartments cabinets and corners allow for minimalist interior fittings to the modern house. Above the ground floor there is an extra attic, which can be freely adapted. The house is very well insulated - energy-efficient, so that maintenance costs of the building will not be exorbitant.

Specifications:
  • Cubature: 1365,1 m3 / 48201,68 ft3
  • Built-up area:
    • without arcades 274,15 m2 / 2949,85 ft2
    • with arcades 299,18 m2 / 3219,18 ft2
  • Total area: 301,01 m2 / 3238,87 ft2
  • Net area: 214,73 m2 + garage 37,17 m2 / 2310,49 ft2 + garage 399,95 ft2
  • Usable area:
    • 182,75 m2 + attic 26,86 m2 wg PN-70/B-02365 / 1966,39 ft2 + attic 289,01 ft2 wg PN-70/B-02365
    • 214,73 m2 + garage wg PN-ISO 9836:1997 / 2310,49 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 398,15 m2 / 4284,09 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,78 m with foundation) / 21,55 ft (22,24 ft with foundation)
  • Wide of the building: 19,36 m / 63,50 ft
  • Length of the building: 22,62 m / 74,19 ft
  • Minimum plot width: 27,36 m / 89,74 ft
  • Minimum plot length: 30,15 m / 98,89 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 67 000,00 EUR
The raw state closed 102 600,00 EUR
The cost of finishing works 84 500,00 EUR
Execution of turnkey home 187 100,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Extensive 2- detailed file

House plan Extensive 2- detailed file - mirror

Comment
Extensive 2 house plan 6418 alaM
2015.11.13 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Extensive 2 house plan 6419 Leon3
2015.11.13 0 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.

Extensive 2 house plan 5562 Klaudiusz
2014.04.29 3 Pozytywny komentarz Negatywny komentarz

Despite the small area this house has a number of functions and is very nice. I have just order this house plan.

3
