First house plan 2

Usable area: 102.07 m² / The cost of the realization: 88 600 EUR

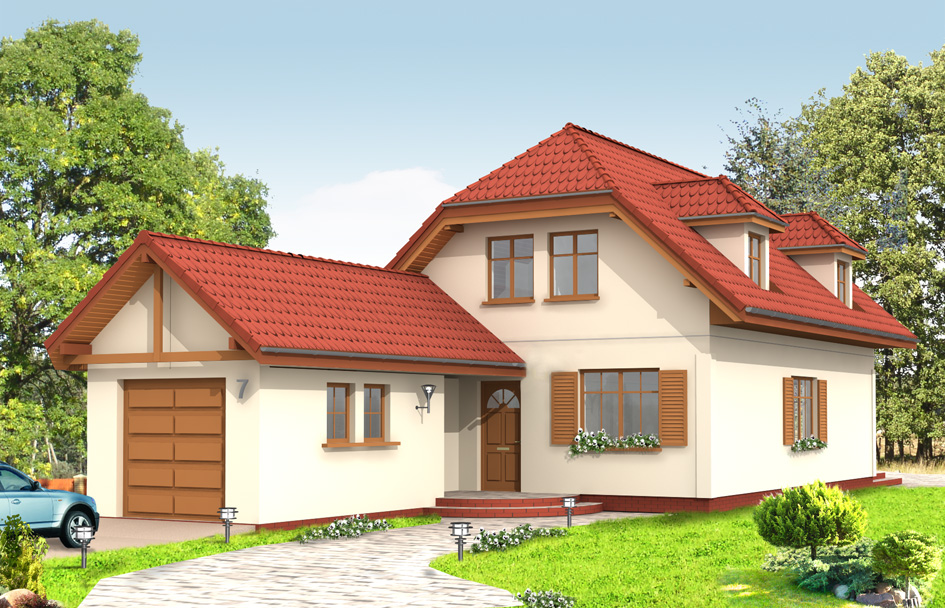

House plan First house 2 - front visualization

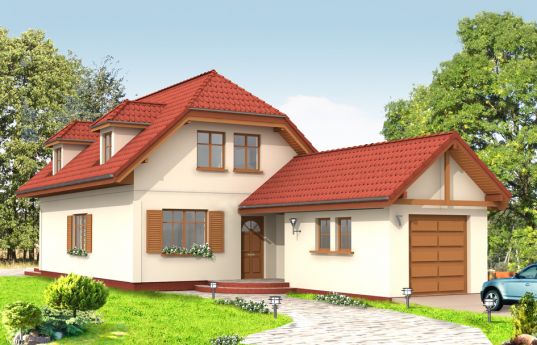

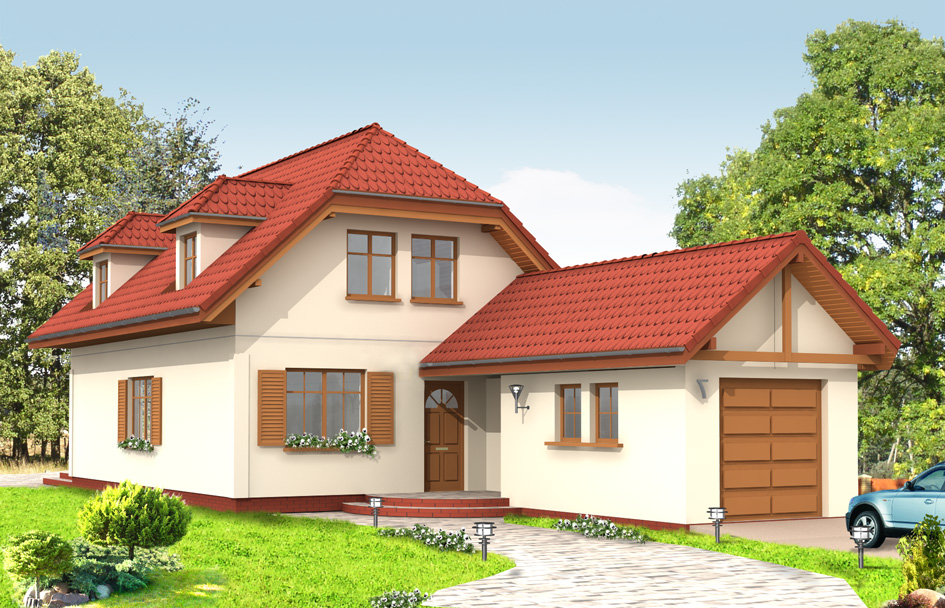

Show mirror image

Price: 850 EUR

Description Plans Elevations Situations Animation Variants (0) Realizations (4) Detailed drawings List of materials Comments (3)

First house plan 2 is an advanced version of First house plan with the garage protruding to the front of the house. The building perfectly fits to the narrow plot. Simple construction and economy of form make this house affordable to build. The functional interior comprises: on the ground floor spacious living room with semi-open kitchen, utility room, garage and extra room, in the attic three bedrooms and a bathroom. We has a version with a garage on the side - First house plan 3, and without a garage - First house plan. There is also available a shorter version, without an extra room on the ground floor, and First house 2 in mirror version. The basic version of this house plan is available with two windows or one window in the gable wall in the attic above the entrance.

Specifications:

Cubature: 463 m³/ 16348,53 ft³
Built-up area: 103,56 m² / 1114,31 ft²
Total area: 157,56 m² / 1695,35 ft²
Net area: 127,99 m² / 1377,17 ft²
Usable area: 102,07 m² / 1098,27 ft²
Roof area: 194,26 m² / 2090,24 ft²
Roof slope: 42 degrees
Height of the building: 7,40 m (7,72 m with foundation) / 24,27 ft (25,32 ft with foundation)
Wide of the building: 7,96 m / 26,11 ft
Length of the building: 18,7 m / 61,34 ft
Minimum plot width: 14,96 m / 49,07 ft
Minimum plot length: 26,7 m / 87,58 ft
Height of rooms: 2,63 m / 8,63 ft

Materials:

Foundations - concrete bench
External walls - aerated concrete + polystyrene
Internal walls - aerated concrete
Ceiling - reinforced concrete Teriva
Elevation - thin-layer plaster
Roof - tile or meatal roofing tile

The costs of implementing:

The raw state open	30 400,00 EUR
The raw state closed	46 600,00 EUR
The cost of finishing works	42 000,00 EUR
Execution of turnkey home	88 600,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Pierwszy dom 2 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan First house 2 - detailed file - mirror

House plan First house 2 - detailed file
