Adventure house plan

Usable area: 89.11 m² / The cost of the realization: 77 200 EUR

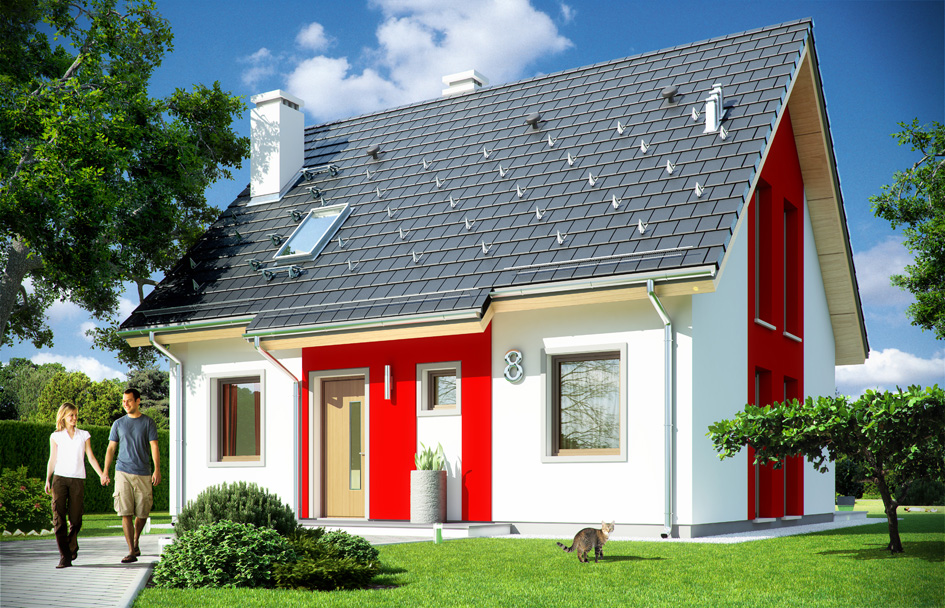

House plan Adventure - front visualization

Show mirror image

Price: 870 EUR

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

Adventure house plan is a charming house for a family of four-five-people, it is one-storey house with attic having a compact rectangular block covered with a gable roof. Simple elegance of the house and its functionality go together with energy efficiency and modernity. Shape of the house, its proportions immediately recall the image of "little white house" such a house with a chimney from children's imagination. Building a house is a great adventure. Proportional symmetrical body fit into any environment. Modern building materials and colors add elegance to the house. Interior of the house plan accommodates five bedrooms, two bathrooms and a separate boiler room. On the ground floor we have a living space connected to the living room, hall and kitchen, and an extra room. In the attic there are three bedrooms with a private bathroom. The interior is easy to arrange and functional. Construction is very simple and clear and will be easy and inexpensive in building. Thanks to very good isolation of walls, floors and roof, the house is energy efficient. Is very easy to adapt to the NF40 standard. Surface of house allows to qualify the project MDM program requirements.

Specifications:

Cubature: 389 m³ / 13735,59 ft³
Built-up area:
- without arcades 76,92 m² / 827,66 ft²
- with arcades 83,69 m² / 900,50 ft²
Total area: 120,95 m² / 1301,42 ft²
Net area: 93,69 m² / 1008,10 ft²
Usable area:
- 89,11 m² wg PN-70/B-02365 / 958,82 ft² wg PN-70/B-02365
- 93,69 m² wg PN-ISO 9836:1997 /1008,10 ft² wg PN-ISO 9836:1997
Roof area: 134,7 m² / 1449,37 ft²
Roof slope: 45 degrees
Height of the building: 7,79 m (7,99 m with foundation) / 25,55 ft (26,21 ft with foundation)
Wide of the building: 9,36 m / 25,55 ft
Length of the building: 8,24 m / 27,03 ft
Minimum plot width: 17,36 m / 56,94 ft
Minimum plot lengthi: 16,24 m / 53,27 ft
Height of rooms: 2,6 i 2,5 m / 8,53 and 8,2 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls - aerated concrete + foamed polystyrene + thin-layer plaster
Ceiling - monolithic reinforced concrete
Elevation - thin-layer plaster on polystyrene
Roof - ceramic tile

The costs of implementing:

The raw state open	25 300,00 EUR
The raw state closed	42 000,00 EUR
The cost of finishing works	35 200,00 EUR
Execution of turnkey home	77 200,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Adventure - bills of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Adventure - detailed file - mirror

House plan Adventure - detailed file
