Nice house plan

Usable area: 67.05 m2   /   The cost of the realization: 68 300 EUR

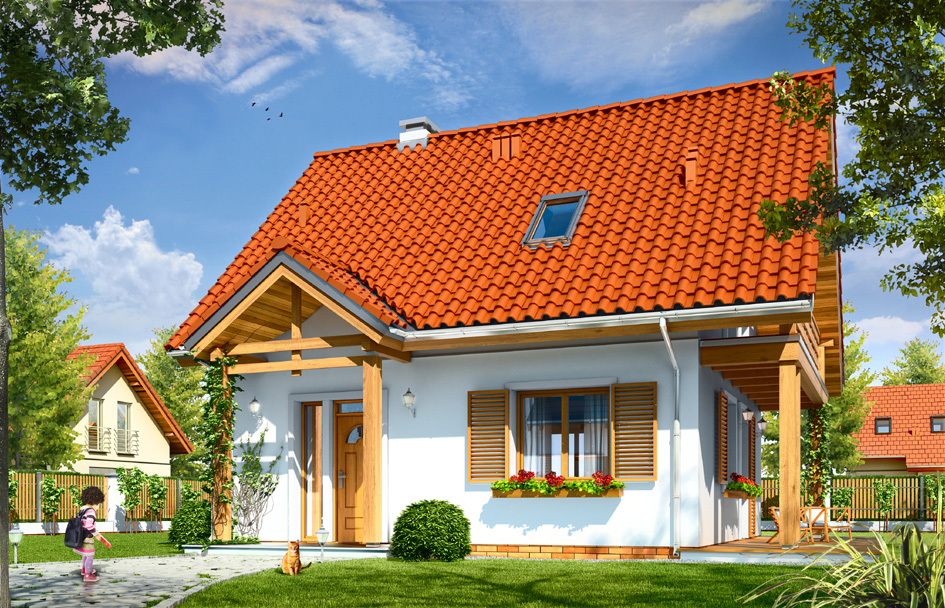

House plan Nice - front visualization

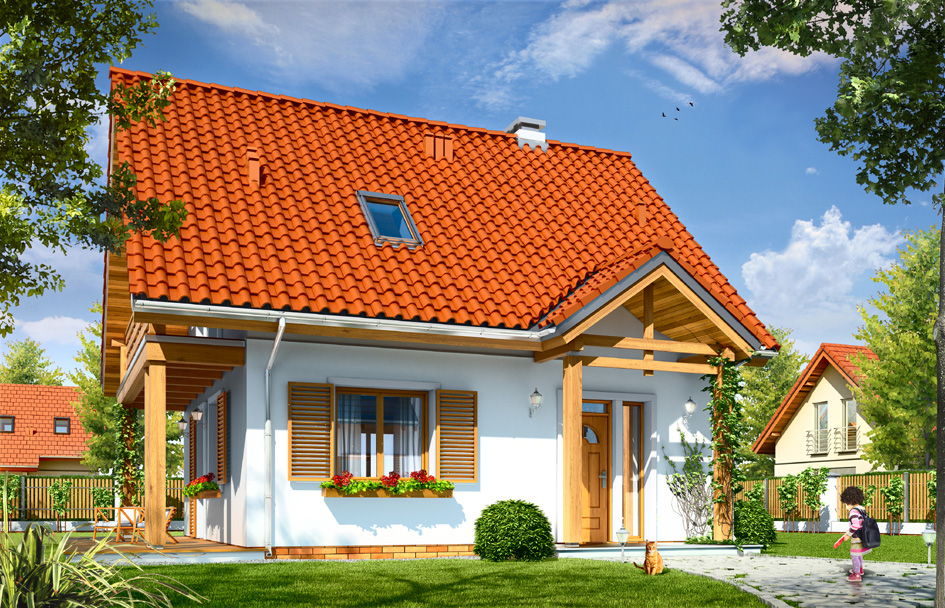

Show mirror image


Nice house is designed for a family of three to four people. The house was designed as a family all year round, but it can also serve as summer house. The rectangular of the ground floor was covered with a gable roof, which is located in his attic. An interesting body is diversified by terrace roofing and balcony from the garden side, and supported by two small columns roof over the entrance. Architecture of house combines traditional form, with modern detail and materials. Thanks to its unpretentiousness this house fits perfectly in any environment. The interior of the house is divided into a living area on the ground floor and bedrooms in the attic. Living room, kitchen and foyer form a large open common space. Cleverly positioned staircase are decoration of the living room. Centrally located chimney supports the both a fireplace in the living room and the boiler in the neighboring boiler room. The boiler was designed as a gas, but it can be easily adapted for solid fuel furnace. In the attic there are three small bedrooms and a bathroom. Partition walls of the attic can be easily and freely adjusted by changing the configuration of the rooms. Nice house plan takes into account a very good warming partitions. The house is energy efficient - equipped in the modern installations. With simple and inexpensive construction on the one hand and used energy-saving technologies, on the other hand, the house will be cheap in the construction and subsequent exploitation. This house plan is an ideal solution for counting the money investors wishing to live in affordable and charming detached house. Nice house is available in a mirror version.

Specifications:
  • Cubature: 312 m3 / 11016,72 ft3
  • Built-up area: 56,64 m2 (with arcades: 69,54 m2) / 609,45 ft2 (with arcades: 748,25 ft2)
  • Total area: 93,98 m2 / 1011,22 ft2
  • Net area: 71,76 m2 / 772,14 ft2
  • Usable area:
    • 67,05 m2 wg PN-70/B-02365 / 721,46 ft2 wg PN-70/B-02365
    • 71,76 m2 wg PN-ISO 9836:1997 / 772,14 ft2 wg PN-ISO 9836:1997
  • Roof area: 123,53 m2 / 1329,18 ft2
  • Roof slope: 35 and 45 degrees
  • Height of the building: 7,69 m (7,89 m with foundation) / 25,22 ft (25,87 ft with foundation)
  • Wide of the building: 7,78 m / 25,52 ft
  • Length of the building: 7,28 m / 23,88 ft
  • Minimum plot width: 16,03 m / 52,58 ft
  • Minimum plot length: 15,48 m / 50,77 ft
  • Height of rooms: 2,5 m / 8,2 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls - aerated concrete 24 cm +  polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 22 400,00 EUR
The raw state closed 36 500,00 EUR
The cost of finishing works 31 800,00 EUR
Execution of turnkey home 68 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Nice - detailed file

House plan Nice - detailed file - mirror

Comment
Nice house plan 4710 Maryla L.
2013.11.15 0 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this house plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.\

Nice house plan 4781 Remigiusz
2013.11.06 0 Pozytywny komentarz Negatywny komentarz

Hello I have a question, if anyone already put raw state of this house? I would like to assess the size of the house in live before buying the same.

Nice house plan 4787 Wacław
2013.10.23 1 Pozytywny komentarz Negatywny komentarz

In the end I found my dream house plan.
