Usable area: 312.15 m2 / The cost of the realization: 228 500 EUR

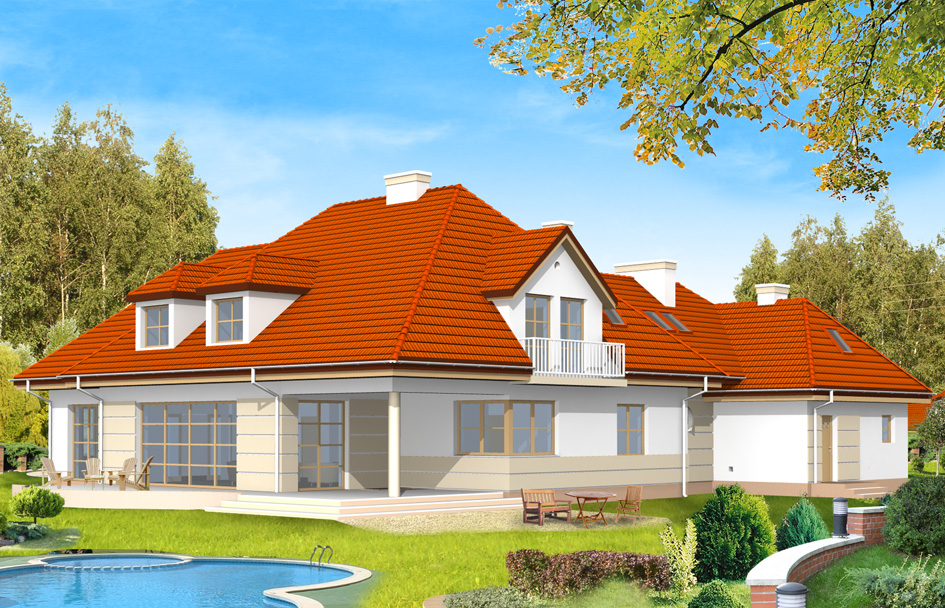

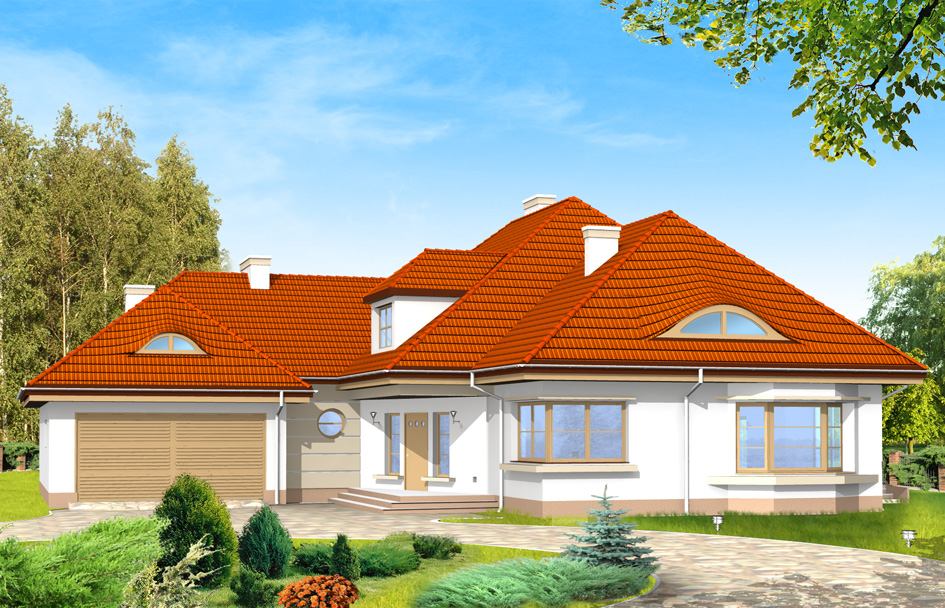

Show mirror image
Price: 1520 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (26) Detailed drawings
List of materials
Comments (3)

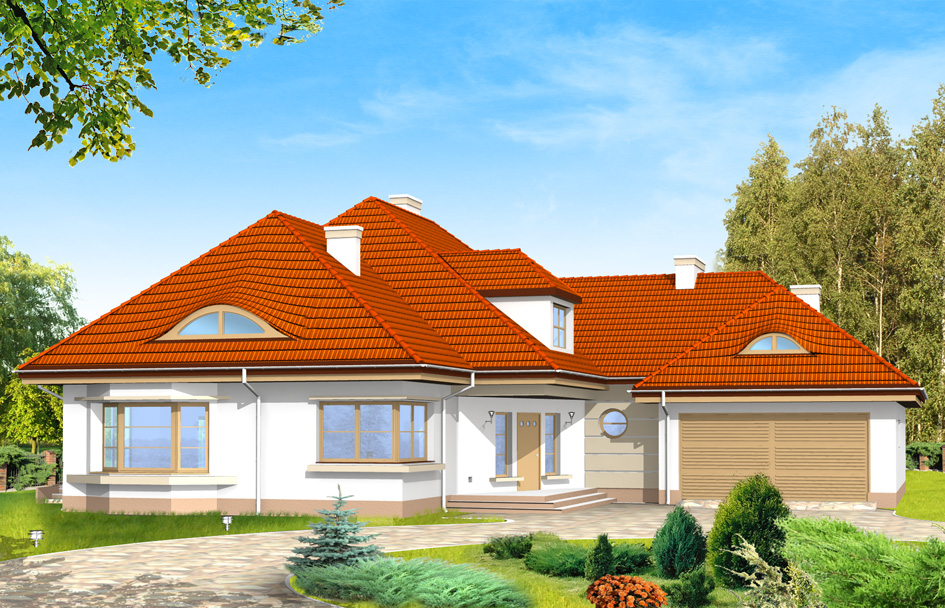

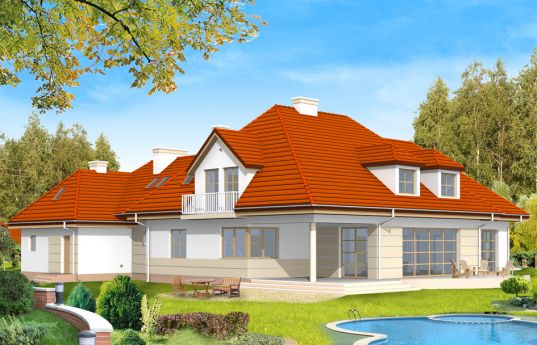

Residence house has an extended functions, with utility rooms, recreation (such as a bath room with a sauna and a TV room) and a utility space dedicated to work at home. House has the attractive appearance. Inside there is residence with spacious living room with dining room and hall. Sam hall - with representational staircase. The advantage of rooms in the attic is their spaciousness. Well-developed is the parents' part - with a separate bathroom, two wardrobes and a balcony garden. There is also available mirror version of this house plan.
Specifications:
- Cubature: 1311 m3 / 46291,41 ft3
- Built-up area: 257,26 m2 / 2768,12 ft2
- Total area: 447,02 m2 / 4809,94 ft2
- Net area: 374,23 m2 / 4026,71 ft2
- Usable area: 312,15 m2 / 3358,73 ft2
- Roof area: 438,78 m2 / 4721,27 ft
- Roof slope: 38 and 50 degrees
- Height of the building: 8,86 m (9,33 m with foundation) / 29,06 ft (30,60 ft with foundation)
- Wide of the building: 21,1 m / 69,21 ft
- Length of the building: 19,93 m / 65,37 ft
- Minimum plot width: 28,1 m / 92,17 ft
- Minimum plot length: 27,93 m / 91,61 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations – poured reinforced concrete
- External walls – brick walls –porotherm + mineral wool
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster
- Roof - tile
The costs of implementing:
| The raw state open | 81 700,00 EUR |
| The raw state closed | 120 900,00 EUR |
| The cost of finishing works | 107 700,00 EUR |
| Execution of turnkey home | 228 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Residence - detailed file
House plan Residence - detailed file - mirror
