Usable area: 138.34 m2 / The cost of the realization: 112 600 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

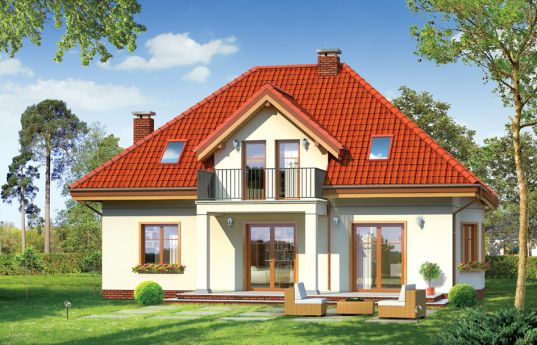

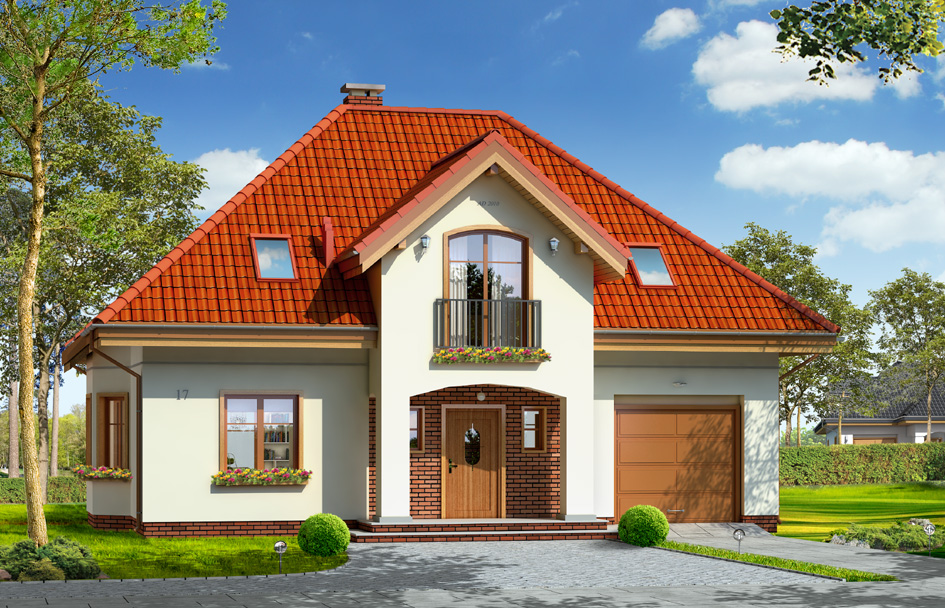

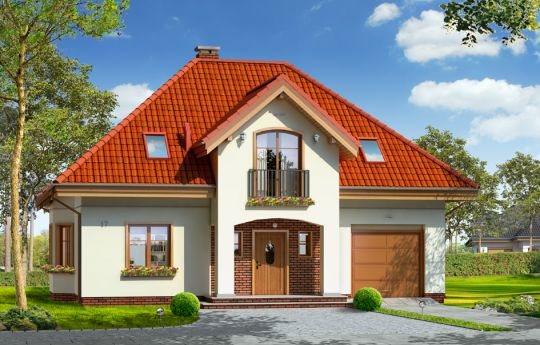

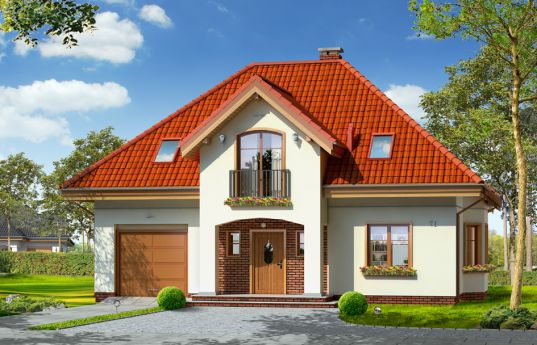

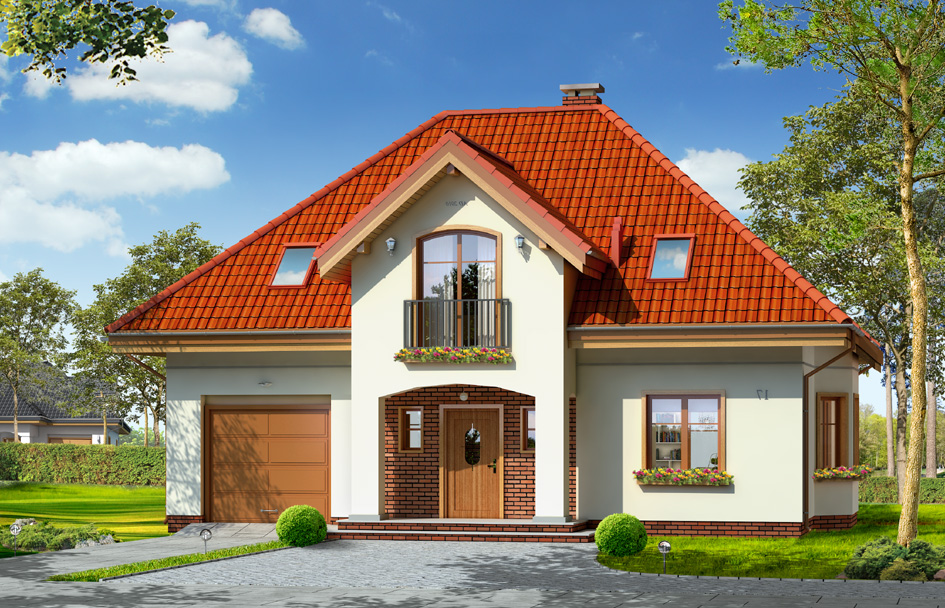

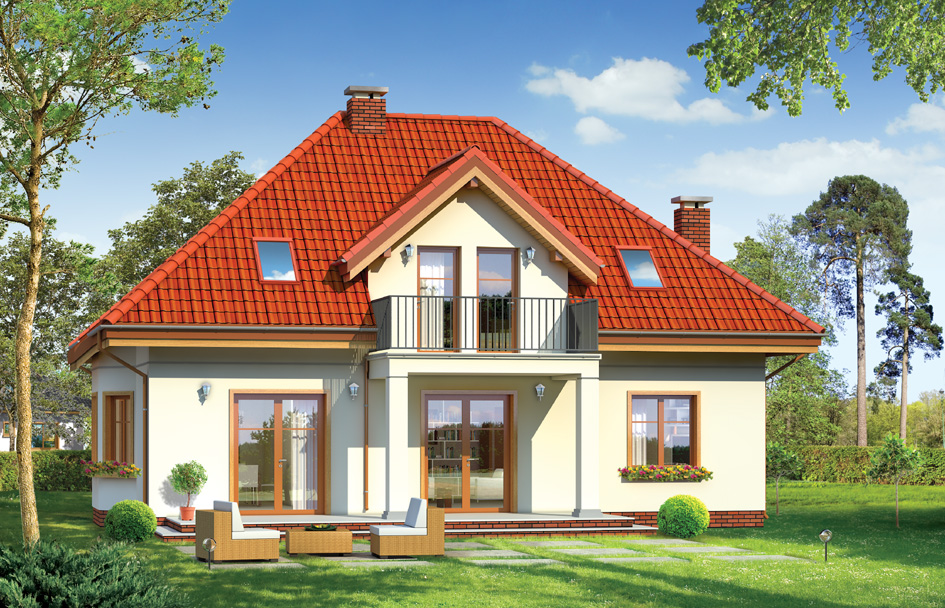

Daisy house plan is a charming building with, clear simple block. This detached house designed for a family of four-five people. Daisy house is built on a rectangular plan. Ground floor plan and attic is crowned with a hipped roof with dormer windows set symmetrically from the front and from the garden. The front dormer is connected to the arcade entrance on small columns. From the garden was designed partial roofed terrace, large balcony. The charm of the house is its simplicity and proper proportions, to the interesting details, and functionally designed, thoughtful interior. On the ground floor was designed spacious living room with a centrally located fireplace and large glazed to the terrace and garden. Living room is connected partly through this half open kitchen with dining area with bay window. Very nice lobby with representational staircase to the attic completes the interior plan. In addition, the project provides even part of the utility with a garage and boiler room. In the attic there are three bedrooms with walk-in closets or wardrobes built, a bathroom and an additional room - study or fourth bedroom. There is also available mirror version of this house plan.
Specifications:
- Cubature: 578 m3 / 20409,18 ft3
- Built-up area: 115,87 m2 / 1246,76 ft2
- Total area: 199,82 m2 / 2150,06 ft2
- Net area: 145,13 m2 + garage / 1561,60 ft2 + garage
- Usable area: 138,34 m2 / 1488,54 ft2
- Roof area: 203,24 m2 / 2186,86 ft2
- Roof slope: 42 and 40 degrees
- Height of the building: 8,50 m (8,85 m with foundation) / 27,88 ft (29,03 ft with foundation)
- Wide of the building: 13,2 m / 43,30 ft
- Length of the building: 10,31 m / 33,82 ft
- Minimum plot width: 21,2 m / 69,54 ft
- Minimum plot length 19,31 m / 63,34 ft
- Height of rooms: 2,7 i 2,5 m / 8,86 and 8,2 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 45 100,00 EUR |
| The raw state closed | 64 200,00 EUR |
| The cost of finishing works | 48 400,00 EUR |
| Execution of turnkey home | 112 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Daisy - detailed file - mirror
House plan Daisy - detailed file
