Usable area: 135.56 m2 / The cost of the realization: 117 800 EUR
Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (4)

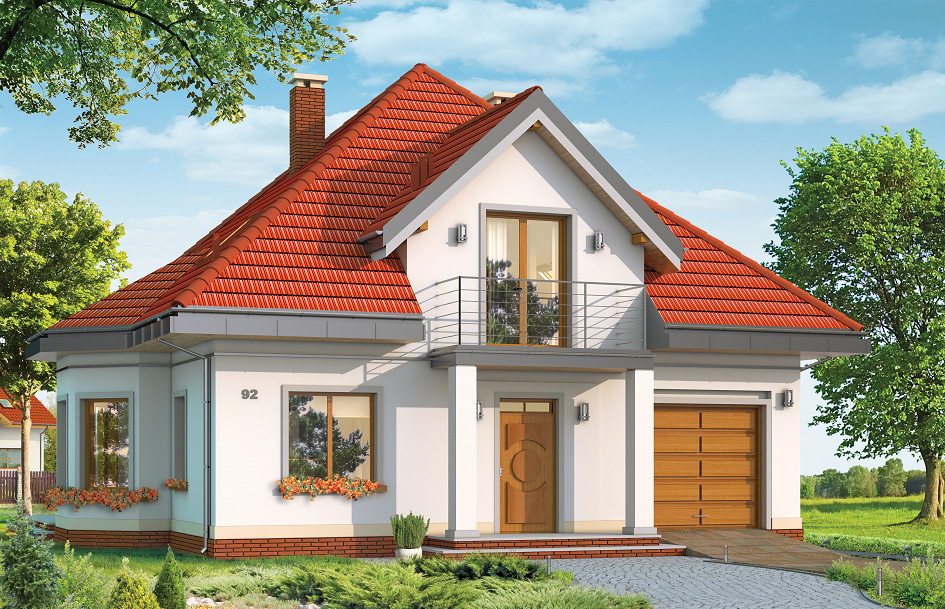

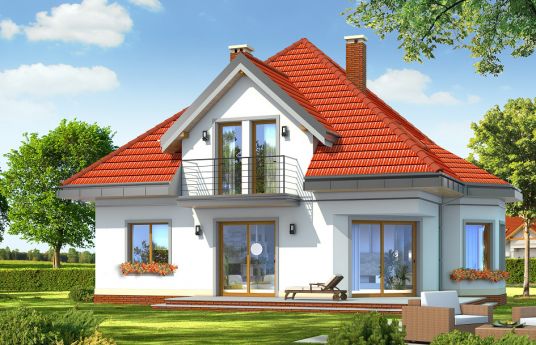

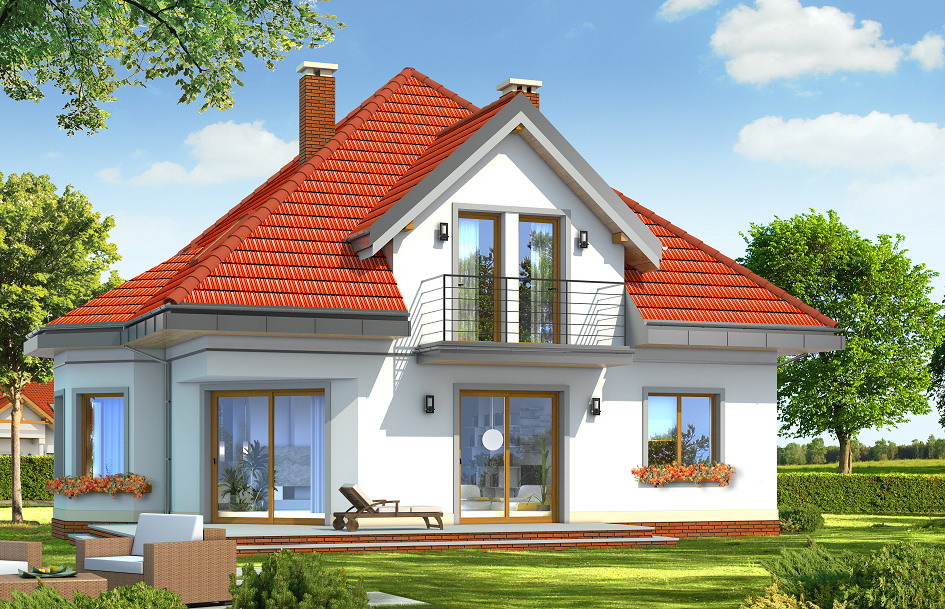

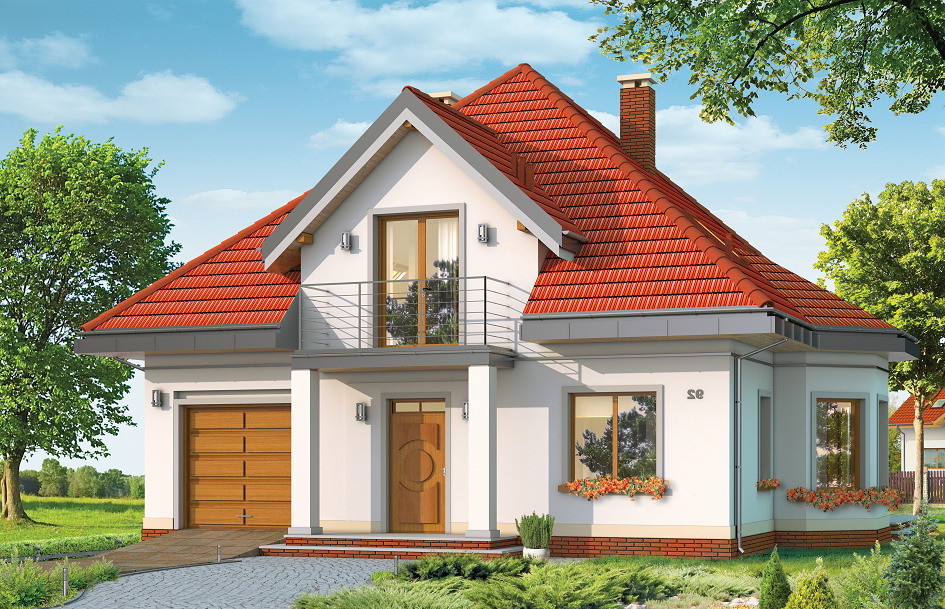

Agatha house plan is a project for a family of four or five people. This is a storey house with utility attic covered by envelope, hipped roof. House is designed in a quiet style with using traditional and modern details. Compact form of building with built-in garage, was decorated with dormers with balconies, bay window in the dining room, and corner arcades in the living room. Simple, clear body emphasizes the elegance of the external architecture of the building. In this house plan floor space was designed in such way that all the rooms surround a centrally located hall and stairs. The living area constitute hall, sitting room, dining room and a kitchen – this rooms create one open interior, however, they are partially separated from each other. In the utility part on the ground floor is designed garage, boiler room and an extra room (it can also be adapted for extra room – e.g. cabinet). On the top floor there are three large bedrooms with dressing room and built-in wardrobes, and a spacious bathroom - bathing room. On a small area we are managed to design a functional interior with spacious rooms. Agatha house plan is also available in a mirror version.
Specifications:
- Cubature: 591 m3 /20868,21 ft3
- Built-up area: 118,52 m2 / 1275,28 ft2
- Total area: 198,01 m2 / 2130,59 ft2
- Net area: 157,28 m2 + garage / 1692,33 ft2 + garage
- Usable area: 135,56 m2 / 1458,63 ft2
- Roof area: 201,16 m2 / 2164,48 ft2
- Roof slope: 42 degrees
- Height of the building: 9,14 m (9,49 with foundation)/ 29,98 ft (31,13 ft with foundation)
- Wide of the building: 12,43 m / 40,77 ft
- Length of the building: 10,8 m / 33,06 ft
- Minimum plot width: 20m / 65,60 ft
- Minimum plot length: 18,95 m / 62,16 ft
- Height of rooms: 2,7 i 2,5 m / 8,86 and 8,20 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 40 900,00 EUR |
| The raw state closed | 61 100,00 EUR |
| The cost of finishing works | 56 700,00 EUR |
| Execution of turnkey home | 117 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Agatha - detailed file
House plan Agatha - detailed file - mirror
