Usable area: 139.9 m2 / The cost of the realization: 113 000 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (1) Detailed drawings
List of materials
Comments (3)

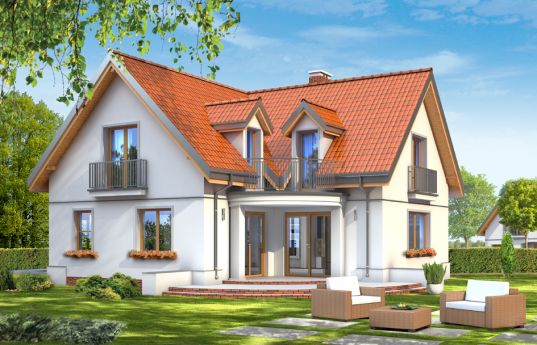

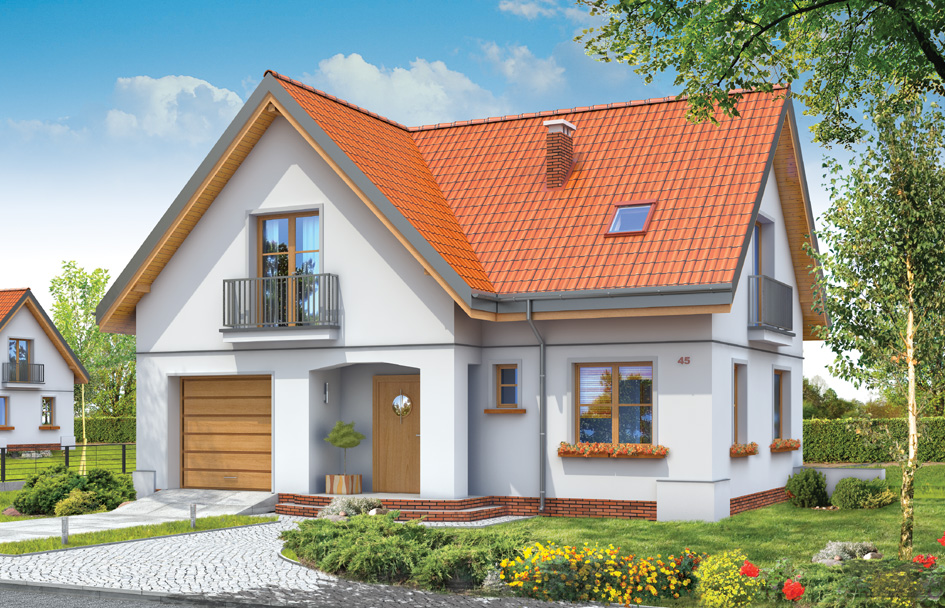

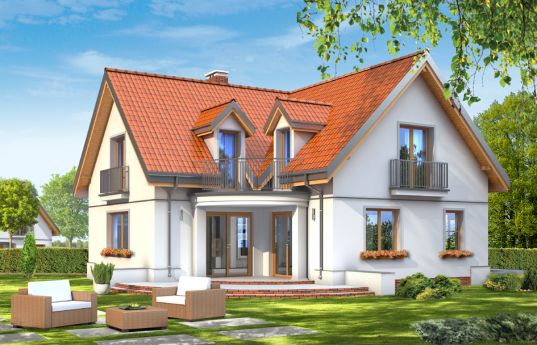

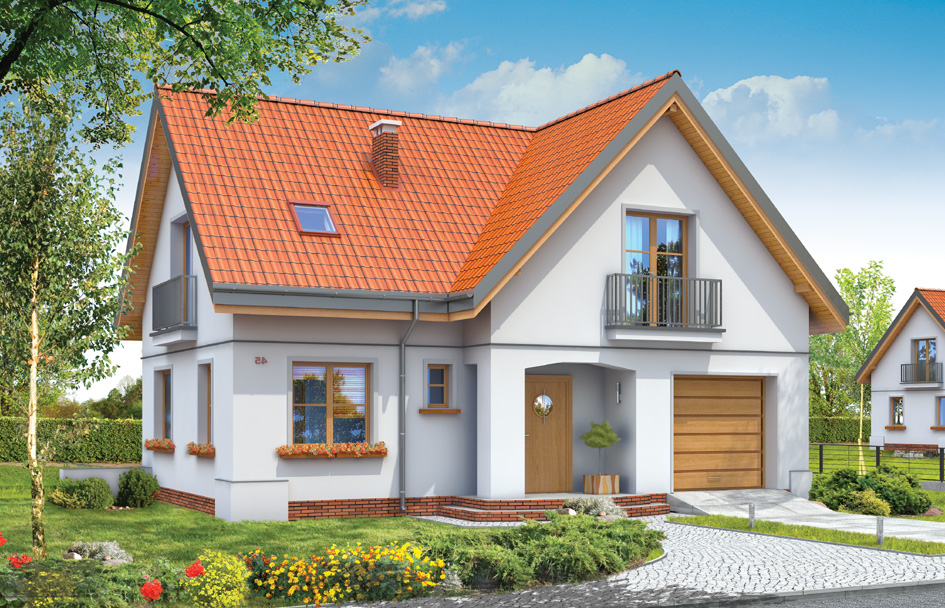

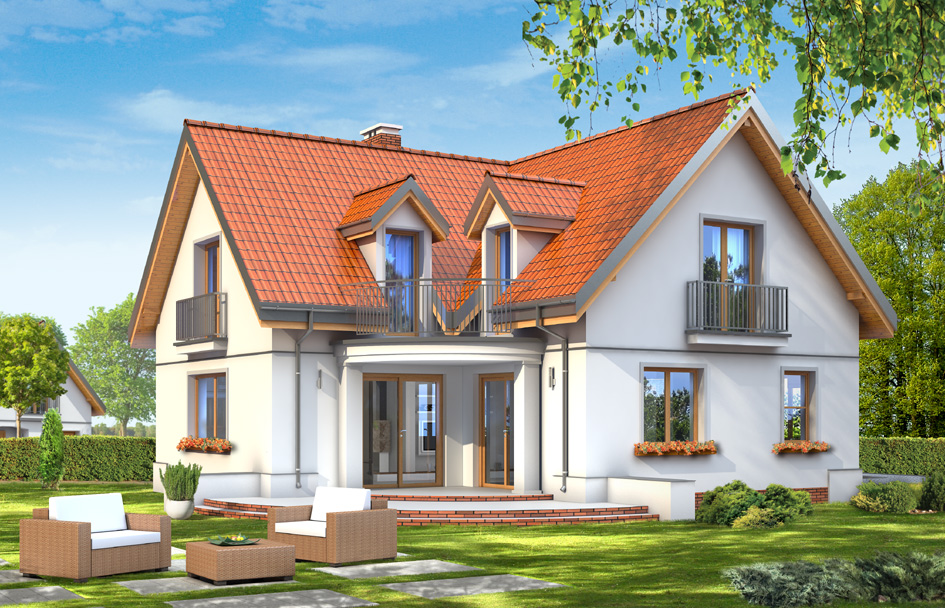

Elizabeth is a house for the family of 4 -5 people. Elizabeth is a storey house with usable attic, with a built-in garage for one car. The house has a shape of the letter "L" and is covered by a symmetrical gable roofs. Body of the building creates an intimate terrace corner from the garden side which is partly covered. The traditional form of home combined with frugal, contemporary details form consistent, very proportional external elevations. The arcade of the front door, the balconies and dormers diversified the body of the building. Large windows to the terrace provide good lighting and contact of the inside of the house and the garden. On the ground floor there is a daily space, with a separate living room, dining room, lounge and partially closed kitchen. There is also a place for the garage and boiler room. In the attic there are three large bedrooms with dressing-room, and a spacious bathroom. There is also a mirror version of this house plan.
Specifications:
- Cubature: 938 m3/ 33120 ft 3
- Built-up area: 118,56 m2/ 1275,71 ft2
- Total area: 207,7 m2/ 2234,85 ft2
- Net area: 145,09 m2 + garage/ 1561,17 ft2
- Usable area: 139,9 m2/ 1505,32 ft2
- Roof area: 210,36 m2/ 2263,47 ft
- Roof slope: 45 degrees
- Height of the building: 7,84 m (8,19 m with foundation)/ 25,72 ft (26,86 ft with foundation)
- Wide of the building: 11,51 m / 37,75 ft
- Length of the building: 12,61 m / 41,36 ft
- Minimum plot width: 18,61 m / 61,04 ft
- Minimum plot length: 20,61 m / 67,60 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - porotherm blocks 25 + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 45 200,00 EUR |
| The raw state closed | 64 500,00 EUR |
| The cost of finishing works | 48 600,00 EUR |
| Execution of turnkey home | 113 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Elizabeth - detailed file - mirror
House plan Elizabeth - detailed file
