Saga 2 house plan

Usable area: 143.14 m² / The cost of the realization: 130 800 EUR

Show mirror image

Price: 1000 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (0) Realizations (34) Detailed drawings List of materials Comments (0)

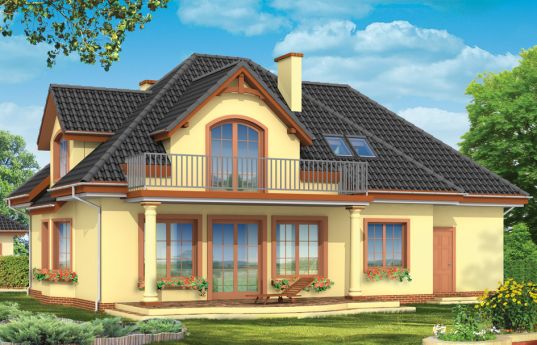

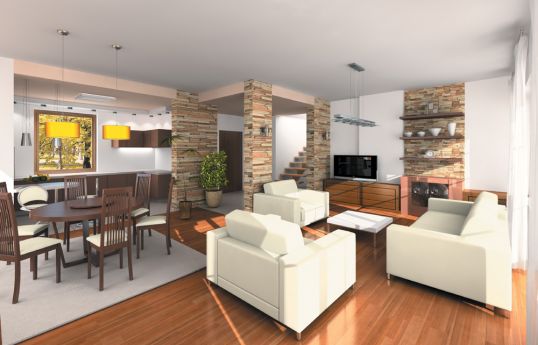

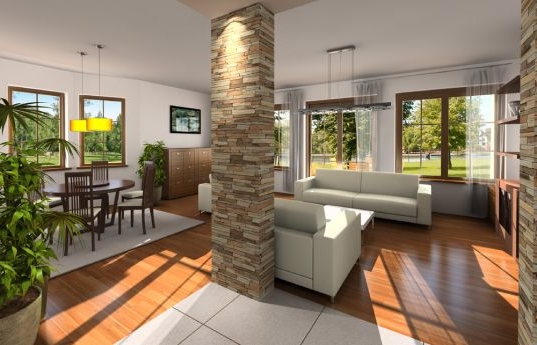

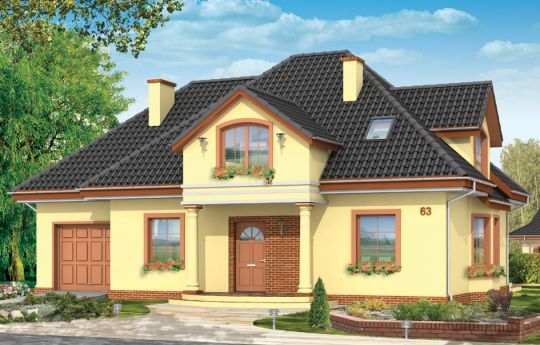

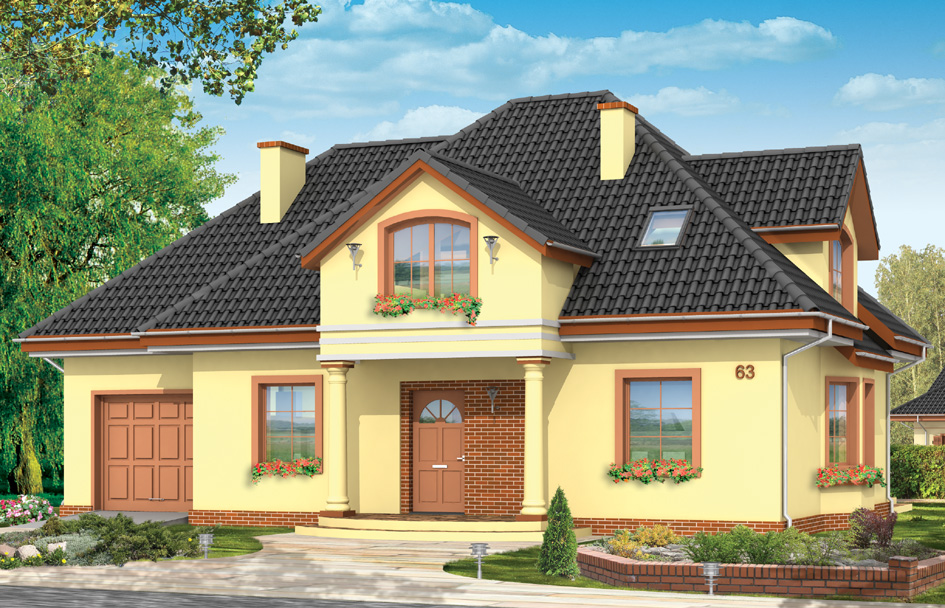

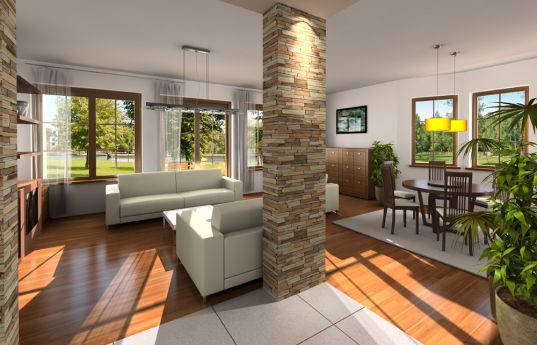

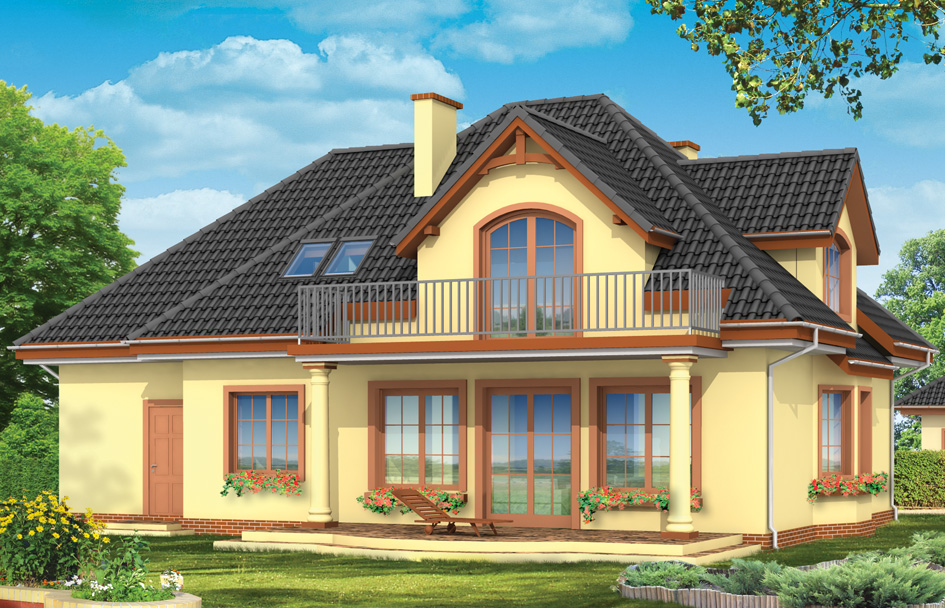

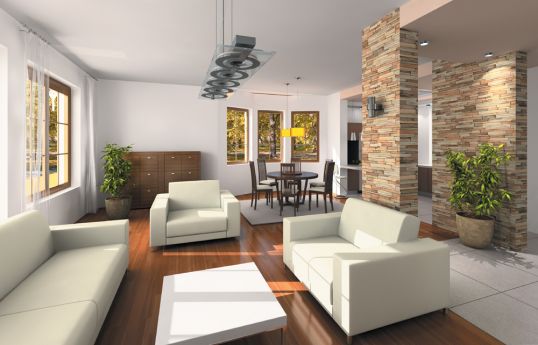

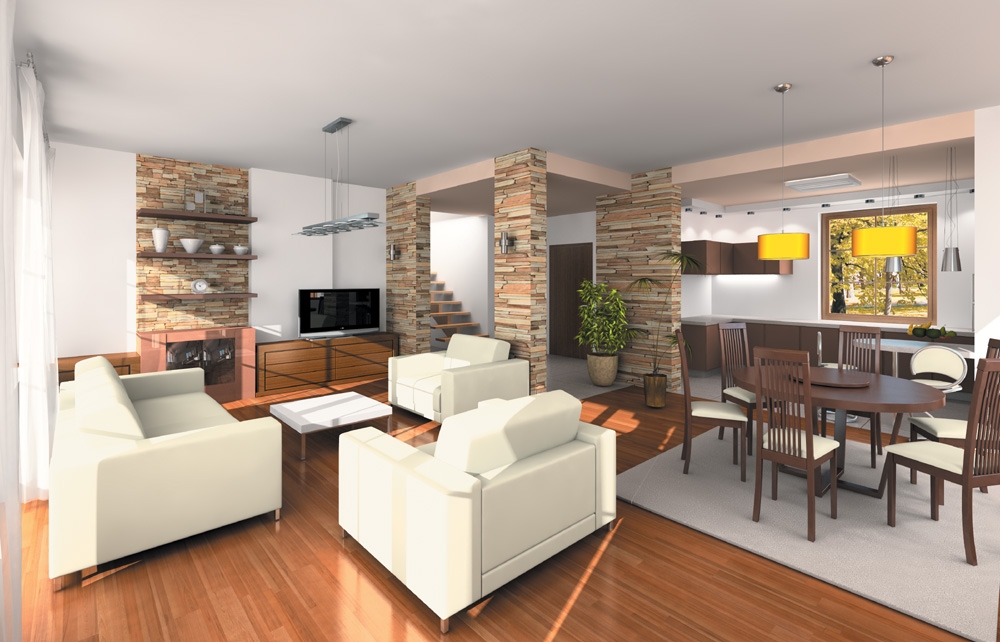

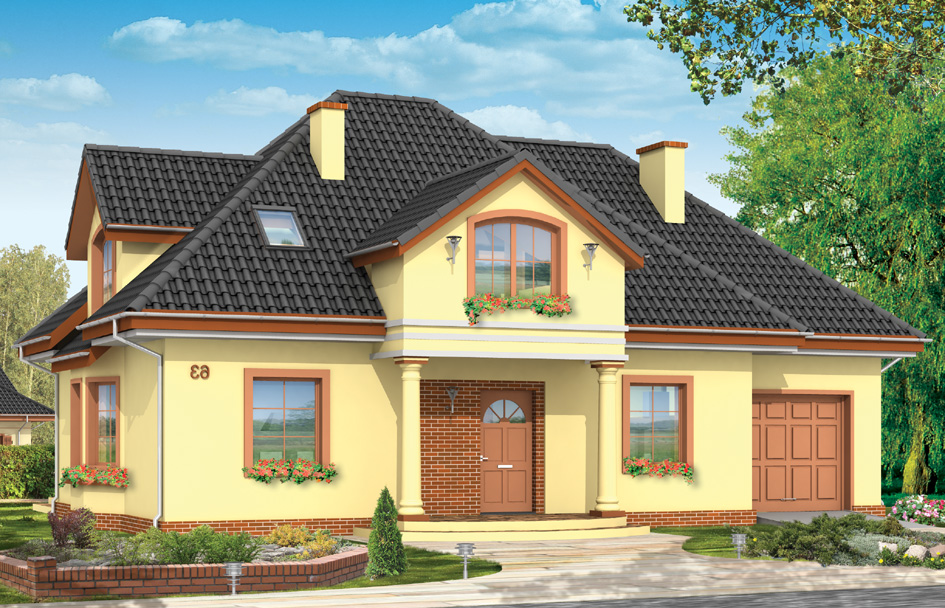

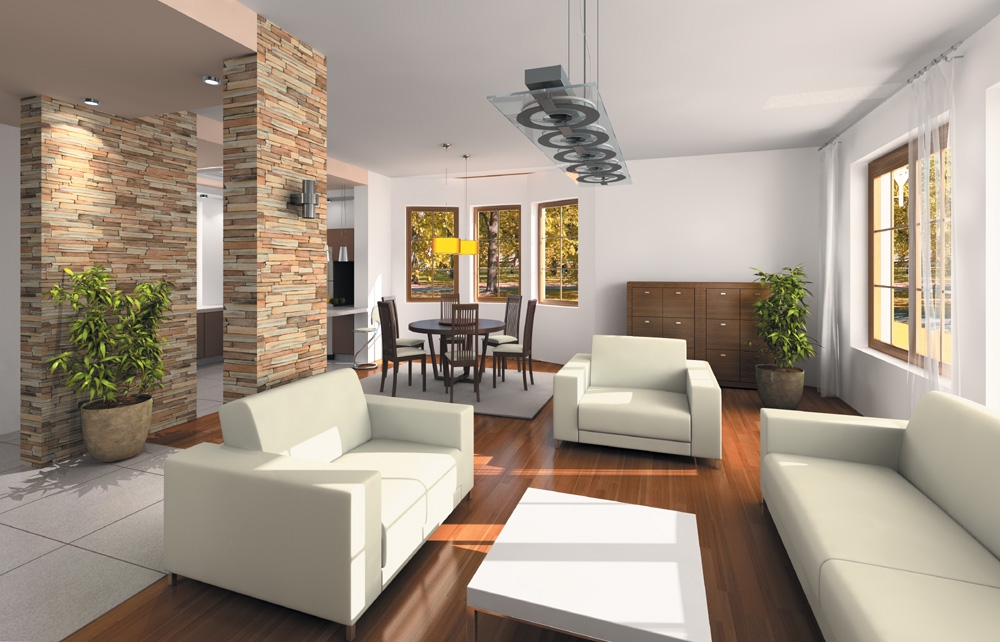

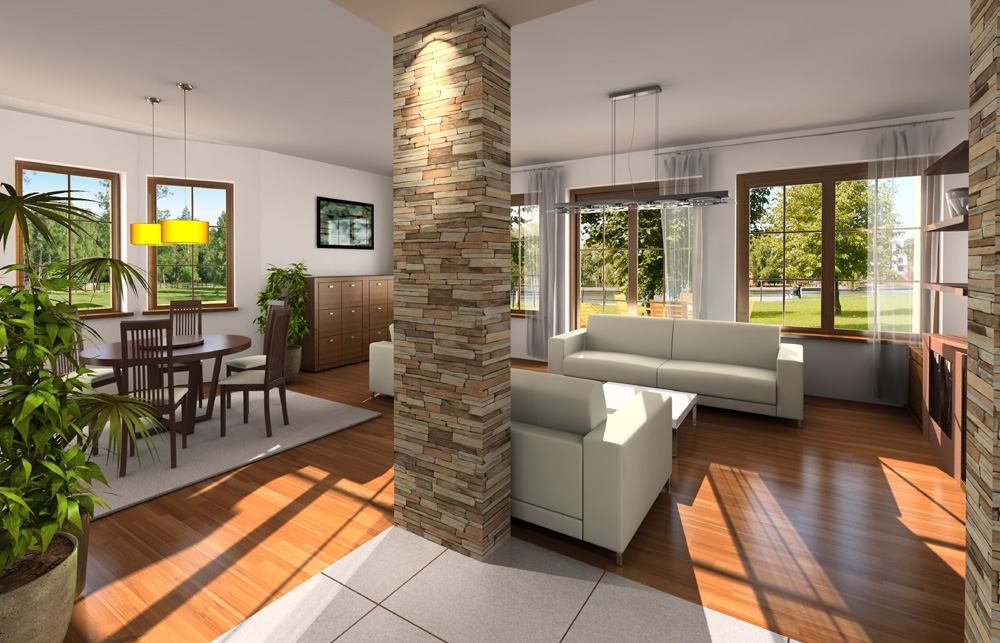

Saga 2 house plan is a variant version of house Saga. Detached house for a family of 4-5 people, with classic architecture, which refers to the Polish manor house. Inside the building, like in the Saga has a large lounge with dining area accented by with extensive glazed bay window opening the interior to the patio and garden. The spacious, partially open kitchen with hall increase the surface area. On the ground floor was designed an extra room, garage and boiler room. In the attic there are three bedrooms with wardrobes and a bathroom. In house Saga 2 the attic above the garage can be exploited for the room. There is also available mirror version of this house plan.

Specifications:

Cubature: 623 m³ / 21998,13 ft³
Built-up area: 131,33 m² / 1413,11 ft²
Total area: 219,53 m² / 2362,14 ft²
Net area: 185,1 m² / 1991,68 ft²
Usable area: 143,14 m² / 1540,19 ft²
Roof area: 226,8 m² / 2440,37 ft²
Roof slope: 42 degrees
Height of the building: 8,13 m (8,45 m with foundation) / 26,67 ft (27,72 ft with foundation)
Wide of the building: 15,21 m / 49,89 ft
Length of the building: 10,65 m / 34,93 ft
Minimum plot width: 22,21 m / 72,85 ft
Minimum plot length: 19,29 m / 63,27 ft
Height of rooms: 2,80 m / 9,18 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls - bilayer aerated concrete
Ceiling - Teriva
Roof - tile
Elevation - thin-layer plaster

The costs of implementing:

The raw state open	42 700,00 EUR
The raw state closed	65 100,00 EUR
The cost of finishing works	65 700,00 EUR
Execution of turnkey home	130 800,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Saga 2 - bills of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Saga 2 - detailed file - mirror

House plan Saga 2 - detailed file
