Topaz 3 house plan

Usable area: 229.38 m² / The cost of the realization: 178 500 EUR

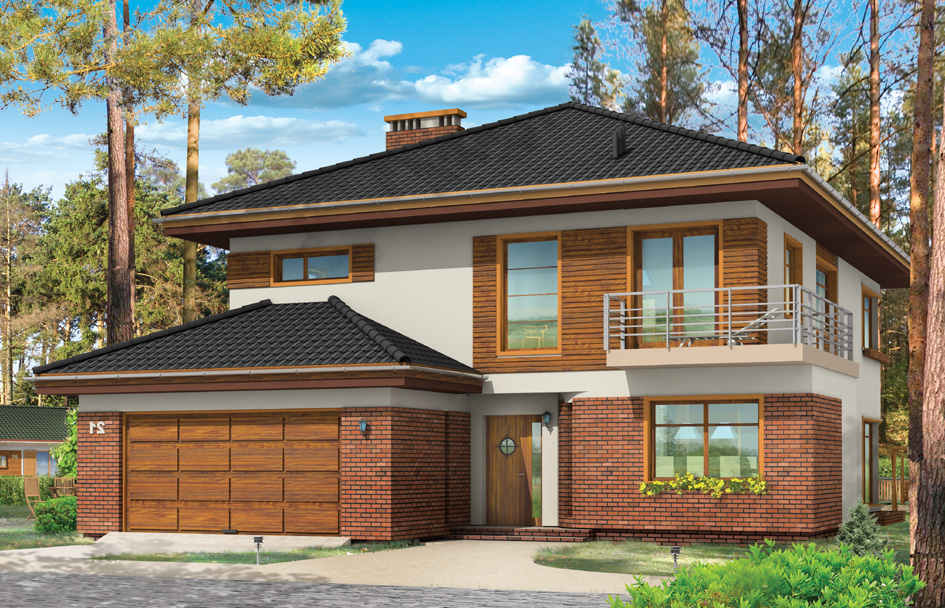

House plan Topaz 3 - front visualization

Show mirror image

Price: 1110 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (2) Realizations (41) Detailed drawings List of materials Comments (3)

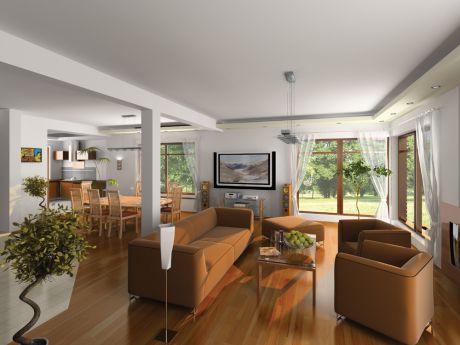

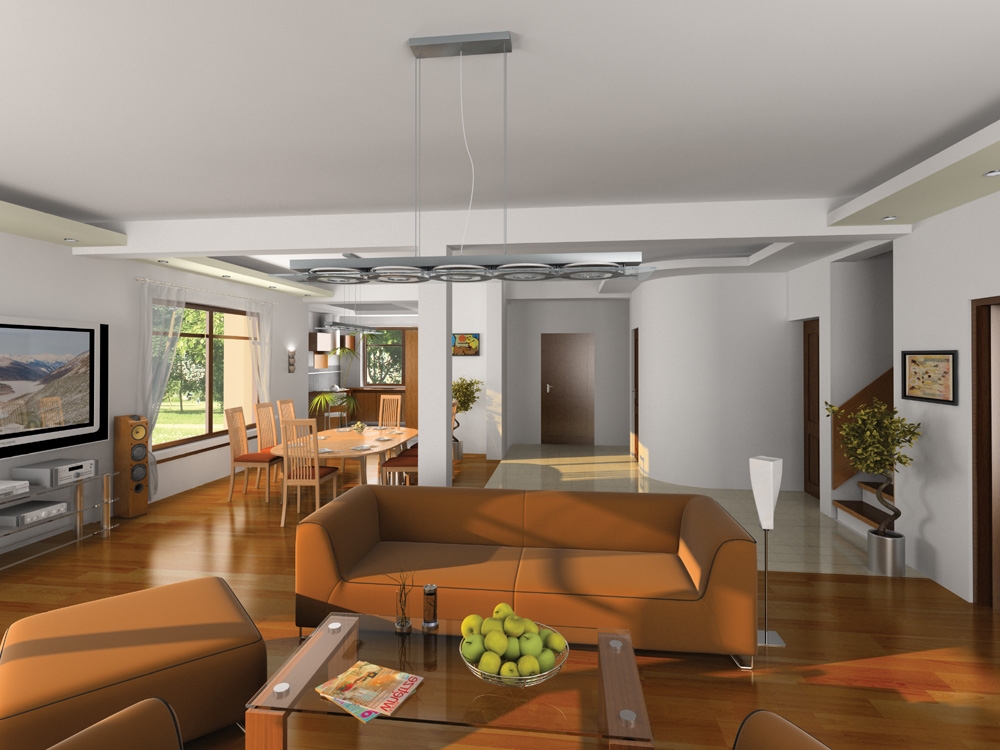

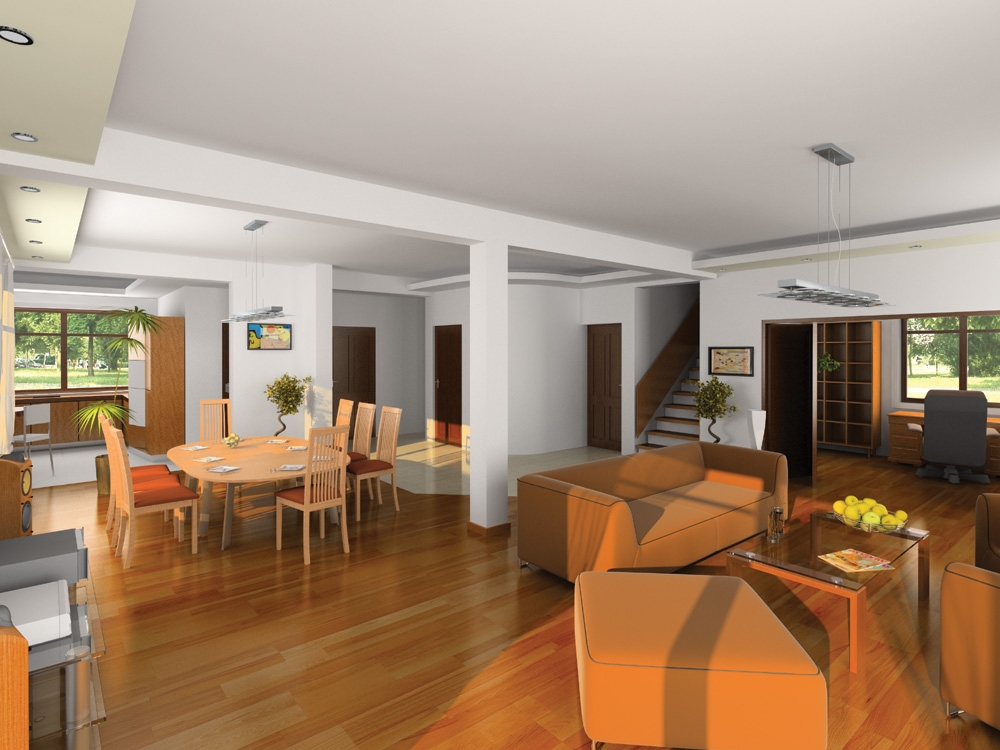

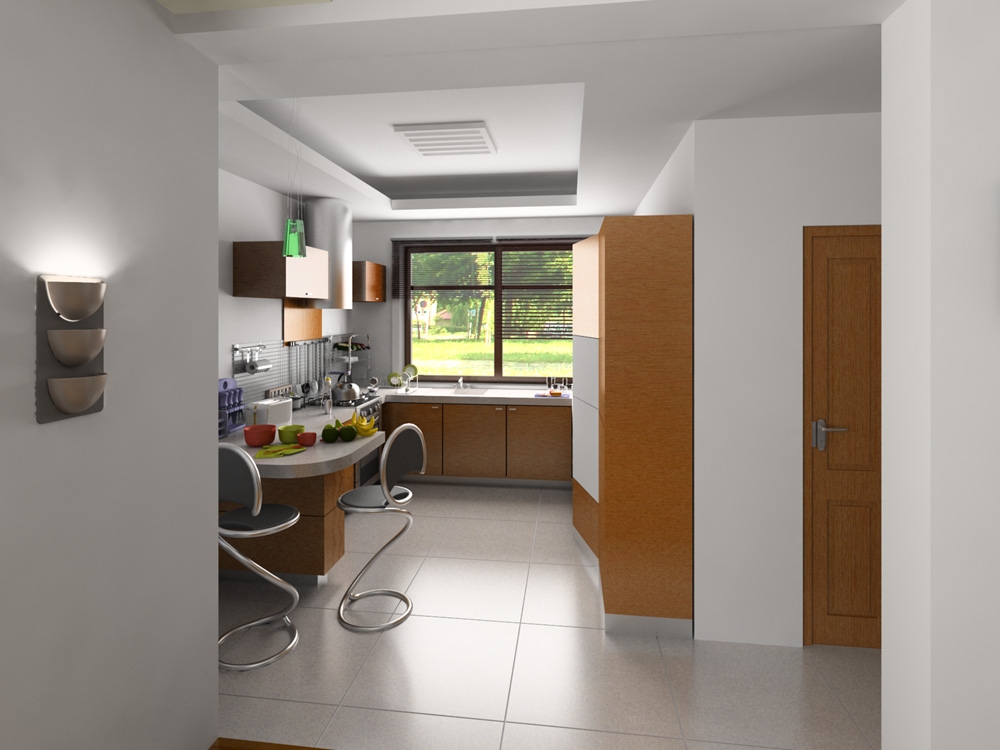

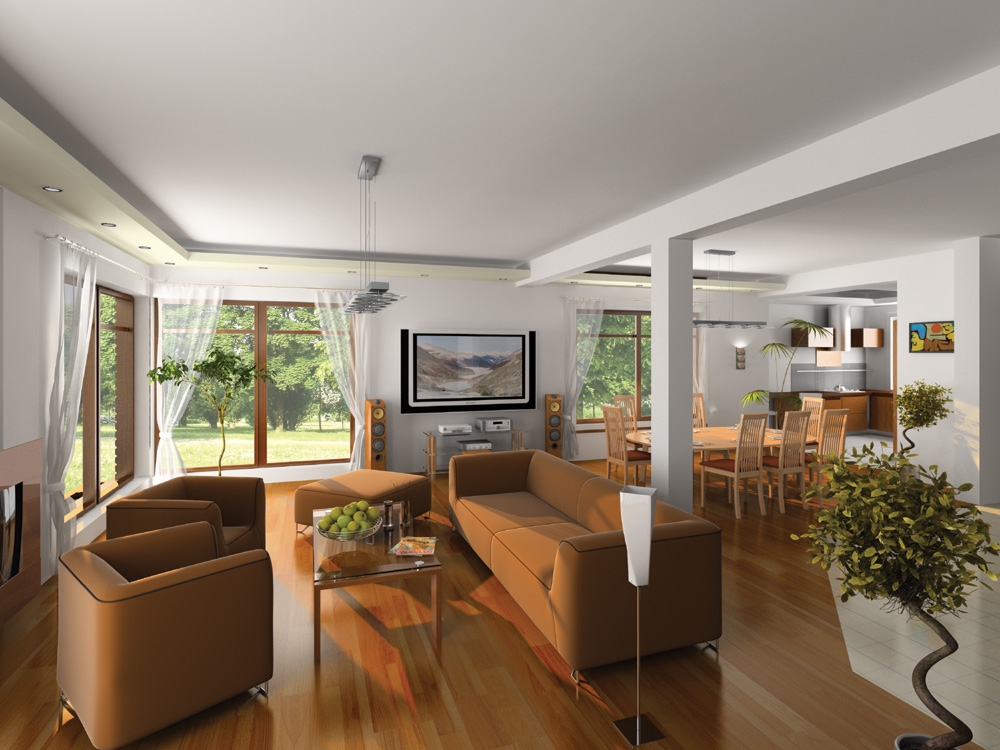

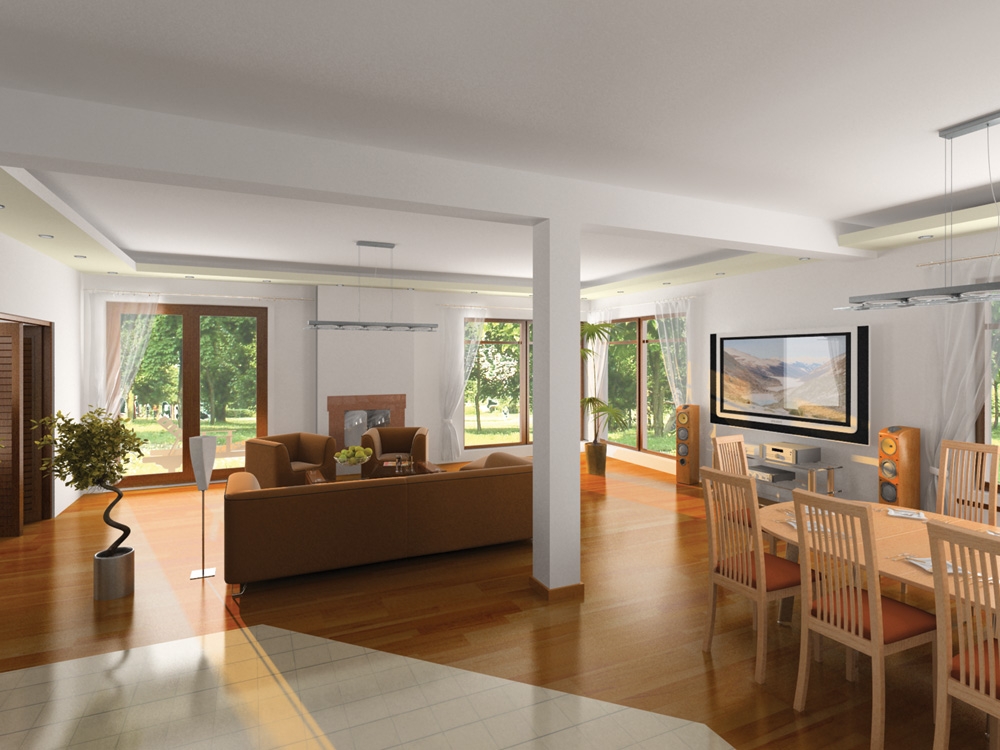

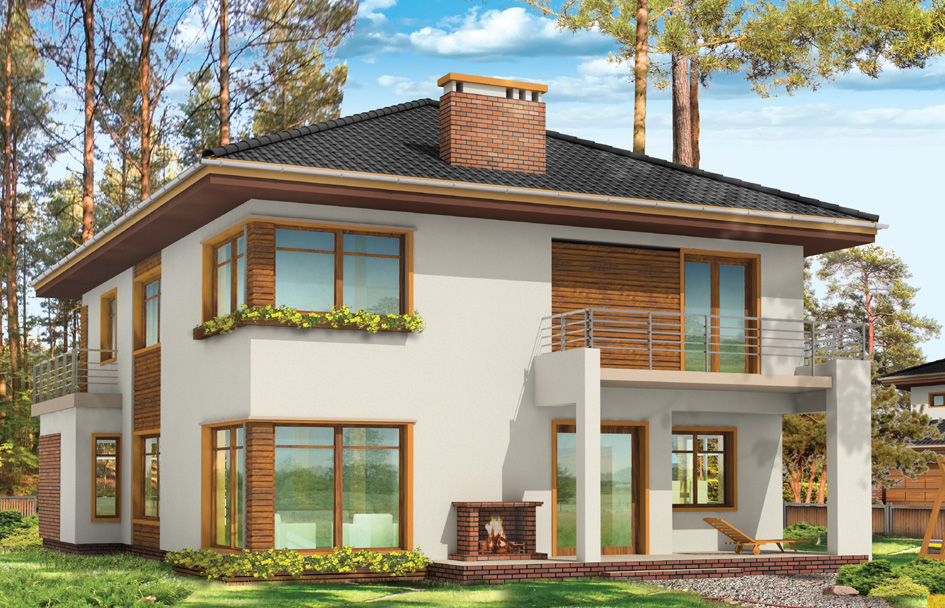

Topaz 3 house plan is a variant version of the popular house plan Topaz. This time with enlarged garage to the surface of 40.6 m2 and outdoor fireplace on the garden terrace. In Topaz 3 kitchen has been also enlarged. House combines tradition with modernity. Modern style and materials have been applied in a calm, understated manner. The interior is designed with divided into single, open space: living room, dining room and lounge are combined (with a partial opening to the kitchen and the possible opening on the study room), and the floor with the bedrooms. House has a lot of glass opening the interior to the surrounding garden. Simple in design shape of the building, despite the considerable area of the house reduces the cost of construction. There is also available mirror version of this house plan.

Specifications:

Cubature: 1030 m³ / 36369,3 ft³
Built-up area: 186,37 m² / 2005,34 ft²
Total area: 344,57 m² / 3707,57 ft²
Net area: 242,98 m²+ garage / 2614,46 ft² + garage
Usable area: 229,38 m² / 2468,13 ft²
Roof area: 278,24 m² / 2993,86 ft²
Roof slope: 25 degrees
Height of the building: 9,51 m (9,81 m with foundation) / 31,19 ft (32,18 ft with foundation)
Wide of the building: 14 m / 45,92 ft
Length of the building: 16,80 m / 55,10 ft
Minimum plot width: 20 m / 65,6 ft
Minimum plot lengthi: 25,63 m / 84,07 ft
Height of rooms: 3,0 i 2,7 m / 9,84 ft and 8,86 ft

Materials:

Foundations – poured concrete
External walls - bilayer porotherm 25 or U220 + 15 mineral wool
Ceiling - monolithic reinforced concrete slab
Roof - tile or meatal roofing tile
Elevation - thin-layer plaster

The costs of implementing:

The raw state open	57 900,00 EUR
The raw state closed	84 500,00 EUR
The cost of finishing works	94 000,00 EUR
Execution of turnkey home	178 500,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Topaz 3 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Topaz 3 - detailed file

House plan Topaz 3 - detailed file - mirror
