Villa on Borowa

Usable area: 206.93 m² / The cost of the realization: 192 400 EUR

Show mirror image

Price: 1250 EUR

Description Plans Elevations Situations Animation Variants (3) Realizations (33) Detailed drawings List of materials Comments (3)

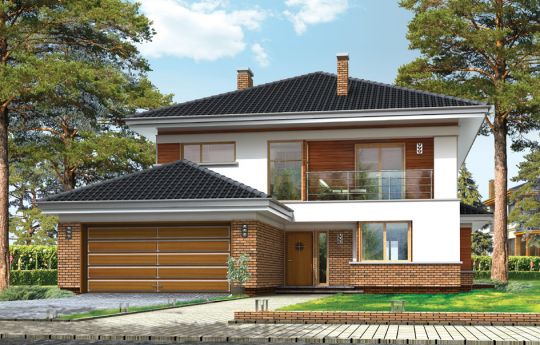

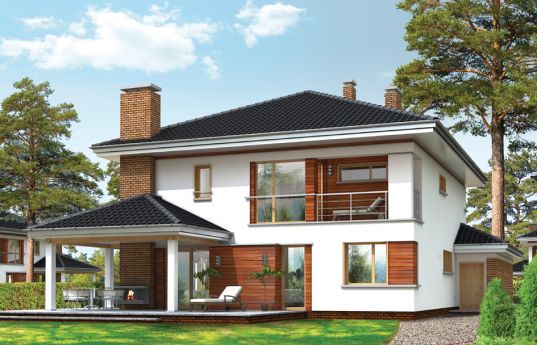

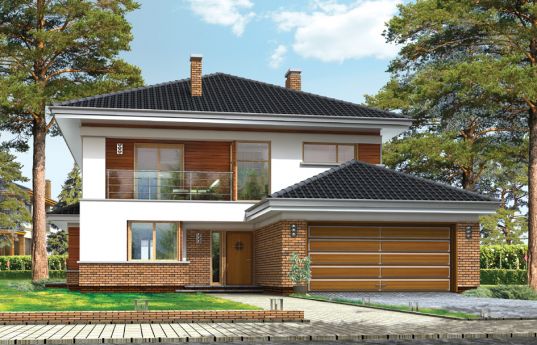

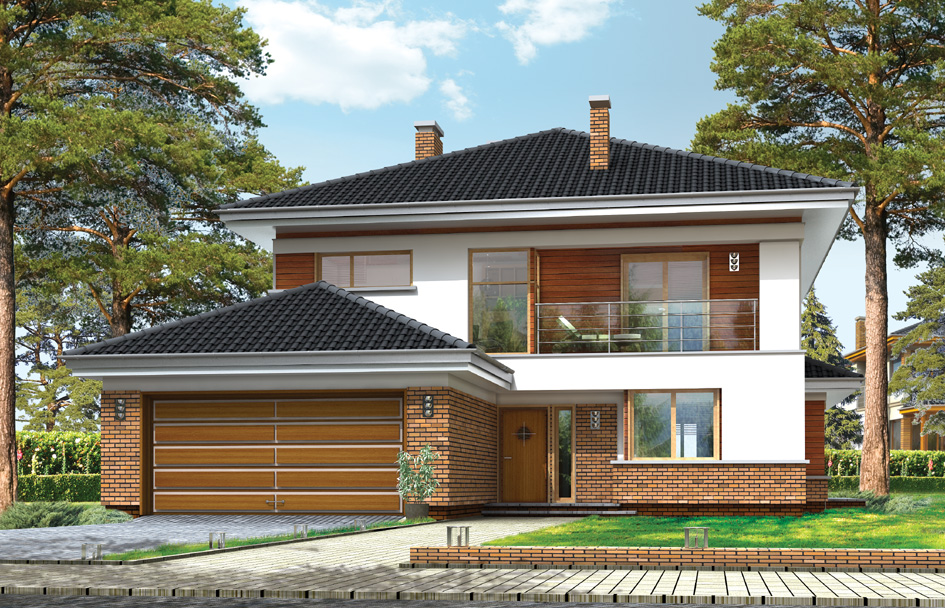

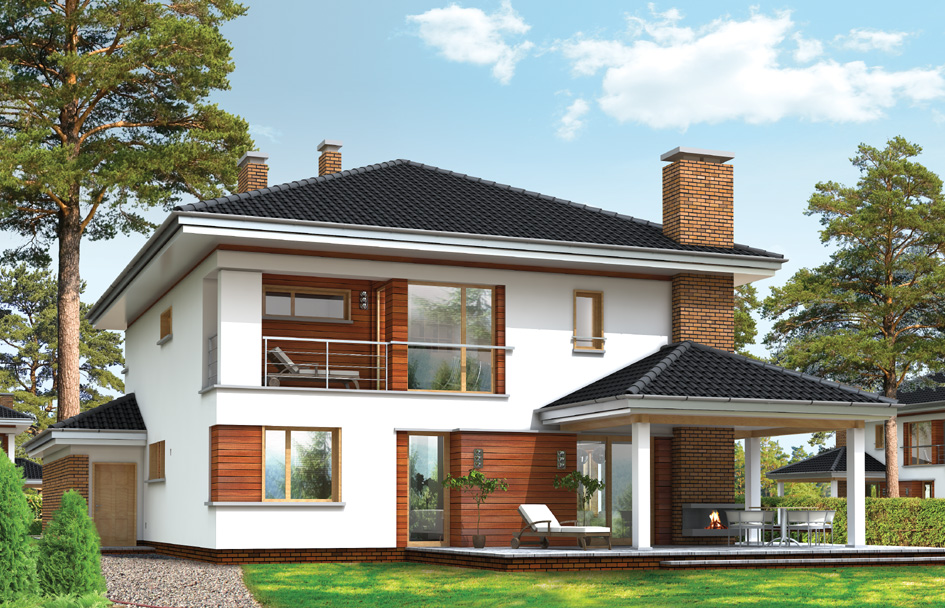

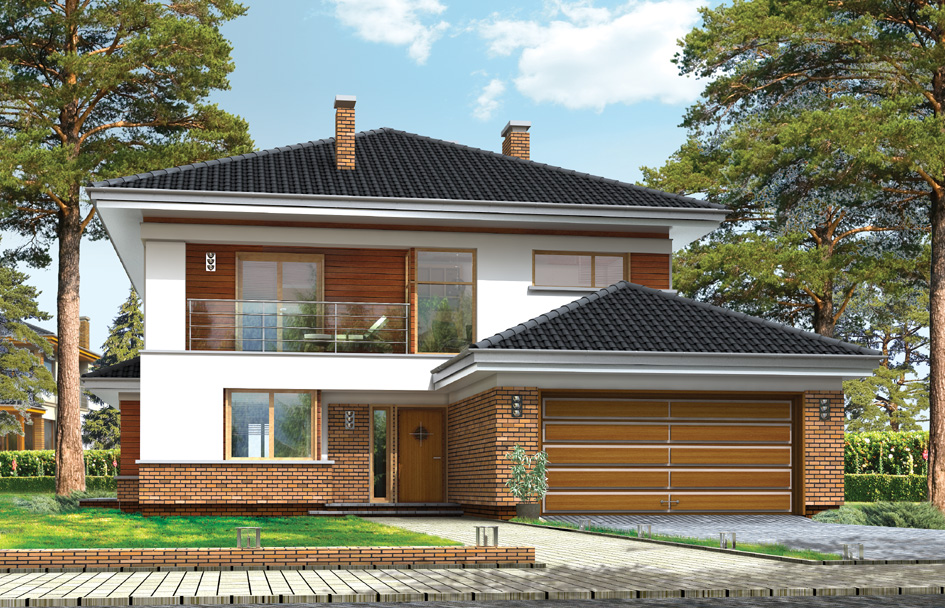

Villa on Borowa is storey family house for a family of four-six people, covered with a hipped roof. House is a suburban villa of modern but quiet architecture. Compact shape of the building with built another garage and large roofed arcade on the back of the house is decorated with interesting clinker and wooden cladding elevation, loggias and entrance arcades. Massive ornate chimney of internal and external fireplace, and corner windows are additional decorations of solid. All elements form a cohesive, peaceful in composition whole. On the ground floor is large living room with dining area and lobby, with a partially open kitchen and an extra room - study room or a guest bedroom. On the first floor we have bedrooms, with a separate parents’ apartment with bathroom, dressing room and balcony overlooking the garden. On the ground floor for by a vide glazing from living room exit to the large arcade and garden terrace was planned. There is also available mirror version of this house plan.

Specifications:

Cubature: 938 m³ / 33120,78 ft³
Built-up area: 187,57 m² / 2018,25 ft²
Total area: 324,85 m² / 3495,39 ft²
Net area: 213,87 m²+ garage / 2301,24 ft² + garage
Usable area: 206,93 m² / 2226,57 ft²
Roof area: 314,11 m² / 3379,82 ft²
Roof slope: 25 degrees
Height of the building: 9,56 m (9,88 m with foundation) / 31,36 ft (32,41 ft with foundation)
Wide of the building: 13,95 m / 45,76 ft
Length of the building: 18,18 m / 59,63 ft
Minimum plot width: 20,95 m / 68,72 ft
Minimum plot length: 28,33 m / 92,92 ft
Height of rooms: 3,0 i 2,7 m / 9,84 and 8,86 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - Teriva
Roof - tile
Elevation - thin-layer plaster on polystyrene

The costs of implementing:

The raw state open	61 200,00 EUR
The raw state closed	92 900,00 EUR
The cost of finishing works	99 500,00 EUR
Execution of turnkey home	192 400,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Willa na Borowej - bill of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Villa on Borowa - detailed file

House plan Villa on Borowa - detailed file - mirror
