Usable area: 299.13 m2 / The cost of the realization: 205 600 EUR
Show mirror image
Price: 1420 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Realizations (8) Detailed drawings
List of materials
Comments (3)

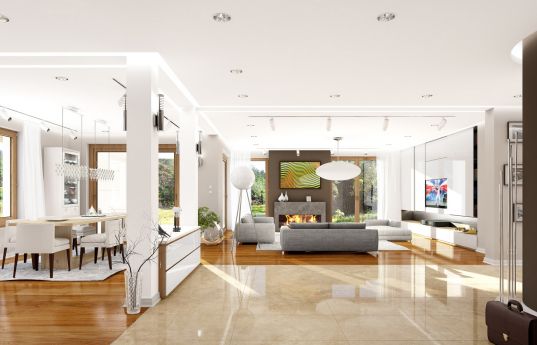

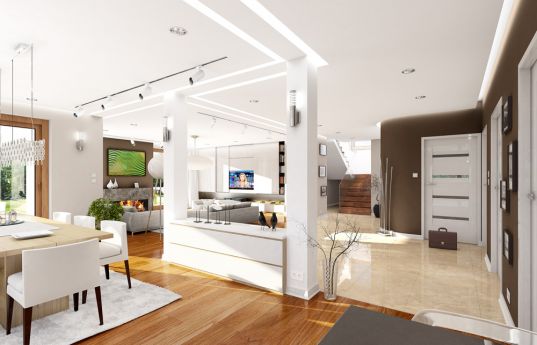

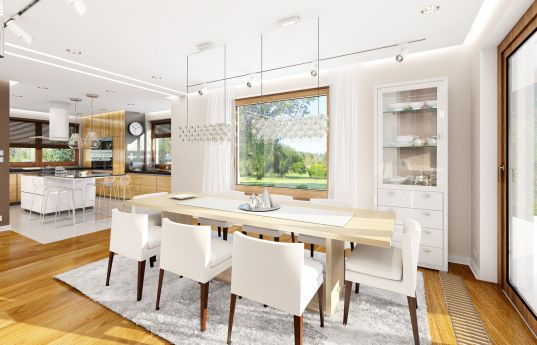

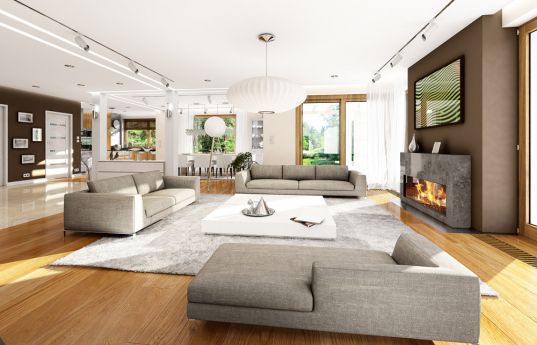

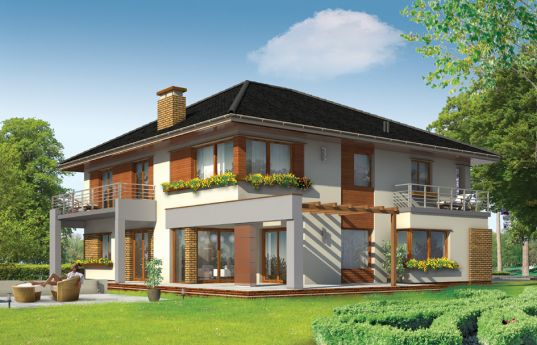

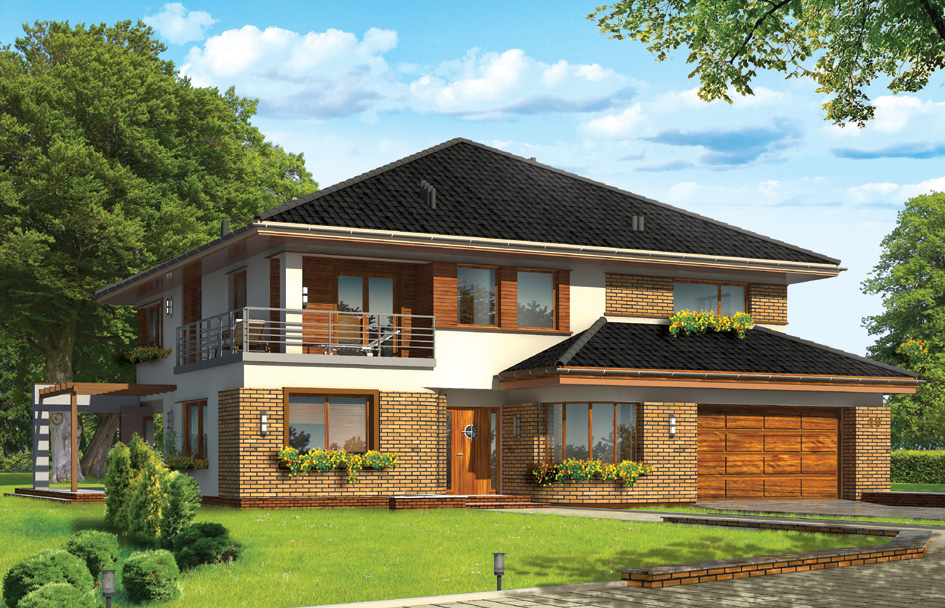

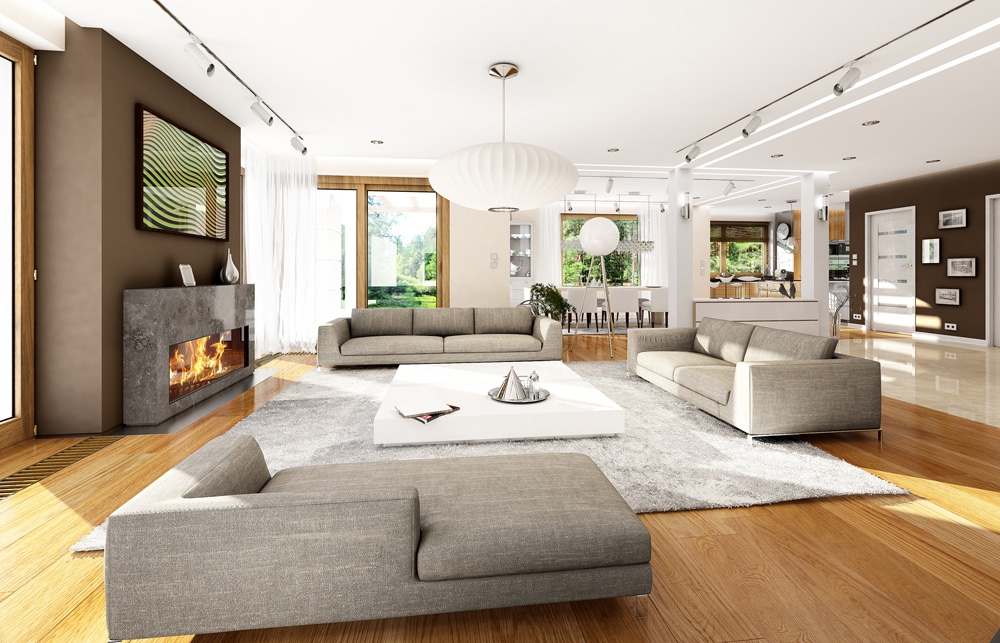

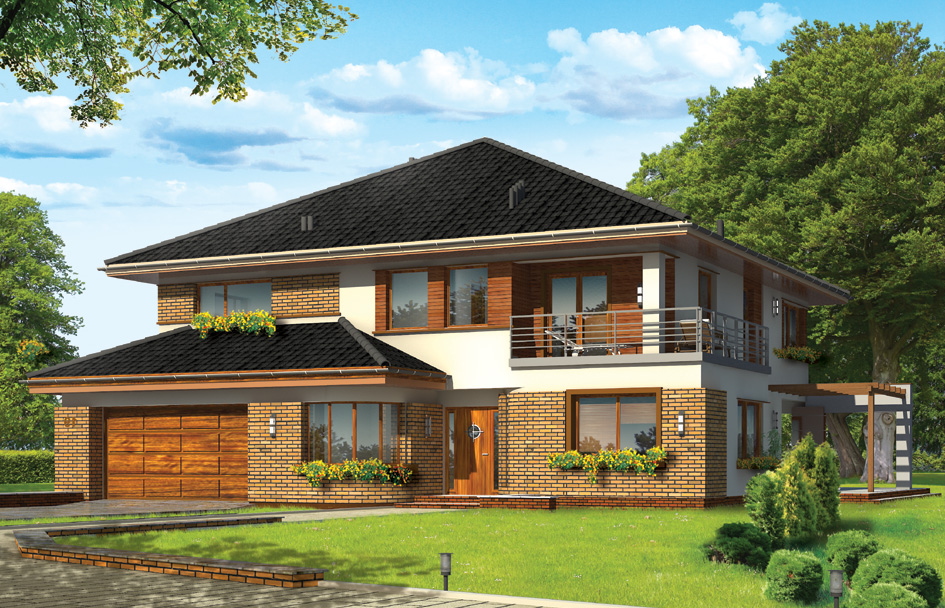

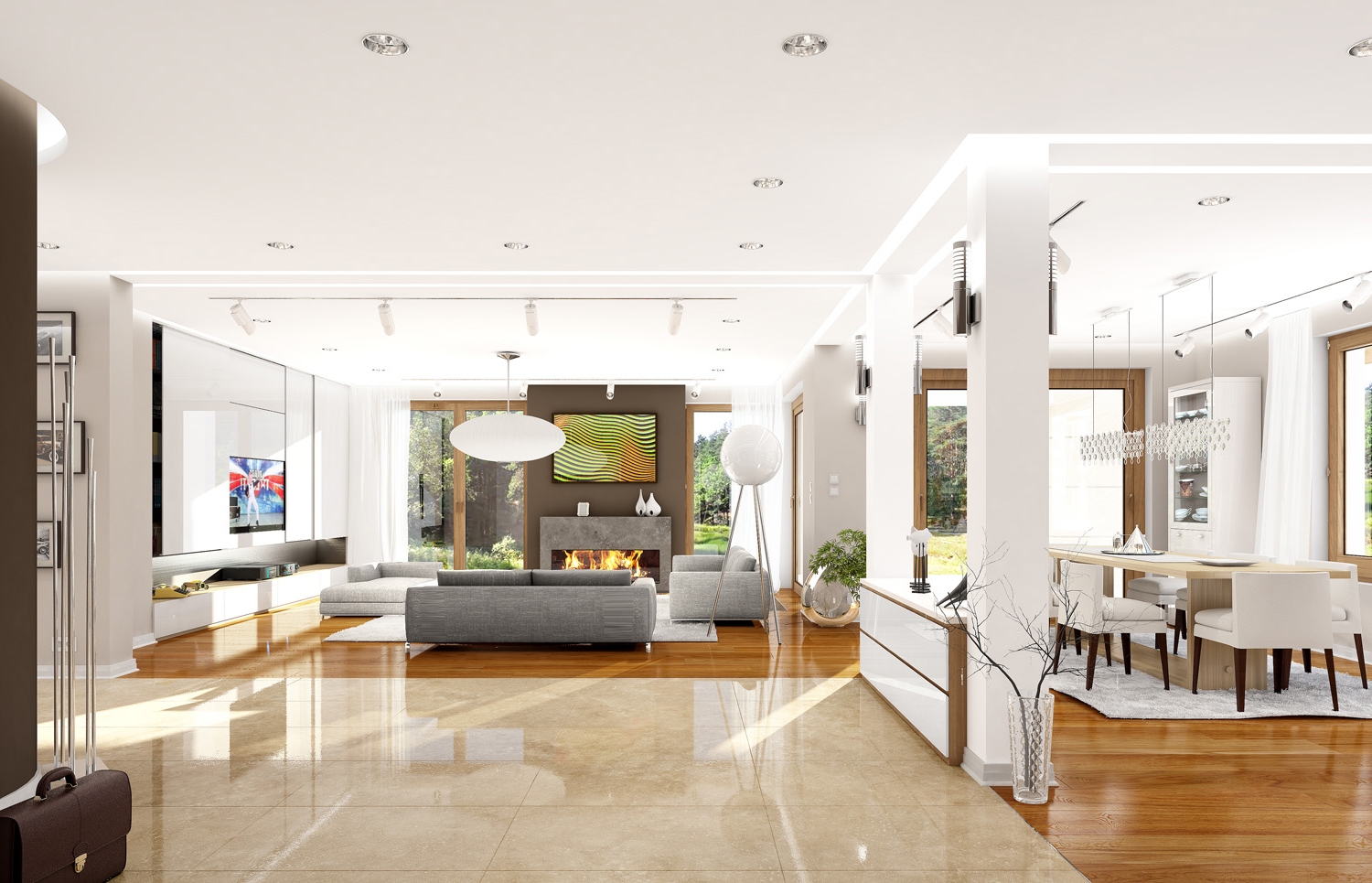

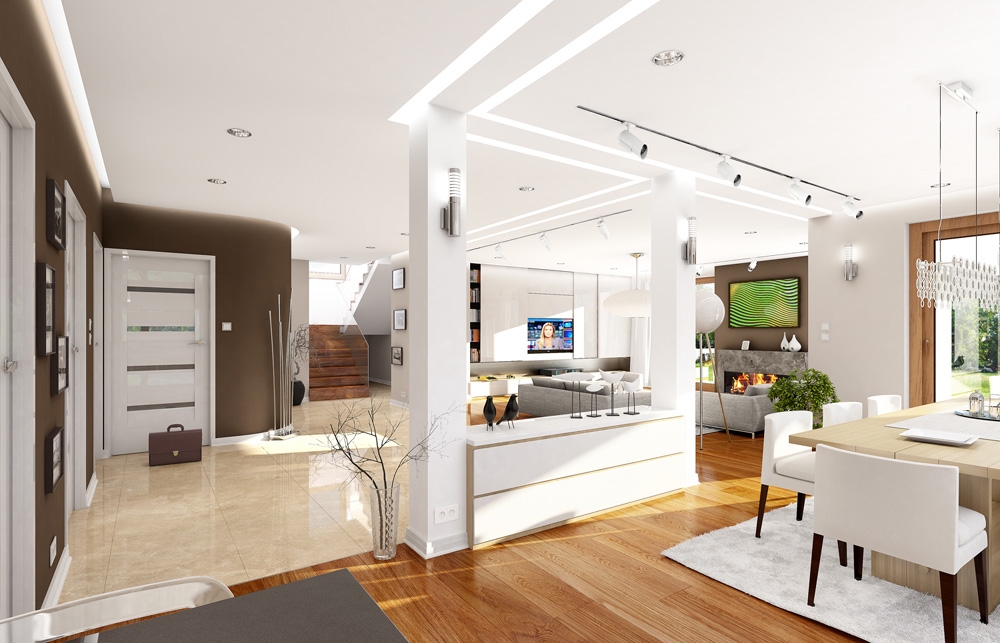

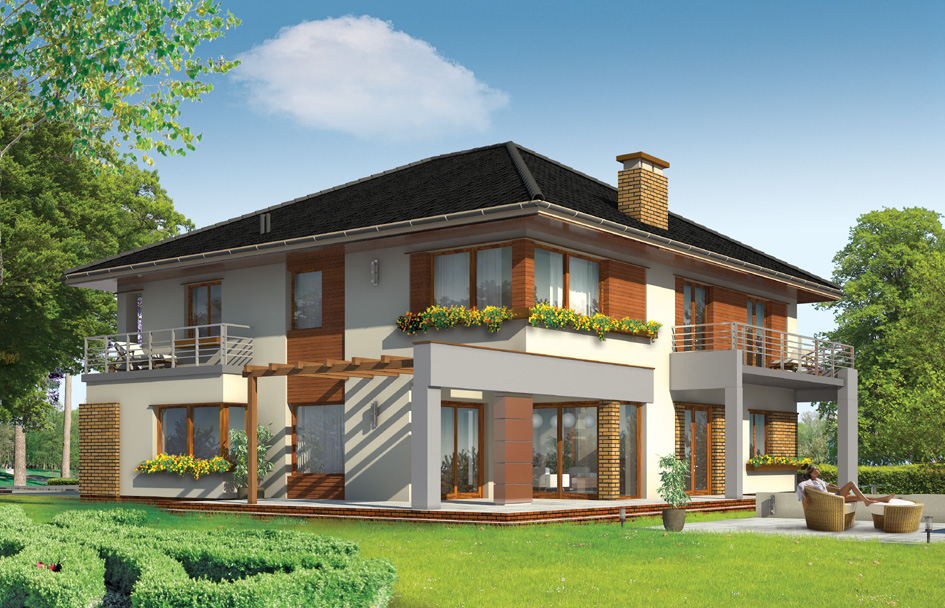

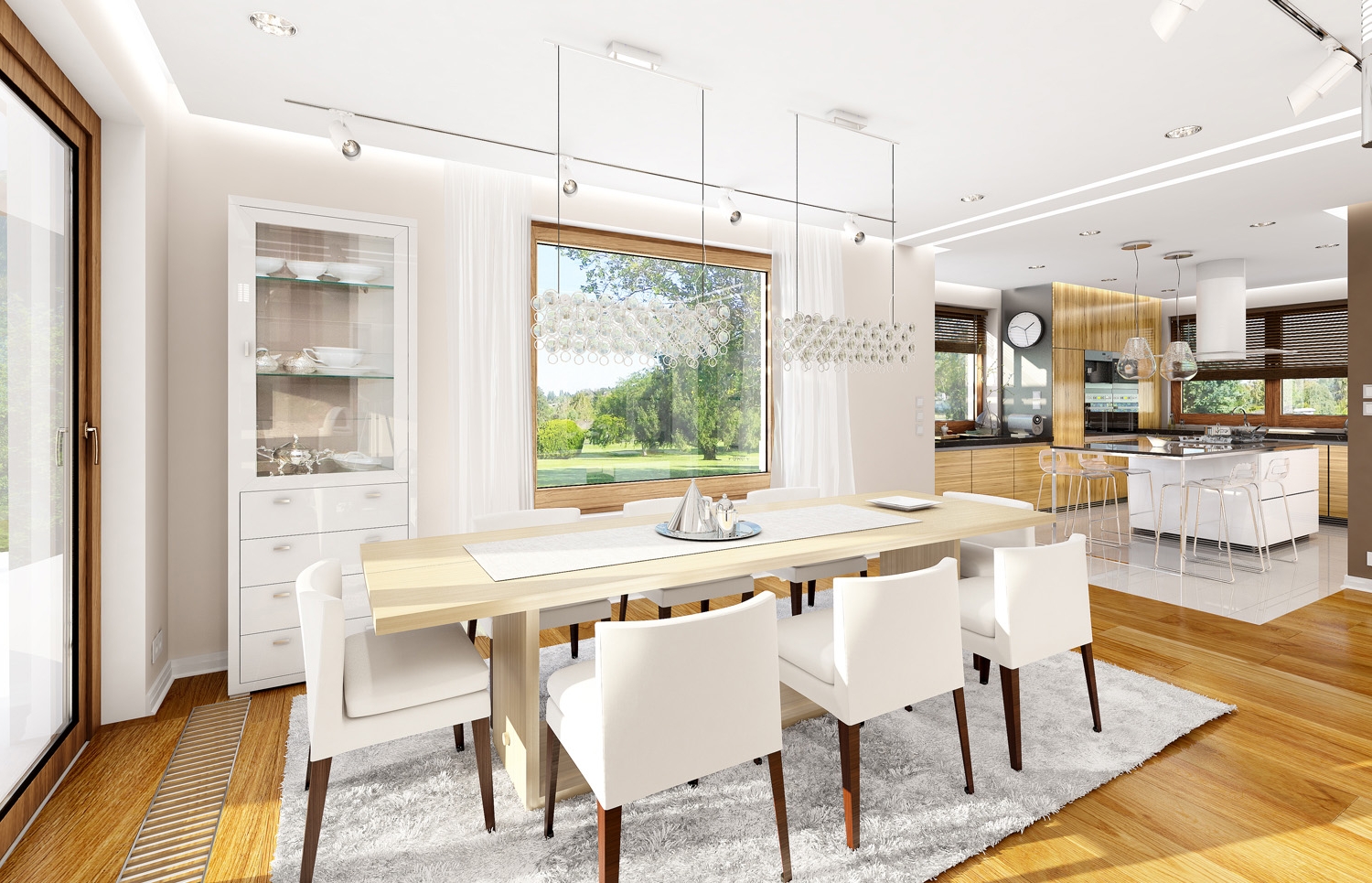

Viola house is a storey building for a family of five-of six people. This is a storey house covered with hipped roof with ceramic tiles. Exterior appearance of the house is decorated in style of suburban luxury villa - modern with tradition elements. Interior the house is formed with division into a general part, living area on the ground floor, with living room, dining room, semi-open lobby with grand staircases, and private, night part - on the first floor, with four bedrooms and an additional room. In Viola parents' bedroom is a separate apartment with its own separate bathroom and dressing room. On the ground floor besides the daily part consisting of living room, dining room, and lobby have been also designed study room and the extra room - a guest bedroom. From the living room and dining room have been planned large glazed opening house to the garden, by two independent terraces, arcades and pergola. There is also available mirror version of this house plan.
Specifications:
- Cubature: 1305 m3 / 46079,55 ft3
- Built-up area: 225,36 m2 / 2424,87 ft2
- Total area: 422,53 m2 / 4546,42 ft2
- Net area: 309,38 m2 + garage / 3328,93 ft2 + garage
- Usable area: 299,13 m2 / 3218,64 ft2
- Roof area: 344,4 m2 / 3705,74 ft2
- Roof slope: 25 and 30 degrees
- Height of the building: 9,91 m (10,21 m with foundation) / 32,50 ft (33,49 ft with foundation)
- Wide of the building: 16,89 m / 55,40 ft
- Length of the building: 16,49 m / 54,09 ft
- Minimum plot width: 24,93 m / 81,77 ft
- Minimum plot length: 25,33 m / 83,08 ft
- Height of rooms: 3,04 i 2,8 m / 9,97 and 9,18 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - monolithic reinforced concrete
- Roof - tile
- Elewacje - Elevation - thin-layer plaster on polystyrene and fragments of clinker
The costs of implementing:
| The raw state open | 80 300,00 EUR |
| The raw state closed | 112 300,00 EUR |
| The cost of finishing works | 93 400,00 EUR |
| Execution of turnkey home | 205 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Wiola - detailed drawings
House plan Wiola - detailed drawings - mirror
