Usable area: 112.1 m2 / The cost of the realization: 109 200 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (33) Detailed drawings
List of materials
Comments (3)

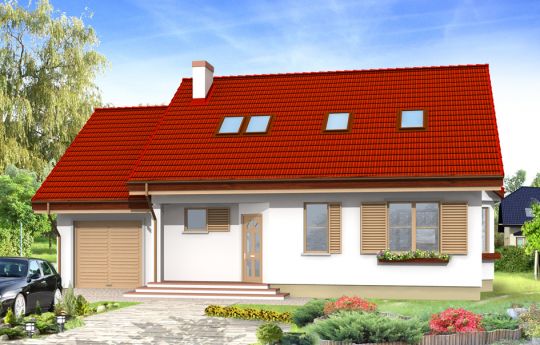

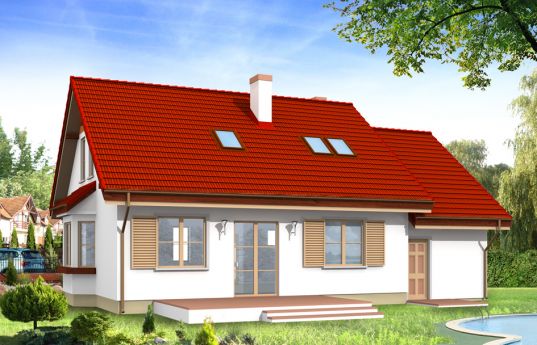

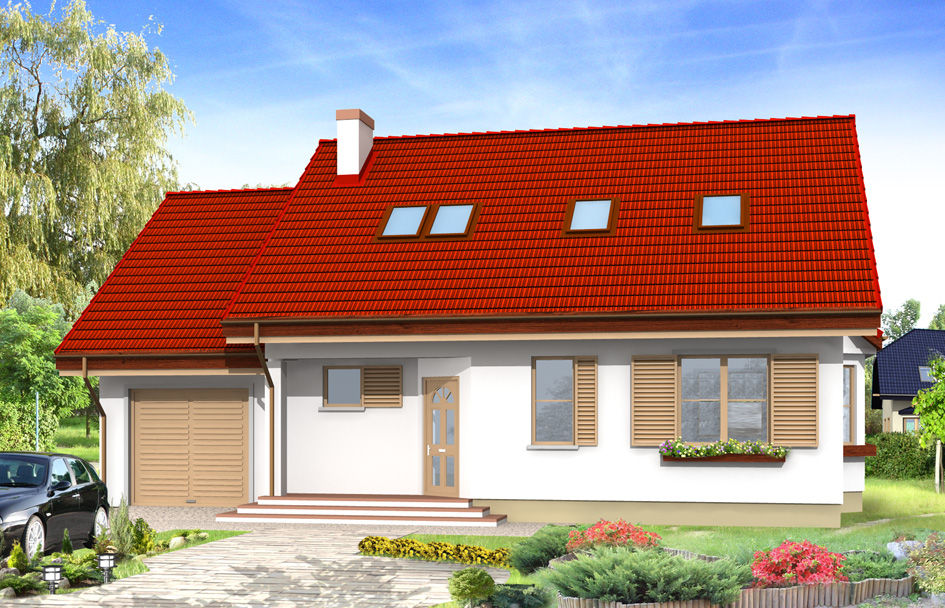

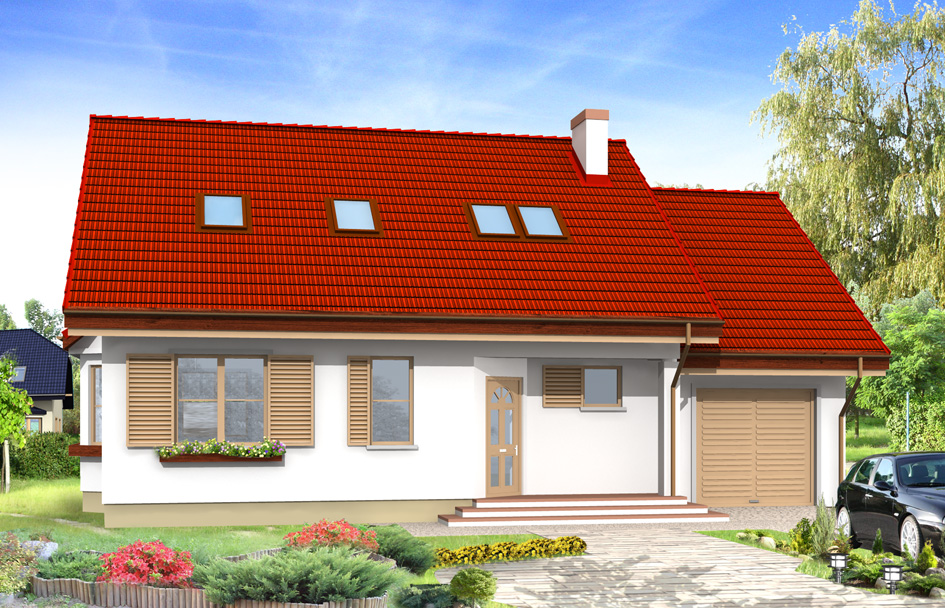

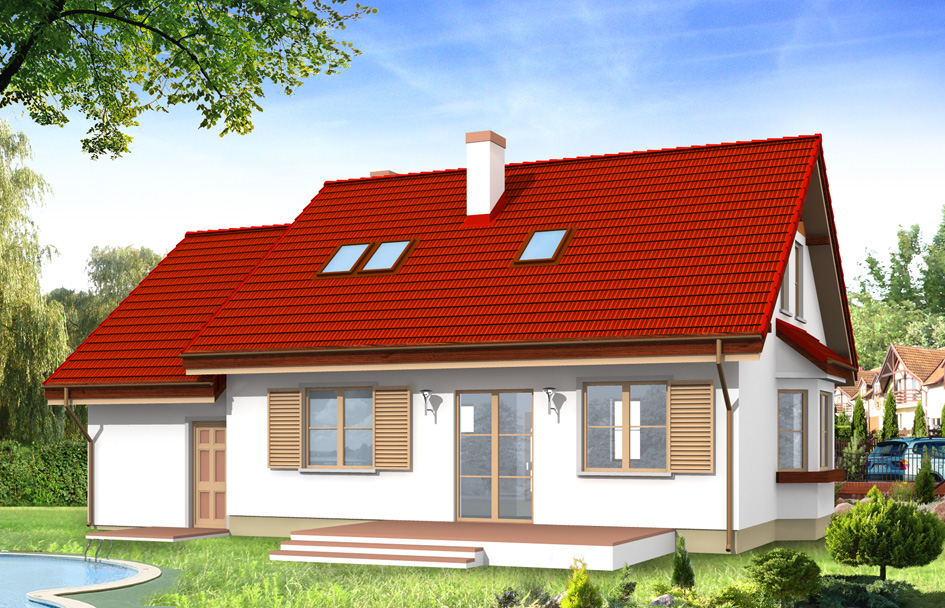

Natty is a single-family house with attic and garage. Suitable for a family of four to five people. House is small, compact and inexpensive to build. The house is also cheap in later exploitation. At the same time it is very functional. Inside the house there are all necessary rooms, and even more - on the ground floor is an extra room with a separate bathroom (e.g. bedroom for parents or grandparents). We have a mirror version of the Natty house plan.
Specifications:
- Cubature: 516 m3 / 18219,96 ft3
- Built-up area: 118,73 m2 / 1277,53 ft2
- Total area: 167,94 m2 / 1807,03 ft2
- Net area: 135,68 m2 / 1459,92 ft2
- Usable area: 112,10 m2 / 1206,20 ft2
- Roof area: 214,70 m2 / 2310,17 ft2
- Roof slope: 38 degrees
- Height of the building: 7,20 m (7,60 m with foundation) / 23,62 ft (24,93 ft with foundation)
- Wide of the building: 14,11 m / 46,28 ft
- Length of the building: 9,18 m / 30,11 ft
- Minimum plot width: 22,11 m / 72,52 ft
- Minimum plot length: 17,18 m / 56,35 ft
- Height of rooms: 2,68 m / 8,79 ft
Materials:
- Foundations - poured concrete
- External walls – brick walls - aerated concrete + polystyrene + thin-layer plaster
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer acrylic plaster
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 35 100,00 EUR |
| The raw state closed | 53 800,00 EUR |
| The cost of finishing works | 55 500,00 EUR |
| Execution of turnkey home | 109 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Natty - detailed file - mirror
House plan Natty - detailed file
