Clover house plan

Usable area: 127.41 m2   /   The cost of the realization: 113 400 EUR

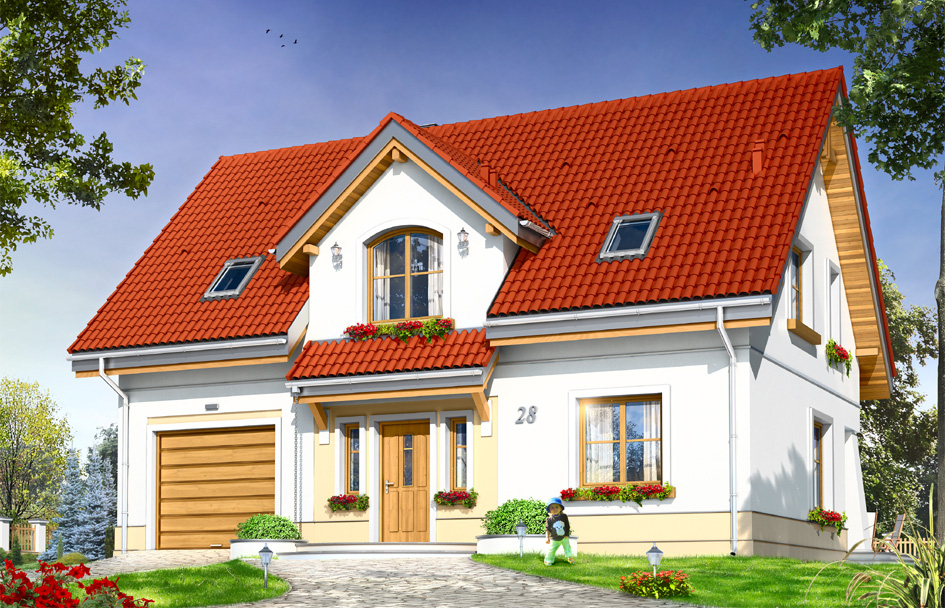

House plan Clover - front visualization

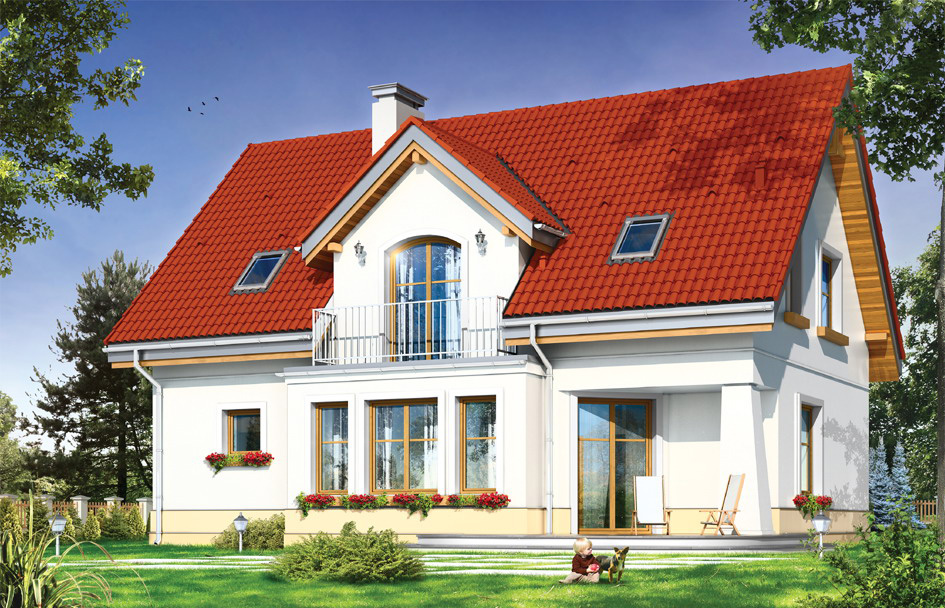

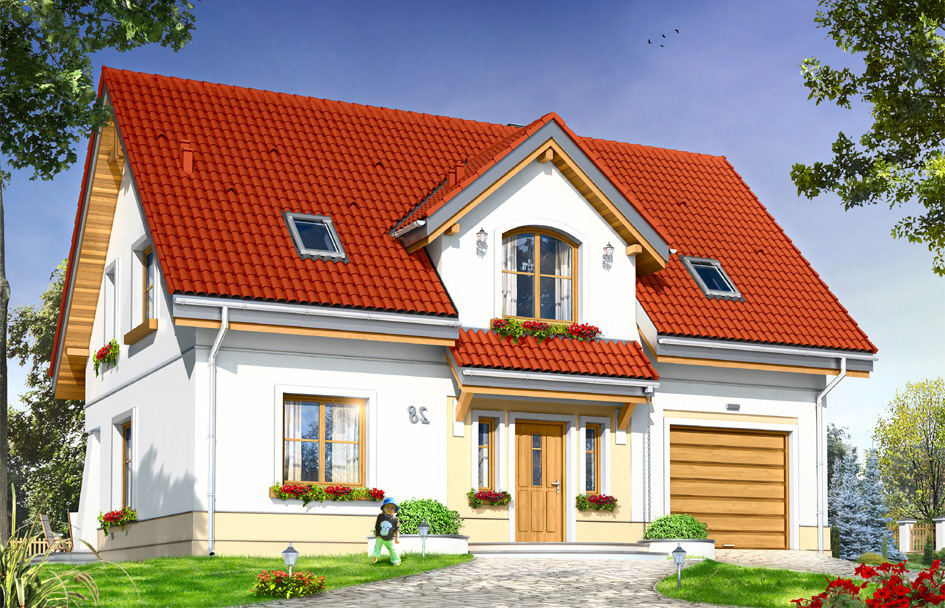

Show mirror image

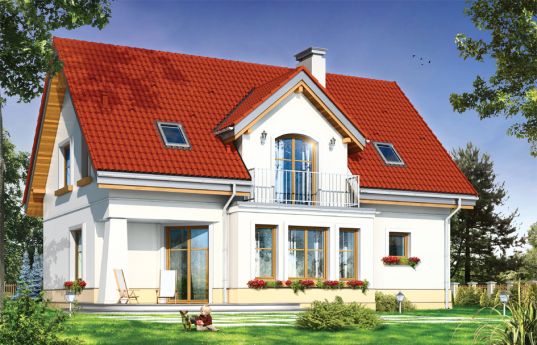

Clover house plan is a charming detached house for a family of four-five people - with attic, and built-in garage. Its simple shape and uncomplicated design allows for easy and inexpensive build. At the same time small area of the house, combined with functionality and a sensible layout of rooms, will give savings in subsequent maintenance of the building. The rectangular plan of the house cover a gabled roof, is decorated from the front and from the garden by wide dormer windows. External appearance combines traditional, solid form, with modern materials and architectural details. Light, simple shape, with symmetrical facades has the same time a lot of charm and elegance. The interior of the house was designed with the division on the ground floor - as living and utility part with a garage and attic - from bedroom of the household. On the ground floor managed to get a beautiful living room with dining area, connected with the spacious lobby, which exposes elegant staircase to the attic. On the lower floor there is a pretty easy to arrange kitchen, a large porch - connected with a garage and boiler room and toilet. From the living room the exit to the terrace and partly sheltered corner arcade was designed. In the attic there are designed three very nice bedroom and a large bathroom. Master bedroom has its own dressing room and little balcony. Alternatively we provide separation of partition wall of the fourth room, for example for a home office. There is also available a mirror version of this house plan.

Specifications:
  • Cubature: 720 m3/ 25423,2 ft3
  • Built-up area: 104,15 m2 (108,27 m2 with arcades)/ 1120,65 ft2 ( 1164,99 ft2 with arcades)
  • Total area: 191,82 m2/ 2063,98 ft2
  • Net area : 133,29 m2 + garage 19,87 m2/ 1434,20 ft2 + garage 213,80 ft2
  • Usable area:
    • 127,41 m2 by PN-70/B-02365/ 1370,73 ft2 by PN-70/B-02365
    • 133,29 m2 + garage by PN-ISO 9836:1997/ 1434,20 ft2 + garage by PN-ISO 9836:1997
  • Roof area: 185,35 m2/ 1994,37 ft2
  • Roof slope: 45 and 40 degress
  • Height of the building: 8,67 m (9,00 m with foundation)/ 28,44 ft ( 29,52 ft with foundation)
  • Wide of the building: 12,36 m/ 40,54 ft
  • Length of the building: 9,26 m/ 30,37 ft
  • Minimum plot width: 20,36 m/ 66,78 ft
  • Minimum plot length: 17,26 m/ 56,62 ft
  • Height of rooms: 2,78 and 2,60 m/ 9,12 ft and 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 53 700,00 EUR
The raw state closed 75 600,00 EUR
The cost of finishing works 37 800,00 EUR
Execution of turnkey home 113 400,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Clover - detailed file

House plan Clover - detailed file - mirror

Comment
Clover house plan 5338 Maniek
2014.01.31 0 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.

Clover house plan 4843 Gabi
2013.11.23 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Clover house plan 4770 Marryla C
2013.11.18 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
