Agnes 3 B house plan

Usable area: 209.35 m2   /   The cost of the realization: 169 800 EUR

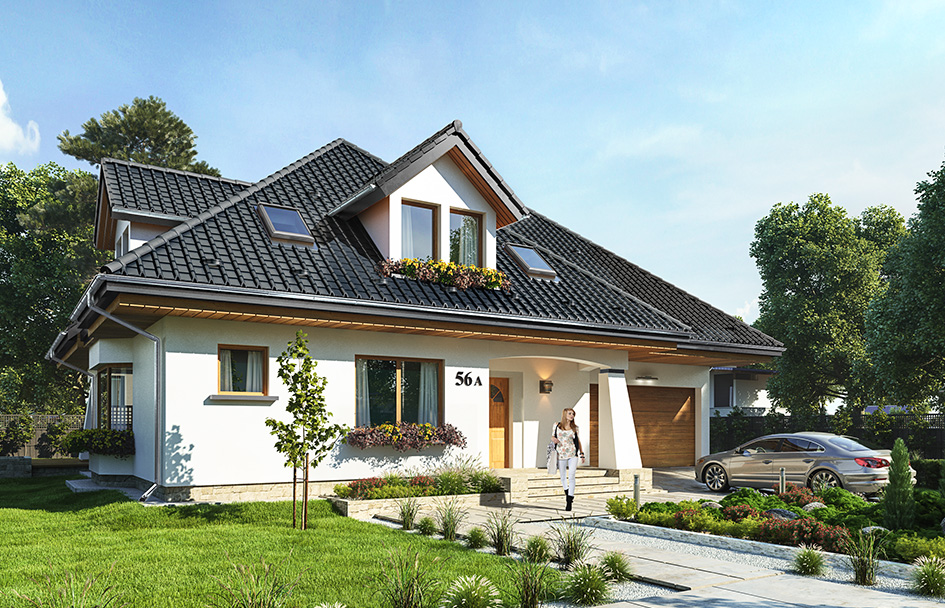

House plan Agnes 3 B - front visualization
Show mirror image

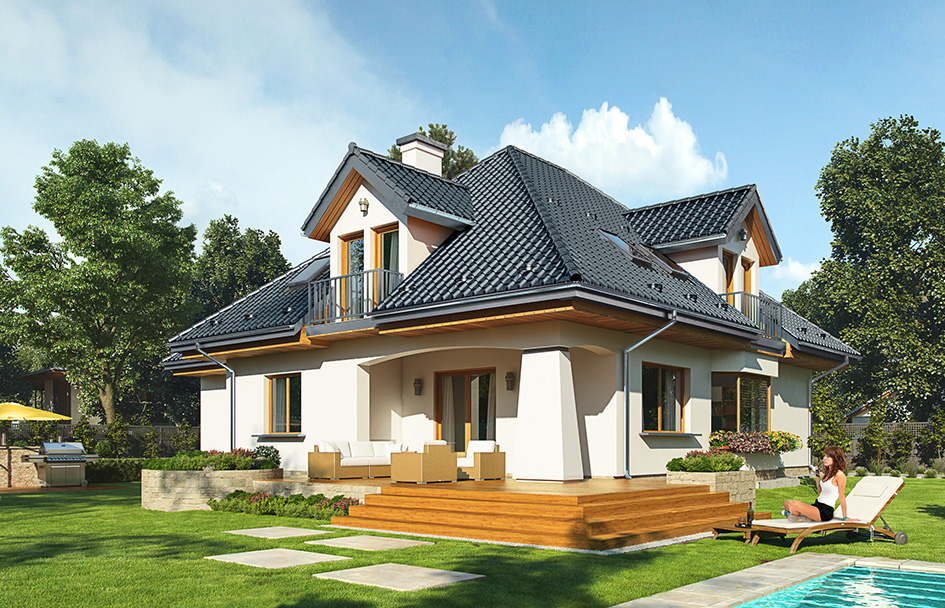

House plan Agnes 3B is a variant version of the house plan Agnes. The storey house plan with an attic, for 4-8 person family. The building consists of main body covered by a hipped roof decorated by three dormers and built another garage with boiler room. Architecture of the house is a combination of modern materials, details and colors, from the traditional form of the house with an attic. Agnieszka 3B is a representative and a magnificent house. The entrance was decorated with corner arcade with a gentle curve. From the garden we have a beautiful arcade partly roofed terrace and large glazed bay window of dining room and attic dormers. The interior of the house: on the ground floor we enter through atrium with a comfortable changing room, straight to the daily combined lobby, living room and dining room. It's very pretty and large open surface. From the front was placed kitchen with the island and pantry. From the hall are visible representative stairs and extra room (office or bedroom) with its own bathroom. From the locker room we can go into large garage and boiler room. On the attic are three bedrooms and two bathrooms. Children's bedrooms with wardrobes and parents’ bedroom with its own bathroom, dressing room and a balcony overlooking the garden. Above the garage we have two additional rooms and laundry facilities. Rooms for two hundred meter house is impressive - will fit in it, even a very large family. Agnes 3B house plan is compact and simple. The house is very well insulated, it contains energy-efficient solutions. You can easily customize it to the NF40 standard. The construction costs of Agnes B 3, taking into account the size of the house are low. The house will be a good option for people planning to build a large house with a spacious interior for the price.

Specifications:
  • Cubature: 925 m3/32661 ft3
  • Built-up area: 178,60 m2/1921,74 ft2
  • Total area: 309,03 m2/3325,16 ft2
  • Net area: 219 m2 + garage + attic/2356,44 ft2 garage + attic
  • Usable area: 209,35 m2/2252,61 ft2
  • Roof area: 330,50 m2/3556,18 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,70 m (9,40 m with foundation)/28,54 ft (30,83 ft with foundation)
  • Building dimensions: 16,78 m/55,04 ft x 13,32 m/43,69 ft
  • Plot dimensions: 23,78 m/78,00 ft x 21,32 m/69,93 ft
  • Height of rooms: 2,80 m/9,18 ft
Materials:
  • Foundations - reinforced concrete and foundation walls of concrete blocks
  • External walls - brick walls - bilayer porotherm  25 + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 57 350,00 EUR
The raw state closed 87 220,00 EUR
The cost of finishing works 82 590,00 EUR
Execution of turnkey home 169 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Agnes 3 B - detailed drawings

House plan Agnes 3 B - detailed drawings - mirror
