Usable area: 266.65 m2 / The cost of the realization: 187 900 EUR

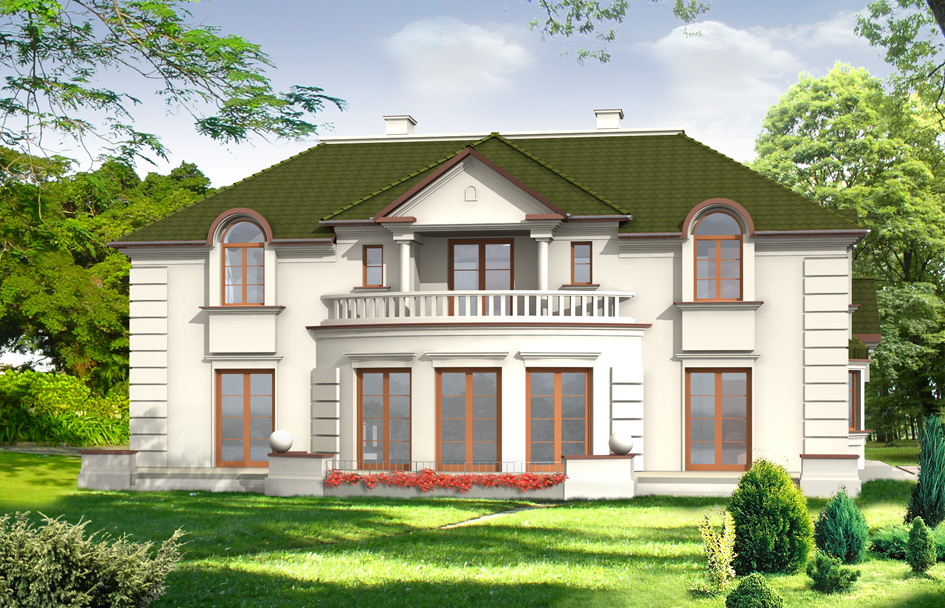

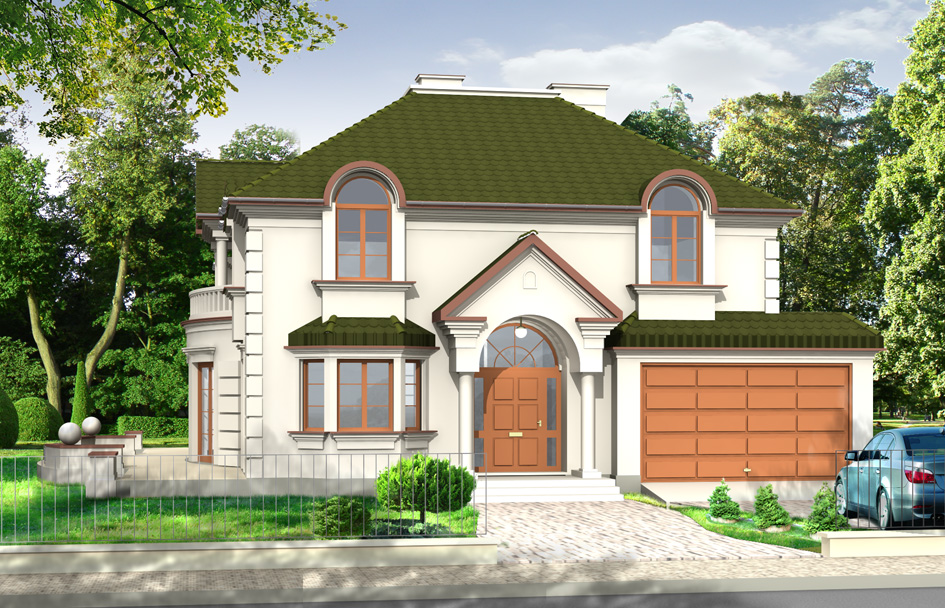

Show mirror image
Price: 1320 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (6) Detailed drawings
List of materials
Comments (3)

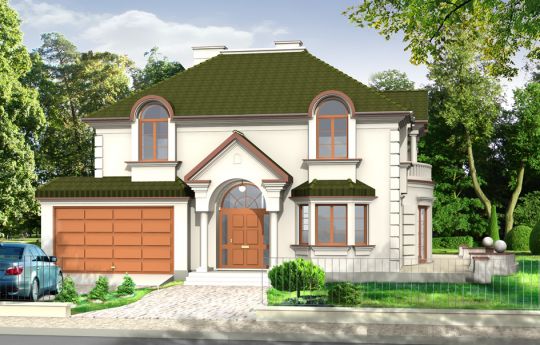

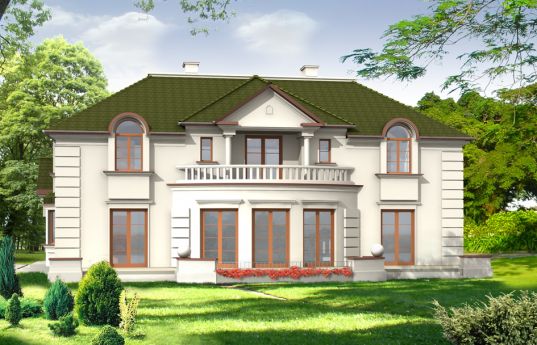

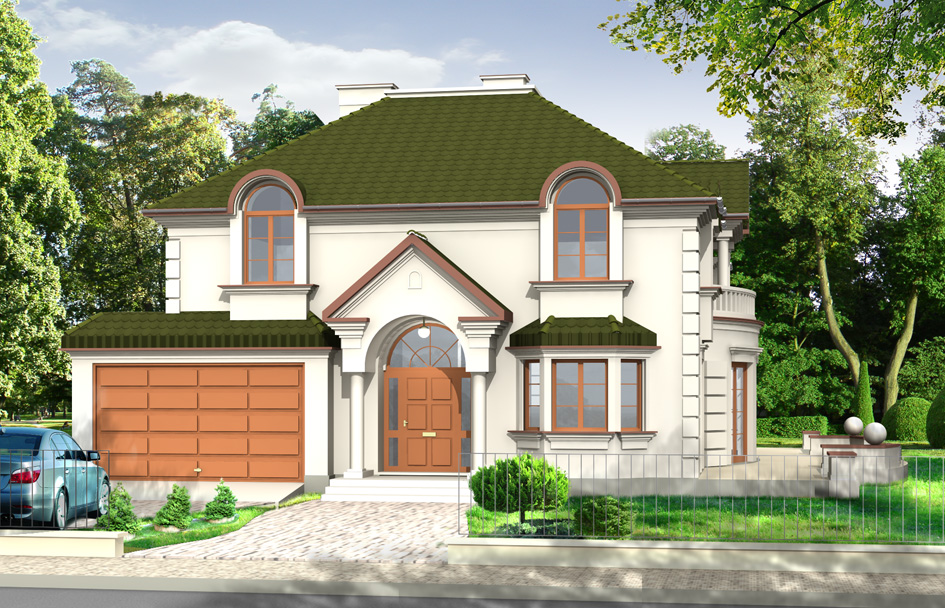

Ambassador house plan is a large, elegant, two-story house for the family of 4 to 6 people. Architecture of this house expresses a sense of stability and comfort of a higher class. In this house plan, thanks to the entry-designed on the side of shorter-elevation there is a possibility of adaptation to the plot with a garden on the side. A rectangular block of the house with the garage built up and ornament entrance portico formed despite the multitude of details bright and clear interior layout and plan. The exterior view was subordinated to alignment and aesthetics while the interior is extremely functional..
Specifications:
- Cubature: 896 m3/ 31637,76 ft3
- Built-up area: 201,73 m2/ 2170,29 ft2
- Total area: 359,21 m2/ 3865,10 ft2
- Net area: 277,15 m2 + garaż / 2982,13 ft2
- Usable area: 266,65 m2/ 2869,15 ft2
- Roof area: 258,82 m2/ 2784,90 ft2
- Roof slope: 35 degrees
- Height of the building: 8,24 m (8,64 m with foundation) /27,02 ft (28,34 ft with foundation)
- Wide of the building: 13,86 m / 45,46 ft
- Length of the building: 17,5 m / 57,4 ft
- Minimum plot width: 20,86 m / 68,42 ft
- Minimum plot length: 25,5 m / 83,64 ft
- Height of rooms: 3,0 m i 2,80 m / 9,84 ft and 9,18 ft
Materials:
• Foundations - reinforced concrete
• External walls – single-layer Ytong 36 cm
• Ceiling - reinforced concrete Teriva
• Elevation - thin-layer plaster
• Roof - ceramic tile or shingles of roofing paper
The costs of implementing:
| The raw state open | 82 600,00 EUR |
| The raw state closed | 107 000,00 EUR |
| The cost of finishing works | 81 000,00 EUR |
| Execution of turnkey home | 187 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Ambassador - detailed file
House plan Ambassador - detailed file - mirror
