Agate 2 house plan

Usable area: 226.84 m2   /   The cost of the realization: 174 200 EUR

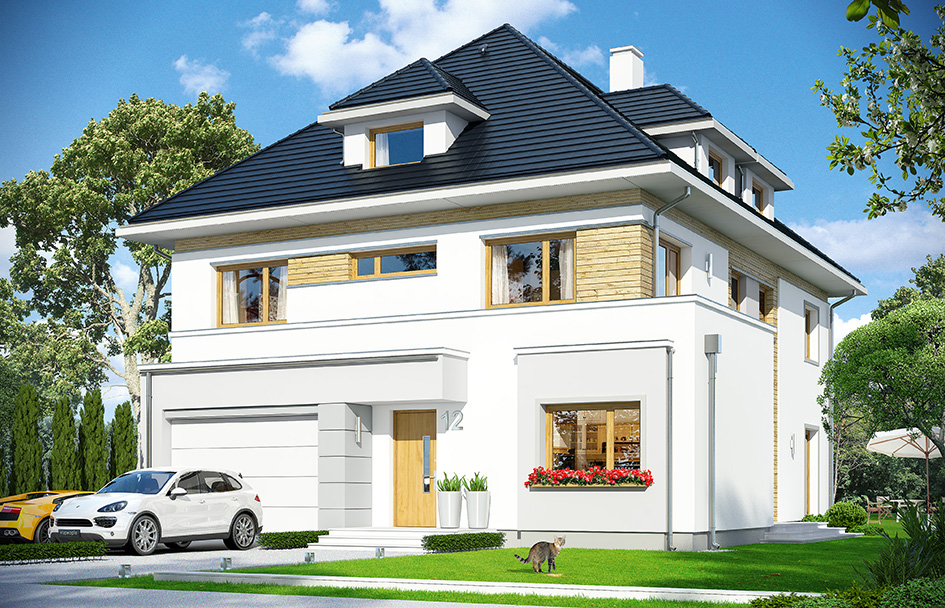

House plan Agate 2 - front visualization

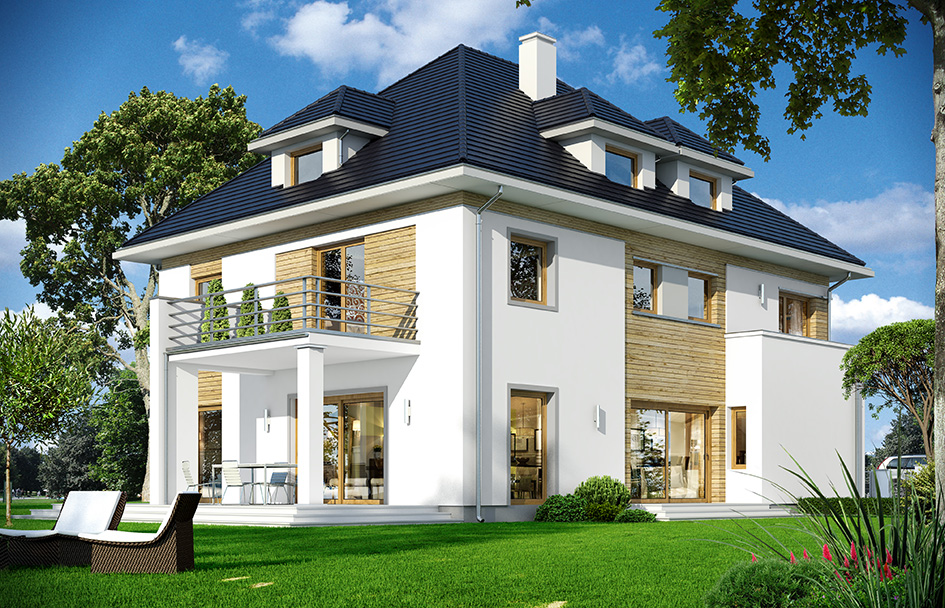

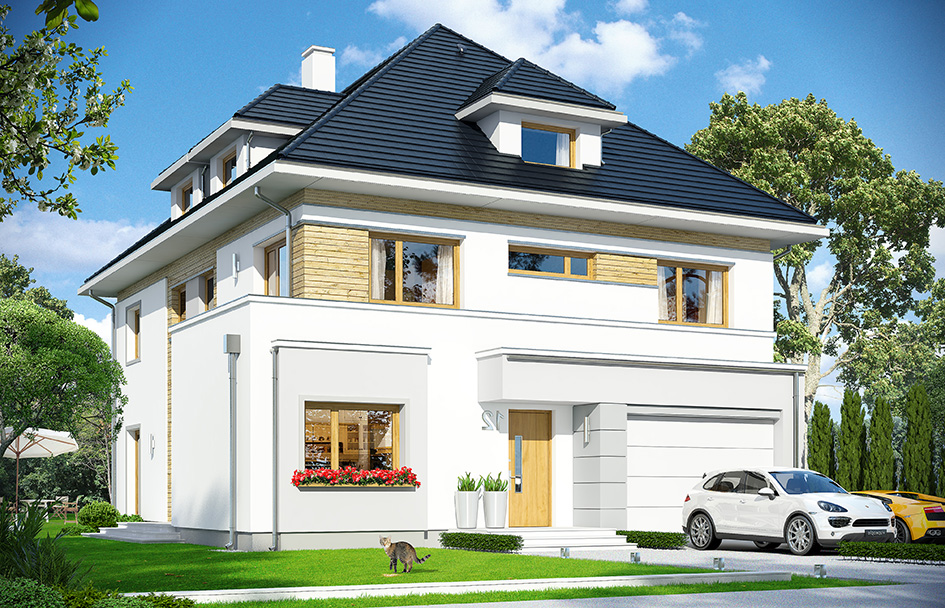

Show mirror image


Agate 2 house plan is a new version of Agate, this time in a more modern style, adapted to the municipal building on a fairly narrow and a small plot. Investors often having a small space want to build a sizable house with lots of rooms. There is no other choice but to go "up", increasing the height and number of floors in house. Agate 2 is an excellent choice for this type of building. The house has a compact silhouette, planned on a rectangular plan. The house is storeyed, finished by the attic with dormer windows, covered with a hipped roof. Proportional body, well-chosen details and colors make the building look attractive, representative, and at the same time the scale is not exaggerated. The architecture of house can be described as a combination of traditional forms with modern details and materials. The interior of house: on the ground floor a living room, dining room, kitchen with pantry, extra room (office or a guest bedroom), bathroom, porch with a cloakroom and a garage with utility room. On the first floor are four bedrooms, including parents' apartment with its own large bathroom and dressing room, and garden terrace, widely available second bathroom, dressing room and laundry. Attic is a single space of 80 m2 with bathroom, to any development. The house is very functional, energy-efficient and relatively simple in construction. This is a very sensible proposal of the project sizeable house on an urban plot.

Specifications:
  • Cubature: 35239,38 ft3
  • Built-up area:
    • without arcades 1839,85 ft2
    • with arcades 2004,59 ft2
  • Total area: 3567,91 ft2
  • Net area: 2486,42 ft2 + attic 914,49 ft2 + garage 305,26 ft2
  • Usable area:
    • 2440,80 ft2 + attic wg PN-70/B-02365
    • 2486,42 ft2 + attic + garage wg PN-ISO 9836:1997
  • Roof area: 3238,76 ft2
  • Roof slope: 40 degrees
  • Height of the building: 11,73 m (12,13 m with foundation)/ 38,47 ft (39,79 ft with foundation)
  • Wide of the building: 39,36 ft
  • Length of the building: 51,17 ft
  • Minimum plot width: 59,04 ft
  • Minimum plot length: 84,20 ft
  • Height of rooms: 9,77 i 8,63 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 airbrick + polystyrene + thin-layer plaster
  • Ceiling -  Teriva above the ground floor and floor
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 60 900,00 EUR
The raw state closed 91 400,00 EUR
The cost of finishing works 82 900,00 EUR
Execution of turnkey home 174 200,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Agate 2 - detailed file

House plan Agate 2 - detailed file- mirror
