Bartek house plan

Usable area: 136.67 m2   /   The cost of the realization: 114 200 EUR

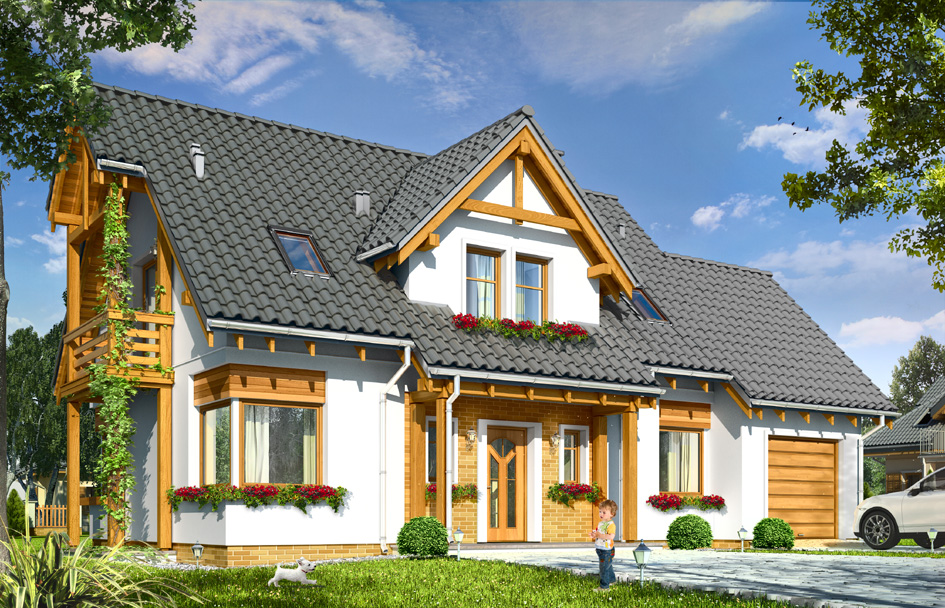

House plan Bartek - front visualization

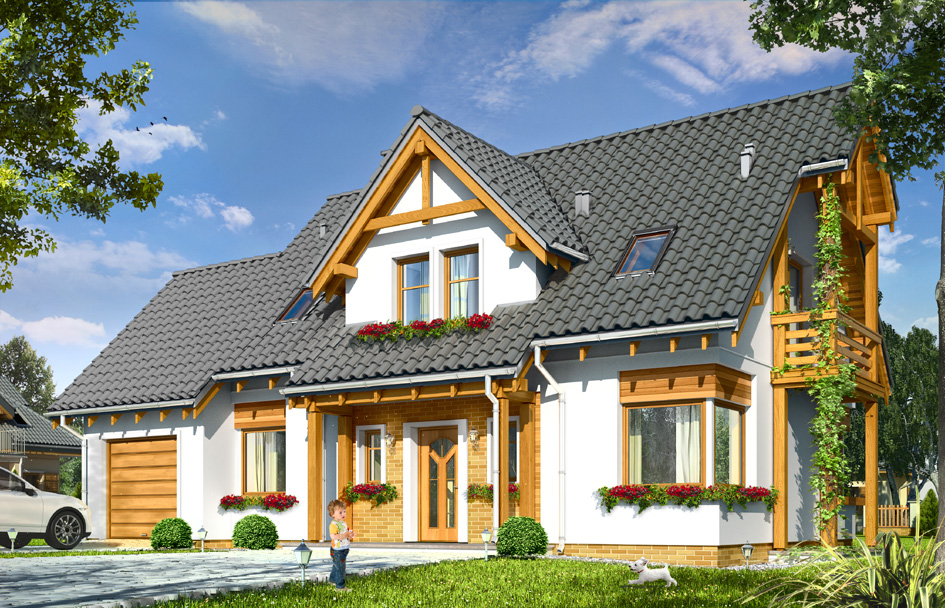

Show mirror image


Bartek house plan is a detached house for a family of 4-5 people, with interesting architecture, modeled on the regional traditions. Ideal for investors bored with the typical references to Polish roofers with small columns, seeking for a different style. The building is a simple block of with attic, covered with a gable roof, with built another garage, covered by a gable roof. House is decorated from the front and garden by large dormer windows with interesting wooden details. Also, the top of house was decorated with interesting designed balcony with roof. This house plan refers to the tradition and combines it with modernity. Corner windows and large glass doors to the terrace add some modernity. The interior of house we designed around a central set stairs. From the hall, we go to the daily part consisting of corners: television, fireplace and dining. Living room together with hall and partially open kitchen creates a very nice surface. On the ground floor there is also a boiler room, bathroom, an extra room and built another garage. In the attic there are three bedrooms, a large bathroom, parents’ dressing room and additional small room to work. House thanks to the compactness of body and the materials used is energy efficient. It will be inexpensive in the construction and subsequent exploitation.

Specifications:
  • Cubature: 622 m3 / 21962,82 ft3
  • Built-up area:
    • without arcades 124,33 m2 / 1337,79 ft2
    • with arcades 138,41 m2 / 1489,29 ft2
  • Total area: 201,96 m2 / 2173,09 ft2
  • Net area: 136,39 m2 + garage 19,09 m2 / 1467,56 ft2 + garage 205,41 ft2
  • Usable area:
    • 136,39 m2 wg PN-70/B-02365 / 1467,56 ft2 wg PN-70/B-02365
    • 139,67 m2 wg PN-ISO 9836:1997 / 1502,85 ft wg PN-ISO 9836:1997
  • Roof area: 245,10 m2 / 2637,28 ft2
  • Roof slope: 45 degrees
  • Height of the building: 8,49 m (8,69 m with foundation) / 27,85 ft (28,50 ft with foundation)
  • Wide of the building: 14,95 m / 49,04 ft
  • Length of the building: 10,30 m / 33,78 ft
  • Minimum plot width: 22,05 m / 72,32 ft
  • Minimum plot length: 18,40 m / 60,35 ft
  • Height of rooms: 2,7 i 2,5 m / 8,86 and 8,2 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 airbrick + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - tile




The costs of implementing:
The raw state open 34 900,00 EUR
The raw state closed 54 500,00 EUR
The cost of finishing works 59 700,00 EUR
Execution of turnkey home 114 200,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Bartek - pliki szczegółowe

Projekt domu Bartek - pliki szczegółowe - odbicie lustrzane
