Usable area: 109.98 m2 / The cost of the realization: 94 700 EUR

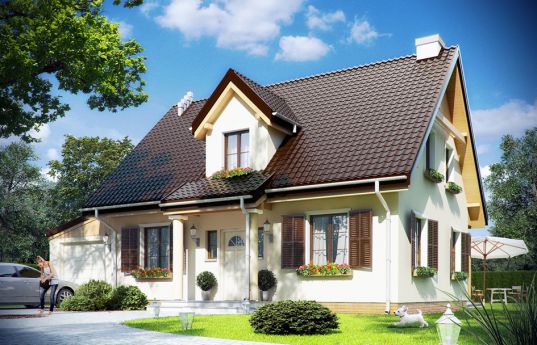

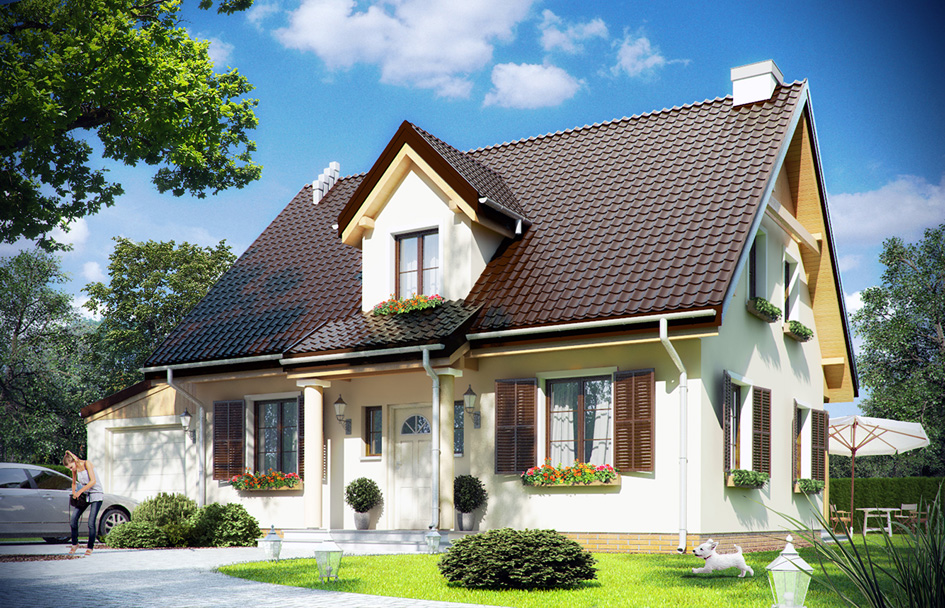

Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

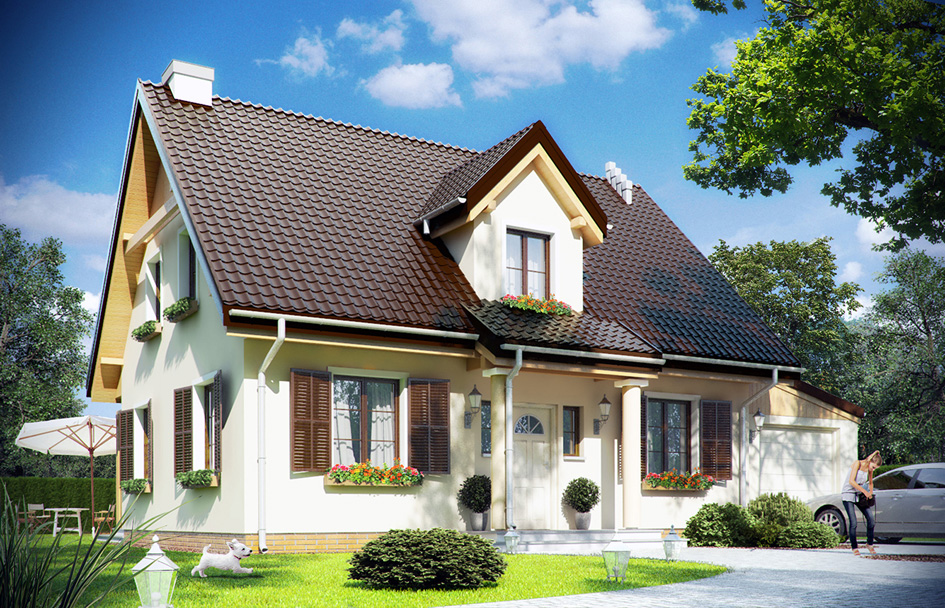

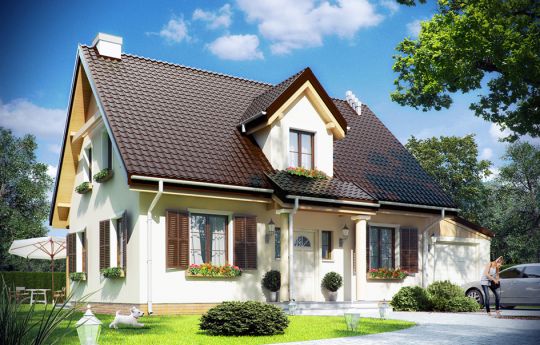

Fairytale 3 house plan is the latest version of the house plan with a series of Fairytales. This charming family house is designed for year-round residence for four or five people. It is a house on a rectangular plan covered by a simple gable roof over the attic and garage build on with shed roof completes the body of building. The house refers of its style to the regional rural huts and the tradition of Polish residence house. The centrally located entrance porch supported by small columns and symmetrical windows on the sides make a nice, calm front elevation. The house is well proportioned - it is lightweight and has a human scale. This house will perfectly fit for both the suburban plot construction, and among village landscape - as a summer house. Fairytale 3 has a simple design so it will be easy and inexpensive to build. Thanks to a compact body of building the house will be also energy-efficient, thus inexpensive to maintain. The interior of Fairytale 3 house plan can be ordered in two different versions: the basic versions on the ground floor we have a large living room with a central fireplace, a kitchen, a bathroom with utility room (laundry - storage), and a garage and boiler room. In the version "B" there was designed an extra room (study or guest bedroom) at the entrance to the house. On the top floor there are three bedrooms and a bathroom. Boiler room can be for a solid fuel or gas.
Specifications:
- Cubature: 457 m3/ 16136,67 ft3
-
Built-up area:
- without arcades 107,18 m2/ without arcades 1153,26 ft2
- with arcades 111,06 m2/ with arcades 1195,01 ft2
- Total area: 157,25 m2/ 1692,01 ft2
- Net area: 113,36 m2 + garaż 17,06 m2/ 1219,75 ft2 + garage 183,57 ft2
-
Usable area:
- 109,98 m2 wg PN-70/B-02365/ 1183,38 ft2 by PN-70/B-02365
- 113,36 m2 + garage wg PN-ISO 9836:1997/ 1219,75 ft2 + garage by PN-ISO 9836:1997
- Roof area: 178 m2/ 1915,28 ft2
- Roof slope: 45 stopni/ 45 degrees
- Height of the building: 7,76 m (8,06 m z podmurówką) / 25,45 ft ( 26,44 ft with foundation)
- Wide of the building: 13,68 m / 44,87 ft
- Length of the building: 7,96 (9,00) m / 26,11 ft (29,52 ft)
- Minimum plot width: 20,68 m / 67,83 ft
- Minimum plot length: 17,30 m / 56,74 ft
- Height of rooms: 2,65 m / 8,69 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - aerated concrete blocks 24 cm + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - ceramic tile
The costs of implementing:
| The raw state open | 32 700,00 EUR |
| The raw state closed | 47 300,00 EUR |
| The cost of finishing works | 47 500,00 EUR |
| Execution of turnkey home | 94 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Fairytale 3 - detailed file
House plan Fairytale 3 - detailed file - mirror
