Optimal 2 house plan

Usable area: 115.71 m2   /   The cost of the realization: 127 300 EUR

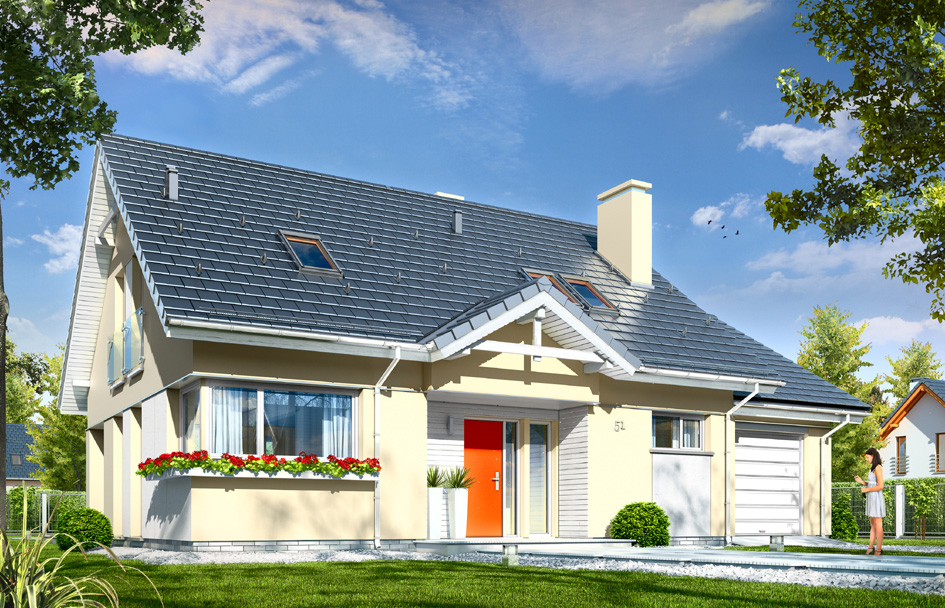

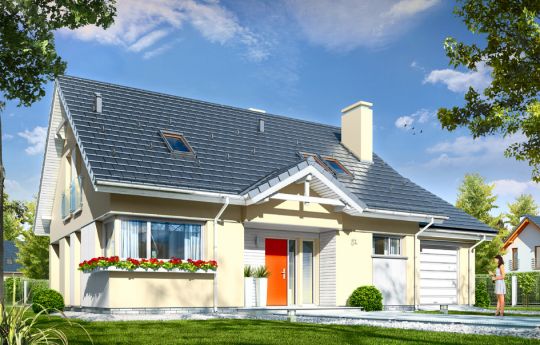

House plan Optimal 2 - front visualization

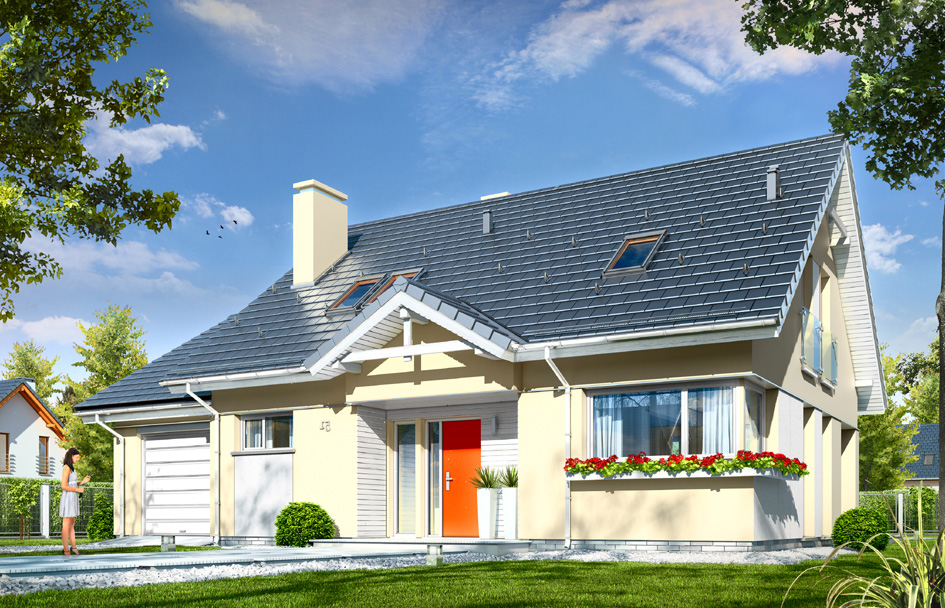

Show mirror image


Optimal 2 house plan is a variant version of Optimal, with later extension of single garage to side elevation. The building is a bungalow with a usable attic, designed on a rectangular plan, covered by a gable roof. Simple minimalist block creates a peaceful, aesthetic architecture with modern details and materials. Facades were curiously varied: front by an arcade entrance accented with a gable roof and a corner kitchen window; and exterior by nice glazing of living room and a corner arcade enclosing part of the terrace. House, with its unpretentiousness successfully fit into any environment. Interior of the house is designed with a division into a living area on the ground floor and bedrooms in the attic. On the ground floor living room, hall and kitchen form a common open space in which there is a place for a dining room, the angle for leisure furniture, wall TV and a fireplace. Comfortable stairs, slightly separated from the living room are also interior decoration. On the ground floor we predicted space for a pantry near the kitchen, extra room (office or guest bedroom), bathroom and boiler room, which functionally connects the vestibule with a garage. Gas boiler, can be easily adapted to the furnace for solid fuel. The garage has an additional utility room. In the attic there are three comfortable bedrooms with built-in wardrobes, dressing room and a spacious bathroom with roof windows above the bath. Optimal 2 is energy efficient house it uses a very good thermal insulation and modern installations and technologies. The actual construction of the house, thanks to a simple construction, it will be easy and inexpensive. The later exploitation of the building will also be cheap. Optimal 2 is the optimal house, perfect for investors thinking practically, economically, and who like modernity rooted in traditional form. There is also available a mirror version of this house plan.

Specifications:
  • Cubature: 641 m3 / 22633,71 ft3
  • Built-up area: 126,84 m2 (with arcades: 135,1 m2) / 1364,80 ft2 (with arcades: 1453,68 ft2)
  • Total area: 189,47 m2 / 2038,70 ft2
  • Net area: 127,68 m2 + garage 19,14 m2 / 1373,84 ft2 + garage 205,95 ft2
  • Usable area:
    • 115,71 m2 wg PN-70/B-02365 / 1245,04 ft2 wg PN-70/B-02365
    • 127,68 m2 + garage wg PN-ISO 9836:1997 / 1373,84  ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 202,55 m2 / 2179,44 ft2
  • Roof slope: 38 degrees
  • Height of the building: 7,45 m (7,65 m with foundation) / 24,436 ft (25,09 ft with foundation)
  • Wide of the building: 14,49 m / 47,53 ft
  • Length of the building: 9,72 m / 31,88 ft
  • Minimum plot width: 21,49 m / 70,49 ft
  • Minimum plot length: 17,72 m / 58,12 ft
  • Height of rooms: 2,6 i 2,5 m / 8,53 and 8,2 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof - ceramic tile
  • Elevation - thin-layer plaster on polystyrene






The costs of implementing:
The raw state open 40 900,00 EUR
The raw state closed 60 500,00 EUR
The cost of finishing works 66 900,00 EUR
Execution of turnkey home 127 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Optimal 2 - detailed file

House plan Optimal 2 - detailed file - mirror
