Lucky house plan

Usable area: 139.96 m2   /   The cost of the realization: 124 600 EUR

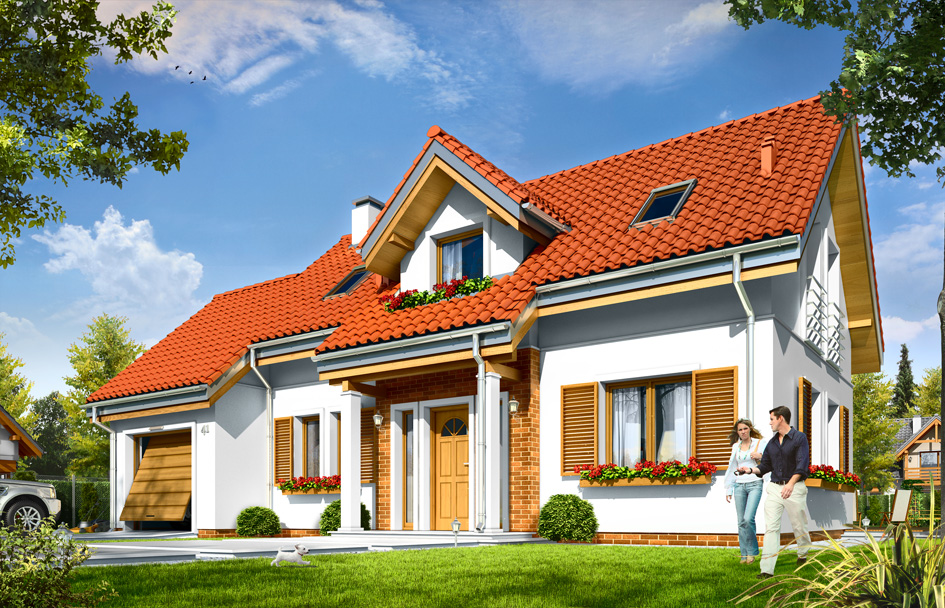

House plan Lucky - front visualization

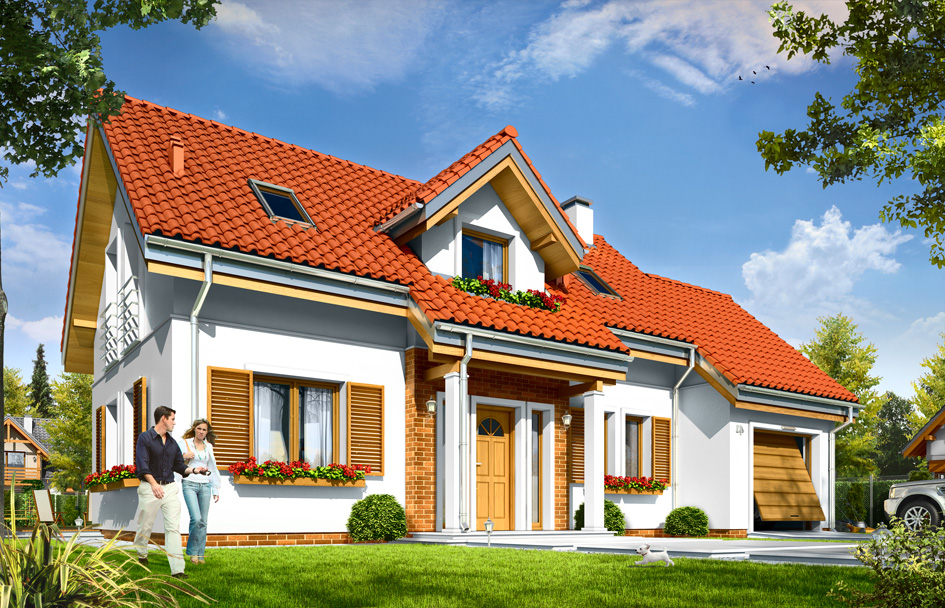

Show mirror image


Lucky houses is a detached house, fora family of 4-6 people, its bungalow with an attic, designed on the plan of the letter "L" with a terrace sheltered on two sides and with built in garage. House thanks to six rooms is suitable for a larger family, with children, or for a family of three generations. Architecture of the house is unpretentious - house is just nice. Successful combination of proportions and shapes creates a building with a human scale, which perfectly fit into any environment. Combination of traditional design with modern materials and colors creates a successful effect. Ground floor is an open daily space, with central hall and decorative staircase, living room with fireplace and TV wall, open kitchen and dining area. Together all these creates a large daily space, nicely open to the terrace and garden. On the ground floor we have an extra room, bathroom, boiler room and garage. From the kitchen you have an access to pantry. In the attic there are four rooms, including a separate parents’ apartment with its own bathroom, dressing room and balcony, and a large bathroom for all households. The interiors are functional and easy to arrange. House was designed in energy-saving technology. Excellent thermal insulation allow you easily adapt the house to the NF40 standard. Compact shape and simple design of the building will allow for a quick and inexpensive construction, and subsequent economical exploitations.

Specifications:
  • Cubature: 637 m3 / 22492,47 ft
  • Built-up area:
    • without arcades 131,82 m2 / 1418,38 ft2
    • with arcades 135,67 m2 / 1459,81 ft2
  • Total area: 216,01 m2 / 2324,27 ft2
  • Net area: 144,67 m2 + garage 18,69 m2 / 1556,65 ft2 + garage 201,10 ft2
  • Usable area:
    • 139,96 m2 wg PN-70/B-02365 / 1505,97 ft2 wg PN-70/B-02365
    • 144,67 m2 + garage wg PN-ISO 9836:1997 / 1556,65 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 219,4 m2 / 2360,74 ft2
  • Roof slope: 42 degrees
  • Height of the building: 7,61 m (7,81 m with foundation) / 24,96 ft (25,62 ft with foundation)
  • Wide of the building: 14,63 m / 47,99 ft
  • Length of the building: 12,63 m / 41,43 ft
  • Minimum plot width: 21,63 m / 70,95 ft
  • Minimum plot length: 20,63 m / 67,67 ft
  • Height of rooms: 2,7 i 2,6 m / 8,86 and 8,52 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 40 400,00 EUR
The raw state closed 62 500,00 EUR
The cost of finishing works 62 200,00 EUR
Execution of turnkey home 124 600,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Lucky - detailed file

House plan Lucky - detailed file - mirror
