Excellence 2 B house plan

Usable area: 140.7 m2   /   The cost of the realization: 141 740 EUR

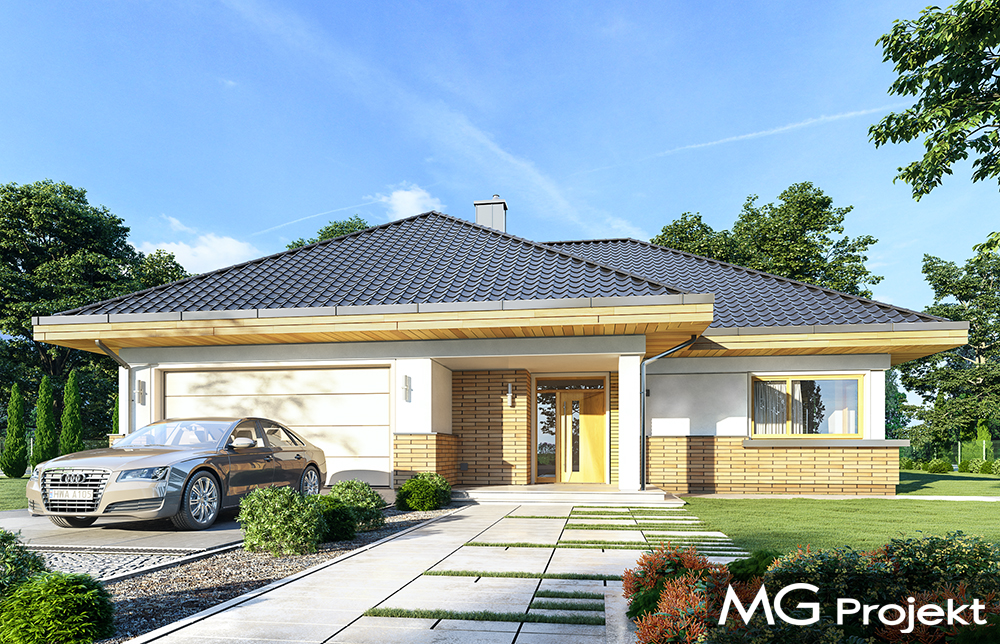

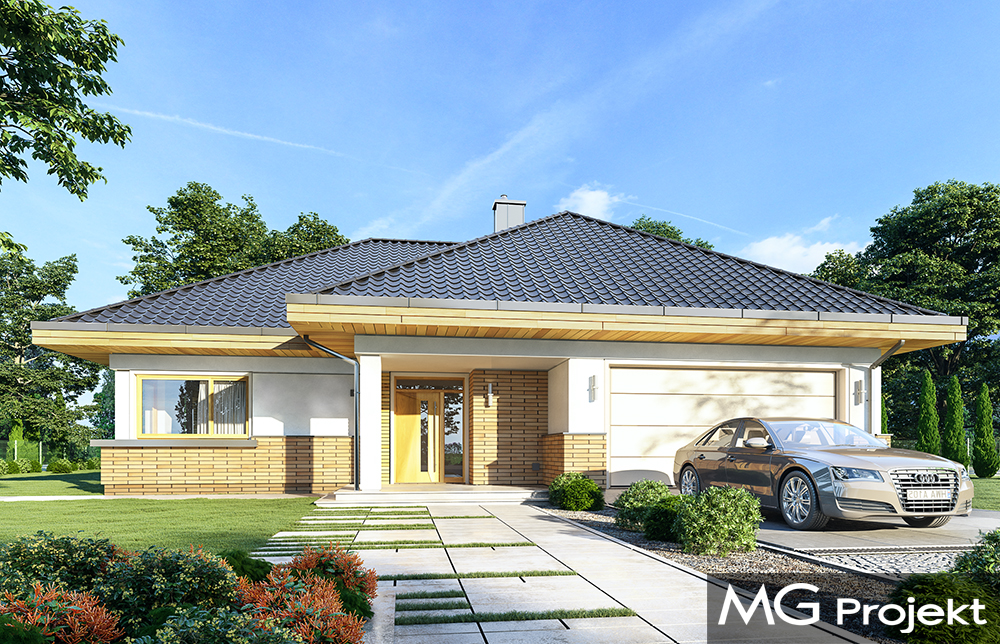

Projekt domu Doskonały 2 B - front
Show mirror image

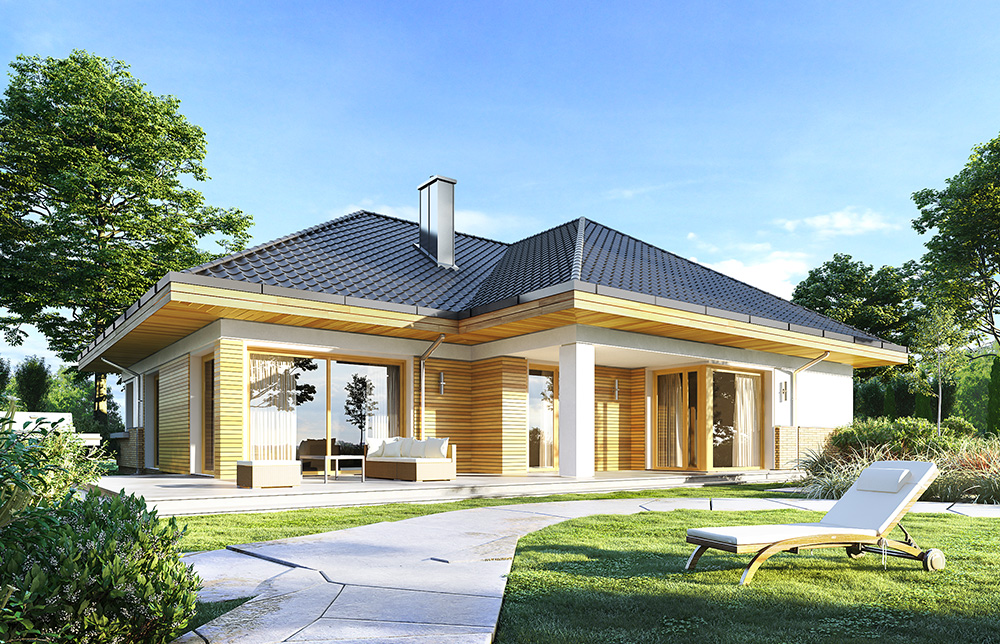

The house design Excellent 2 B is a variant version of the design of a one-storeyed single-family house in the Excellent series. The house plan is designed for a family of four to five. From the Excellent  and Excellent 2, it differs in the height of the roof, the external appearance and, in part, functional solutions of the interior. The house is an excellent  proposal for people who want to build a comfortable one-storeyed house. The building's solid was designed on the T letter plan. The front elevation is decorated with a wide entrance arcade with a representative door with a shutter. From the side of the garden facade, the house is varied with beautiful glazed windows and a arcade covering part of the terrace. Elevations are divided by three horizontal stripes: a lower clinker belt, a window strip and, at the top of the window lintels a white plaster strip surrounding the building, contrasting with the wooden soffit. The flat gray tile gives the house a modern look and breaks the delicate rusticity of the wooden wall cladding. The architecture of the house is a mix of modernity with natural finishing materials and colors. The house will perfectly fit into the surrounding greenery. The interior of the house is designed to divide them into a living, economic and private part with bedrooms. In this variant of the house we have four bedrooms, so the house is successfully suitable for a family with three children. The economic part is a double garage and boiler room, connected to the vestibule. To the right of the entrance we have a living room with a dining room and an open nice kitchen. In the private part a parents' bedroom with a small bathroom and a dressing room was designed, and three children's bedrooms with a large bathroom and a separate toilet accessible from the lobby. Above the ground floor of the house there is an attic that can be used as a home economic warehouse. The house plan is a great proposition for those who dream about a one-storeyed comfortable house, with all rooms on one level, with close contact with the surrounding garden.

Specifications:
  • Cubature: 778 m3 / 27474.81
  • Built-up area: 221,01 m2 / 2378,07 ft2
  • Total area: 221,01 m2 / 2378,07 ft2
  • Net area: 145,59 m2 + garaż 32,45 m2 / 1566,55 ft2 garage 349,16 ft2
  • Usable area: 140,70 m2 /  1513,93 ft2
  • Dimensions of the house: 15,97 x 17,09 m / 52,39 x 56,06 ft
  • Dimensions of the plot: 23,97 x 25,09 m / 78,62 x 82,30 ft
  • Height of the building: 6,13 m (6,23 with foundation) /20,11 ft (20,43 with foundation)
  • Roof area: 323,50 m2 / 3480,86 ft2
  • Roof slope: 25 degrees
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  •     Ceiling - teriva
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - tile or metal roofing tile




The costs of implementing:
The raw state open 55 420,00 EUR
The raw state closed 80 050,00 EUR
The cost of finishing works 61 700,00 EUR
Execution of turnkey home 141 740,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Doskonały 2B - detail drawings

House plan Doskonały 2B - detail drawings mirror
