House plan Unique house plan

Usable area: 201 m2   /   The cost of the realization: 201 130 EUR

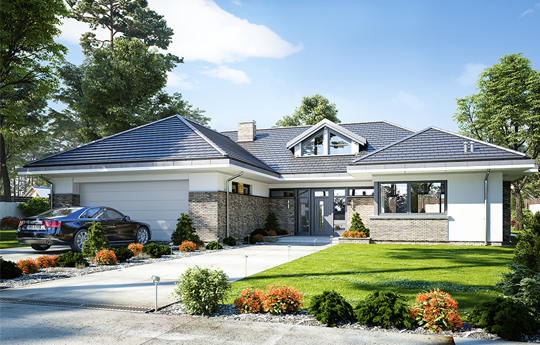

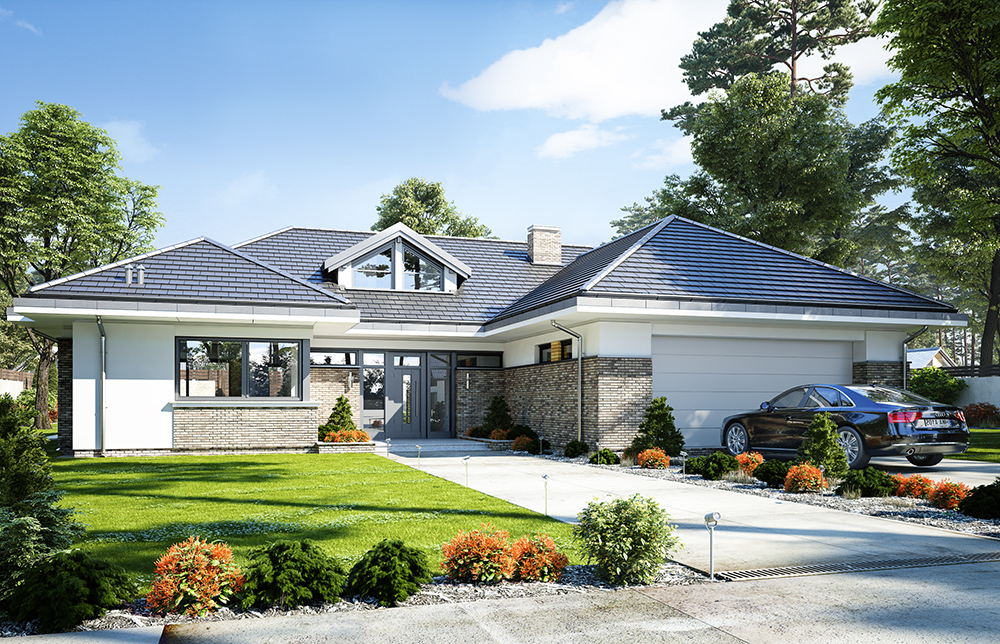

Projekt domu Wyjątkowy - wizualizacja frontu
Show mirror image

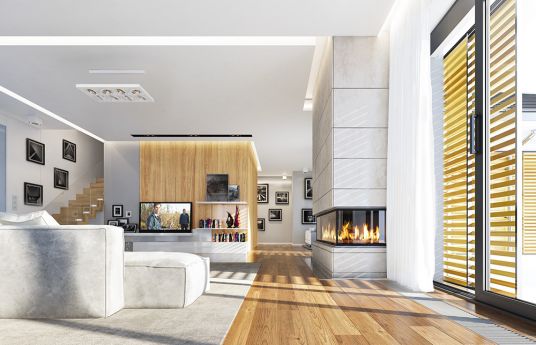

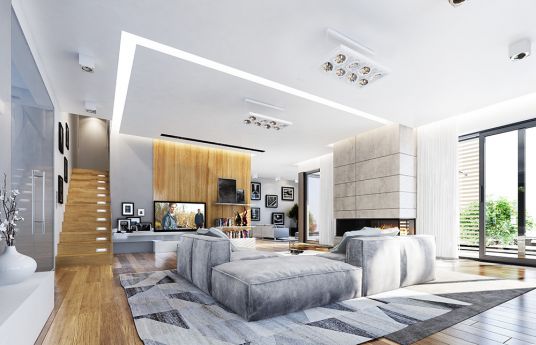

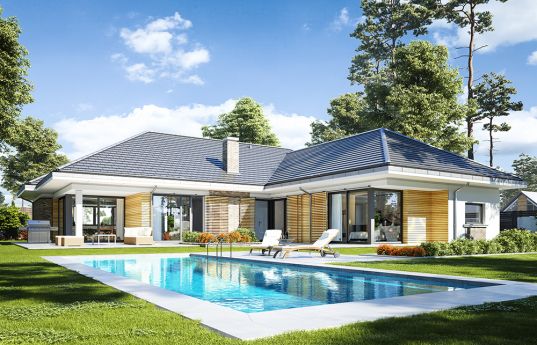

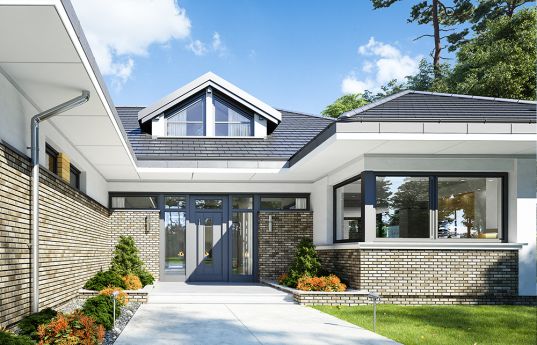

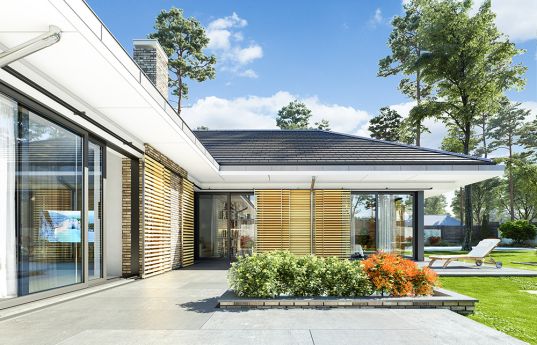

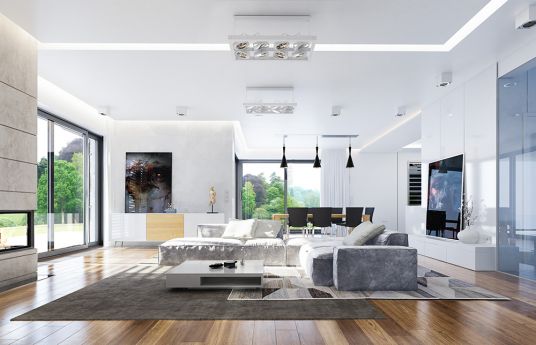

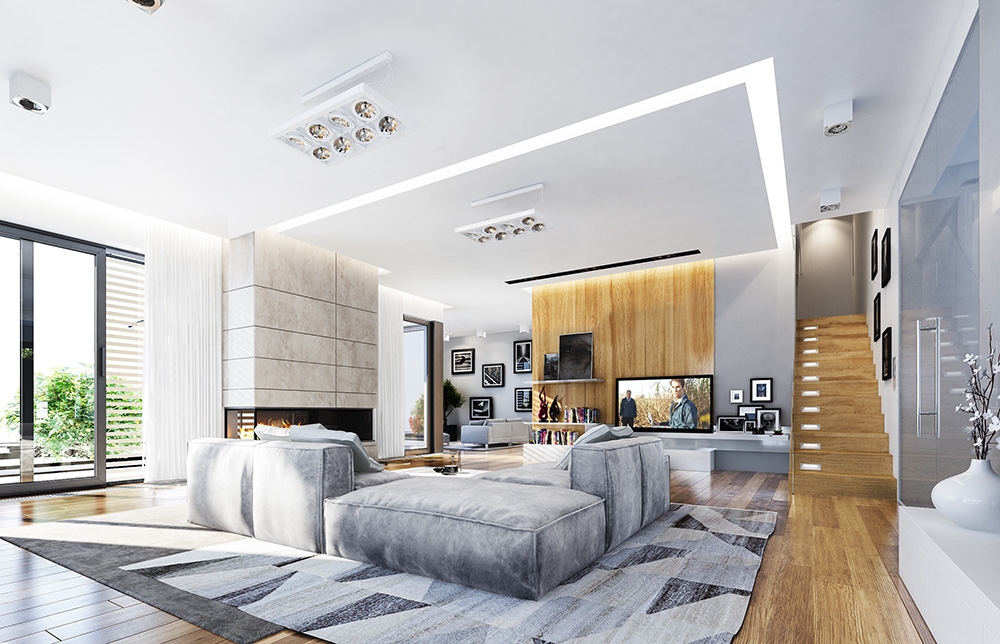

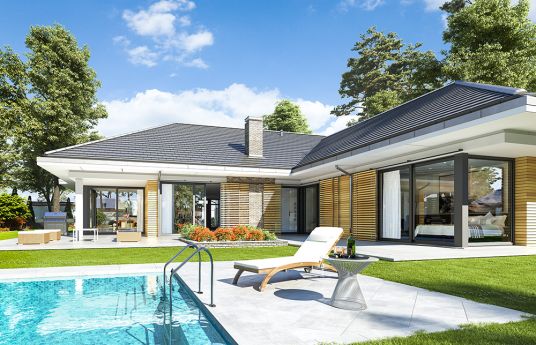

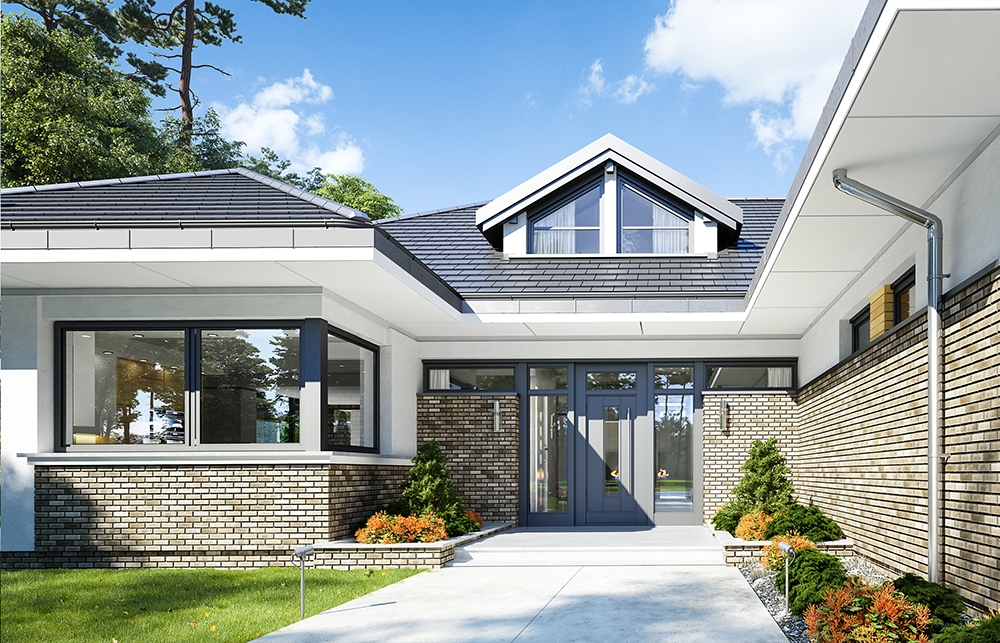

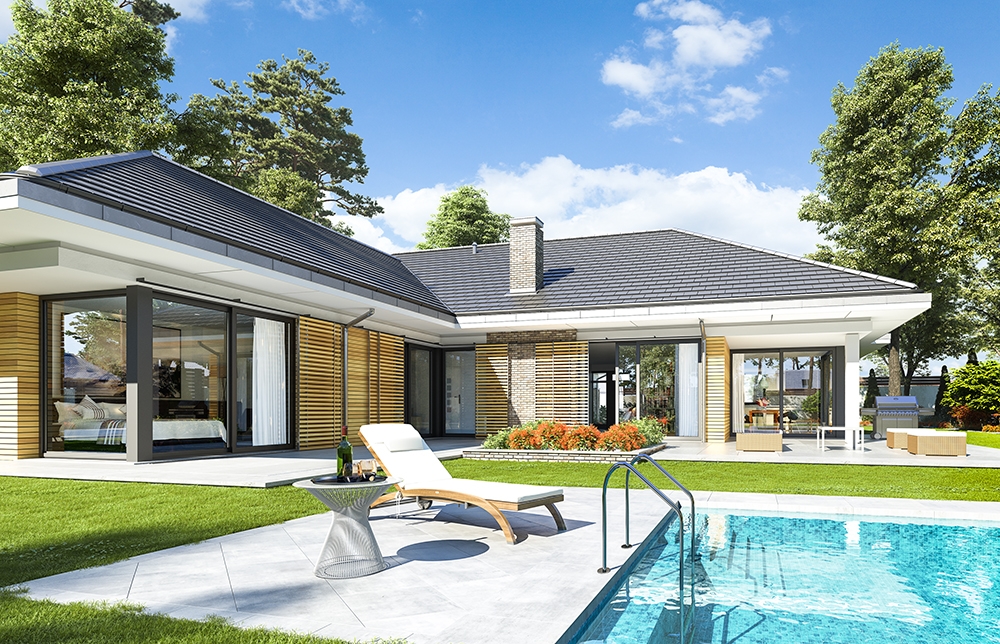

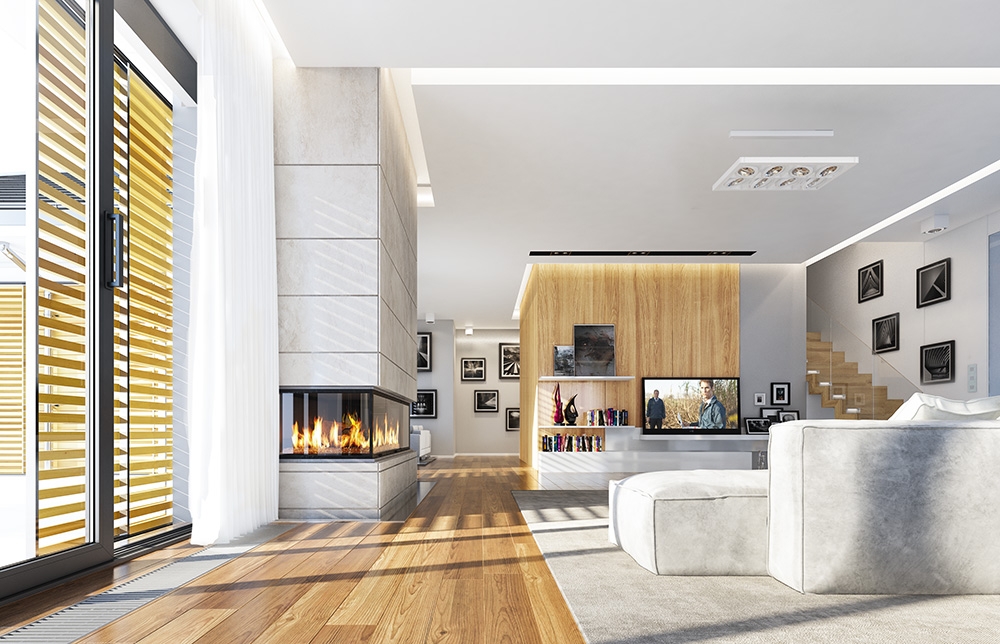

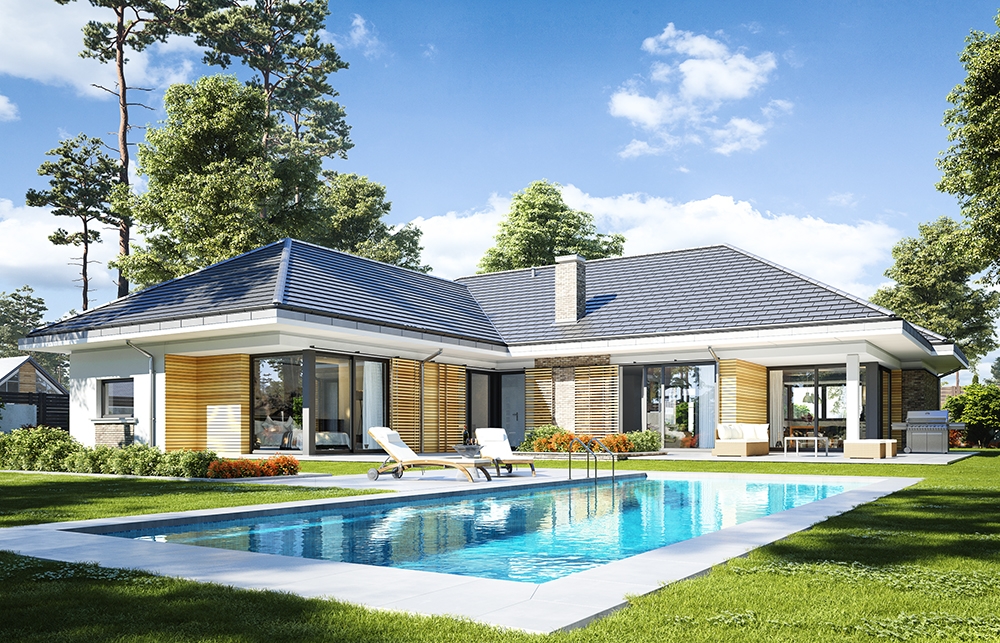

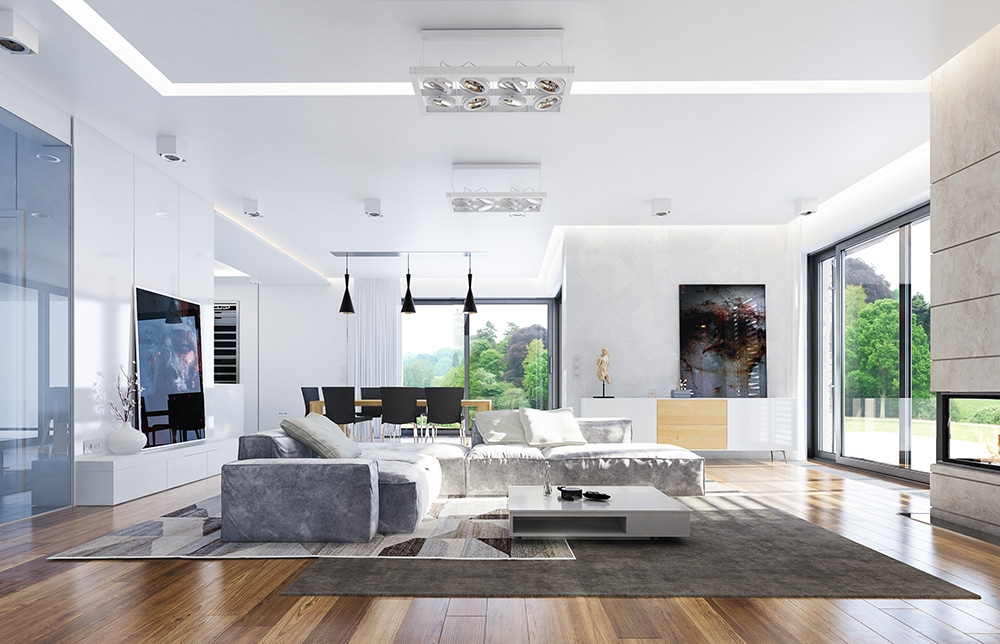

Unique house plan is a comfortable one-story single-family house from the "Unique" house plan series. This is a luxurious suburban villa, designed entirely on one floor, which gives the residents the convenience of living on the ground floor without running up the stairs. Great advantage is also an invaluable closeness to the surrounding garden. The house was designed on the plan of the letter "T", with a garage in front of the building, and a part of the bedroom entering to the garden. The building is covered with a multi-slope gentle roof that covers the attic, which can be used as an additional attic. Modern architecture of the building, with large glazing, corner windows, sliding blinds, combines the traditional form of the house with modern architectural detail. As a result, we have a wide, luxurious bungalow. We enter to the house by a wide, representative entrance through the front patio, with beautiful flowerbeds with greenery on the sides of the entrance platform. From the spacious vestibule, we go straight to the living space, to the large living room, from which, through large glazing, there is a view for terrace and the garden. From the vestibule, we can also go sideways to the locker room and further to the utility rooms and garage, and through the pantry to the kitchen. The living space is a living room, dining room, and a beautiful kitchen with an island. From the living room and dining room, we go out to the surrounding terraces. In the night part we have: parents' apartment with bathroom, wardrobe and beautiful windows to the terrace, additional room - study room, two children's bedrooms with bathroom, additional guest toilet, and mini-living room – living room, or TV corner. From the night part, we have also an access to laundry room, near the bedroom. The house has a very functional interior, facilitating everyday life. Open spaces, and glazing connect the interior with the garden, and give an invaluable sense of luxury and high quality of life. And all this was achieved on a small surface and in a rather simple building construction. Unique is a great example how a very good effect can sometimes be achieved with a reasonable and not terribly expensive way. The house is, of course, energy-saving, designed with modern materials.

Specifications:
  • Cubature: 1311 m3 / 46291,41 ft3
  • Built-up area: 313,98 m2 / 3378,42 ft2
  • Total area: 313,98 m2 / 3378,42 ft2
  • Net area: 248,93 m2 / 2678,49 ft2+ garage 47,84 m2 / 514,76 ft2 + attic
  • Usable area: 201,09 m2 / 2163,73 ft2
  • Roof area: 454,5 m2 / 4890,42 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,33 m (6,58 m with foundation) / 20,76 ft (21,58 ft with foundation)
  • Size of the building: 20,51 m x 24,47 m / 67,08 x 80,06 ft
  • Minimum dimensions of the plot: 27,91 x 32,47 m / 91,35 x 106,30 ft
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  tile or metal roofing tile




The costs of implementing:
The raw state open 84 410,00 EUR
The raw state closed 114 160,00 EUR
The cost of finishing works 86 980,00 EUR
Execution of turnkey home 201 130,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wyjątkowy - pliki szczegółowe

Projekt domu Wyjątkowy - pliki szczegółowe odbicie lustrzane
