House plan Unique 2 house plan

Usable area: 183.06 m2   /   The cost of the realization: 205 730 EUR

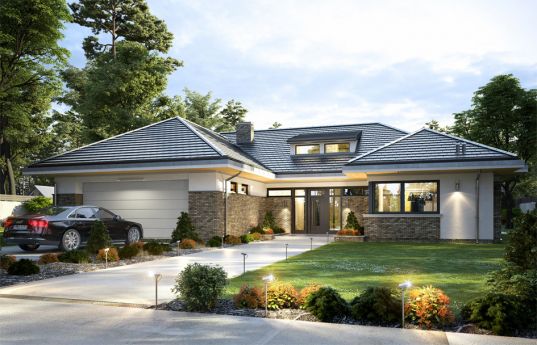

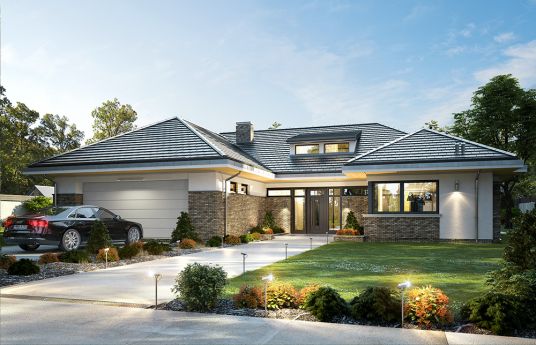

Projekt domu Wyjątkowy 2  - wizualizacja frontu logo

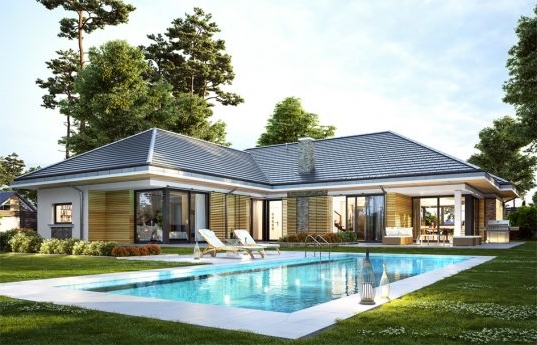

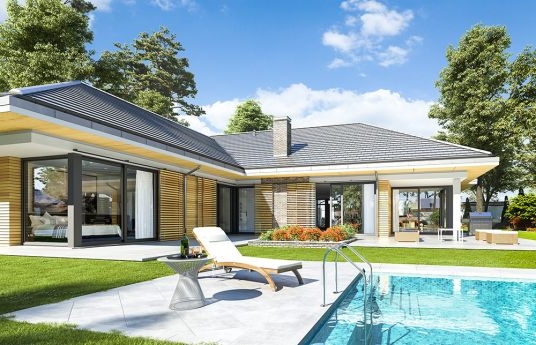

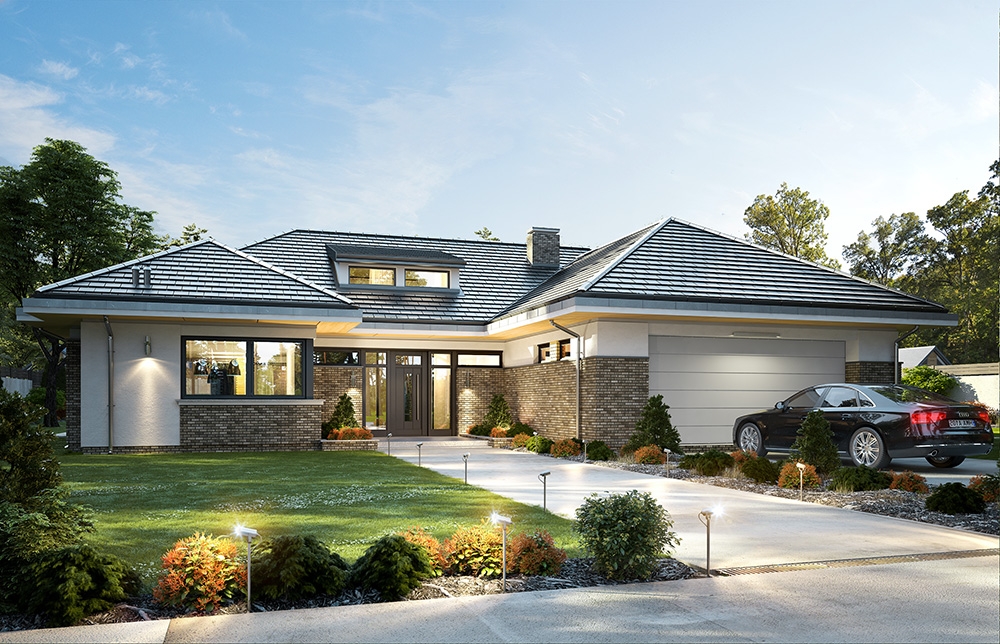

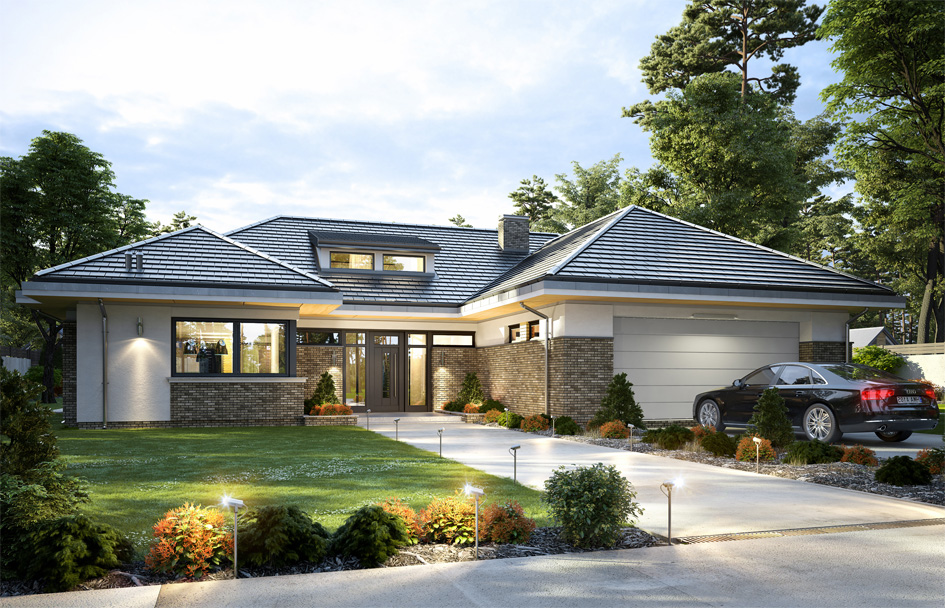

Show mirror image

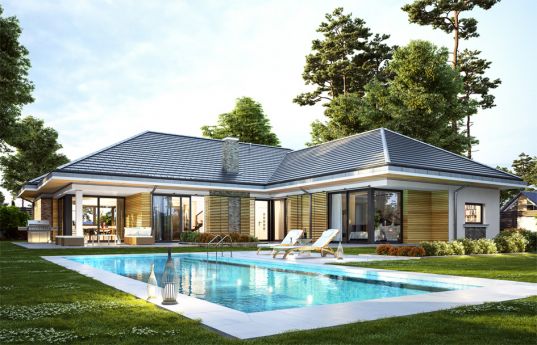

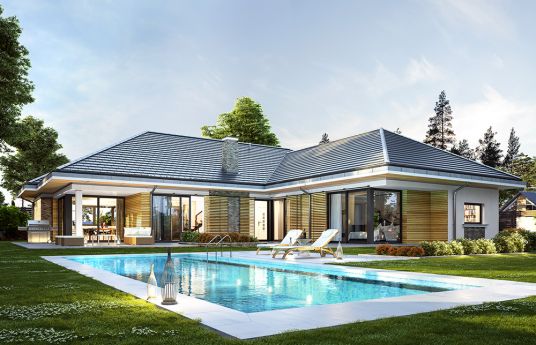

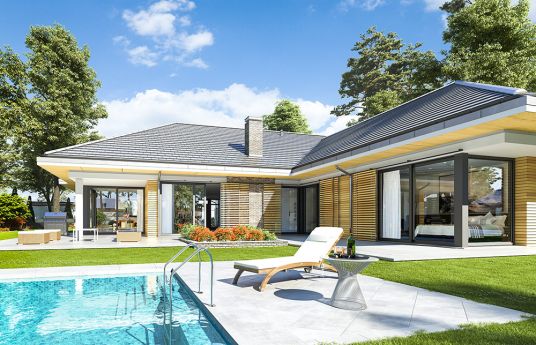

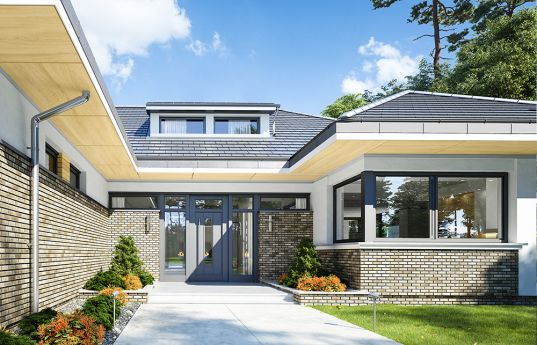

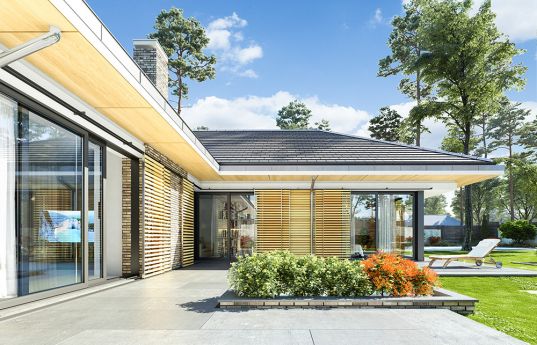

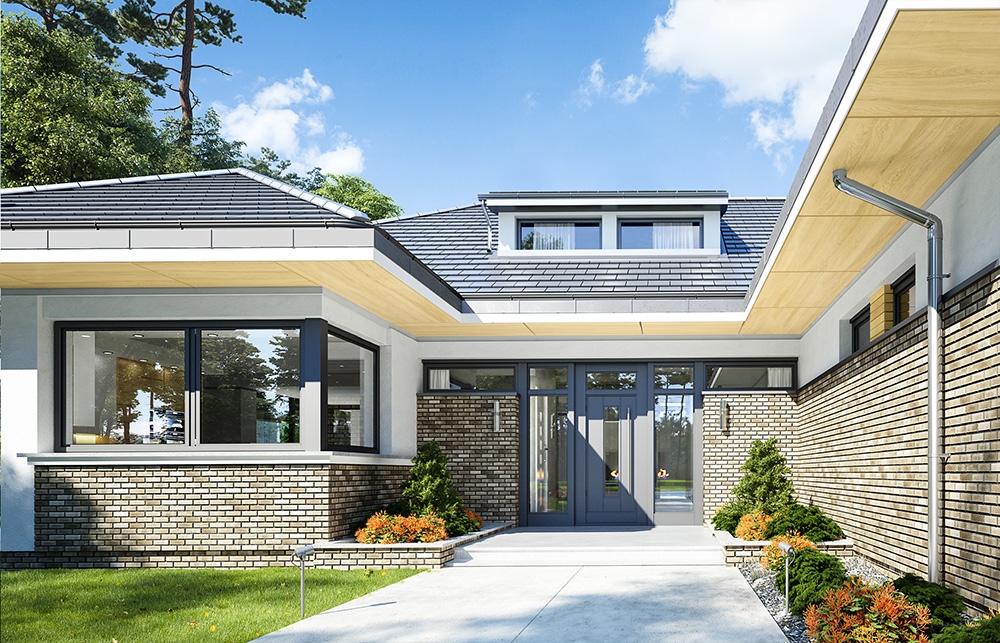

Unique 2 house plan is another one-story single-family house from the "Unique" series. It is a luxurious one-story villa, which gives the residents the convenience of living on one floor without going up the stairs and an invaluable closeness to the surrounding garden. The building was designed on the plan of the letter "T", with a protruding part of the garage, and from the garden side with the night part of the residents' bedrooms. The house is covered with a multi-slope gentle roof with tiles. Above the ground floor there is additional space for development - attic, which can be adapt as a usable attic. Above the living area we have a beautiful spatial opening - emptiness, up to the top of the roof, and in the attic - a beautiful entresol. Modern architecture and an interesting detail of the facade of the house are combined here with the traditional form of the building. As a result, we have a wide, luxurious bungalow. We enter the house with a representative glass entrance, through the front patio, with beautiful flower beds with greenery on the sides of the entrance platform. From the spacious porch, we go straight to the open living area with the height of two storeys - to the large living room, from which, through large glazing, there is a view of the terrace and the garden. From the porch we can go to the locker room, utility rooms, garage, and through the pantry to the kitchen. The living space is a living room, dining room, and a beautiful kitchen with an island. Thanks to the emptiness above the living room, the impression of the spaciousness of the interior is simply amazing. In the night part, we have: parents' apartment, with own bathroom and dressing room, an additional room - a study, two children's bedrooms with a bathroom, an additional toilet for guests, and a mini-lounge - a TV corner. From the night part, we also have an access to laundry room. The house has a very functional interior, facilitating everyday life. Open spaces, and glazing combining the interior with the garden will give an invaluable sense of luxury and high quality of life. And all this for a small area and a fairly simple building. Unique 2 is a great example that dreams can be realized with a reasonable and non-bankruptcy way. The house is, of course, energy-saving, designed with modern materials.

Specifications:
  • Cubature: 1311 m/ 46291,41 ft3
  • Built-up area: 313,98 m2 / 3378,42 ft2
  • Total area: 313,98 m2 / 3378,42 ft2
  • Net area: 248,93 m2 /2678,48 ft2 + garage 47,84 m2 / 514,76 ft2+ attic /
  • Usable area: 201,09 m2 /  2163,73 ft2
  • Roof area: 459,70 m2 / 4946,37 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,33 m (6,58 m with foundation) / 20,76 ft (21,58 ft with foundation)
  •  Size of the plot: 20,51 m x 24,47 m  / 67,08 x 21,58 ft
  • Minimum dimensions of the plot: 27,91 x 32,47 m / 91,35 x 106,30 ft
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  tile or metal roofing tile




The costs of implementing:
The raw state open 89 050,00 EUR
The raw state closed 119 580,00 EUR
The cost of finishing works 86 160,00 EUR
Execution of turnkey home 205 730,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Wyjątkowy 2 - pliki szczegółowe

Wyjątkowy 2 - pliki szczegółowe odbicie lustrzane
