Usable area: 166.85 m2 / The cost of the realization: 140 000 EUR
Show mirror image
Price: 1250 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (2) Detailed drawings
List of materials
Comments (3)

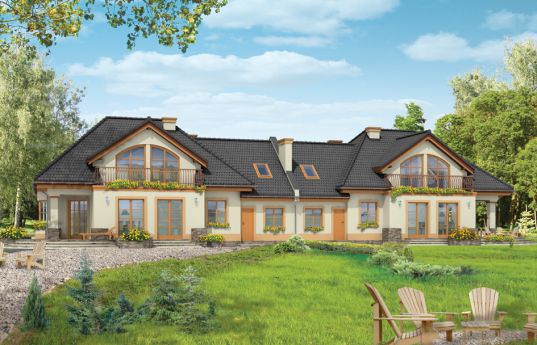

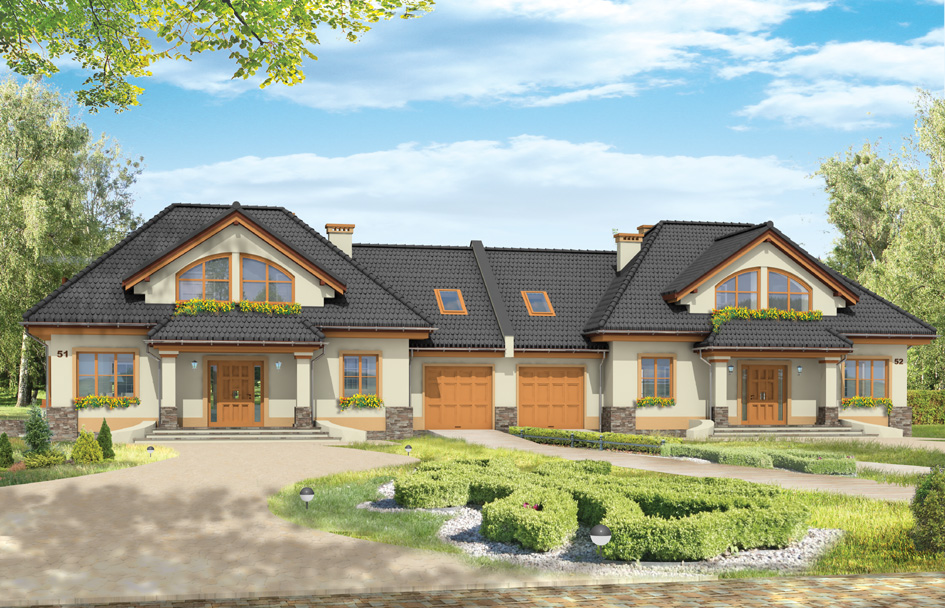

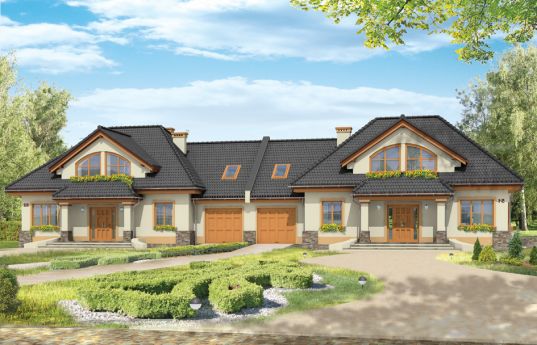

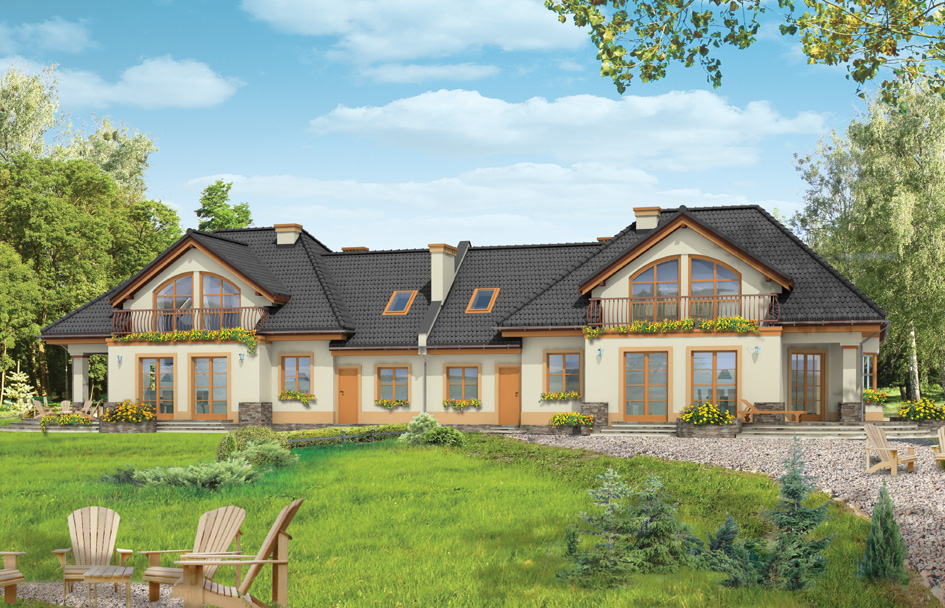

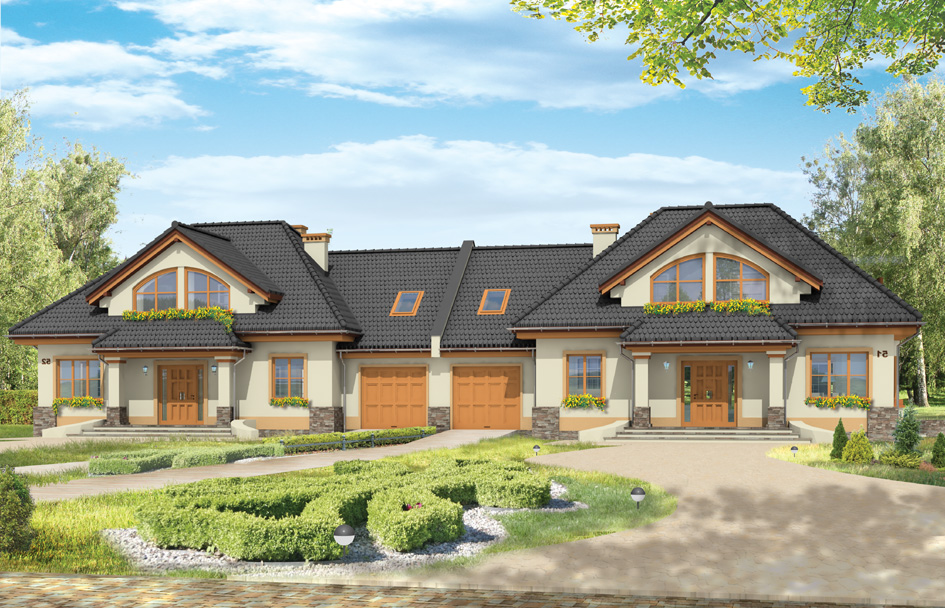

Favorite 3 house plan is the third version of the popular house plan Favorite. This time in the form of a twin house for two families. The house can be situated on a plot with a width of 39.36 m. For the one half about 20 meter plot is needed. Each half have on the ground floor living room and dining room, extra room, and three bedrooms in the attic. In this house plan save up a lot of space for storage, dressing rooms and wardrobes. We also have the this house plan in a mirror version.
* Technical data relate to half of semi-detached house *
Specifications:
- Cubature: 729 m3/ 25740,99 ft3
- Built-up area: 151,84 m2/ 1633,80 ft2
- Total area: 246,26 m2/ 26,49,76 ft2
- Net area: 203,92 m2 + garage/ 2194,18 ft2 + garage
-
Usable area:
- 166,85 m2 by PN-70/B-02365/ 1795,31 ft2 by PN-70/B-02365
- 197,41 m2 + garage 20,84 m2 by PN-ISO 9836:1997/ 2124,13 ft2 + garage 224,24 ft2 by PN-ISO 9836:1997
- Roof area: 509 m2/ 5476,84 ft2
- Roof slope: 34, 38 and 45 degrees
- Height of the building: 7,87 m (8,27 m with foundation)/ 25,81 ft (27,13 ft with foundation)
- Wide of the building: 15,68 m/ 51,43 ft
- Length of the building: 11,15 m/ 36,57 ft
- Minimum plot width: 19,68 m/ 64,55 ft
- Minimum plot length: 19,12 m/ 62,71 ft
- Height of rooms: 2,8 and 2,5 m/ 9,18 and 8,2 ft
Materials:
• Foundations - Concrete benches, walls of concrete blocks
• External walls - bilayer: porotherm + polystyrene
• Internal walls – porotherm
• Ceiling – Teriva
• Roof – tile
• Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 47 600,00 EUR |
| The raw state closed | 73 000,00 EUR |
| The cost of finishing works | 67 000,00 EUR |
| Execution of turnkey home | 140 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Favorite 3 - detailed file
