House plan Ground floor villa

Usable area: 171.76 m2   /   The cost of the realization: 175 510 EUR

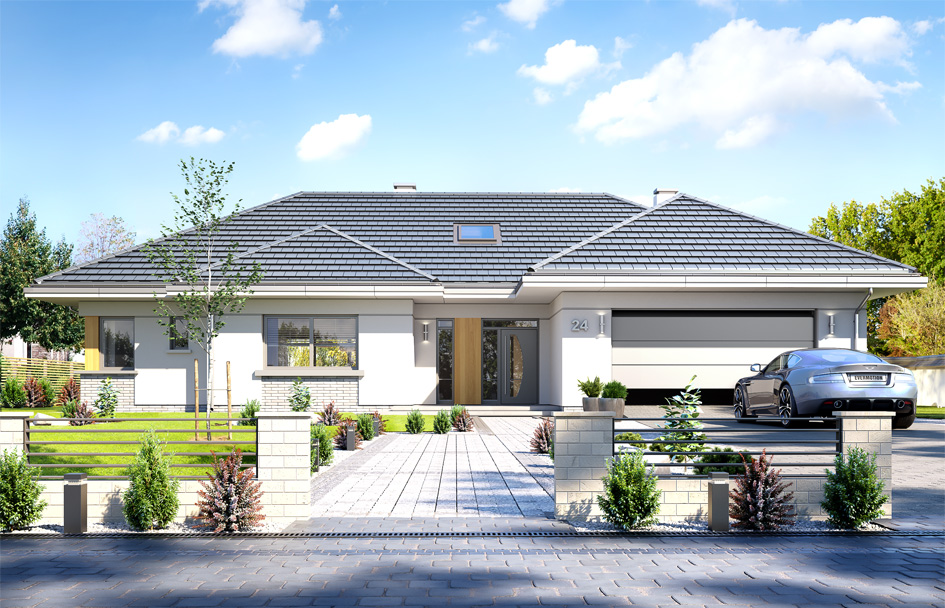

Projekt domu Willa parterowa - wizualizacja frontu

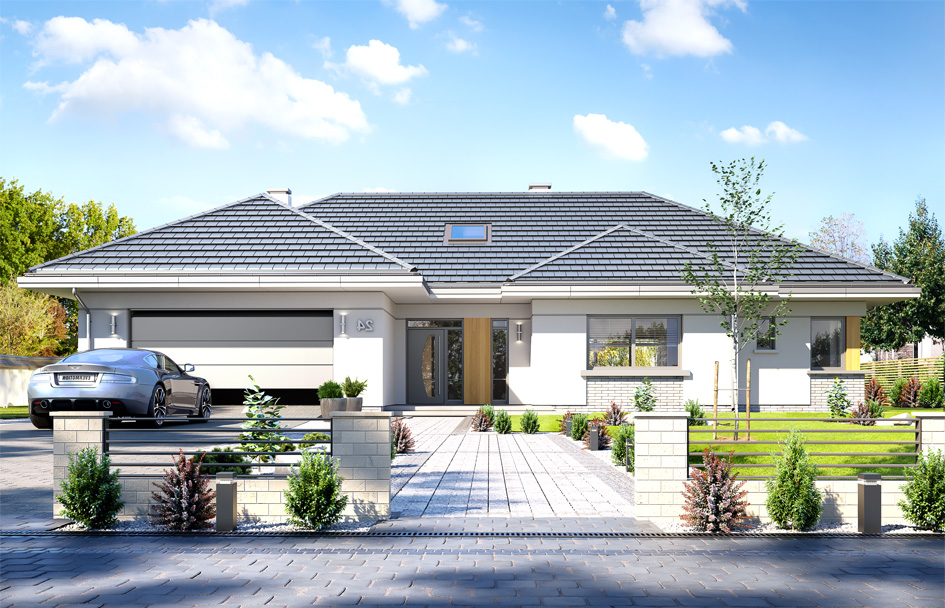

Show mirror image

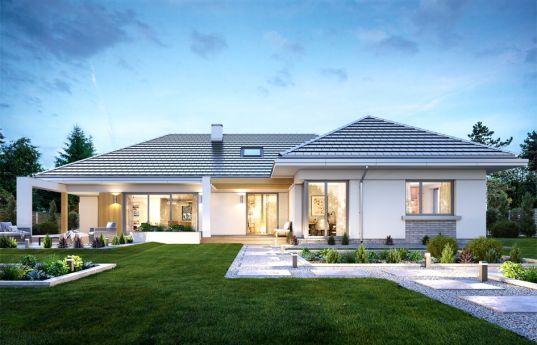

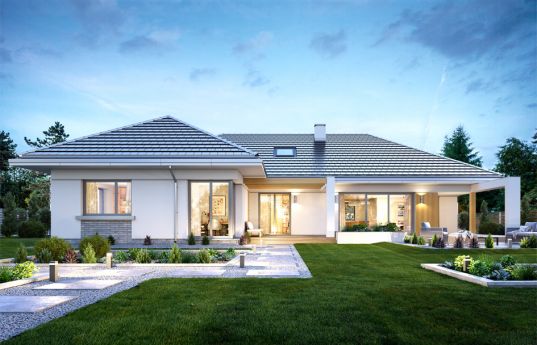

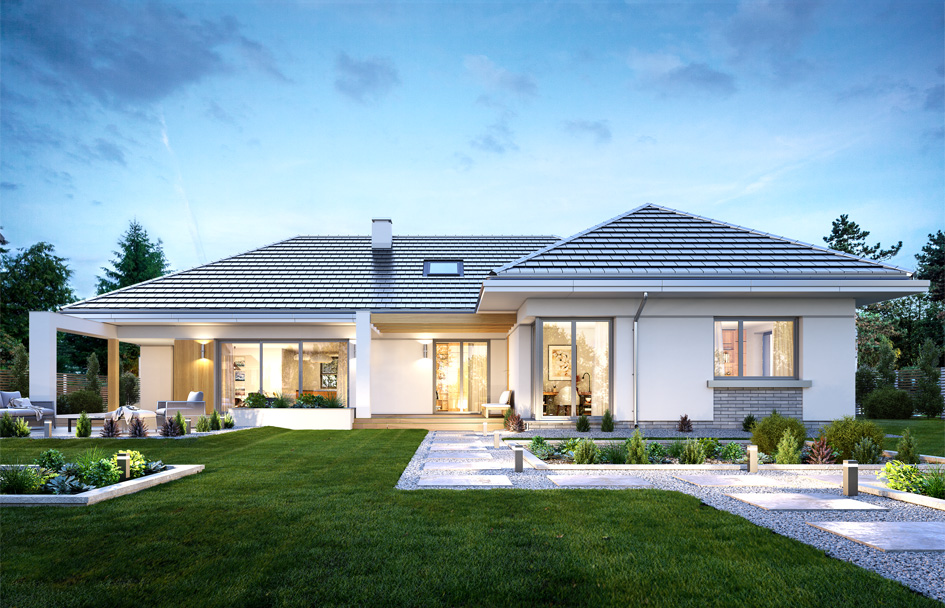

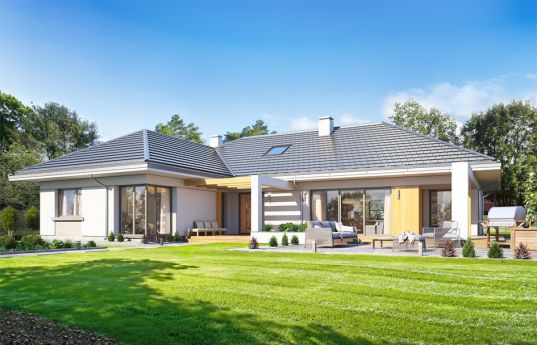

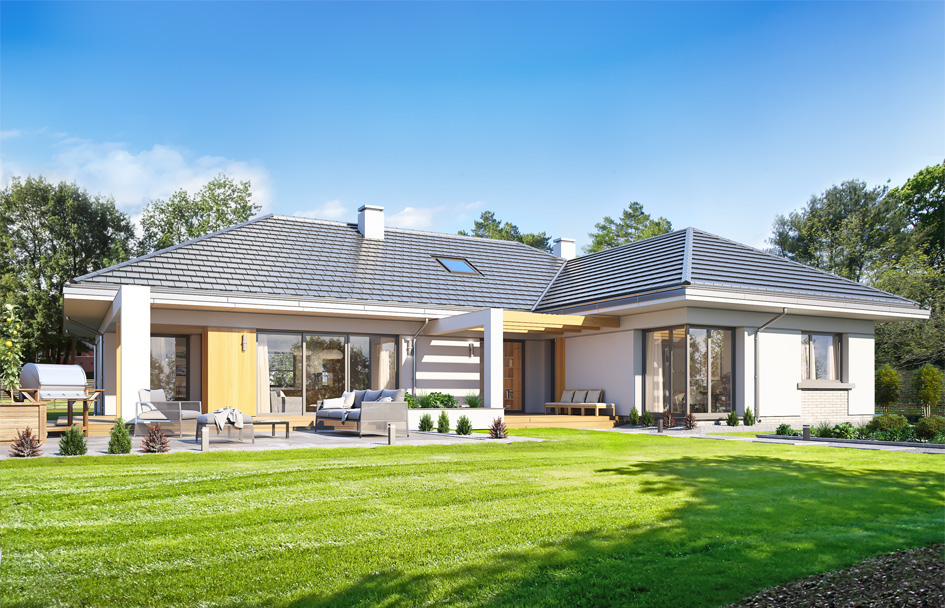

The ground floor villa is a representative one-story single-family house for a family of 4-5 people. A real comfortable villa for investors determined to live on the ground floor - without running up the stairs. The house, although it is not large and its usable area is just over 170 m2, was designed with American panache. From the very entrance we are welcomed by a wide, impressive front elevation, with beautifully accented entrance doors. From the garden side is even better - arranged in the letter L solid with a terrace - with an inner patio, partial roofing and pergola. Great place for home parties, but also for a quiet evening after work. We designed the building on the T-plane plan, with the main rectangular block covered with a hipped roof and built-up parts of the garage and bedroom. The style of the house is moderate modernity. Thanks to the large glazing, colors and materials used, the house looks modern but not extravagant. We enter the interior through the vestibule to the lobby and from there to one side to the living area - with a beautiful living room, dining room and kitchen, and the other side to the night part of the house. The living room with a fireplace and TV wall is connected to the terrace with wide sliding glazing. The living room was designed with a spatial opening - emptiness. In the version with developed attic in the attic we have above the balustrade and mezzanine. In the version with no use attic - just the empty space above the living room. In the dining room we have an entire wall on the sideboard - a rare convenience. The kitchen is designed a large island, and next to the kitchen room pantry and laundry - in American, the lady of the house has all the equipment at hand. In the night part there is a parents' apartment with a wardrobe and a bathroom, two children's bedrooms with built-in wardrobes and a bathroom, and an additional room that can be a bedroom or a study. A double garage and boiler room are also planned from the front of the house. The attic can remain a non-usable space - a home storehouse of various things, or it can be adapted to the usable area, thus obtaining an additional ca. 35 m2. A one-story villa is a great proposition for investors dreaming about contact with the garden and nature, about the comfort of living on one floor - without going up the stairs. Certainly, the house is designed for people with a slightly larger plot - a minimum of about 700-800 m2. We designed the building as energy-saving. The construction of the house is uncomplicated and the house will be inexpensive to operate.

Specifications:
  • Cubature: 1061 m3 / 37463,91 ft3
  • Built-up area: 267,84 m2 / 2881,96 ft2
  • Total area: 267,84 m2 + attic 64,58 m2 / 2881,96 ft2 + attic 694,88 ft2
  • Net area: 177,39 m2 + garage 37,76 m2 + attic 64,58 m2 / 1908,72 ft2 + garage 406,30 ft2 + attic 694,88 ft2
  • Usable area: 171,76 m2 /  1848,14 ft2
  • Roof area: 391,60 m2 / 4213,62 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,59 m (6,84 m with foundation) / 21,62 ft (22,44 ft with foundation)
  • Building dimensions: 19,86 x 19,65 m / 65,14 x 64,45 ft
  • Plot dimensions: 27,86 x 27,65 m / 91,38 x 90,69 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •         Foundations - concrete bench and foundation walls with concrete blocks
  •         External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  •         Ceiling - monolithic reinforced concrete
  •         Elevation - thin-layer plaster on polystyrene
  •         Roof - ceramic tile






The costs of implementing:
The raw state open 59 430,00 EUR
The raw state closed 92 300,00 EUR
The cost of finishing works 83 220,00 EUR
Execution of turnkey home 175 510,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Willa parterowa - pliki szczeółowe

Willa parterowa - pliki szczeółowe-lustro
