Usable area: 93.84 m2 / The cost of the realization: 75 400 EUR
Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (5) Detailed drawings
List of materials
Comments (3)

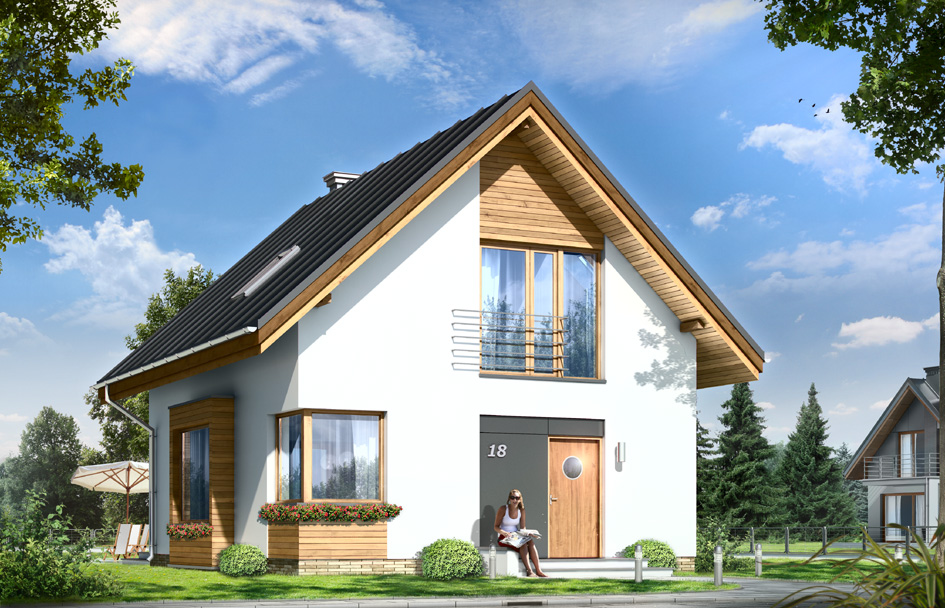

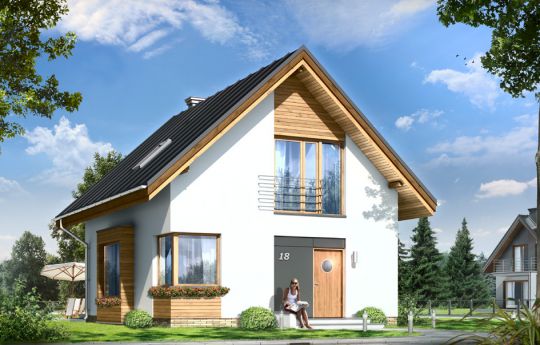

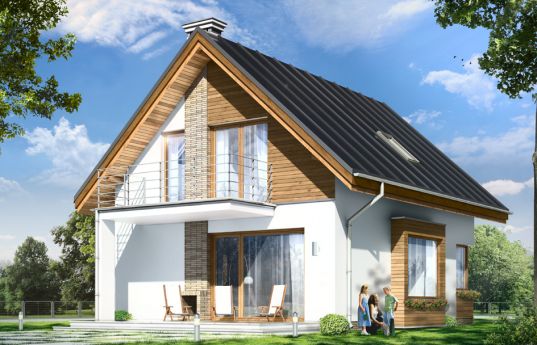

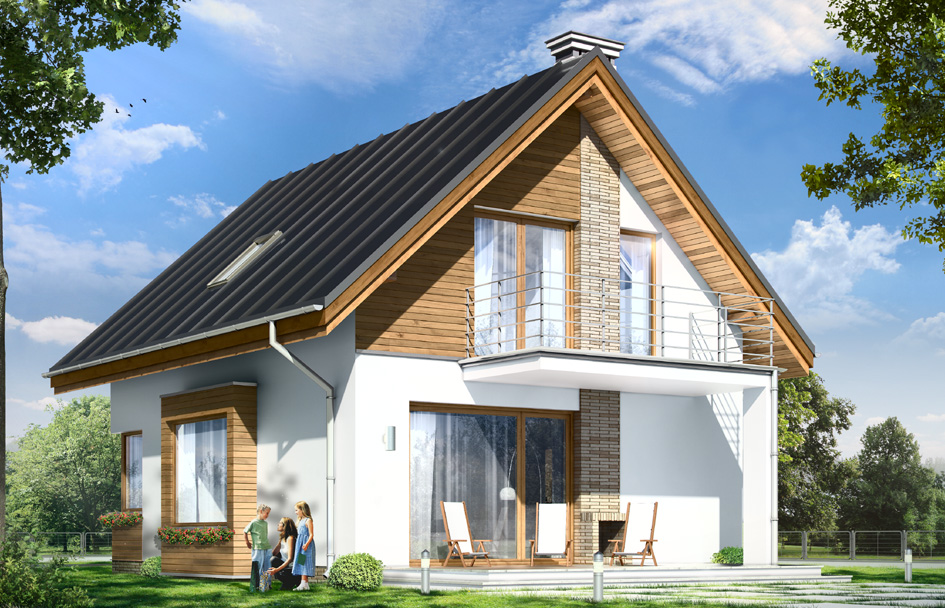

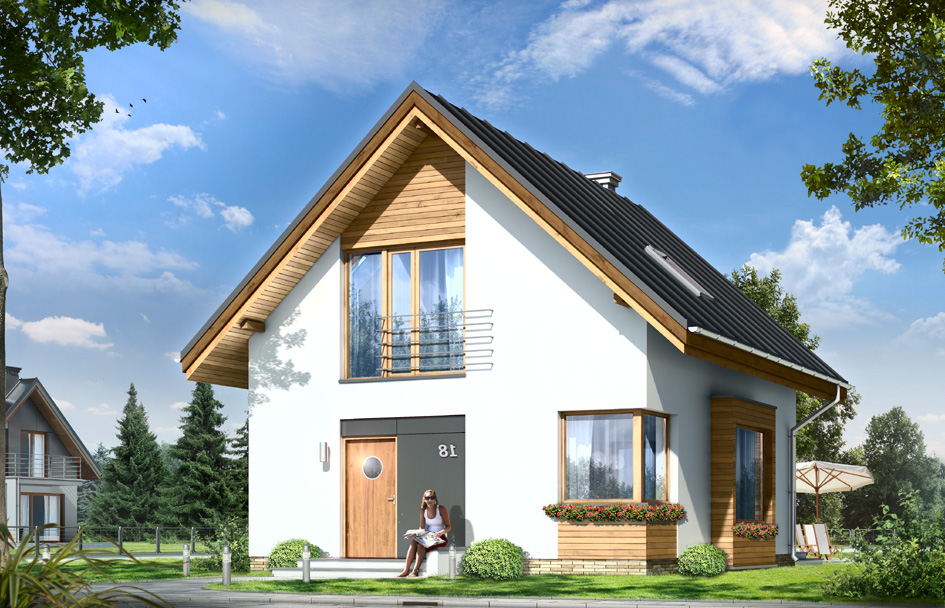

Gucio house plan is a family bungalow with usable attic for a family of 4 – 5 people. It was designed on a rectangular plan and covered by symmetrical gable roof. The simple shape of the building combined with modern detail and materials gives the attractive appearance of the house. Fragments of the facade covered by wood or HPL panels in addition diversified the white surfaces of the walls. Inside of the Gucio house, on the ground floor one level living area with an open living room, hall, dining area with bay window, exposed stately staircase is designed. The fireplace is located on an outside wall, you can enjoy with views of the garden at the same time. Large glass doors lead from the living room to the partially covered terrace. In the attic, in addition to a large bathroom, three comfortable bedrooms are designed with small "slants" and fitted wardrobes. There is also available a mirror version of Gucio house plan.
Specifications:
- Cubature: 402 m3/ 14194,62 ft3
- Built-up area: 70,49 m2/ 758,47 ft2
- Total area: 120,35 m2/ 1294,97 ft2
- Net area : 96,58 m2/ 1039,20 ft2
- Usable area: 93,84 m2/ 1009,72 ft2
- Roof area: 130,84 m2/ 1407,84 ft2
- Roof slope: 42 degrees
- Height of the building: 7,80 m (8,10 m with foundation)/ 25,58 ft
- Wide of the building: 7,94 m/ 26,04 ft
- Length of the building: 9,2 m/ 30,18 ft
- Minimum plot width: 15,94 m/ 52,28 ft
- Minimum plot length: 18,1 m/ 59,37 ft
- Height of rooms: 2,7 m/ 8,86 ft
Materials:
- Foundations: concrete benches and foundation walls of concrete blocks
- External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
- Ceiling: Teriva
- Elevations: thin-layer plaster on polystyrene
- Roofing: ceramic tile
The costs of implementing:
| The raw state open | 24 000,00 EUR |
| The raw state closed | 37 300,00 EUR |
| The cost of finishing works | 38 200,00 EUR |
| Execution of turnkey home | 75 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Gucio - detailed file
House plan Gucio - detailed file - mirror
