Usable area: 117.5 m2 / The cost of the realization: 83 900 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (5) Detailed drawings
List of materials
Comments (3)

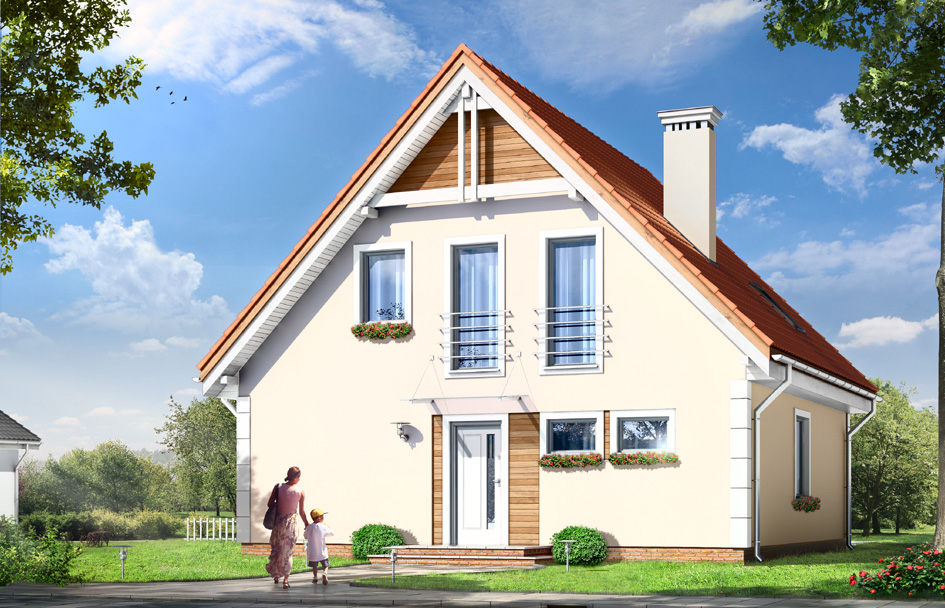

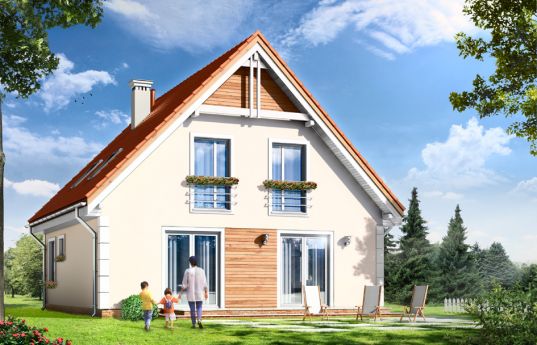

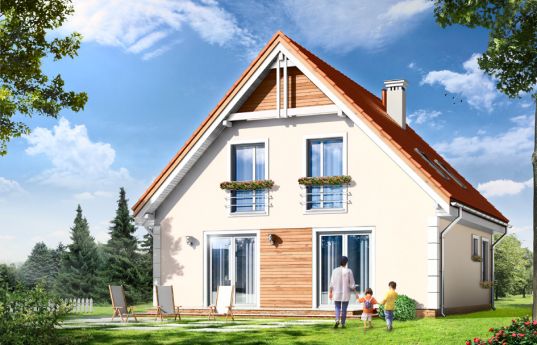

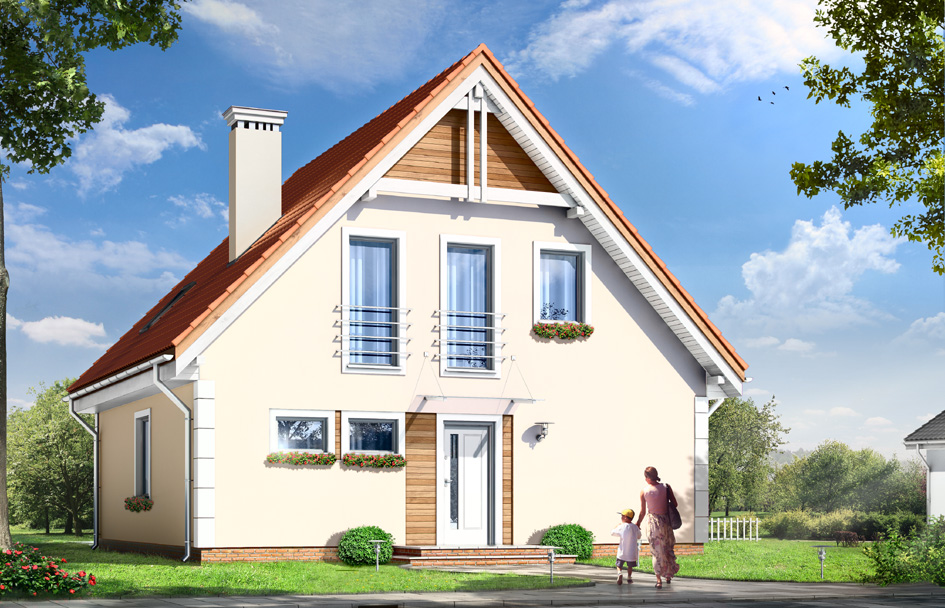

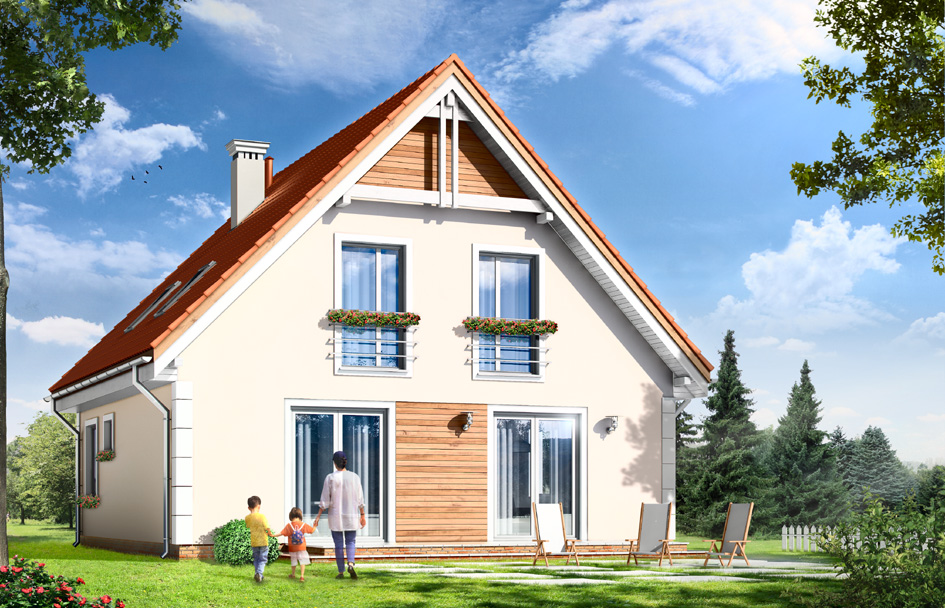

Margaret house plan is a family house with attic for a family of four to six people. House was built on a square plan 9,5 x 9,5 m and was covered by a gable roof. The essence of the project is simplicity solid in connection with well-chosen proportions and an interesting detail. House was designed in bricks technology. Inside, the building is divided into a living part on the ground floor and bedrooms in the attic. At the bottom, besides a large living room with dining area, lounge and open kitchen and an extra room was designed - study or bedroom, wc with shower, and a boiler room. In the attic there are three comfortable bedrooms and a large bathroom. Master bedroom has an additional dressing room..
Specifications:
- Cubature: 521 m3 / 18396,51 ft3
- Built-up area: 90,25 m2 / 971,09 ft2
- Total area: 146,28 m2 / 1573,97 ft2
- Net area: 122,6 m2 / 1319,18 ft2
- Usable area: 117,5 m2 / 1264,30 ft2
- Roof area: 155,89 m2 / 1677,38 ft2
- Roof slope: 45 degrees
- Height of the building: 8,42 m (8,72 m with foundation) / 27,62 ft (28,60 ft with foundation)
- Wide of the building: 9,5 m / 31,16 ft
- Length of the building: 9,5 m / 31,16 ft
- Minimum plot width: 17,5 m / 57,4 ft
- Minimum plot length: 17,5 m / 57,4 ft
- Height of rooms: 2,65 m / 8,69 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- Exterior walls - brick walls - silicate blocks + polystyrene + thin-layer plaster
- Ceiling - wood or Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 19 700,00 EUR |
| The raw state closed | 33 400,00 EUR |
| The cost of finishing works | 50 500,00 EUR |
| Execution of turnkey home | 83 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Margaret - detailed file
House plan Margaret - detailed file - mirror
