In your own house plan

Usable area: 91.41 m² / The cost of the realization: 91 700 EUR

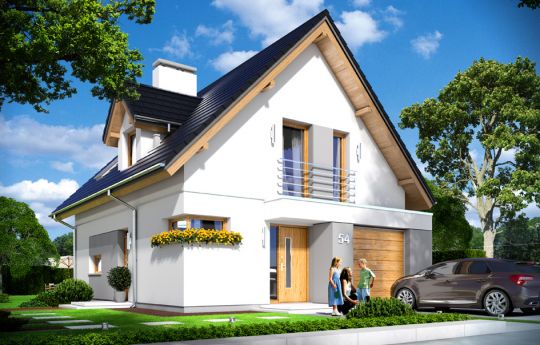

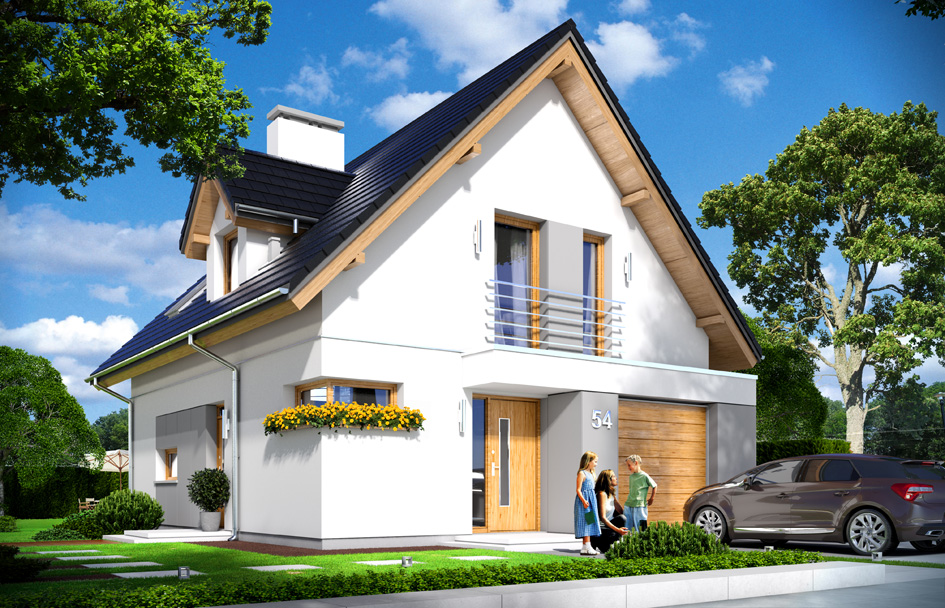

House plan Na swoim - front visualization

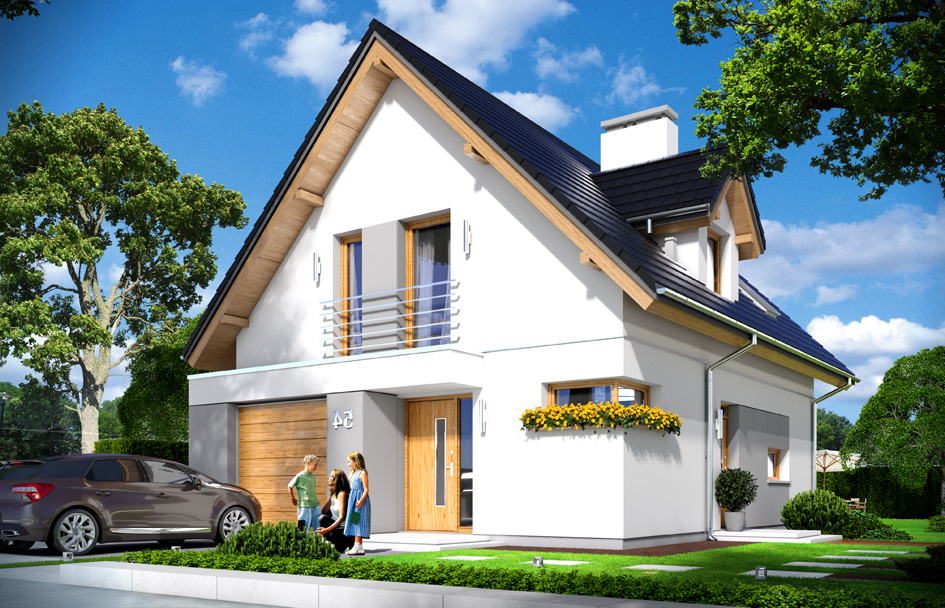

Show mirror image

Price: 900 EUR

Description Plans Elevations Situations Variants (0) Realizations (10) Detailed drawings List of materials Comments (0)

In your own house plan is a nice detached house for a family of 4-5 people. House has a compact simple form and it is built on a rectangular plan. Attic is covered by a gable, symmetrical roof. The architecture of the house is toned, modern but unpretentious. Used modern materials, colors, arrangement of windows, cladding wall emphasize contemporary style of house. At the same time gabled roof settles the body in traditional aesthetics. House perfectly fit in any surroundings and is suitable for a very narrow plot with a width of just over 16 meters. You rarely find house that will fit on such a narrow lot. The interior of house are: on the ground floor - daily part with living room and open kitchen, garage, boiler room with a separate entrance, bathroom and a very practical staircase located near the entrance. In the attic, there, are three bedrooms with a bathroom. Thanks to its compact body and a very good isolation of partitions, the house is energy efficient. Compact shape and simple design of the building will allow for a quick and inexpensive construction, and subsequent economical exploitations of the building.

Specifications:

Cubature: 481 m³ / 16984,11 ft³
Built-up area:
- without arcades 91,36 m² / 983,03 ft²
- with arcades 98,03 m² / 1054,80 ft²
Total area: 171,36 m² / 1843,83 ft²
Net area: 94,90 m² + garage 20,50 m² / 1021,12 ft² + garage 220,58 ft²
Usable area:
- 91,41 m² wg PN-70/B-02365 / 983,57 ft² wg PN-70/B-02365
- 94,90 m² + garage wg PN-ISO 9836:1997 / 1021,12 ft² + garage wg PN-ISO 9836:1997
Roof area: 158,8 m² + flat roof 6,80 m² / 1708,69 ft² + flat roof 73,17 ft²
Roof slope: 45 degrees
Height of the building: 8,27 m (8,47 m with foundation) / 27,13 ft (27,78 ft with foundation)
Wide of the building: 8,64 m / 28,34 ft
Length of the building: 11,13 m / 36,51 ft
Minimum plot width: 16,34 m / 53,59 ft
Minimum plot length: 19,49 m / 63,93 ft
Height of rooms: 2,6 i 2,5 m / 8,53 and 8,2 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - monolithic reinforced concrete
Elevation - thin-layer plaster on polystyrene
Roof - ceramic tile

The costs of implementing:

The raw state open	30 000,00 EUR
The raw state closed	50 800,00 EUR
The cost of finishing works	40 900,00 EUR
Execution of turnkey home	91 700,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Na swoim - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Na swoim - detailed file

House plan Na swoim - detailed file - mirror
