By using this website you consent to the use of cookies, according to the current browser settings.Lugano house plan
Usable area: 166.95 m2 / The cost of the realization: 174 000 EUR

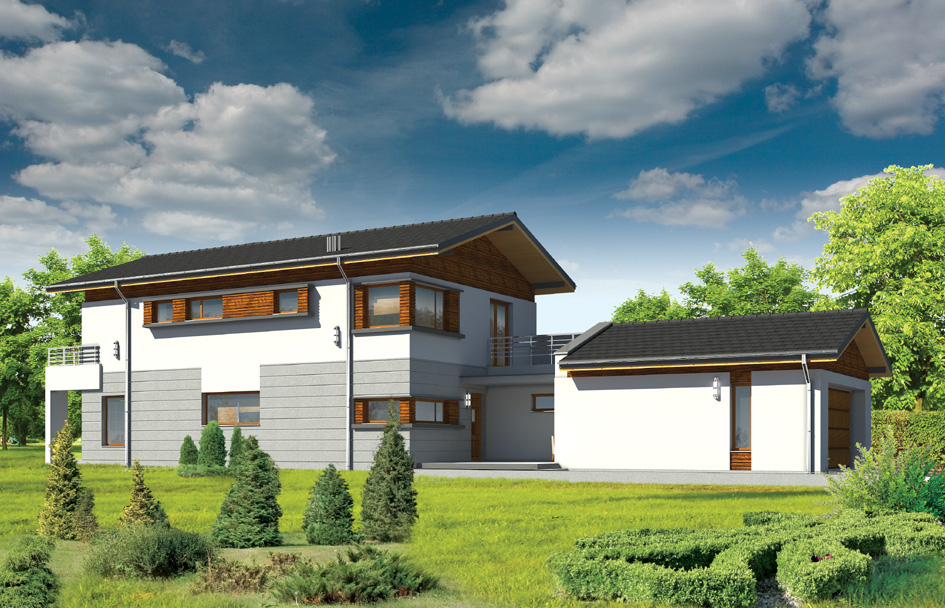

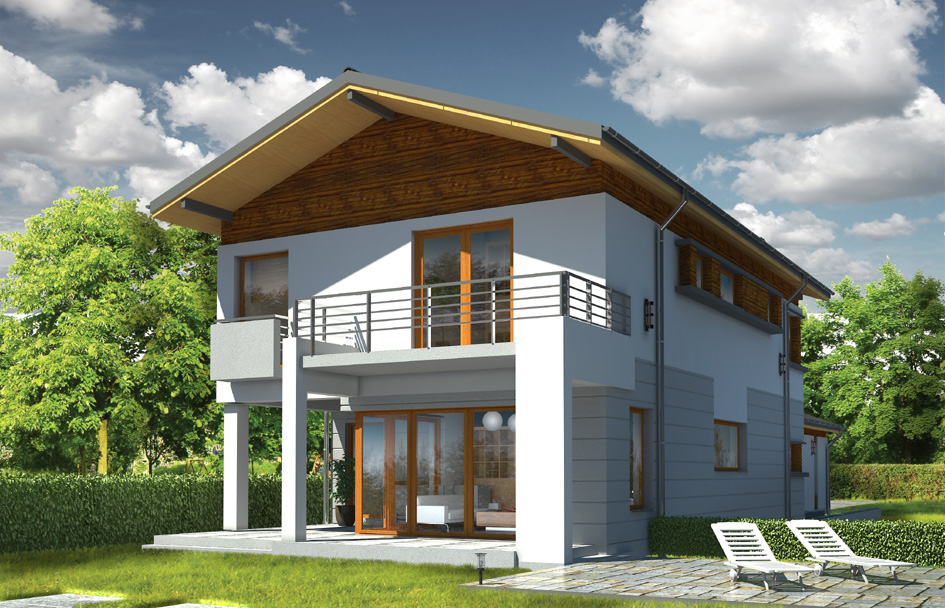

Show mirror image
Price: 1140 EUR
Description
Plans
Elevations
Situations
Animation Variants (2)
Realizations (2) Detailed drawings
List of materials
Comments (3)

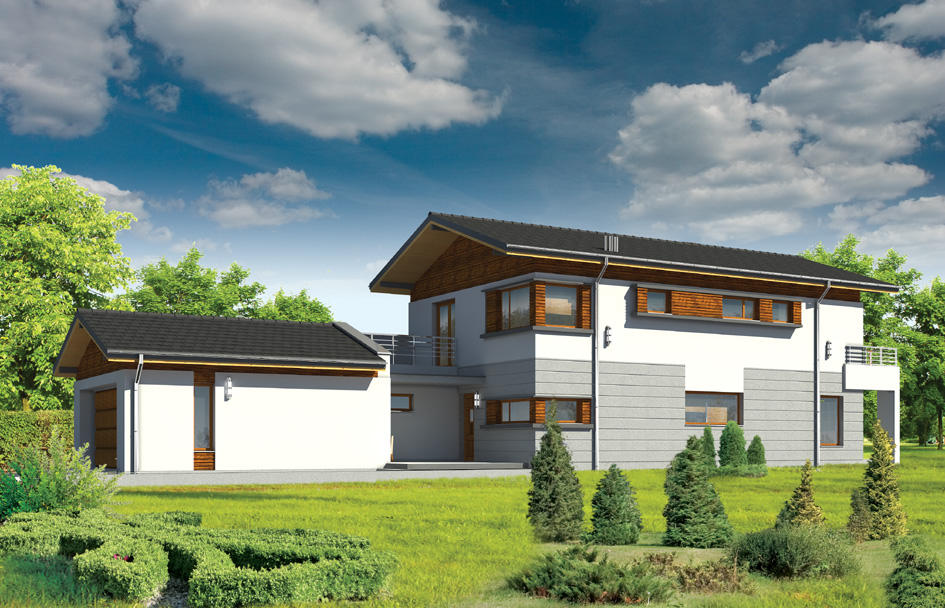

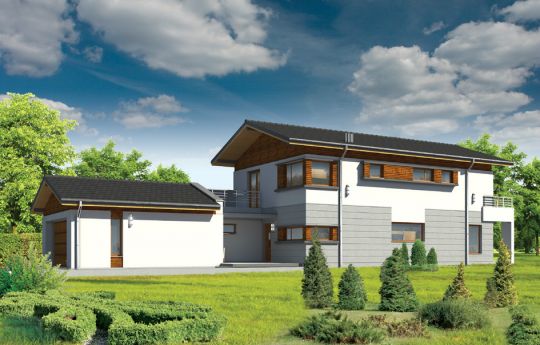

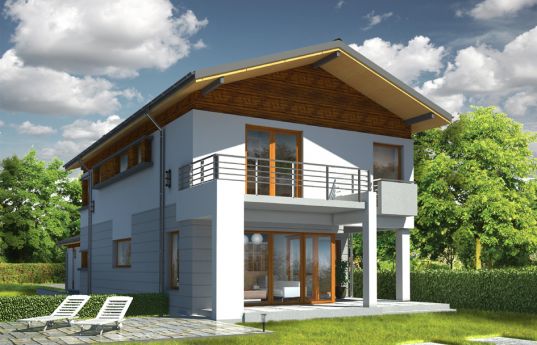

Lugano house plan is single-family villa for a family of four to five people. This storey house was covered with a symmetrical gable roof with ceramic tiles. The house has a modern character and was designed for use for a narrow plots of land on which the building must be in the form of a long narrow rectangular prism. Part of the garage was pulled out before the main body of the building, diversifying the front part. From the garden body of the house is decorated by corner living room window, arcade and terrace floor on the side pillars. Mild gabled roof with large hoods adds dynamics of the entire building. The interior is divided into a single space on the ground floor, with interesting, single-speed stairs, forming decoration of the living room and night part with four bedrooms and a large family bathroom. House despite a small area is designed functionally and rooms have a fair size. On the ground floor next to the living room you will find extra room - office or guest bedroom. Garage is connected with the rest of the house by a large technical room. From the living room you can admire the garden by the large glazed opening, connected with an arcade, outdoor fireplace and a terrace. Lugano house plan is also available in mirror version.
Specifications:
- Cubature: 961 m3 / 33932,91 ft3
- Built-up area: 179,67 m2 / 1933,25 ft2
- Total area: 305,53 m2 / 3287,50 ft2
- Net area: 199,8 m2 + garage / 2149,85 ft2 + garage
- Usable area: 166,95 m2 / 1796,38 ft2
- Roof area: 242,4 m2 / 2608,22 ft2
- Roof slope: 20 degrees
- Height of the building: 8,20 m (8,48 m with foundation) / 26,90 ft (27,81 ft with foundation)
- Wide of the building: 8,8 m / 28,86 ft
- Length of the building: 26,35 m / 86,43 ft
- Minimum plot width: 15,8 m / 51,82 ft
- Minimum plot length: 35,23 m / 115,55 ft
- Height of rooms: 2,74 m / 8,99 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster on polystyrene
The costs of implementing:
| The raw state open | 72 800,00 EUR |
| The raw state closed | 96 800,00 EUR |
| The cost of finishing works | 77 300,00 EUR |
| Execution of turnkey home | 174 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Lugano - detailed file - mirror
House plan Lugano - detailed file
