Usable area: 114.5 m2 / The cost of the realization: 142 900 EUR

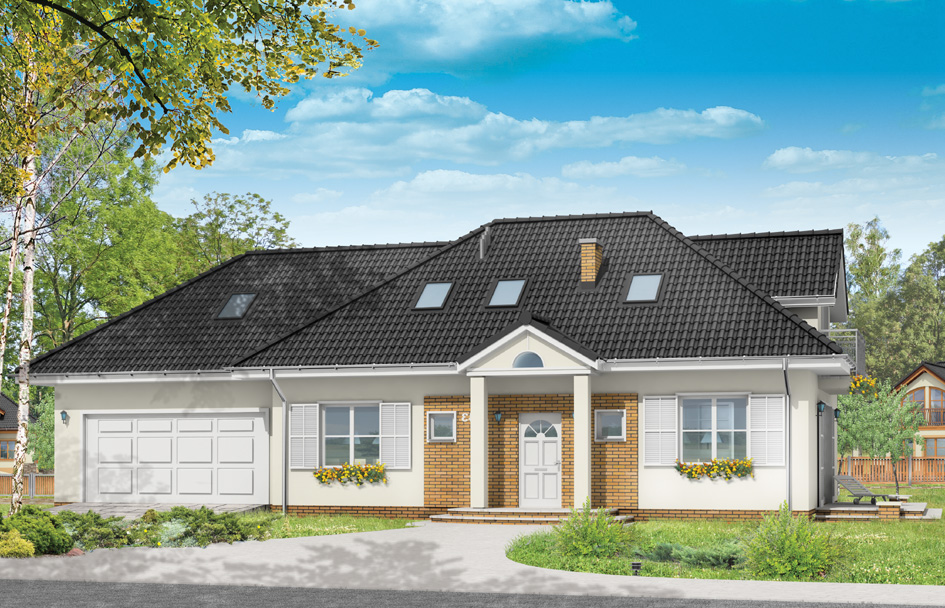

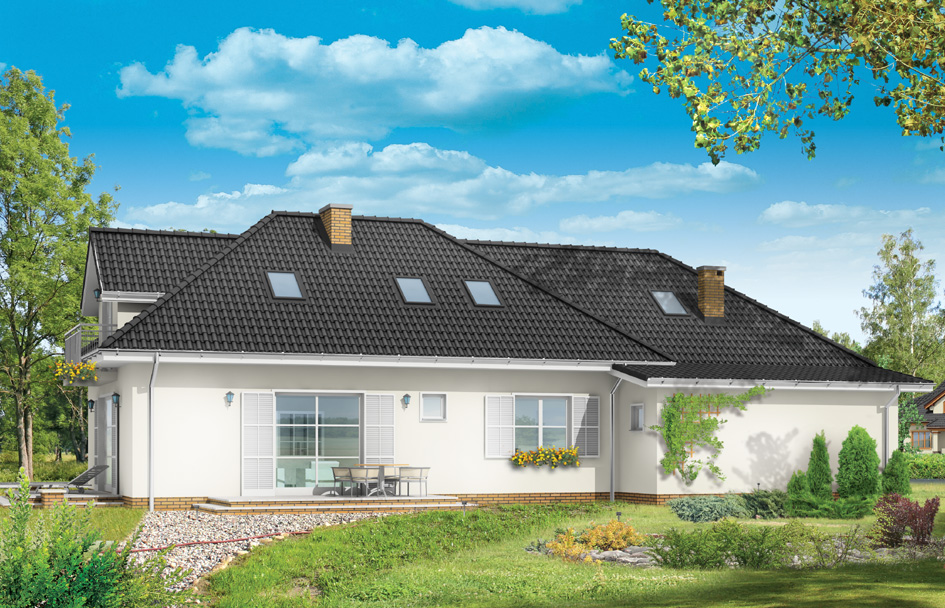

Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

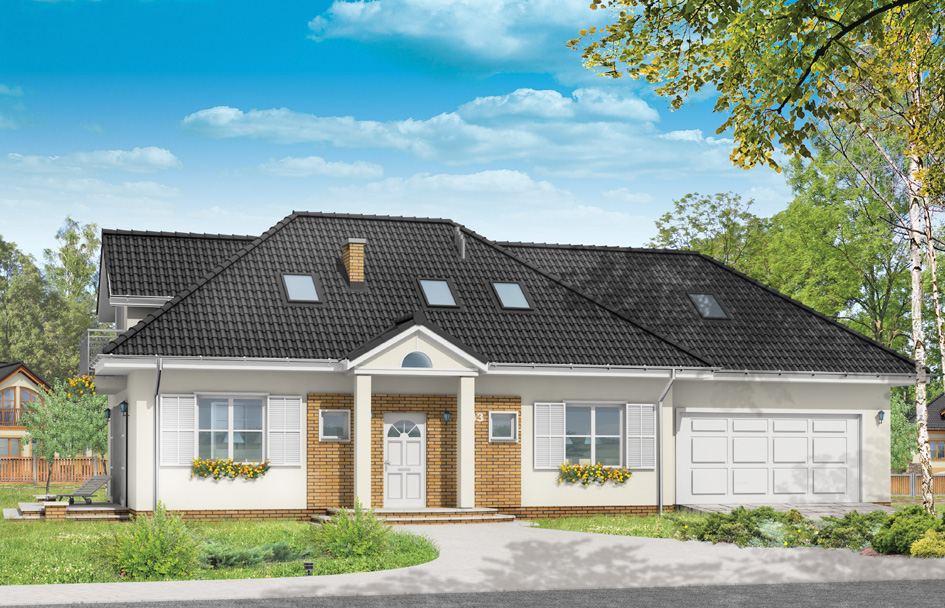

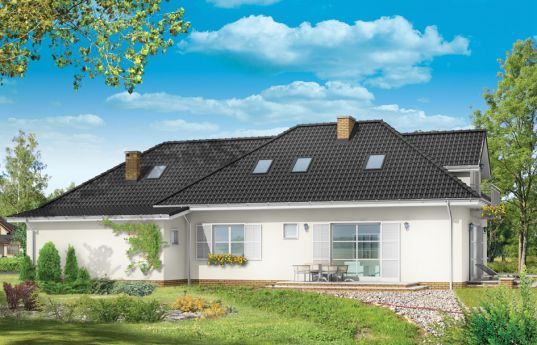

Magnolia is a house for family of four to five people. Magnolia is a bungalow with the usable attic and garage for two cars. This house plan with its architecture refers to a typical Polish manor house. In successfully it combined its traditional form with modern function, materials and details. Thanks to opening terraces on two sides, on the side and rear elevation, the house can be built on a plot with a garden in the back or on the side of the plot. Everything depends on the location in relation to the world side and the shape of the plot. During adapting the house to the location you can be resigned from one of the terraces. Inside of house, on the ground floor, living room with a dining area connected to the lobby and part of the kitchen, parents' bedroom with walk-in closet in the space under the stairs, and an additional small room - study room or a guest bedroom was designed. In the utility part of house garage and utility room - boiler room was planned. In the attic there are two children's bedrooms with private bathrooms. In Magnolia house attention should be also paid to the attic above the garage, which can be used as storage space.
Specifications:
- Cubature: 622 m3 / 21962,82 ft3
- Built-up area: 164,08 m2 / 1765,50 ft2
- Total area: 224,69 m2 / 2417,66 ft2
- Net area: 140,5 m2 + garage + attic / 1511,78 ft2 + garage + attic
- Usable area: 114,5 m2 / 1232,02 ft2
- Roof area: 257,55 m2 / 2771,24 ft2
- Roof slope: 38 degrees
- Height of the building: 7,06 m (7,36 m with foundation) / 23,16 ft (24,14 ft with foundation)
- Wide of the building: 18,58 m / 60,94 ft
- Length of the building: 10,34 m / 33,92 ft
- Minimum plot width: 25,58 m / 83,90 ft
- Minimum plot length: 17,34 m / 56,88 ft
- Height of rooms: 2,60 m / 8,53 ft
Materials:
- Foundations – poured concrete
- External walls - bilayer wall aerated concrete 24 + polystyrene or mineral wool
- Ceiling - reinforced concrete TERIVA
- Roof - tile or meatal roofing tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 44 400,00 EUR |
| The raw state closed | 68 300,00 EUR |
| The cost of finishing works | 74 600,00 EUR |
| Execution of turnkey home | 142 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Magnolia - detailed file - mirror
House plan Magnolia - detailed file
