Modern house plan

Usable area: 202.94 m2   /   The cost of the realization: 144 300 EUR

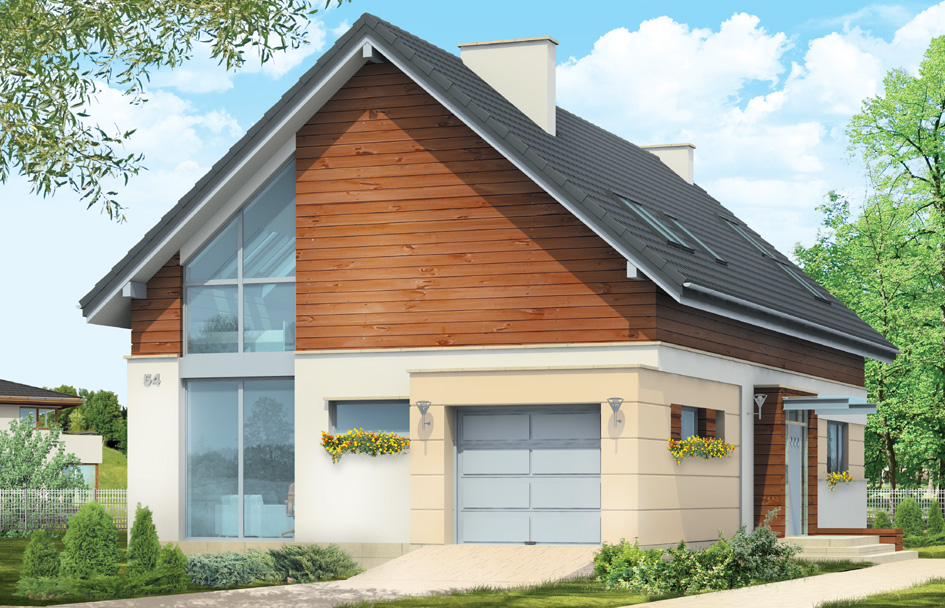

House plan Modern - front visualization

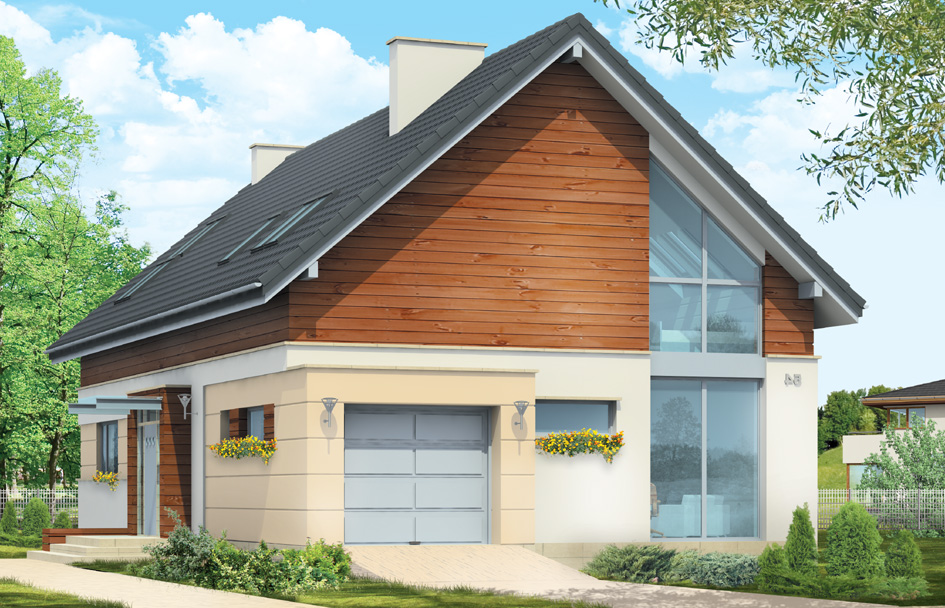

Show mirror image


Modern house plan was design for investors who appreciate contemporary architecture and design solutions. Modern house was design for clients who appreciate simple, elegant solution. Rectangular ground floor plan has been covered by symmetrical gable roof over the attic. The location of windows, façade cladding elements - all these elements were composed so as to add a house some dynamics. As a result, simple means, obtained a very attractive appearance. The interior of the house also refers to this style: bright, clear divisions inside also forms a very interesting interior. Single-space of living and dining room with kitchen, connected with hall separated by stairs to the attic. Glazed surfaces opening the interior to the garden the location of the fireplace - all adds the originality of the interior. On the ground floor there are office and a garage with a boiler room. In the attic there are : master bedroom with dressing room and bathroom, and the children's bedrooms with private bathrooms. Modern house, despite the original architectural details have the traditional form of the building with gable roof - it will result an easy and inexpensive construction, and the lack of problems with acceptance by the office issuing the building permit.

Specifications:
  • Cubature: 829 m3 / 29271,99 ft3
  • Built-up area: 160,12 m2 / 1722,89 ft2
  • Total area: 281,76 m2 / 3031,74 ft2
  • Net area: 214,43 m2 / 2307,27 ft
  • Usable area: 202,94 m2 / 2183,63 ft2
  • Roof area: 240,92 m2 / 2592,30 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,57 m (9,04 m with foundation) / 28,11 ft (29,65 ft with foundation)
  • Wide of the building: 17,14 m / 56,22 ft
  • Length of the building:10,00 m / 32,8 ft
  • Minimum plot width: 25,14 m / 82,46 ft
  • Minimum plot length: 17,00 m / 55,76 ft
  • Height of rooms: 2,77 m / 9,09 ft
Materials:
  • Foundations – poured concrete
  • External walls - bilayer MAX 29 + 15 polystyrene (or mineral wool)
  • Ceiling -  reinforced concrete TERIVA
  • Roof -  tile or meatal roofing tile
  • Elevation - thin-layer plaster




The costs of implementing:
The raw state open 48 500,00 EUR
The raw state closed 75 500,00 EUR
The cost of finishing works 68 900,00 EUR
Execution of turnkey home 144 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Modern - detailed file

House plan Modern - detailed file - mirror
