Usable area: 63.46 m2 / The cost of the realization: 53 900 EUR

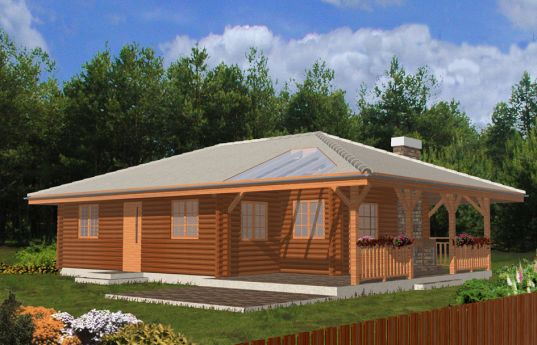

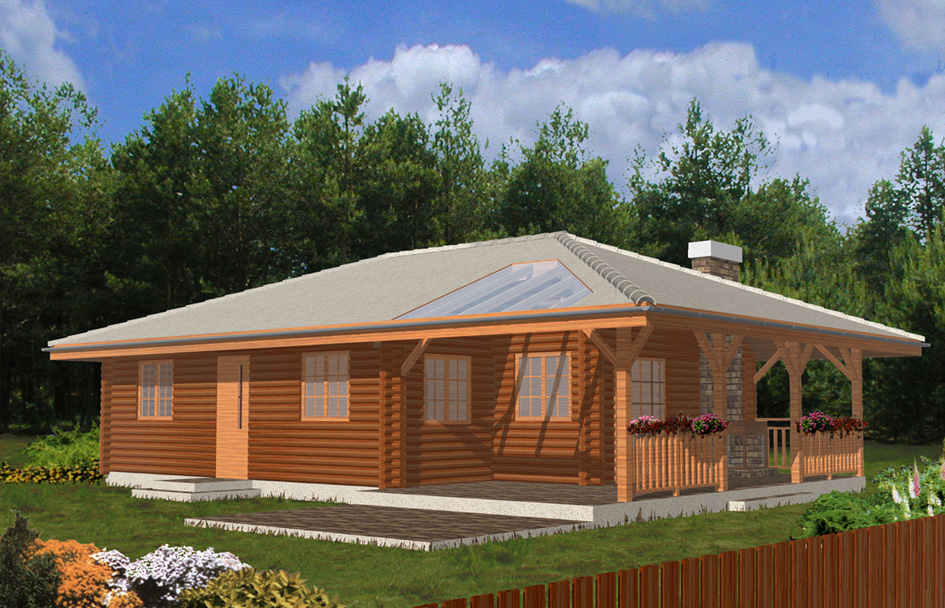

Show mirror image
Price: 760 EUR
Description
Plans
Elevations
Situations
Variants (11)
Realizations (8) Detailed drawings
List of materials
Comments (3)

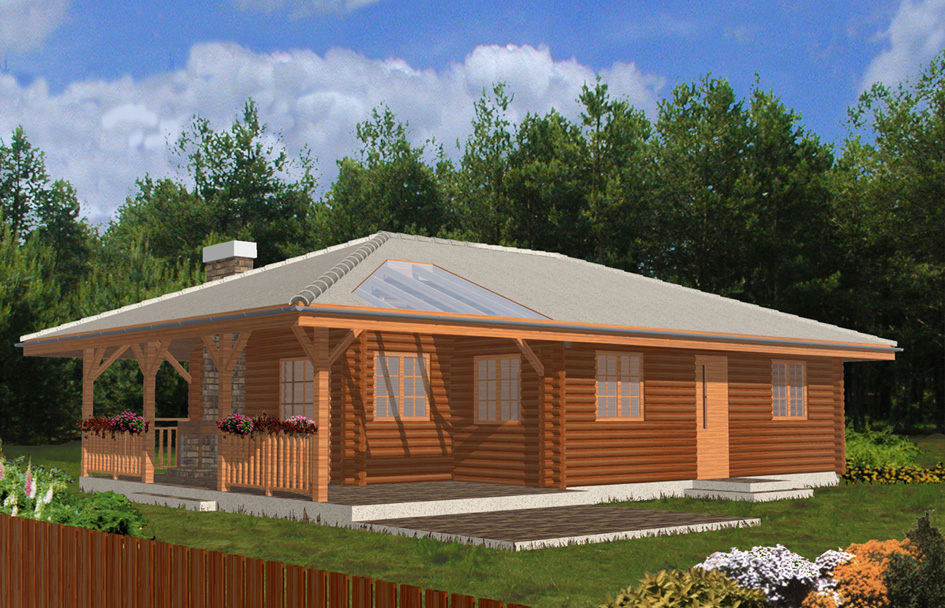

Cheerful wooden house plan is a small and economical house with wooden logs. Storied, without basement, with a simple and balanced block for a family of four. It can be treated as a single-family house or as a whole year house. The building has a clear and functional floor plan and clear their splitting to day and night sections, which gives a sense of comfort and convenience. Large covered terrace provides the opportunity to use an external fireplace (grill), regardless of weather conditions. Fireplace, located in the living room allows heat distribution throughout the house. Cheerful Wooden house plan is available in the technology of wood and brick. There is also a variant version with the attic. Each of variant version are available also in a mirror version. A set of four copies includes: design house architecture, construction and interior installation diagrams. At the request of the investor, we enclose to the house plan agreement to make changes according to customer's request.
Specifications:
- Cubature: 266,97 m3 / 9426,71 ft3
- Built-up area: 70,25 m2 / 755,89 ft2
- Total area: 70,25 m2 / 755,89 ft2
- Net area: 63,46 m2 / 682,83 ft2
- Usable area: 63,46 m2 / 682,83 ft2
- Roof area: 140 m2/ 1506,40 ft2
- Roof slope: 22 degrees
- Height of the building: 4,75 m (5,05 m with foundation) / 15,58 ft (16,56 ft with foundation)
- Wide of the building: 12,3 m / 40,34 ft
- Length of the building: 7,5 m / 24,6 ft
- Minimum plot width: 18,8 m / 61,66 ft
- Minimum plot length: 15,5 m / 50,84 ft
- Height of rooms: 2,50 m / 8,2 ft
Materials:
- Foundations – poured concrete
- External walls - wooden logs or aerated concrete blocks
- Internal walls - plasterboard wall or aerated concrete blocks
- Ceiling - plaster soffits suspended from the roof truss
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 21 900,00 EUR |
| The raw state closed | 34 000,00 EUR |
| The cost of finishing works | 20 000,00 EUR |
| Execution of turnkey home | 53 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cheerful wooden- detailed file
House plan Cheerful wooden- detailed file - mirror
