D03 wooden Gregory house plany

Usable area: 84.66 m² / The cost of the realization: 64 200 EUR

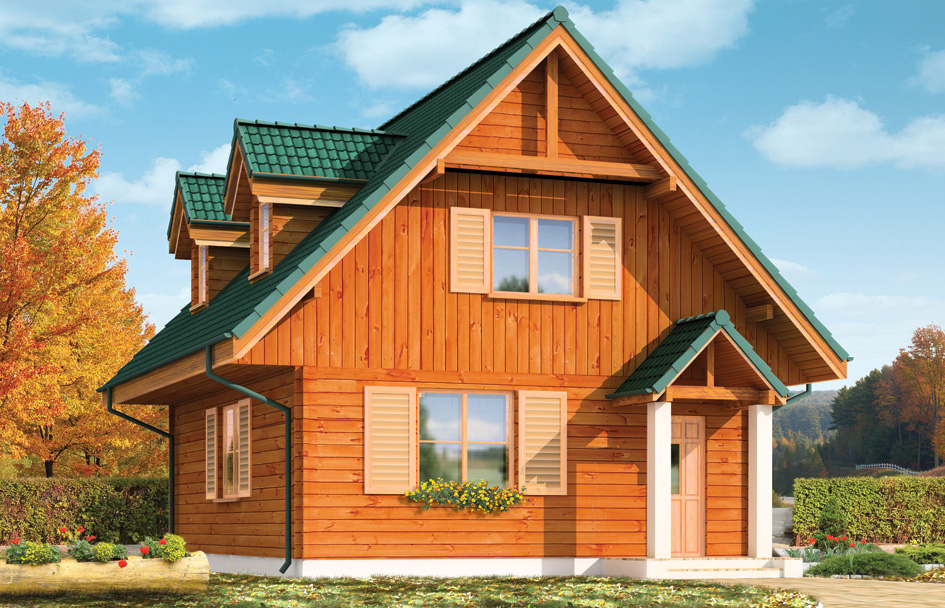

House plan D03 wooden Gregory - front visualization

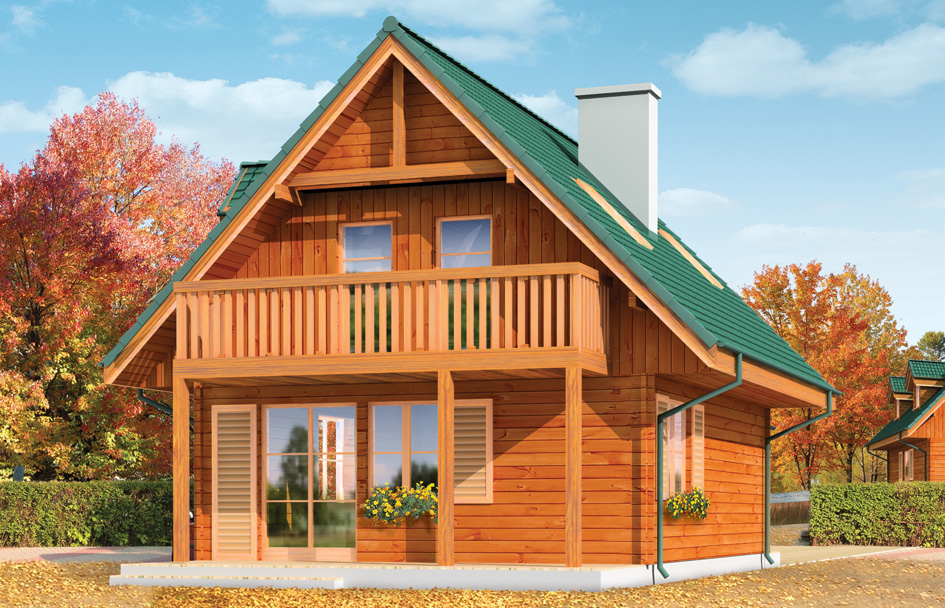

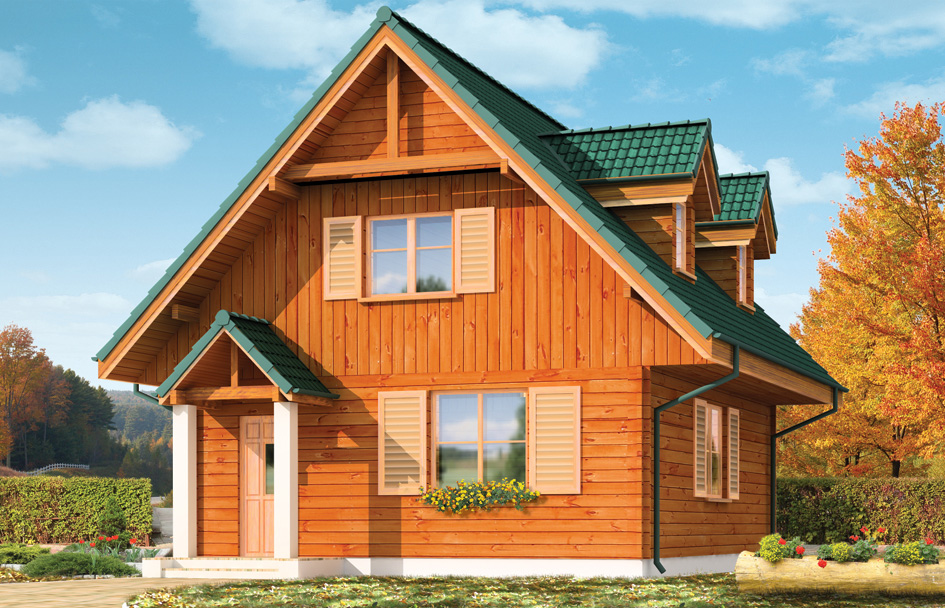

Show mirror image

Price: 830 EUR

Description Plans Elevations Situations Animation Variants (0) Realizations (2) Detailed drawings List of materials Comments (3)

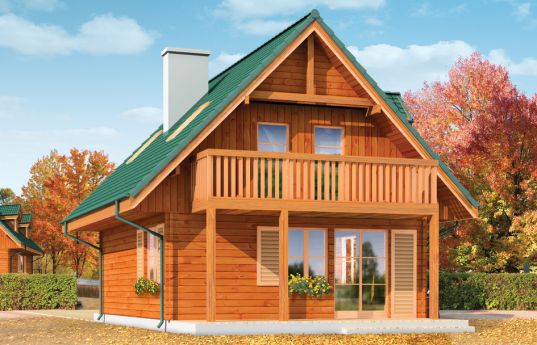

D03 wooden Gregory is a detached single family house or a comfortable holiday house. This is a building of a simple body, covered by a gable roof. It fits perfectly to the plot with a garden behind the house - from the back elevation a large terrace, partly covered by a large balcony has been designed. The front of the house is accented by a gable wall and a protruding lump of the entrance porch. Despite the small area the house looks impressive. Wooden elevation from the balls can be replaced with plaster, it is possible to make a mixed elevation: plastered ground floor and a wooden attic. Interior: on the ground floor a large living room with fireplace, open to kitchen and hall with stairs is designed. In this house plan on the attic there are three bedrooms and a bathroom. The two of rooms have a balcony.

Note! The classic version of this house plan is available with electric heating - a variant of the house plan is available with the gas heater in the bathroom in the attic!

Specifications:

Cubature: 285 m³/ 100,63,35 ft³
Built-up area: 59,5 m²/ 640,22 ft²
Total area: 102,3 m²/ 1100,75 ft²
Net area: 84,66 m²/ 910,94 ft²
Usable area: 84,66 m²/ 910,94 ft²
Roof area: 139,7 m²/ 1503,17 ft²
Roof slope: 45 degrees
Height of the building: 7,69 m (8,01 m with foundation)/ 25,22 ft (26,27 ft with foundation)
Wide of the building: 7 m / 22,96 ft
Length of the building: 8,7 m /28,54 ft
Minimum plot width: 15 m / 161,40 ft
Minimum plot length: 16,80 m / 180,77 ft

Materials:

• Foundations - Concrete benches
• External walls - 1. wooden balls warmed on the inside with mineral wool 2. Skeleton wooden construction
• Ceiling - a wooden beam
• Elevation - balls, shuttering wooden boards or thin-layer plaster (on the plate or on polystyrene)
• Roof - tile

The costs of implementing:

The raw state open	15 000,00 EUR
The raw state closed	24 100,00 EUR
The cost of finishing works	40 100,00 EUR
Execution of turnkey home	64 200,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

D03 Grześ drewniany - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan D03 wooden Gregory - detailed file

House plan D03 wooden Gregory - detailed file - mirror
