Usable area: 122.14 m2 / The cost of the realization: 113 100 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (9) Detailed drawings
List of materials
Comments (3)

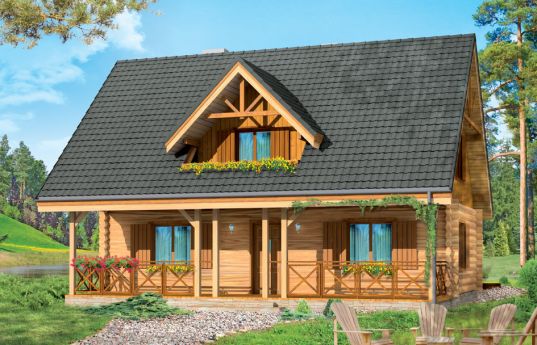

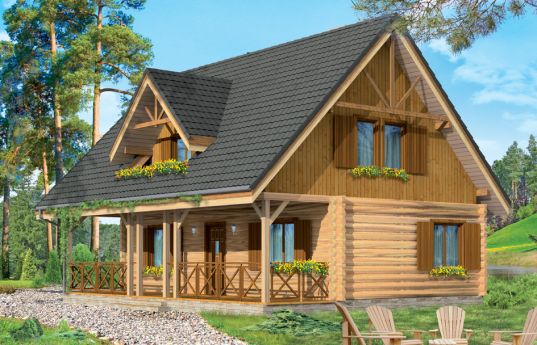

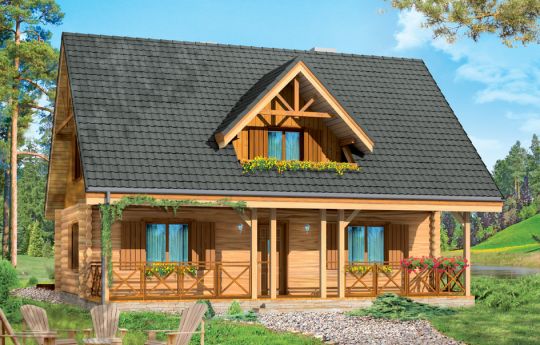

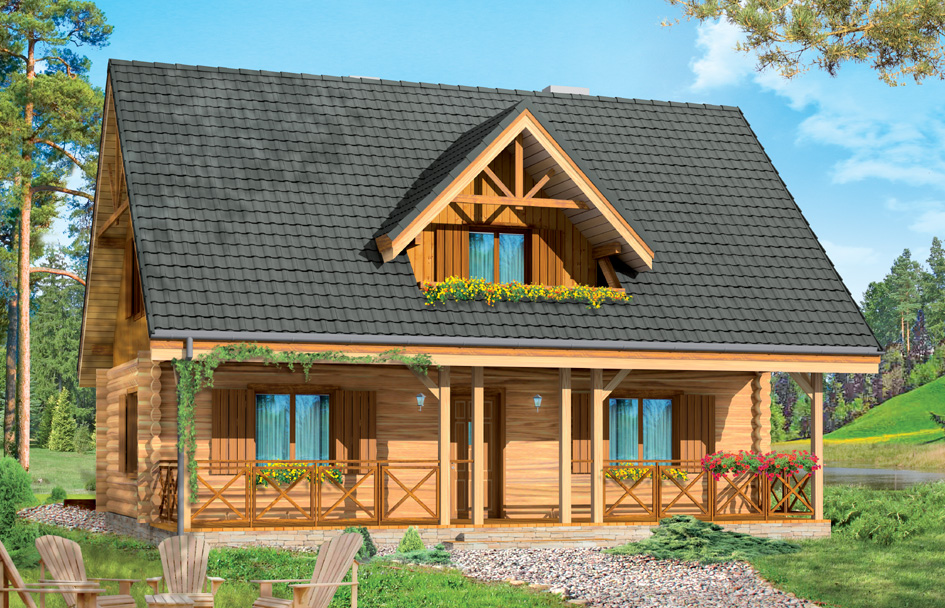

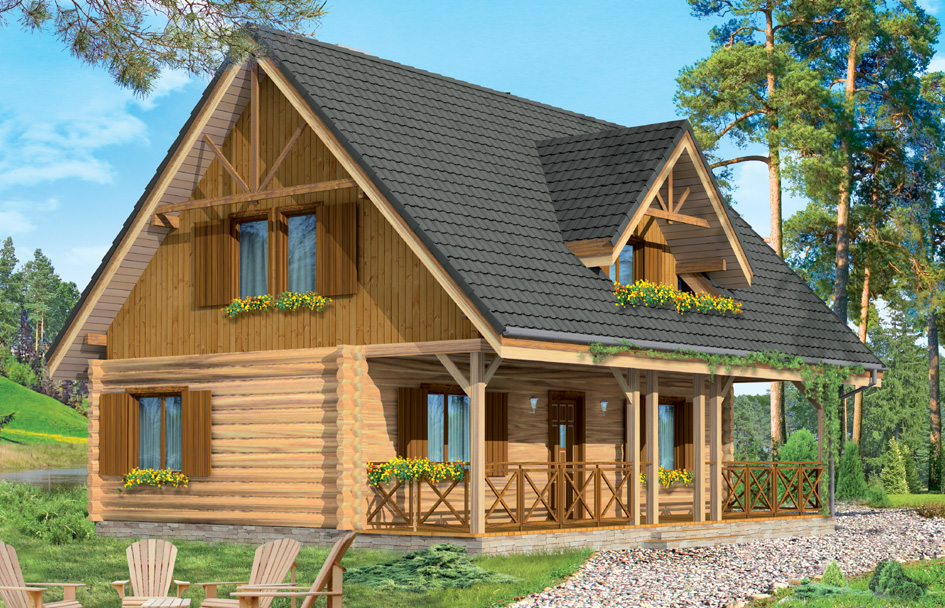

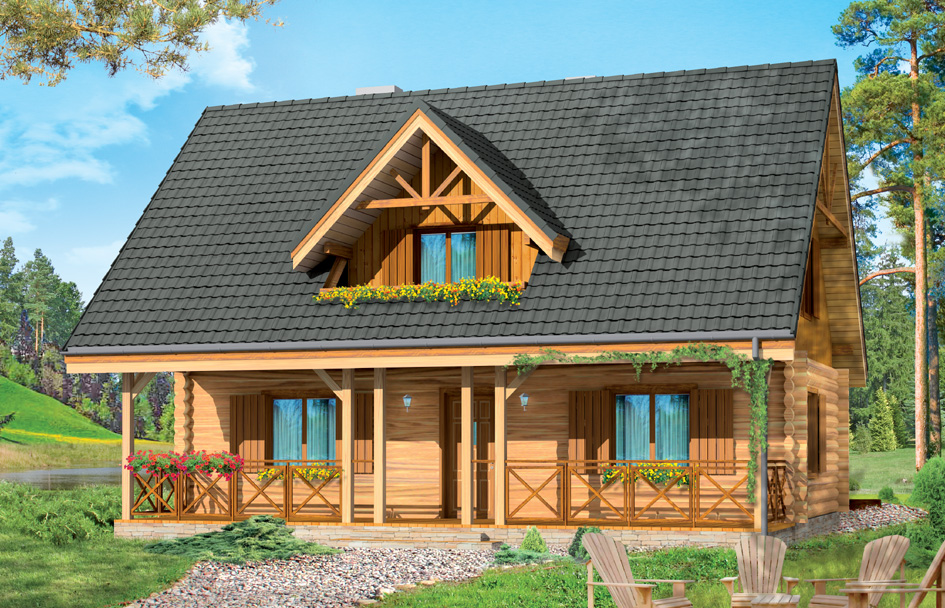

Ranch house plan is a the building with a solid log, insulated from the inside. This is a storey house with usable attic, designed for a family of 4-6 people. Ranch house can be used as a year-round residential building, but also as a holiday house. The building, thanks to its simplicity, reminds country houses. At the same time its architecture does not refer to any regional folk design, form is so universal. A large gable roof with eaves, set in the middle of the front elevation dormer with balcony, a veranda with a width of whole house supported on pillars with braces - these elements can easily associate with the idyllic countryside habitat. House is facing one way - front elevation is also a garden elevation. It is popular with recreation plots. The division of the interior of the house is also very traditional and reminds the old country houses or manors: the central part is a hall with a vestibule and stairs, on the sides are a living room and kitchen, and a utility room. Great roofed terrace - front veranda give shade from the sun and shelter from the rain. In the attic there are three bedrooms and a very nice bathroom. In addition, hall opens onto a picturesque little balcony. There is also available mirror version of this house plan.
Specifications:
- Cubature: 429 m3 / 15147,99 ft3
- Built-up area: 78,00 m2 (without porch) / 839,28 ft2 (without porch)
- Total area: 152,71 m2 / 1643,16 ft2
- Net area: 130,73 m2 / 1406,65 ft2
- Usable area: 122,14 m2 / 1314,23 ft2
- Roof area: 201,16 m2 / 2164,48 ft2
- Roof slope: 45 degrees
- Height of the building: 8,50 m (8,80 m with foundation) / 27,88 ft (28,86 ft with foundation)
- Wide of the building: 12 m / 39,36 ft
- Length of the building: 6,5 m / 21,32 ft
- Minimum plot width: 20 m / 65,6 ft
- Minimum plot lengthi: 16,01 m / 52,513 ft
- Height of rooms: 2,75 m / 9,02 ft
Materials:
- Foundations – poured concrete
- Ściany zewnętrzne - solid log 16 cm + mineral wool + inside plank
- Ceiling - wooden beams
- Roof - tile or meatal roofing tile
- Elevation - solid log
The costs of implementing:
| The raw state open | 42 400,00 EUR |
| The raw state closed | 53 900,00 EUR |
| The cost of finishing works | 59 300,00 EUR |
| Execution of turnkey home | 113 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Ranch - detailed file
House plan Ranch - detailed file - mirror
