House on park street house plan

Usable area: 122.39 m2   /   The cost of the realization: 150 750 EUR

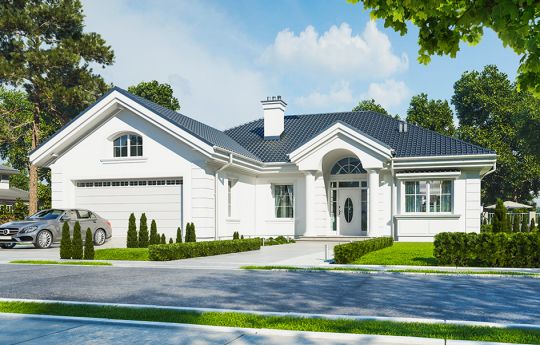

House plan House on park street - front visualization
Show mirror image

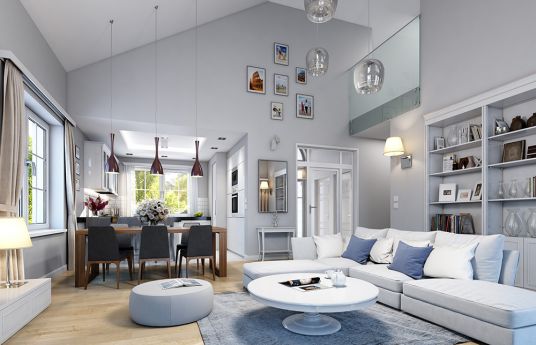

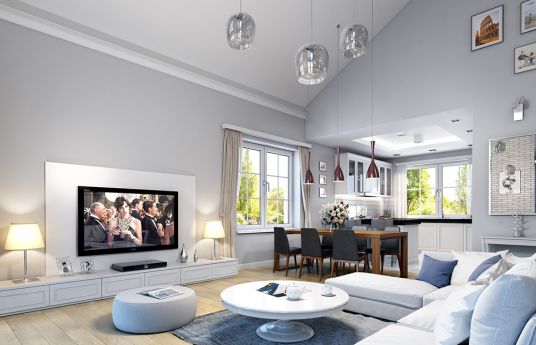

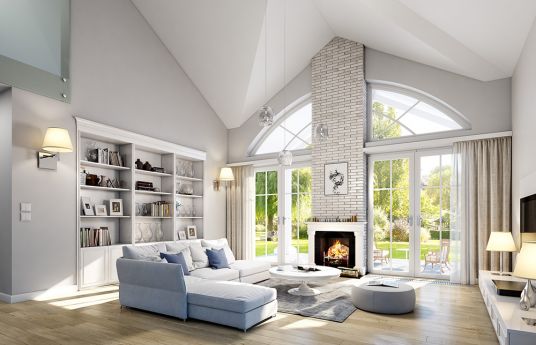

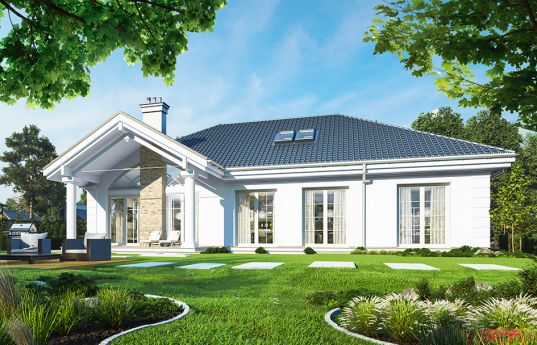

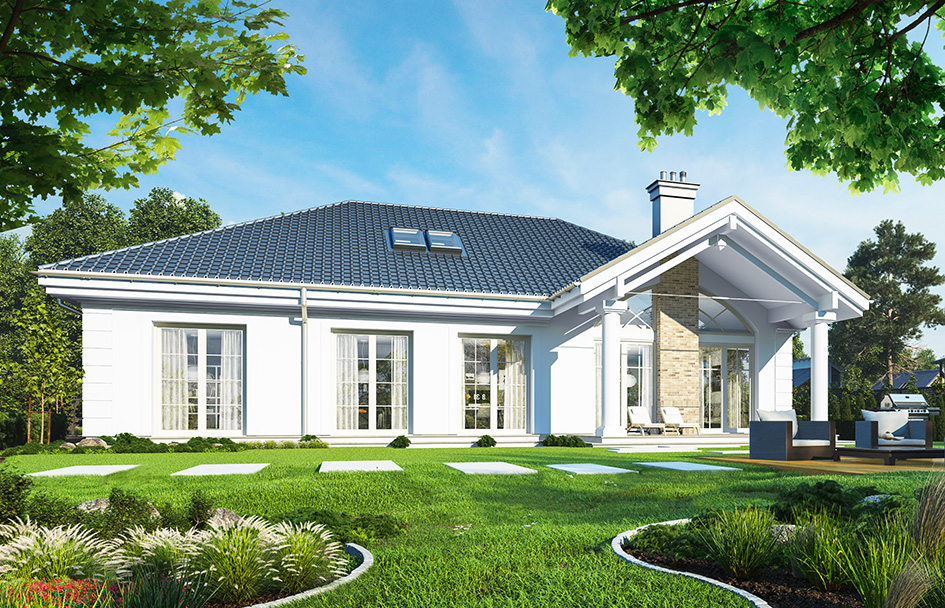

House on park street is another version of the house plan Park Residence – Park Villa. This time it is the smallest version of the project. House with a small area, small external dimensions and not high costs of construction and operation, is smaller brother of a larger Residence or Park Villa. The building was designed as a rectangular main body covered with a hipped roof, with build another garage. Representative front of the house, remaining the American residences of the rich suburbs, is decorated with beautiful, supported on columns, roof over the entrance door. This is the central element of the front elevation focusing all the attention. Similarly, from the garden: the main component decorating the facade is beautiful roof over the terrace and large glass of living room. Architecture of house is full of classical details, at the same time is calm, toned down, without exaggeration. This creates an elegant house with a timeless design. Interior: All living areas are located on the ground floor of the house. The attic can be developed as an additional usable space, or it can be left as an attic. We entre to house by a beautiful spacious hall with cloakroom, and higher ceiling, from which we get to the lobby or to the boiler room and the garage. Opposite the entrance we go into the enter open daily space, combined with living and dining area, and a separate beautiful kitchen with a pantry. Above the living room the ceiling was opened to increasing living space. The opening can be combined with a mezzanine in the attic. In the second part of the house there are three bedrooms, toilet and bathroom. Children’s bedrooms have built-in wardrobes. Master bedroom has its own dressing room. All bedrooms have beautiful windows overlooking the garden. Above the garage there is an additional  utility attic. The house is simple in construction and energy efficient. This is an excellent option for those wishing to have traditional manor house architecture, but intending to spend less money to build, or do not have a large plot.

Specifications:
  • Cubature: 721 m3/25458 ft3
  • Built-up area: 203,91 m2/2194,07 ft2
  • Total area: 227,44 m2/2447,25 ft2
  • Net area: 128,55 m2 + garage /1383,20 ft2 + garage
  • Usable area: 122,39 m2/1316,92 ft2
  • Roof area: 305 m2/3281,80 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,60 m (6,90 m with foundation)/21,65 ft (22,63 ft with foundation)
  • Building dimensions: 16,50 m/54,12 ft x 15,35 m/50,35 ft
  • Plot dimensions: 23,50 m/77,08 ft x 24,85 m/81,51 ft
  • Height of rooms: 2,80 m/9,18 ft
Materials:
  • Foundations - reinforced concrete and foundation walls of concrete blocks
  • External walls - brick walls- bilayer porotherm 25 + polystyrene + thin-layer plaster
  • Ceiling - monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 56 480,00 EUR
The raw state closed 82 600,00 EUR
The cost of finishing works 68 150,00 EUR
Execution of turnkey home 150 750,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan House on park street - detailed drawings

House plan House on park street - detailed drawings - mirror
