Usable area: 189.88 m2 / The cost of the realization: 151 900 EUR
Show mirror image
Price: 1180 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

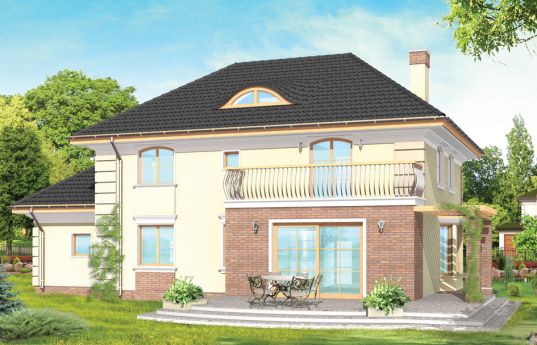

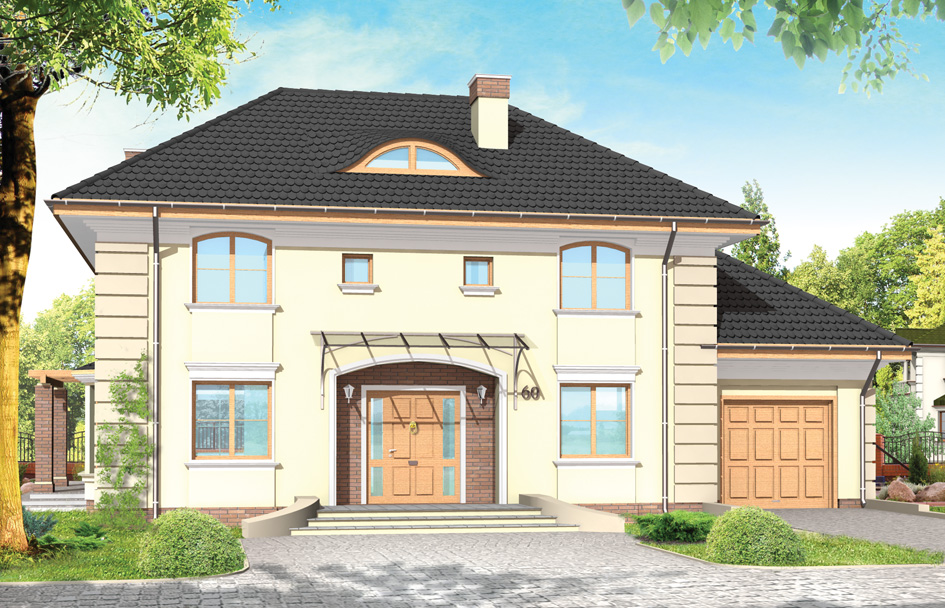

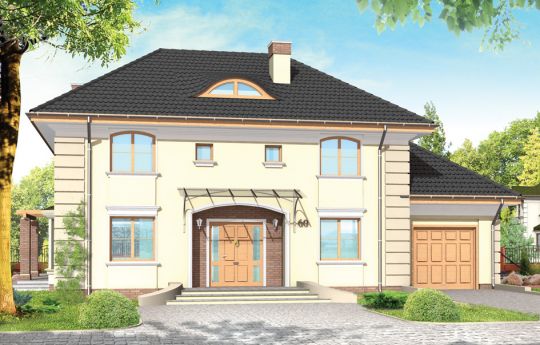

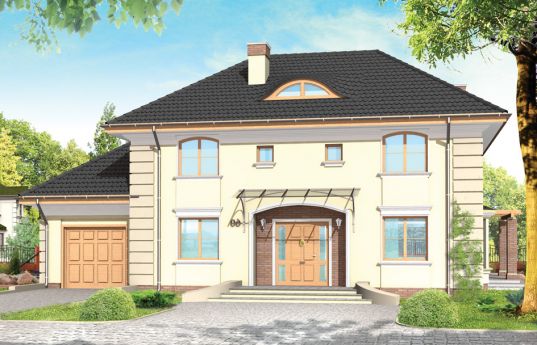

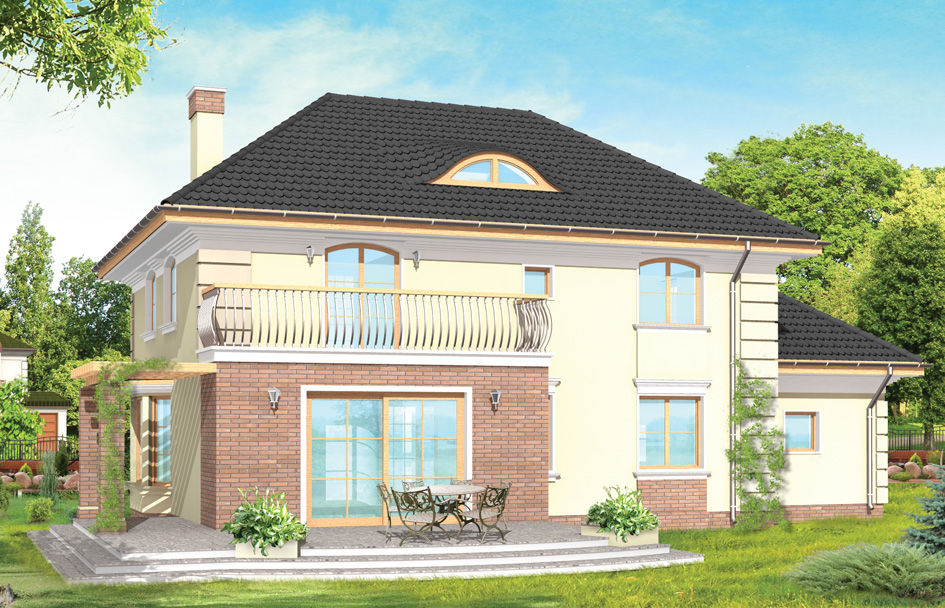

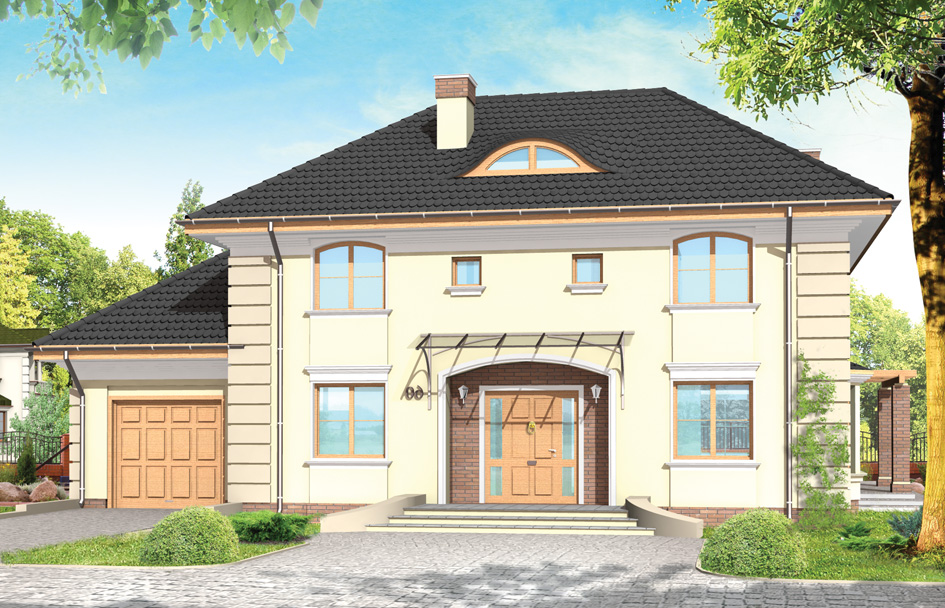

Villa house plan is storey detached house, referring its appearance to mediterranean villa, perfectly fitting in the suburban detached houses. Villa house plan thanks to a two floors take small area on the plot. Moreover rooms in the attic do not have a "slant" - so common in houses with hipped roofs. Extensive attic above the first floor provides additional, spare space as well as the attic above the garage. This is a great solution for a family of 6-7 people. On the ground floor is large living room with dining area, open hall and elegant staircase. There is also an extra room and technical rooms. On the first floor are four bedrooms and two bathrooms - one of the half of first floor can be parents’ apartment, with separate bathroom and its own entrance. There is also available mirror version of this house plan.
Specifications:
- Cubature: 894 m3 / 31567,14 ft3
- Built-up area: 150,1 m2 / 1615,08 ft2
- Total area: 270,34 m2 / 2908,86 ft2
- Net area: 189,88 m2 + garage+ attic / 2043,11 ft2 + garage+ attic
- Usable area: 189,88 m2 + garage / 2043,11 ft2 + garage
- Roof area: 230,4 m2 / 2479,10 ft2
- Roof slope: 33 and 38 degrees
- Height of the building: 9,12 m (9,54 m with foundation) / 29,91 ft (31,29 ft with foundation)
- Wide of the building: 16,46 m / 53,99 ft
- Length of the building: 10,9 m / 35,75 ft
- Minimum plot width: 23,83 m / 78,16 ft
- Minimum plot length: 18,9 m / 61,99 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations – concrete
- External walls – bilayer walls –porotherm + mineral wool
- Ceiling - Teriva
- Roof - tile
The costs of implementing:
| The raw state open | 54 600,00 EUR |
| The raw state closed | 74 600,00 EUR |
| The cost of finishing works | 77 300,00 EUR |
| Execution of turnkey home | 151 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Villa - detailed file
House plan Villa - detailed file - mirror
