Southerly house plan

Usable area: 277.8 m2   /   The cost of the realization: 196 100 EUR

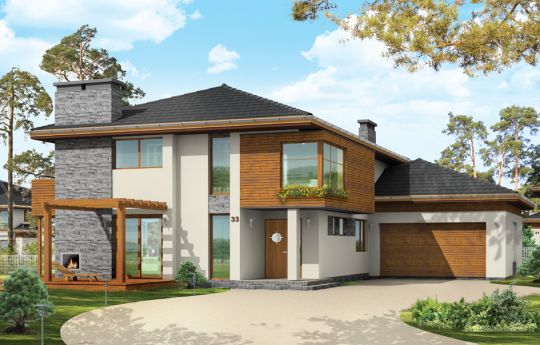

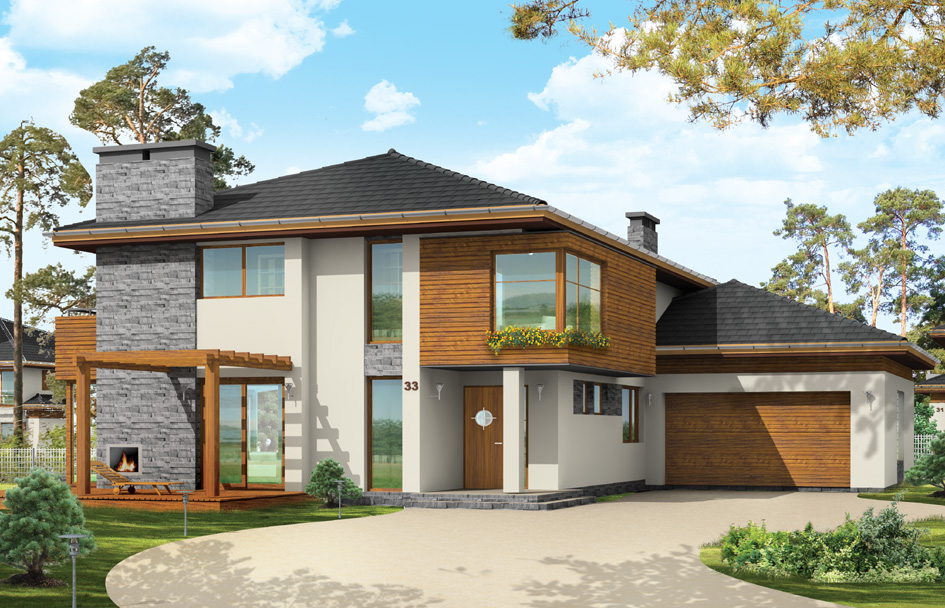

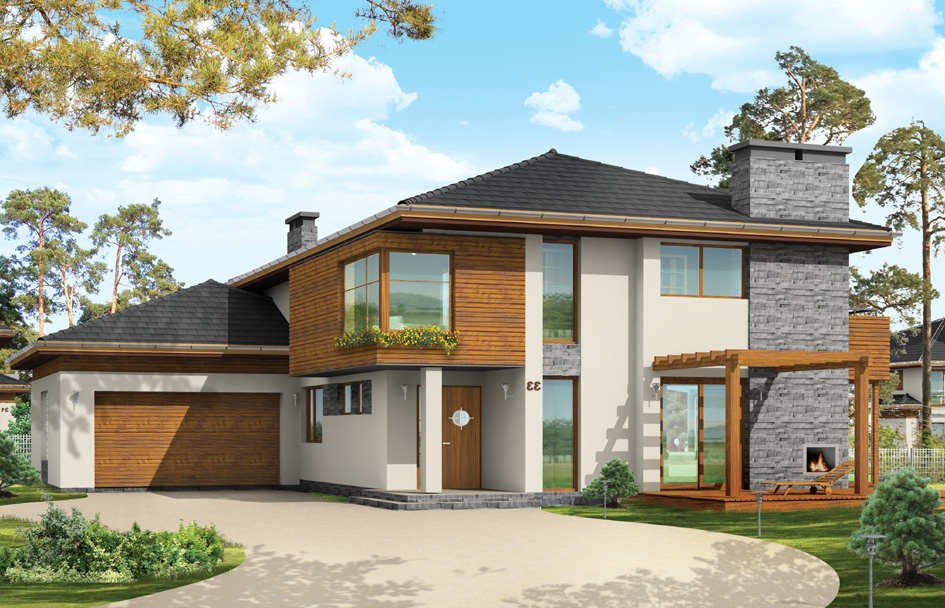

House plan Southerly - front visualization
Show mirror image

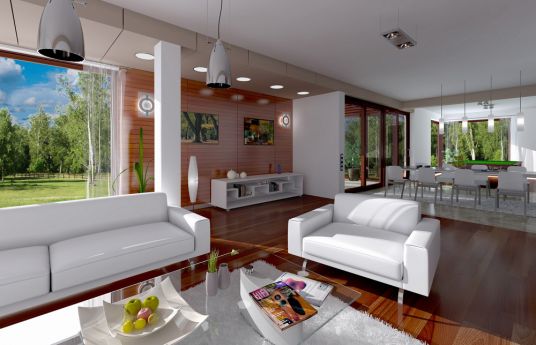

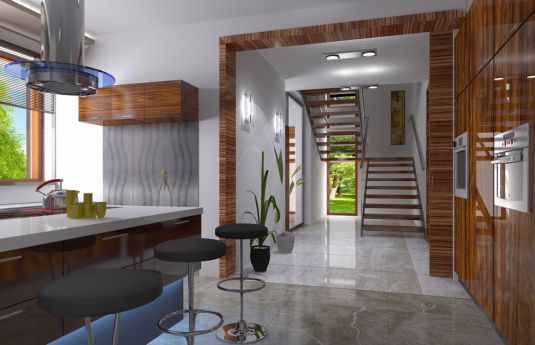

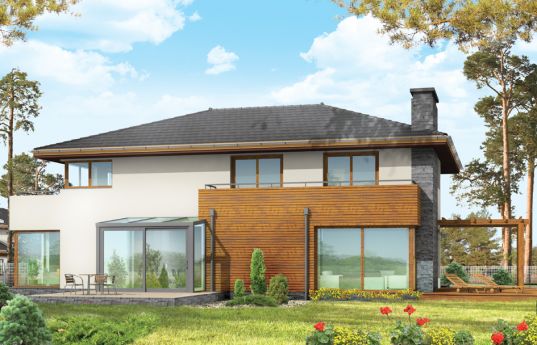

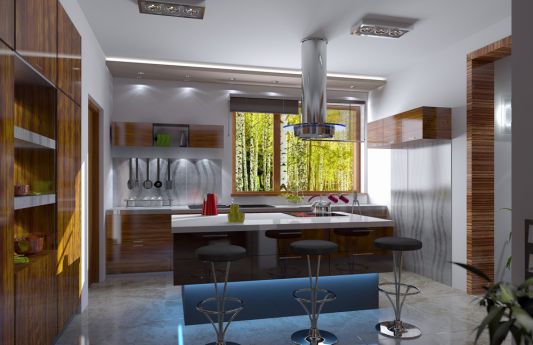

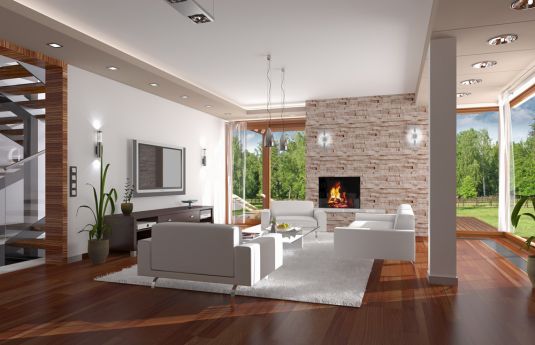

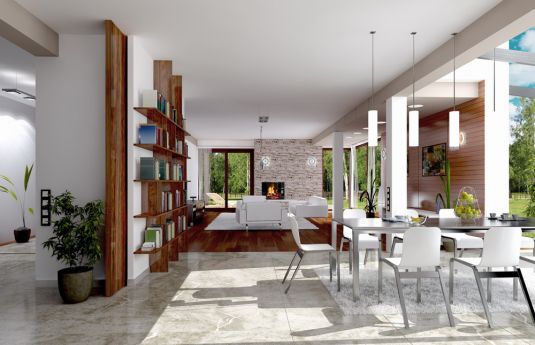

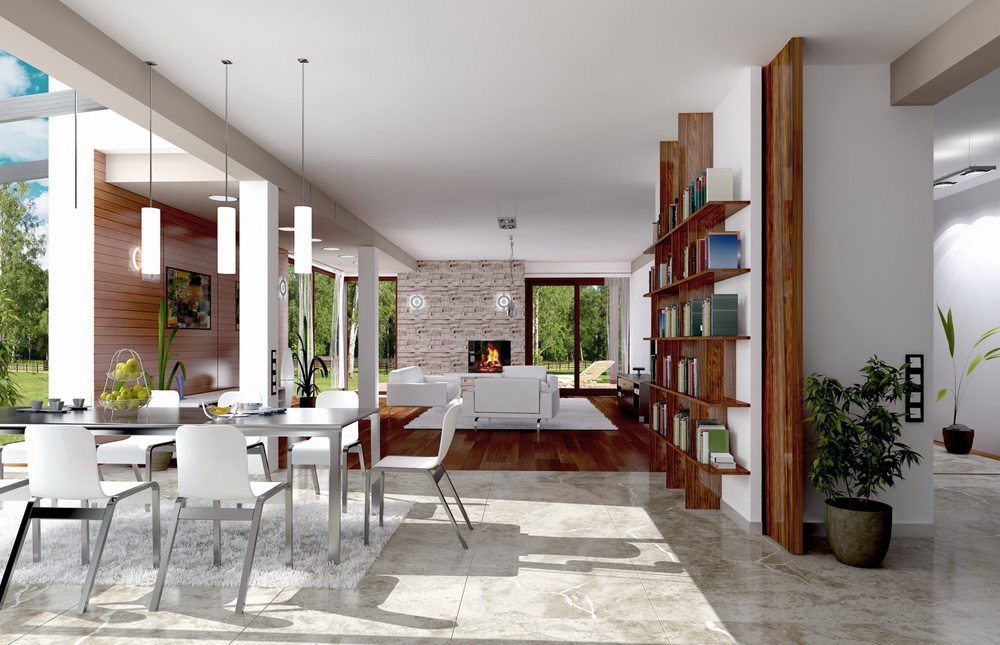

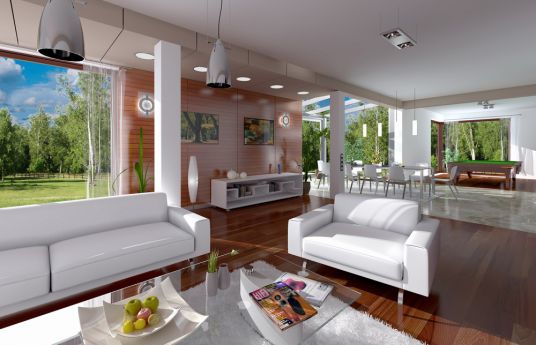

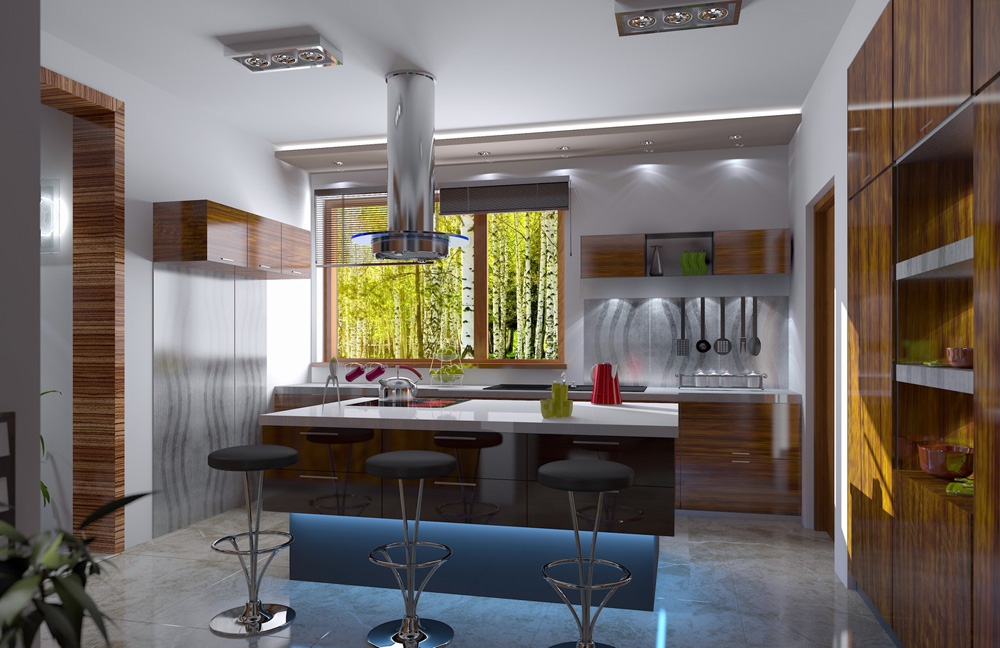

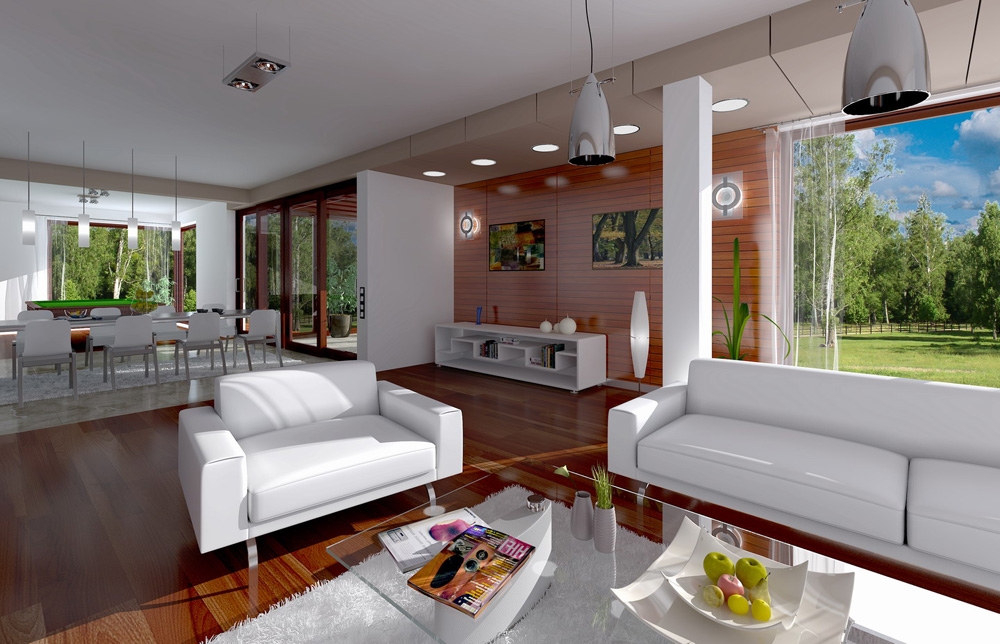

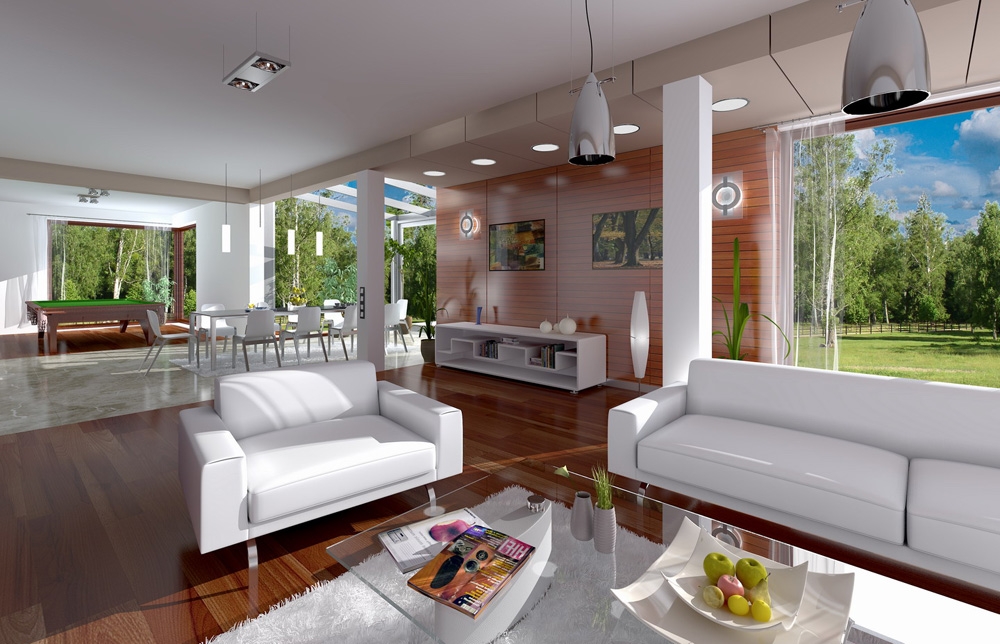

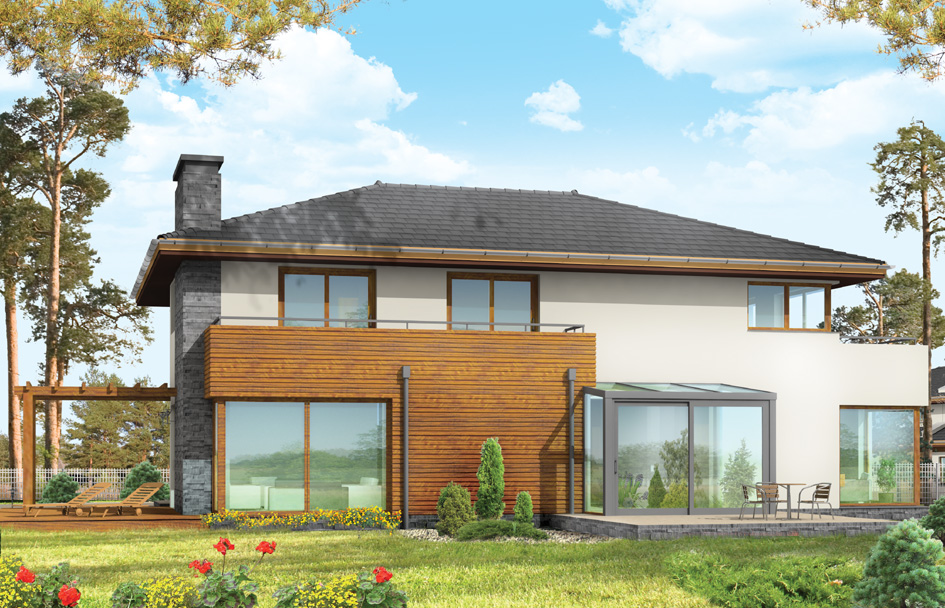

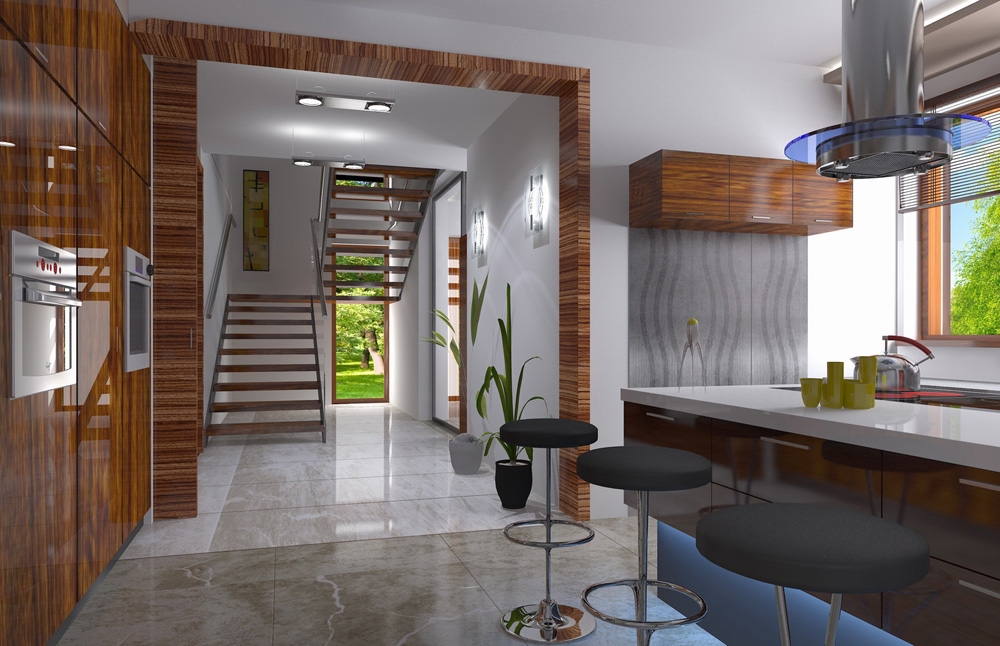

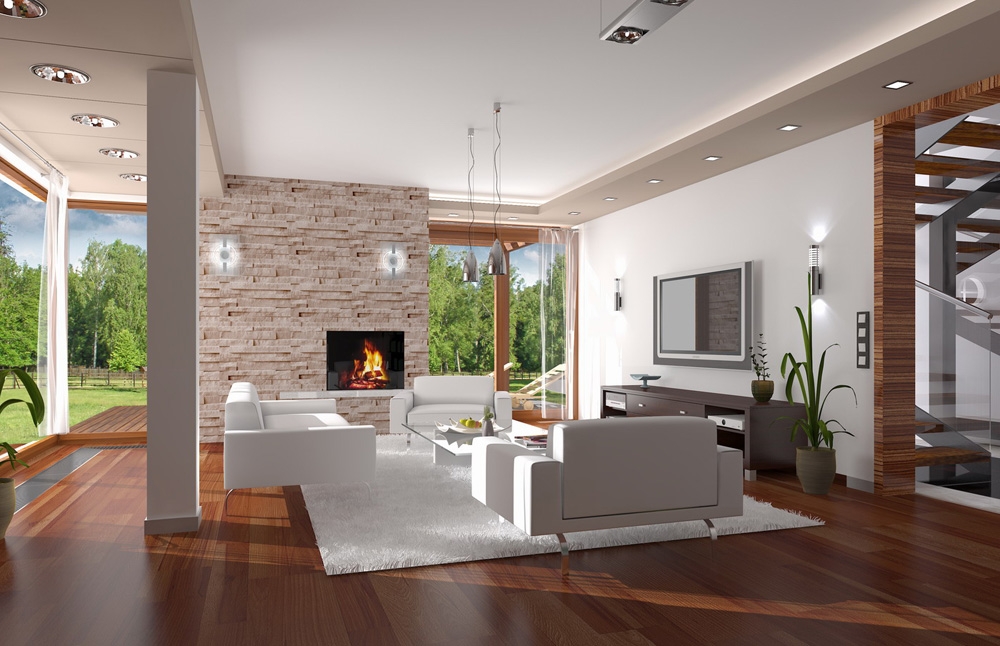

Afternoon house plan is a comfortable, very original house, with modern architecture. It is designed for a family of 4-5 people. The house, thanks to the opening daily part to the several parts of the world can be adapted both on a plot of adverse entrance from the south side, and on the plot with the entrance from the north side or the side (east or west). The building consists of a main two-storey blocks and part of the ground floor of the garage. Large glazing, square bay windows, terraces - all these elements emphasize the modern architecture of the Afternoon house. A simple cubic shape of the building was reasonably diversified by honed details. The interior of the house on the ground floor are: living space combining living room, dining room with conservatory, or alternatively terrace. There was also designed a recreation room, which can serve as a library, a sports room, bedroom or can be possibly guest room. Very large kitchen with island was placed closer to the entrance area and garages.  To the garage and technical rooms we get through the kitchen entrance. There are a large garage for two cars, utility room with access to the attic above the garage, boiler room-laundry room with access to the garden and pantry. On the first floor there is parents’ apartment with dressing room, bathroom and private terrace, two bedrooms for children with a bathroom, and a study-library with a magnificent view to the entrance of the house. There is also  available mirror version of this house plan.



Specifications:
  • Cubature: 1284 m3 / 45338,04 ft3
  • Built-up area: 263,18 m2 / 2831,82 ft2
  • Total area: 426,18 m2 / 4585,70 ft2
  • Net areao: 294,59 m2 / 3169,79 ft2
  • Usable area: 277,8 m2 / 2989,13 ft2
  • Roof area: 326,57 m2 / 3513,89 ft2
  • Roof slope: 22 degrees
  • Height of the building: 8,20 m (8,50 m with foundation) / 26,89 ft (27,88 ft with foundation)
  • Wide of the building: 20,27 m / 66,48 ft
  • Length of the building: 19,27 m / 63,21 ft
  • Minimum plot width: 30,62 m / 100,43 ft
  • Minimum plot length: 26,27 m / 86,17 ft
  • Height of rooms: 2,80 m / 9,18 ft
Materials:
  • Foundations – poured concrete
  • External walls – bilayer walls – porotherm 25 blocks + polystyrene + thin-layer plaster or mineral wool
  • Ceiling -  monolithic reinforced concrete
  • Roof - tile
  • Elevation - thin-layer plaster






The costs of implementing:
The raw state open 65 800,00 EUR
The raw state closed 104 400,00 EUR
The cost of finishing works 91 800,00 EUR
Execution of turnkey home 196 100,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Southerly - detailed file

House plan Southerly - detailed file - mirror

Comment
Southerly house plan 2169 Renata Kłos
2012.03.16 2 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.

Southerly house plan 2173 Michał_Kot
2012.03.13 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Southerly house plan 2170 R_Rafał
2012.02.15 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.
