Magnate house plan

Usable area: 205.45 m2   /   The cost of the realization: 175 700 EUR

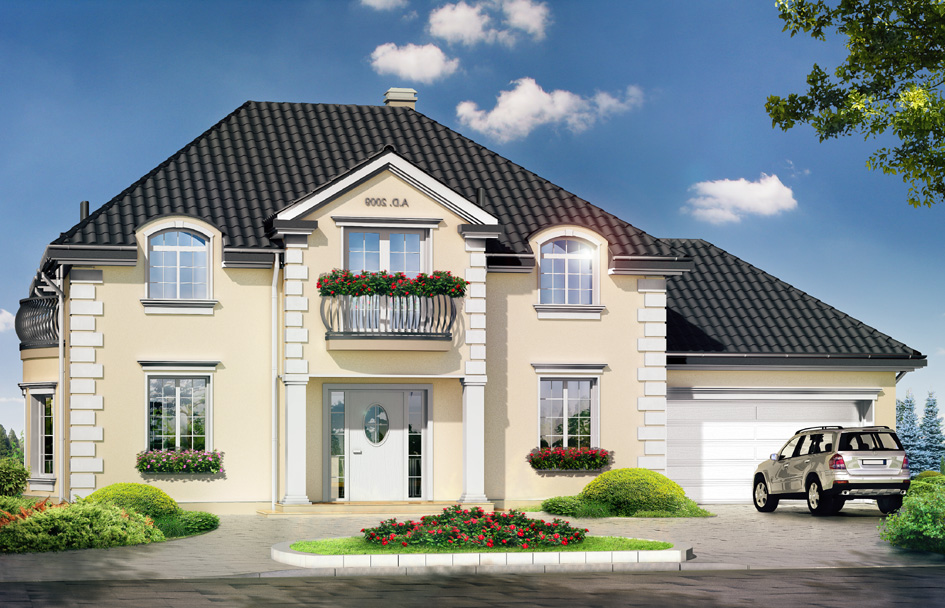

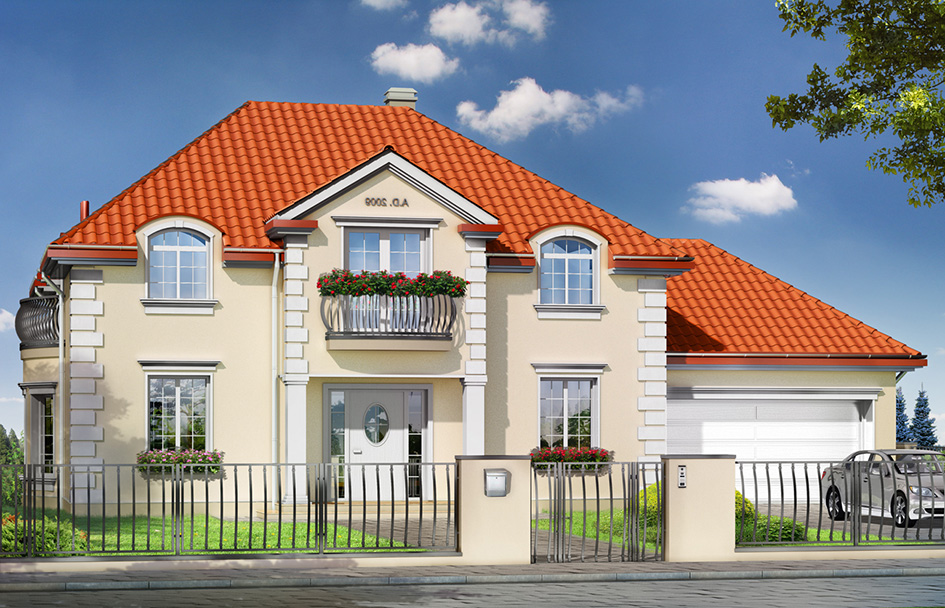

Projekt domu Magnat - wizualizacja frontu
Show mirror image

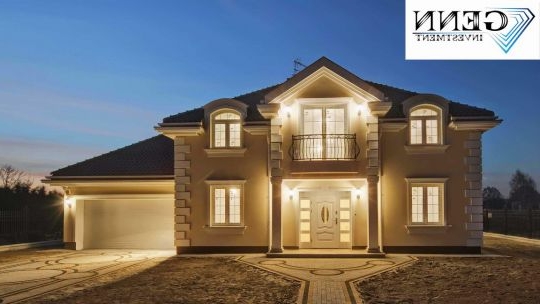

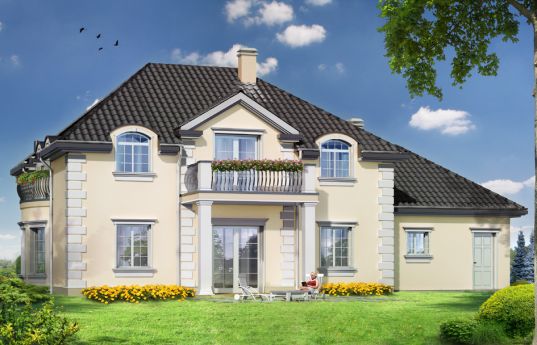

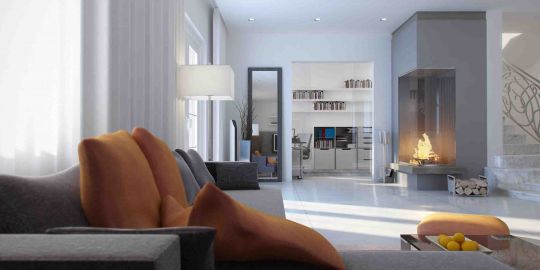

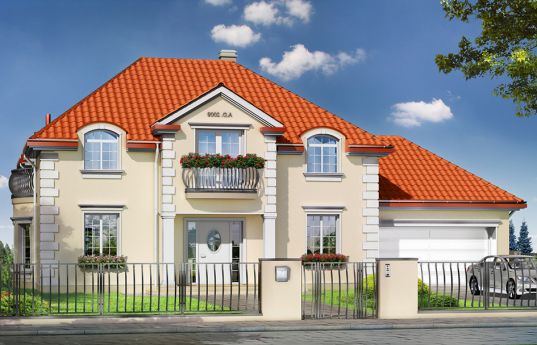

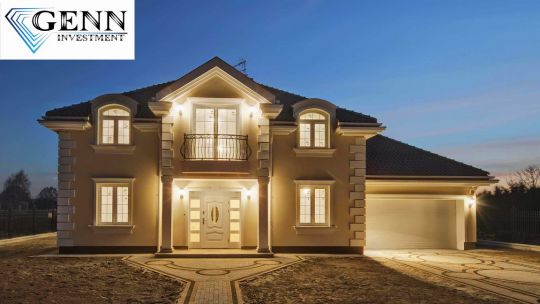

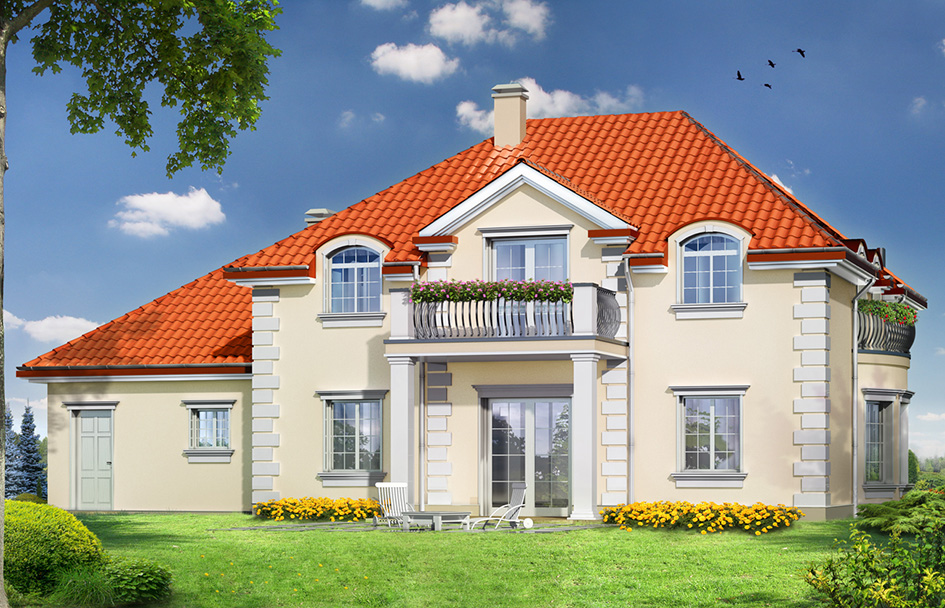

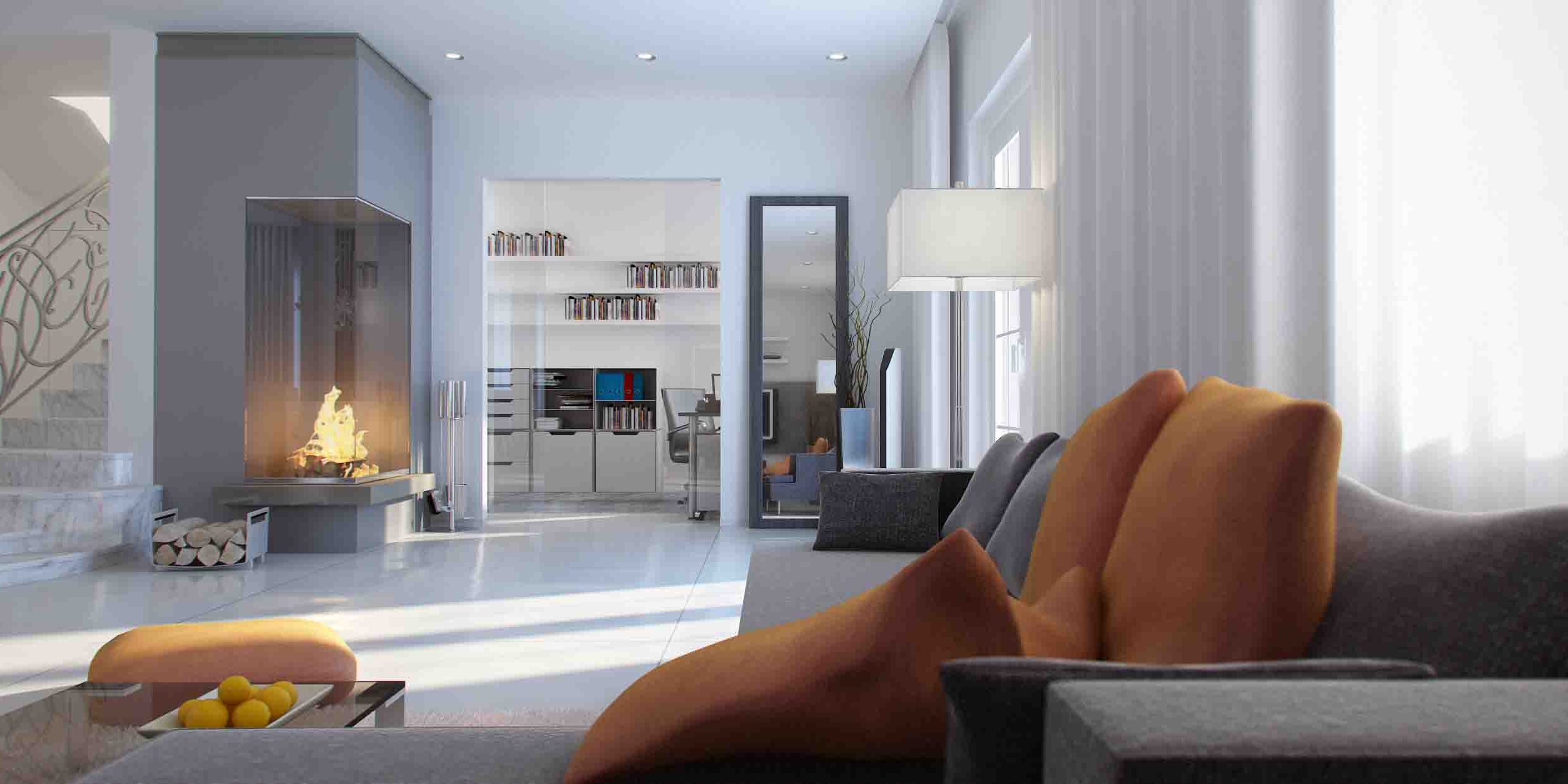

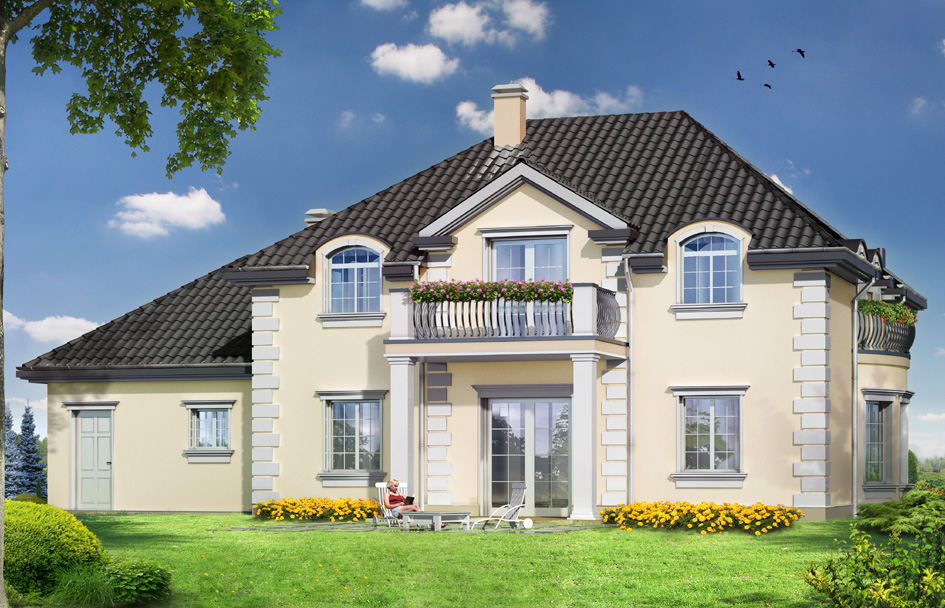

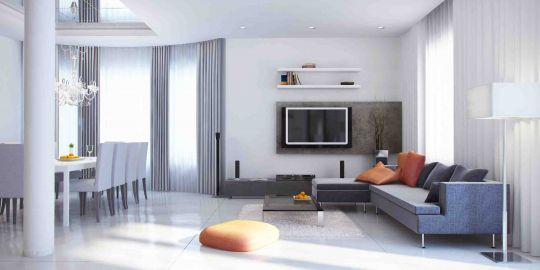

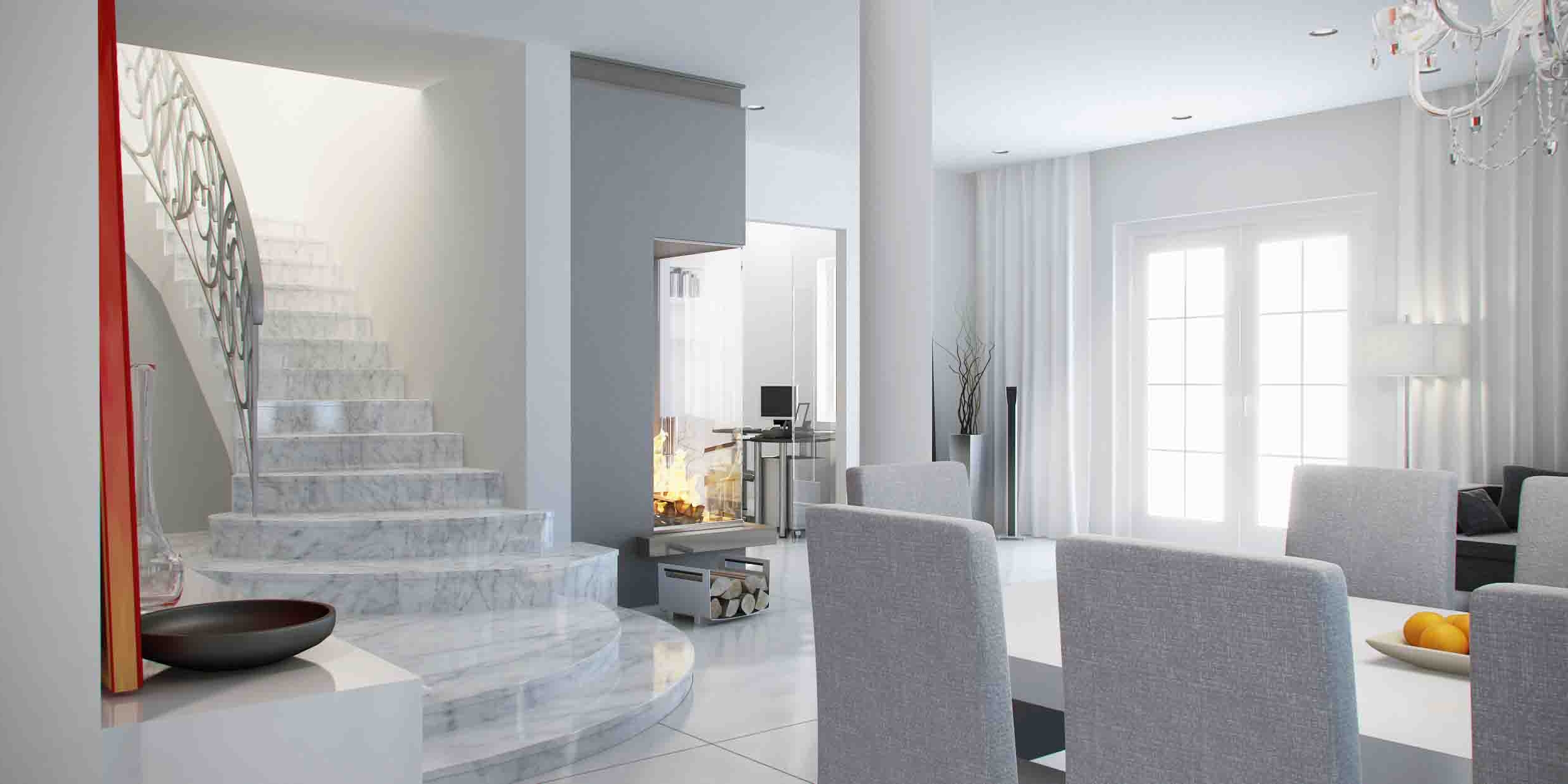

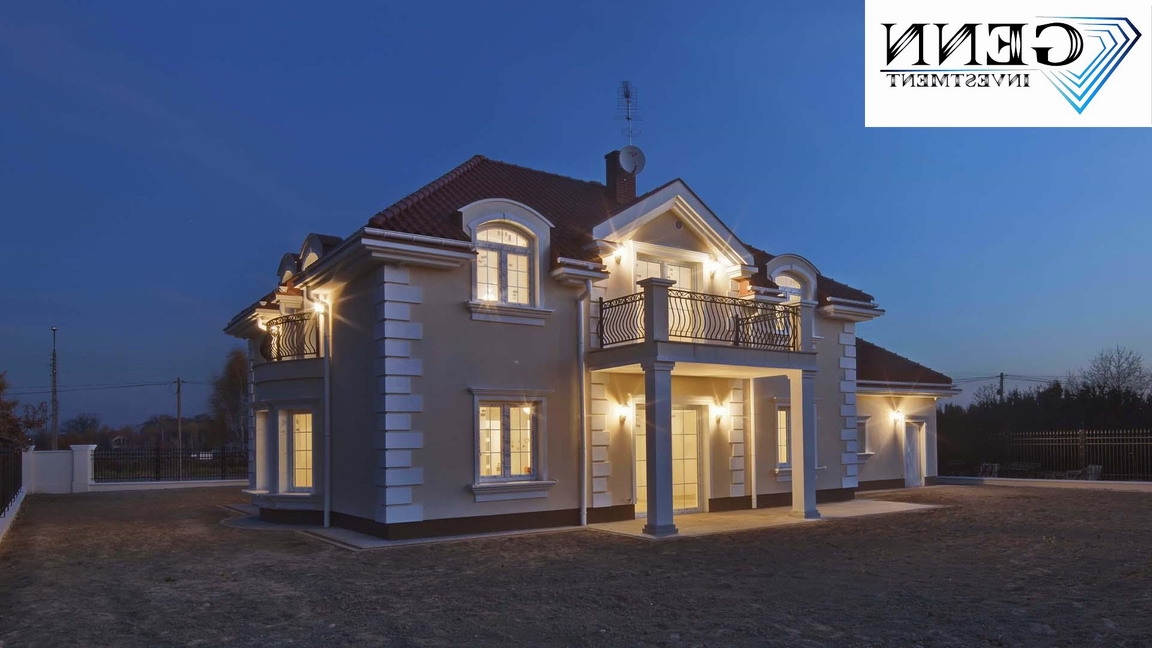

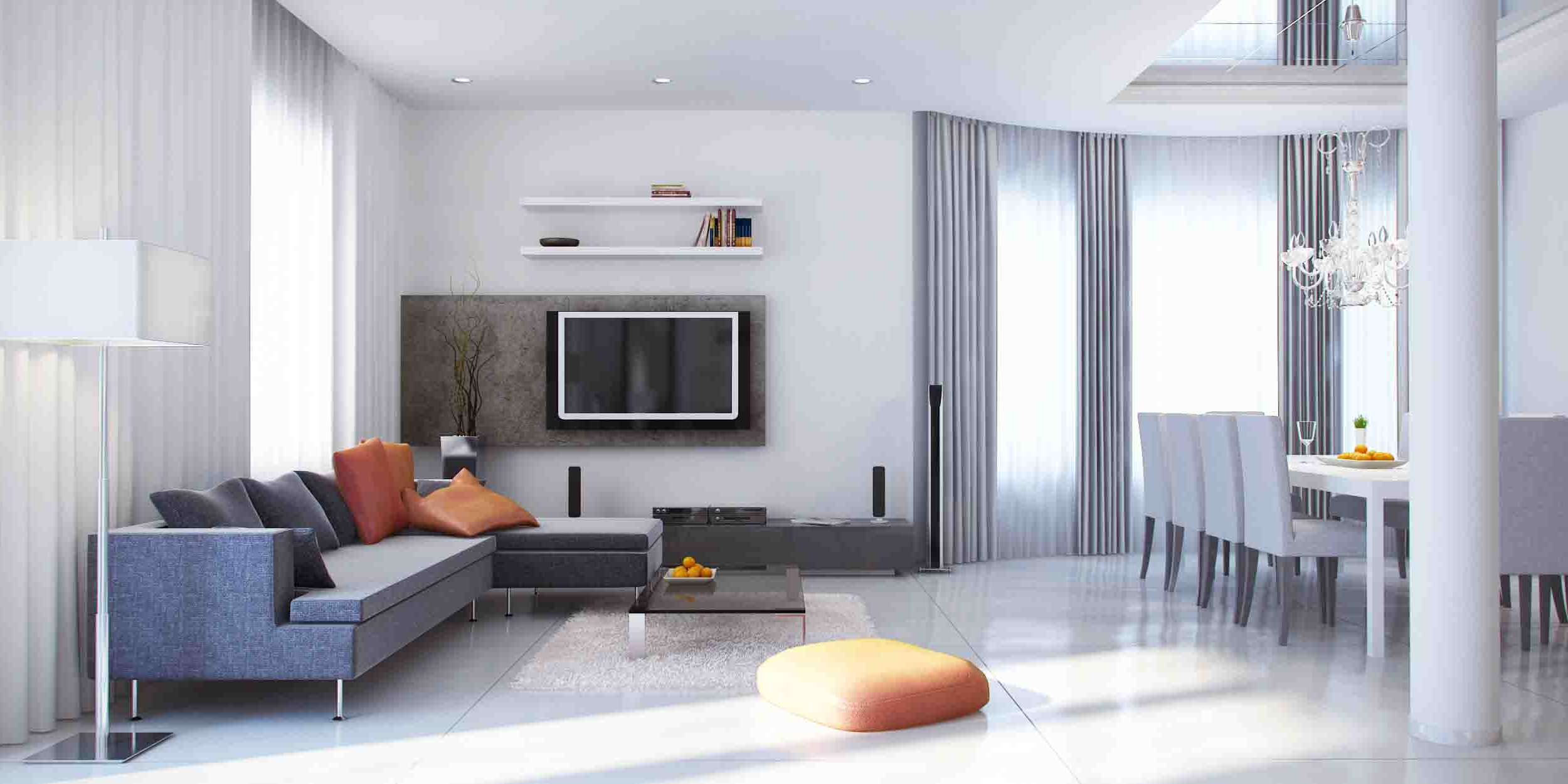

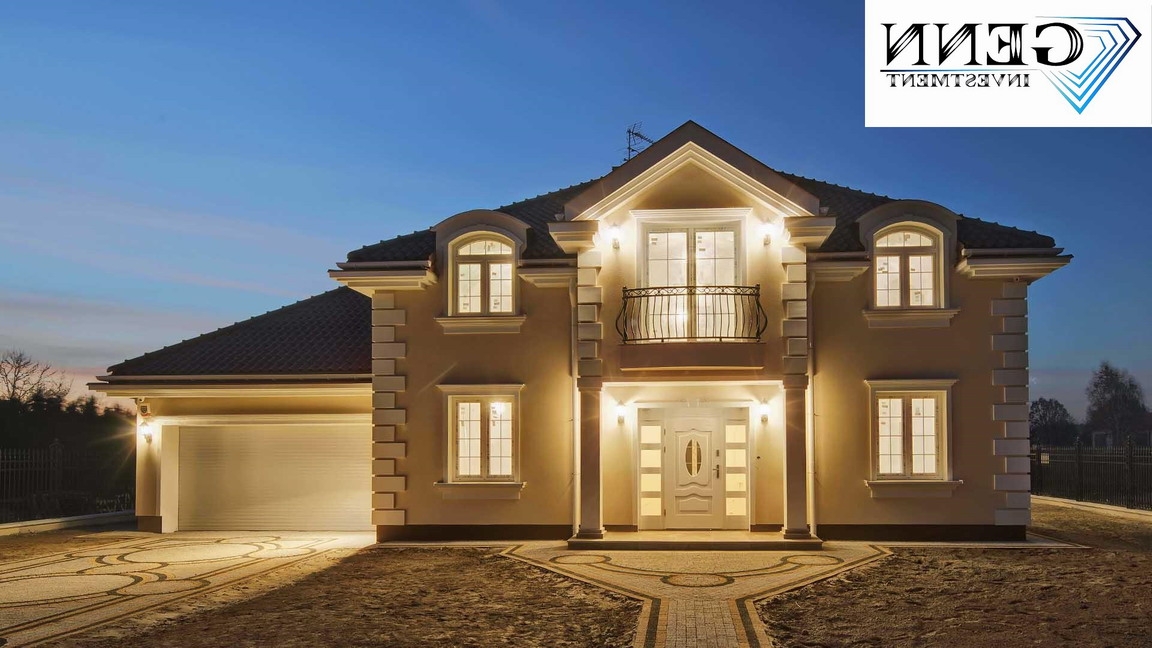

Magnate house plan is a representative stylish villa, referring to the style mansions and villas between the wars. Its timeless style combines with modern and functionally designed interior. The house is rectangular, single-storey body with an usable attic and an added part of the garage. The building was covered by a hipped roof. On the front and garden facade two-story portals was designed, supported by columns, ended with gable decorative fronts. Despite the fact that the main body of the building is the ground floor, the attic has a very high wall jamb, so almost the entire surface of the floor of the upper floor is usable. The interior of house was designed by secreting on the ground floor a large day area comprising: living room, dining room, lobby, and a partially open kitchen. Living room and dining room have reduced by two grades floor what’s make these rooms higher. Beautiful representative staircase in the lobby are also visible from the living room and dining room. On the ground floor is also a study - library (it can be adapted for an extra room with an entrance from the lobby) and extra room - such as a bedroom. In the utility part of house is located a convenient garage and a large boiler room. In the attic there are four bedrooms, the parents apartment, having its own bathroom and walk-in closet as well as an access to the terrace garden on the first floor. There is also available NF40 standard version and the mirror version of the Magnate.

Specifications:
  • Cubature: 989 m3 / 34921,59 ft3
  • Built-up area: 191,89 m2 / 2064,74 ft2
  • Total area: 313,69 m2 / 3375,30 ft2
  • Net area: 228,04 m2 + garage / 2453,71 ft2 + garage
  • Usable area: 205,45 m2 / 2210,64 ft2
  • Roof area: 259,57 m2 / 2792,97 ft2
  • Roof slope: 31 and 40 degrees
  • Height of the building: 8,70 m (9,00 m with foundation) / 28,54 ft (29,52 ft with foundation)
  • Wide of the building: 18,45 m / 60,52 ft
  • Length of the building: 11,8 m / 38,70 ft
  • Minimum plot width: 25,45 m / 83,48 ft
  • Minimum plot length: 21,03 m / 68,98 ft
  • Height of rooms: 2,84, 3,04 i 2,7 m / 9,32, 9,97 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  reinforced concrete slab
  • Roof - tile
  • Elevation - thin-layer plaster on polystyrene






The costs of implementing:
The raw state open 51 900,00 EUR
The raw state closed 76 500,00 EUR
The cost of finishing works 99 300,00 EUR
Execution of turnkey home 175 700,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Magnat - detailed file

House plan Magnat - detailed file - mirror

Magnat NF40 - detailed file

Magnat NF40 - detailed file - mirror

Comment
Magnate house plan 1834 Krzysztof_K
2012.03.10 0 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.

Magnate house plan 1835 Nikola
2012.03.10 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Magnate house plan 1833 Ilona Ziółkowska
2012.02.22 1 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)
