Usable area: 93.5 m2 / The cost of the realization: 82 600 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (3) Detailed drawings
List of materials
Comments (3)

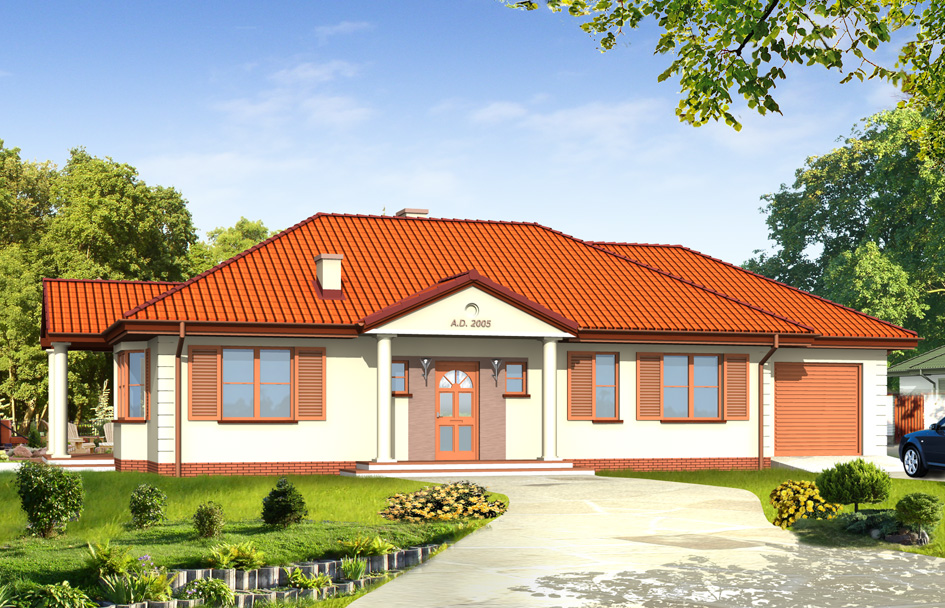

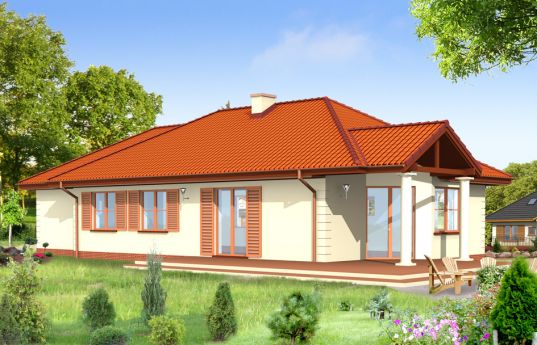

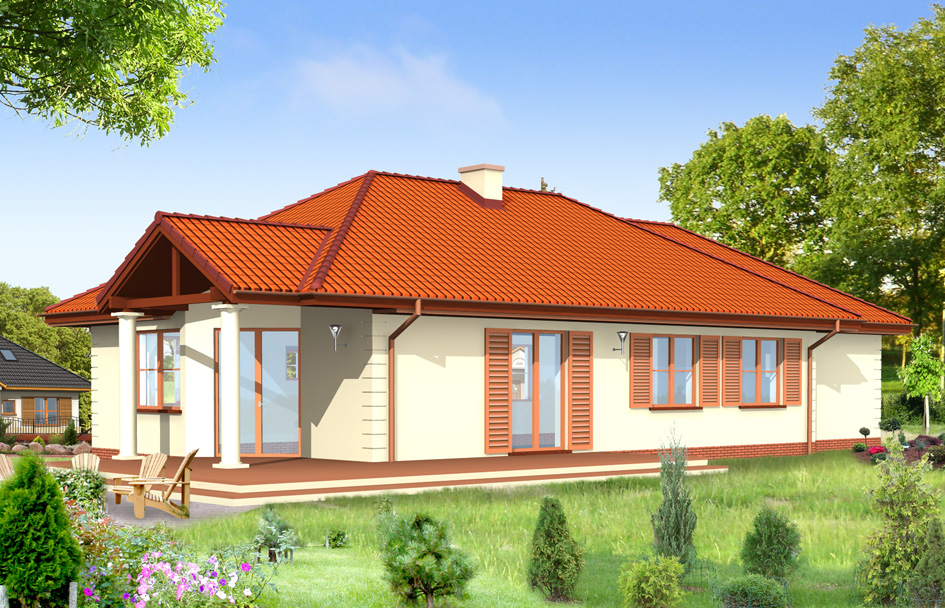

Like a dream 3 house plan is a convenient, extensive bungalow for a family of 4 – 5 people. This is a family house plan with traditional architecture referring to the manor house. The layout of rooms on the ground floor is separated on the two parts: living and intimate – night. It is possible enlarging the interior by partial adaptation of an attic. Large living room with access to the covered terrace and a dining room with a bay window give a sense of spaciousness. The house can be built on a plot with unfavorable setup to the sides of the world or on a narrow plot with a garden on the side of the house. This house plan is also available in mirror version
Specifications:
- Cubature: 380 m3/ 13417,8 ft2
- Built-up area: 138,76 m2/ 1493,06 ft2
- Total area: 138,76 m2/ 1493,06 ft2
- Net area: 114,23 m2/ 1229,11 ft2
- Usable area: 93,5 m2/ 1006,06 ft2
- Roof area: 193,8 m2/ 2085,29 ft2
- Roof slope: 30 degrees
- Height of the building: 5,62 m (5,94 m with foundation)/ 18,43 ft (19,48 ft with foundation)
- Wide of the building: 17,68 m/ 57,99 ft
- Length of the building: 8,34 m/ 27,35 ft
- Minimum plot width: 25,83 m/ 84,72 ft
- Minimum plot length: 16,34 m/ 53,59 ft
- Height of rooms: 2,61 m/ 8,56 ft
Materials:
- Foundations – reinforced concrete
- Exterior walls – ceramic airbricks max + polystyrene
- Celling - wooden
- Elevation - thin-layer plaster
- Roofing - ceramic or metal tile
C
The costs of implementing:
| The raw state open | 27 000,00 EUR |
| The raw state closed | 43 000,00 EUR |
| The cost of finishing works | 39 600,00 EUR |
| Execution of turnkey home | 82 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Like a dream 3 - detailed file
House plan Like a dream 3 - detailed file - mirror
Related Projects
2012.09.30 1
Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)
2012.02.19 0
We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.
2012.02.05 0
Nice house plan, we really like it, we will not make any changes.
