Usable area: 113.02 m2 / The cost of the realization: 97 000 EUR

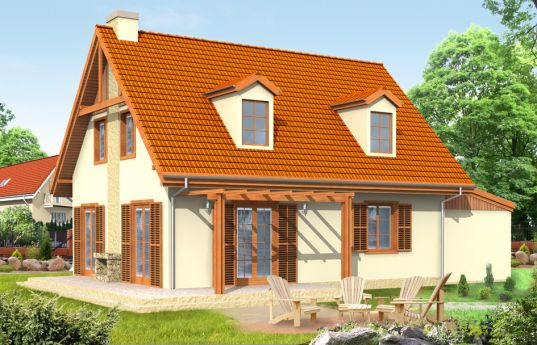

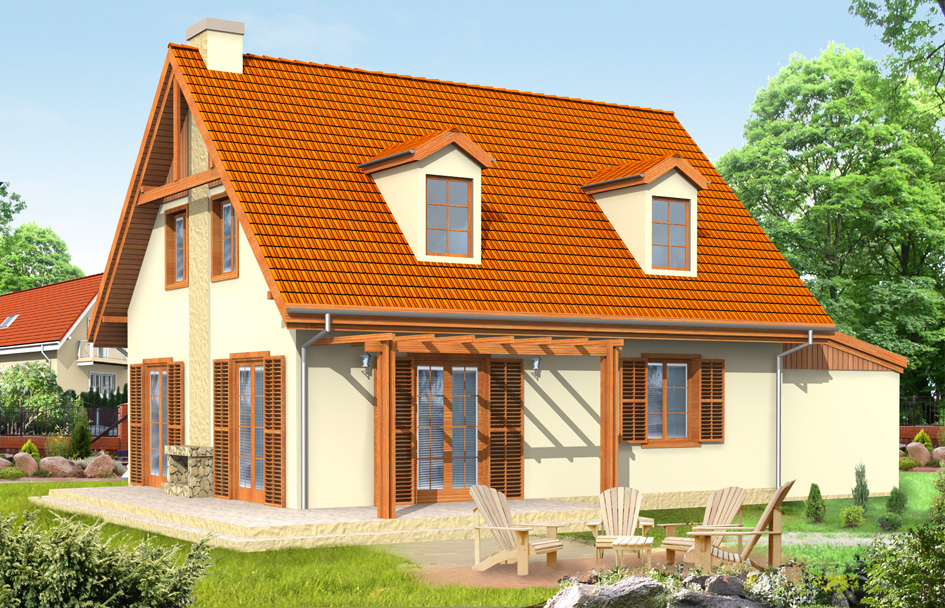

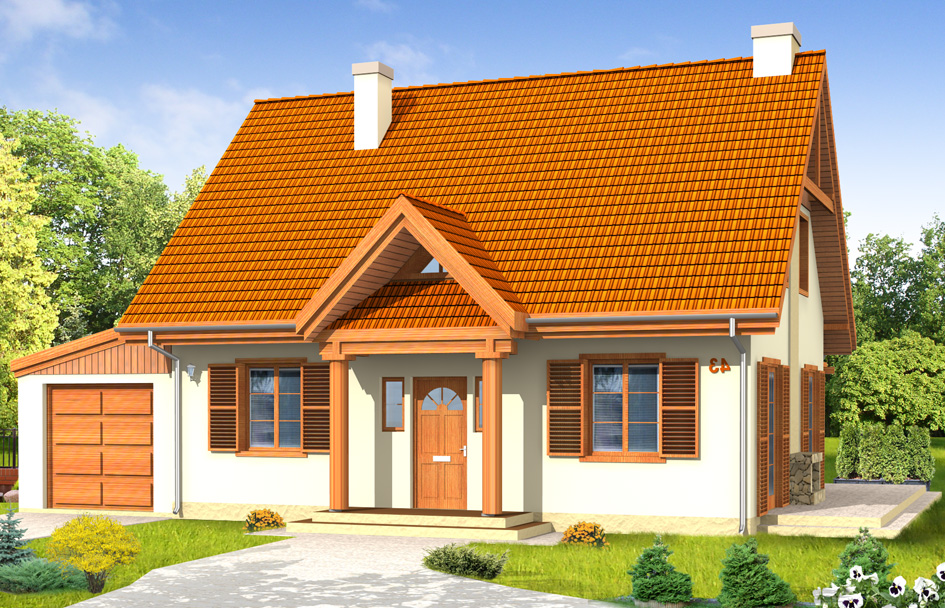

Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (17) Detailed drawings
List of materials
Comments (3)

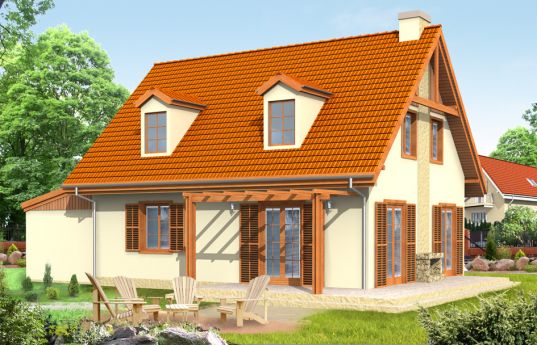

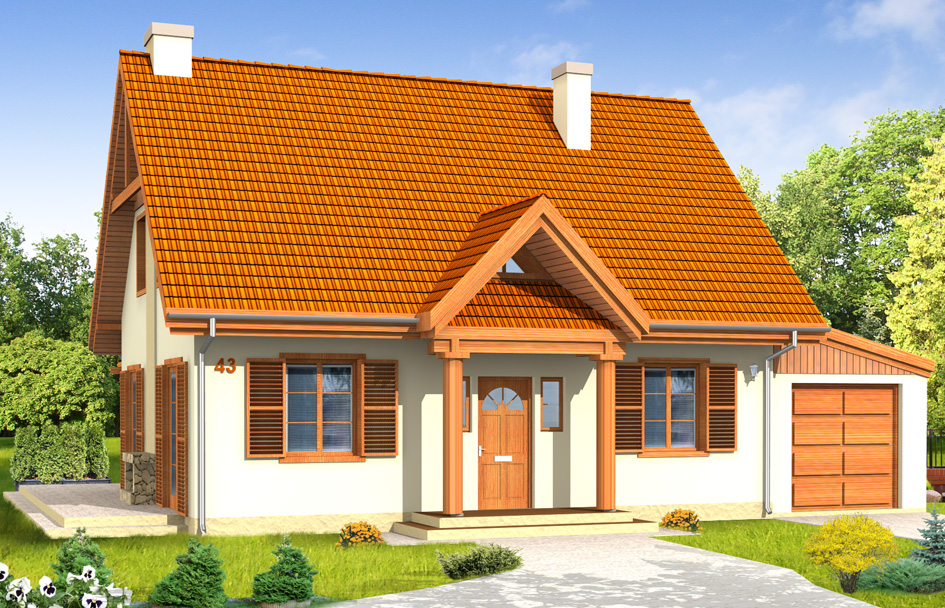

Fairytale 2 house plan is extended version of the Fairytale. The original house plan was expanded, the extra room on the ground floor has been removed to enlarge the living room and the kitchen. Spacious living room with a central fireplace and lighting of the three sides is very attractive. In the Fairytale 2 house plan, the bathroom with the usable annex with a place on the boiler and washing machine was planned. In the attic of the building there are three bedrooms and a second bathroom. Body of the building refers to the traditional architecture. The advantage of this house plan is the universal position and lighting the living room, making the house suitable for a different plot. There is also a mirror version of Fairytale 2 house plan.
Specifications:
- Cubature: 456 m3/ 16101,36 ft3
- Built-up area: 104,33 m2/ 1122,59 ft2
- Total area: 158,22 m2/ 1702,45 ft2
- Net area: 133,85 m2/ 1440,23 ft2
- Usable area: 113,02 m2/ 1216,10 ft2
- Roof area: 178 m2/ 1915,28 ft2
- Roof slope: 45 stopni / 45 degrees
- Height of the building: 7,76 m (8,08 m z podmurówką) / 25,45 ft ( 26,50 ft with foundation)
- Wide of the building: 13,6 m / 44,60 ft
- Length of the building: 7,8 m / 25,58 ft
- Minimum plot width: 20,6 m / 67,57 ft
- Minimum plot length: 17,20 m / 56,42 ft
- Height of rooms: 2,65 m / 8,69 ft
Materials:
• Foundations - Concrete
• External walls - aerated concrete + polystyrene
• Ceiling - wood truss girders
• Elevation - thin-layer plaster
• Roof - ceramic tile or metal roofing tile
The costs of implementing:
| The raw state open | 34 900,00 EUR |
| The raw state closed | 48 200,00 EUR |
| The cost of finishing works | 48 800,00 EUR |
| Execution of turnkey home | 97 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Fairytale 2 - detailed file
House plan Fairytale 2 - detailed file - mirror
