Like a dream

Usable area: 88.53 m² / The cost of the realization: 61 800 EUR

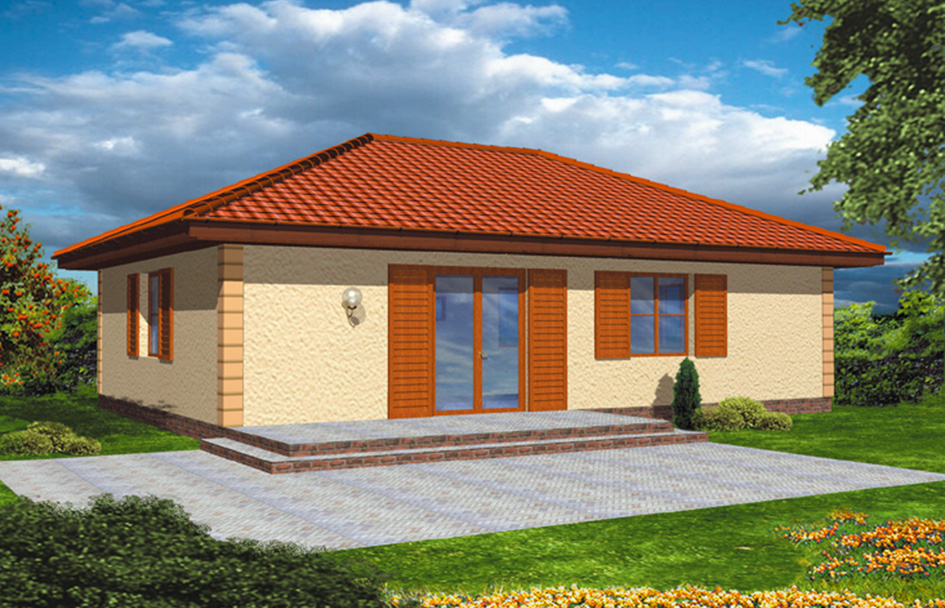

Show mirror image

Price: 830 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Interiors Variants (2) Realizations (30) Detailed drawings List of materials Comments (3)

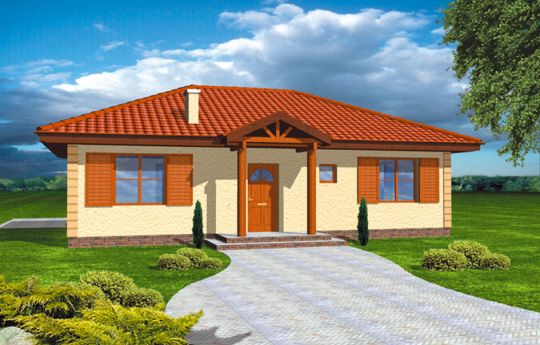

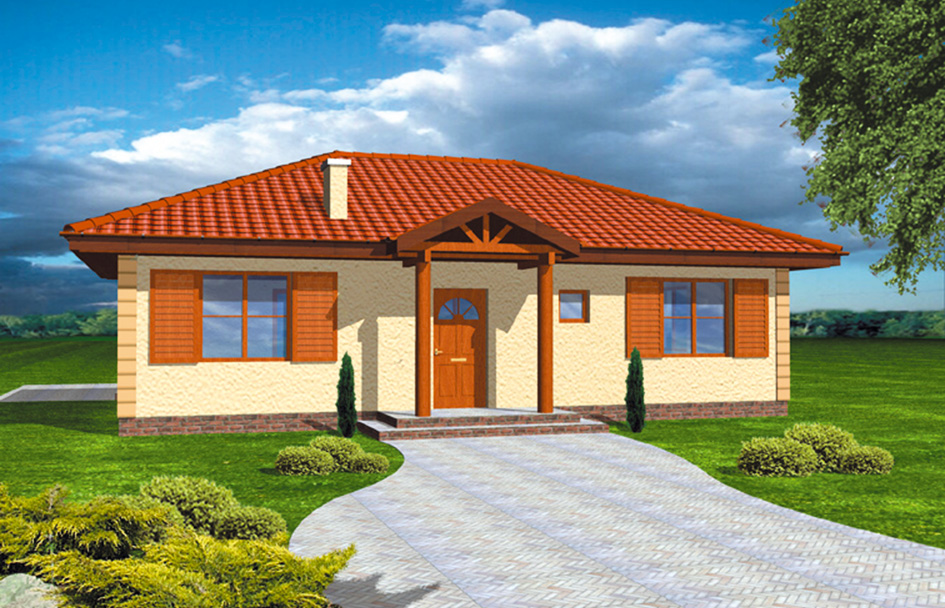

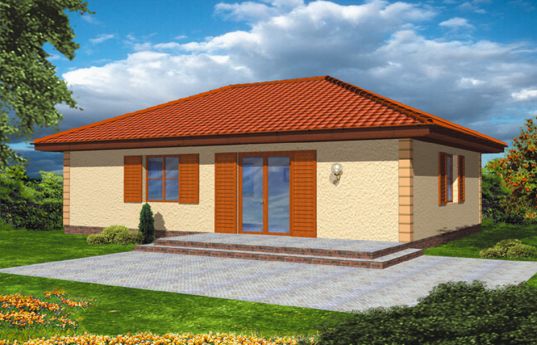

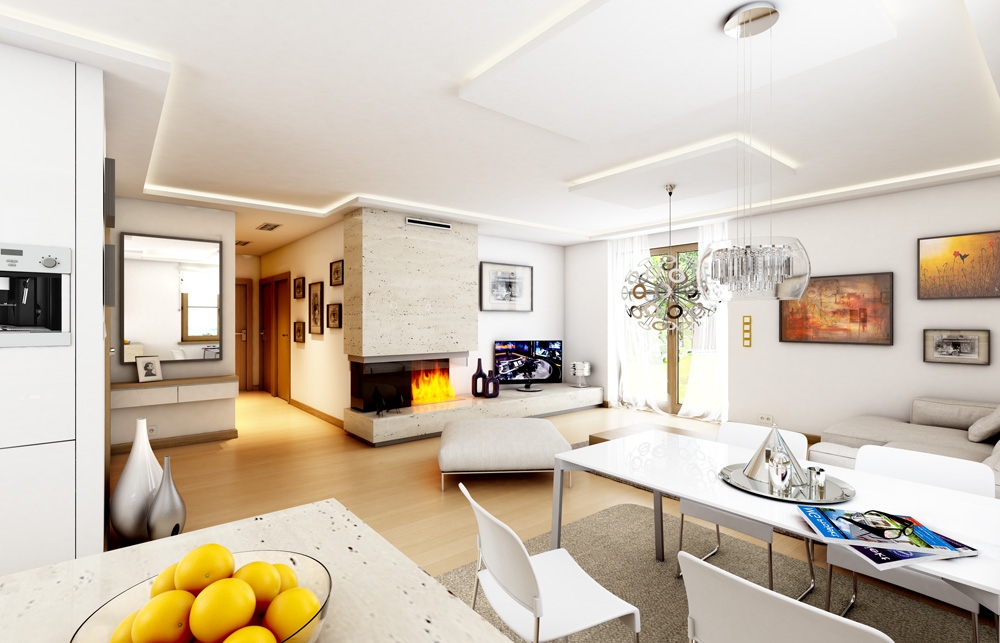

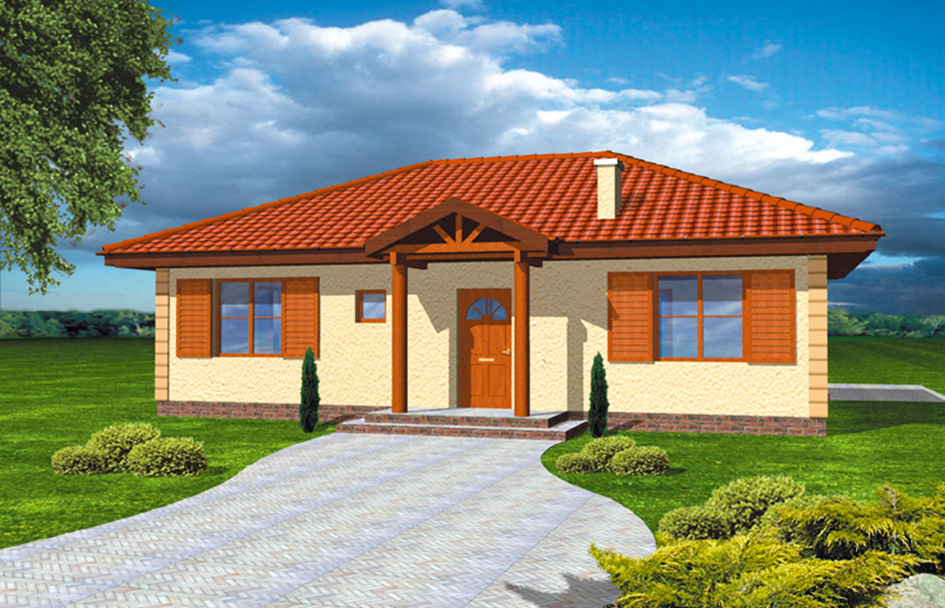

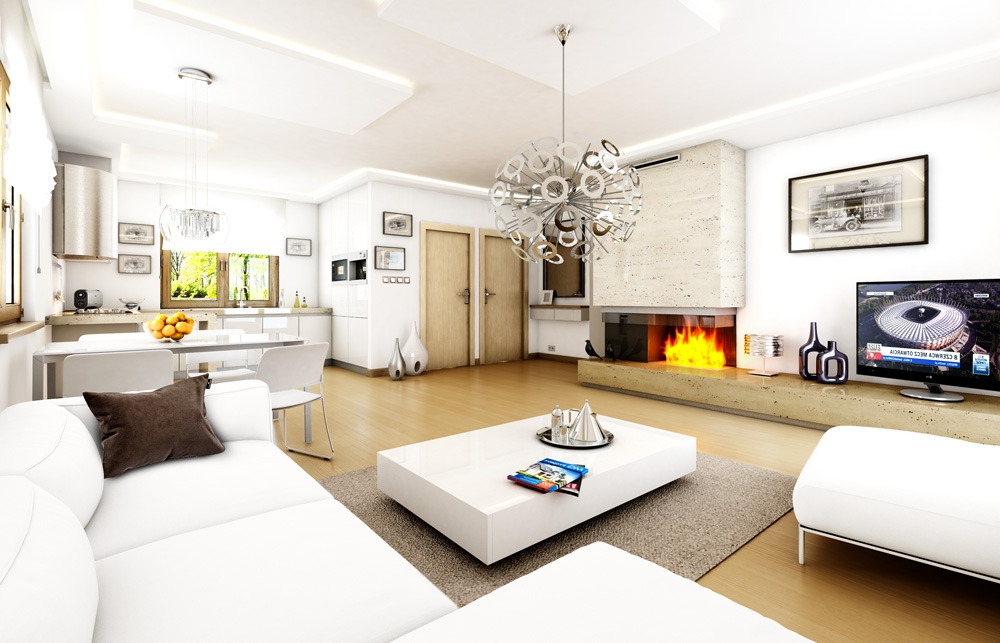

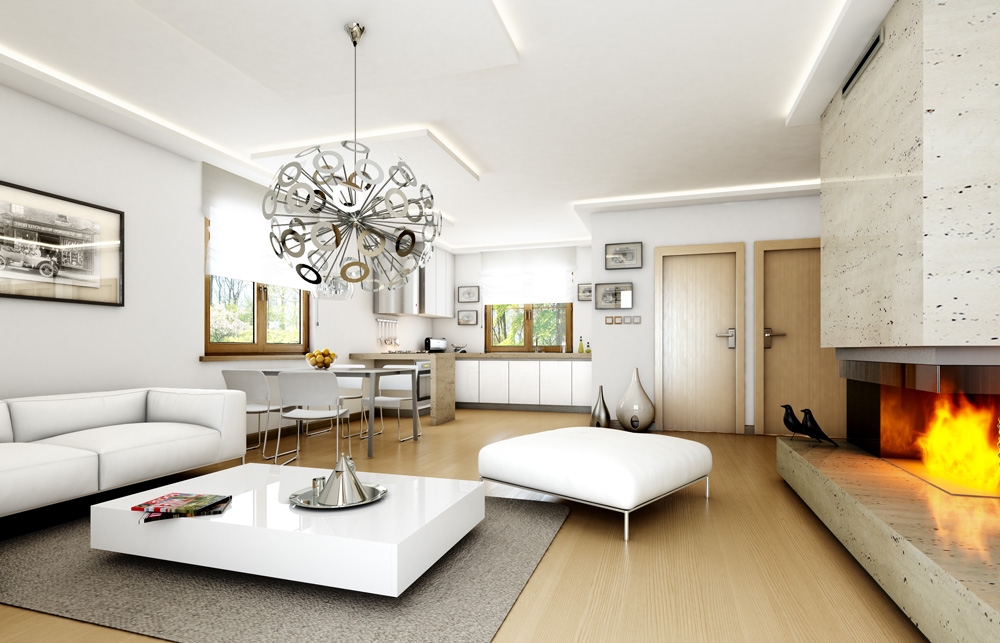

Like a dream house plan is a small one story house with a simple, traditional construction evoking the memory of Polish manor house. Like a dream house plan fits perfectly for the requirements of the family of 3-4 people. The interior is formed with division into two parts: living - a representative and night – intimate. This house plan is also available in other versions: extended, with attic and with added garage.

Specifications:

Cubature: 260 m³/9180,6 ft³
Built-up area: 102,08 m²/ 1098,38 ft²
Total area: 102,08 m²/ 1098,38 ft²
Net area: 88,53 m²/ 952,58 ft²
Usable area: 88,53 m²/ 952,58 ft²
Roof area: 162 m²/ 1743,12 ft²
Roof slope: 24 degrees
Height of the building 5,08 m (5,40 m with foundation)/ 16,66 ft (17,71 ft with foundation)
Wide of the building: 12,24 m/ 40,15 ft
Length of the building: 8,34 m/ 27,36 ft
Minimum plot width: 20,24 m/ 66,39 ft
Minimum plot length: 16,67 m/ 54,68 ft
Height of rooms: 2,61 m/ 8,56 ft

Materials:

Foundations – concrete
The walls - aerated concrete + polystyrene, porotherm + polystyrene, or wooden framework
Cladding - thin-layer plaster
Roofing - ceramic or concrete tile

The costs of implementing:

The raw state open	17 600,00 EUR
The raw state closed	28 600,00 EUR
The cost of finishing works	33 300,00 EUR
Execution of turnkey home	61 800,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Jak marzenie - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

Jak marzenie - plik szczegółowy

Jak marzenie - plik szczegółowy - odbicie lustrzane

Comment

Iwon
2012.09.30 1 Pozytywny komentarz

I must admit that the area the house is fantastic and every functional. This is a very shapely and interesting house plan.

Sabin99
2012.03.01 0 Pozytywny komentarz

Nice house plan, we really like it, we will not make any changes.

Hella L
2012.02.18 0 Pozytywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
