Sunny house plan

Usable area: 89.78 m² / The cost of the realization: 65 100 EUR

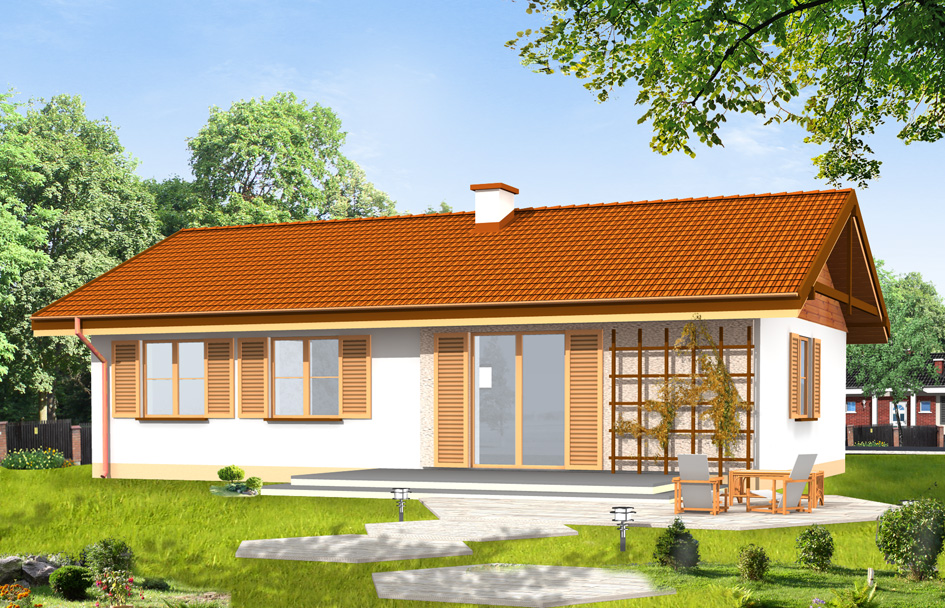

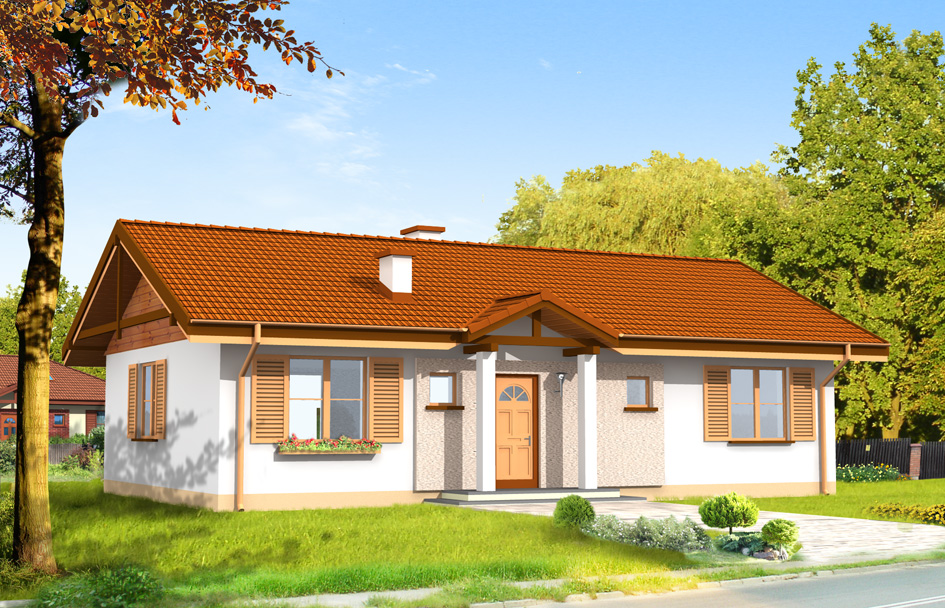

Show mirror image

Price: 870 EUR

Description Plans Elevations Situations Animation Interiors Variants (1) Realizations (48) Detailed drawings List of materials Comments (3)

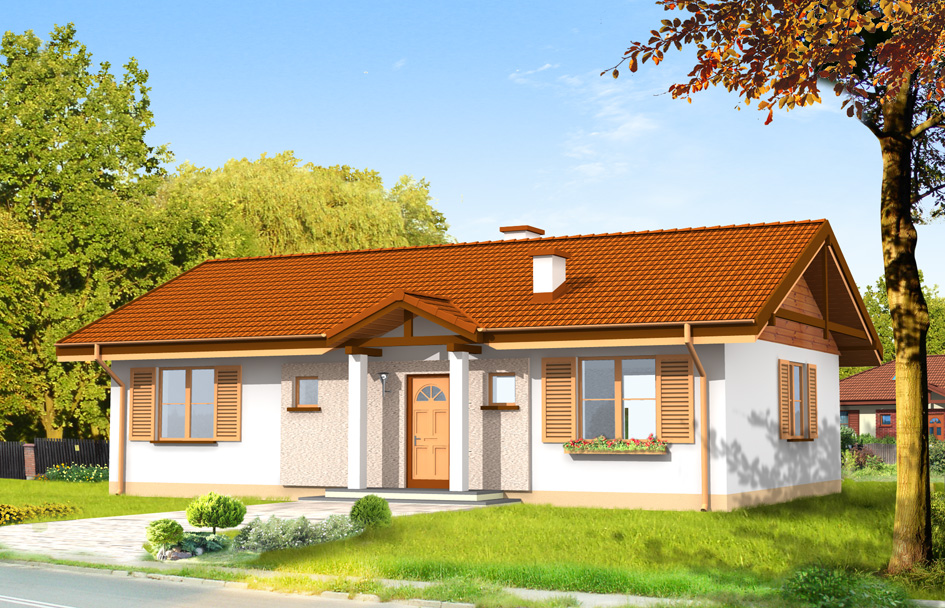

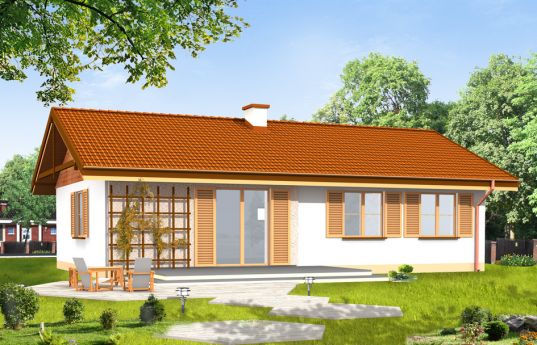

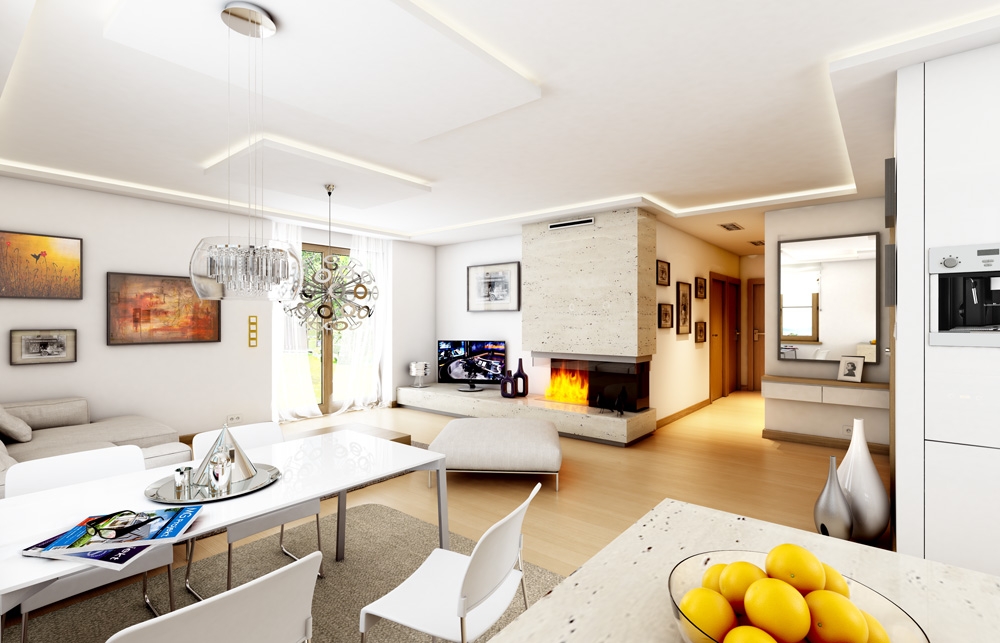

Sunny is storey, single-family villa for a family of four. Building of simple block , easy and inexpensive to build. Living room connected spatially with lounge, dining area and partially open kitchen create a large single space, spacious interior. In Sunny bedrooms with bathroom and separate toilet together make up the night part of the house. Exterior appearance of Sunny is unpretentious detail and well-balanced proportions. We has a variant versions of the Sunny e.g. with garage and hipped roof. There is also available mirror version of this house plan.

Specifications:

Cubature: 346 m³ / 12217,26 ft³
Built-up area: 110,42 m² / 1188,16 ft²
Total area: 110,42 m² / 1188,16 ft²
Net area: 89,78 m² / 966,03 ft²
Usable area: 89,78 m² / 966,03 ft²
Roof area: 158 m² / 1700,08 ft²
Roof slope: 24 degrees
Height of the building: 5,01 m (5,33 m with foundation) / 16,43 ft(17,48 ft with foundation)
Wide of the building: 13,24 m / 43,43 ft
Length of the building: 8,34 m / 27,36 ft
Minimum plot width: 20,24 m / 66,39 ft
Minimum plot length: 16,34 m / 53,59 ft
Height of rooms: 2,61 m / 8,56 ft

Materials:

Foundations – poured reinforced concrete
External walls – ceramic brick max + polystyrene
Ceiling - wood
Elevation - thin-layer plaster
Roof - tile or meatal roofing tile

The costs of implementing:

The raw state open	20 800,00 EUR
The raw state closed	30 600,00 EUR
The cost of finishing works	34 500,00 EUR
Execution of turnkey home	65 100,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Słoneczny - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Sunny - detailed file

House plan Sunny - detailed file - mirror
