Usable area: 87.51 m2 / The cost of the realization: 76 400 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Interiors Variants (2)
Realizations (18) Detailed drawings
List of materials
Comments (3)

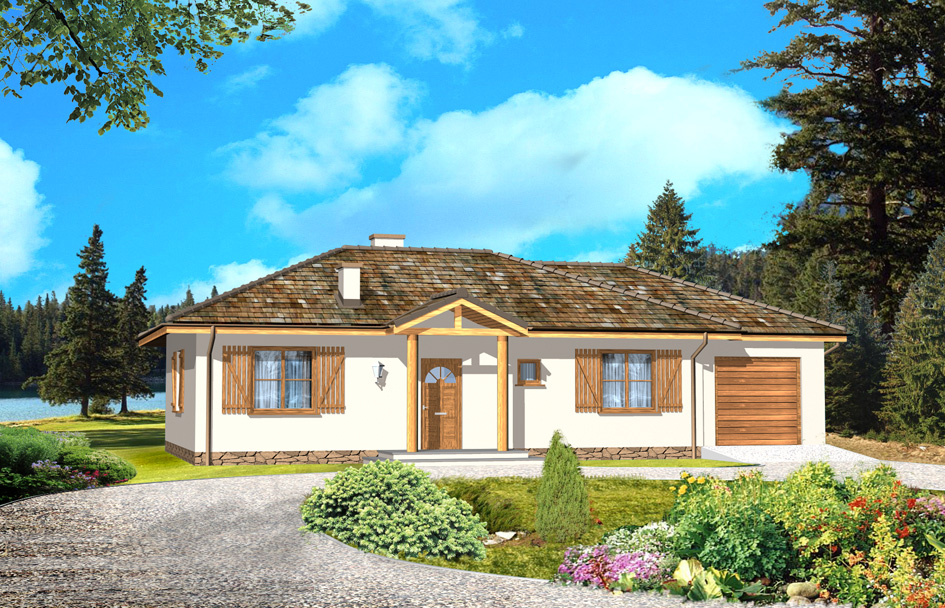

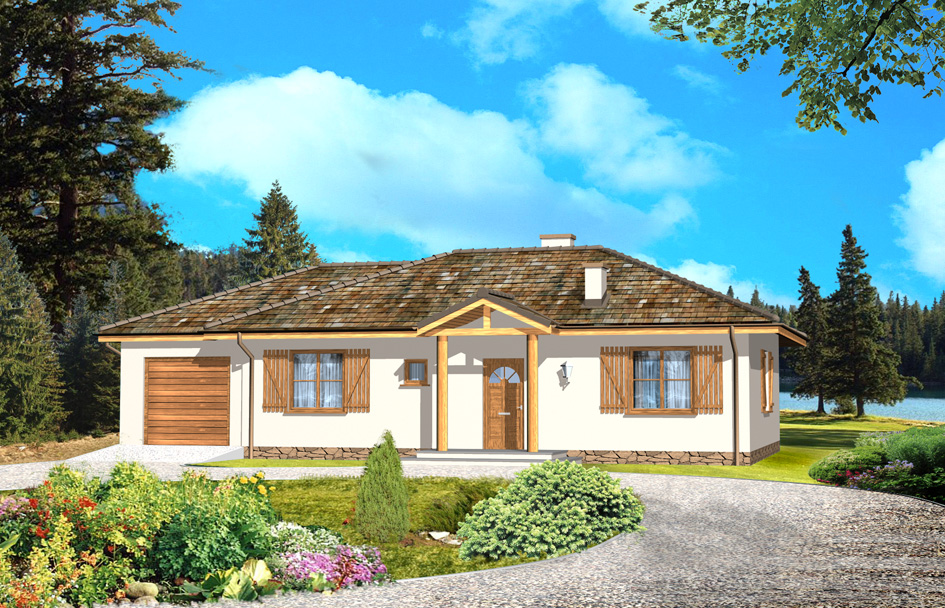

Like a dream with a garage house plan is a simple one-story house, recalling memories of traditional Polish manor house. Envelope roof cover the solid of the house and a garage. House perfectly meets the requirements of the family of 3-4 people. The building has a spacious interior divided into two parts: living - representative and night - intimate. There is also available an extended version of this house plan and a variant without a garage. We have also version in the construction of a wooden frame. This house plan is also available in mirror version.
Specifications:
- Cubature: 415,3 m3/ 14664,24 ft3
- Built-up area: 129,78 m2/ 1396,43 ft2
- Total area: 129,78 m2/ 1396,43 ft2
- Net area: 110,53 m2/ 1189,30 ft2
- Usable area: 87,51 m2/ 941,61 ft2
- Roof area: 179,75 m2/ 1934,11 ft2
- Roof slope: 24 degrees
- Height of the building: 5,08 m (5,40 m with foundation)/ 16,66 ft (17,71 ft with foundation)
- Wide of the building: 15,68 m/ 16,66 ft
- Length of the building: 8,34 m/ 27,35 ft
- Minimum plot width: 23,68 m/ 77,67 ft
- Minimum plot length: 16,34 m/ 53,60 ft
- Height of rooms: 2,61 m/ 8,56 ft
Materials:
- Foundations – concrete
- Walls - aerated concrete + polystyrene or wooden framework
- Cladding - thin-layer plaster
- Roofing - ceramic or concrete tile
The costs of implementing:
| The raw state open | 23 400,00 EUR |
| The raw state closed | 36 900,00 EUR |
| The cost of finishing works | 39 500,00 EUR |
| Execution of turnkey home | 76 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Like a dream with garage - detailed file
House plan Like a dream with garage - detailed file - mirror
