Kid 2 house plan

Usable area: 56.17 m2   /   The cost of the realization: 61 100 EUR

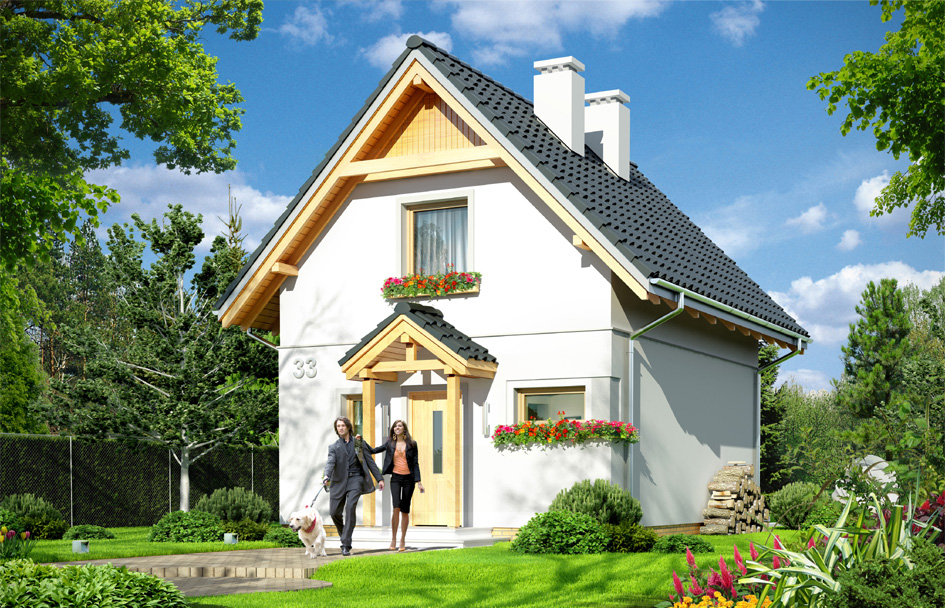

House plan Smyk 2 - front visualization

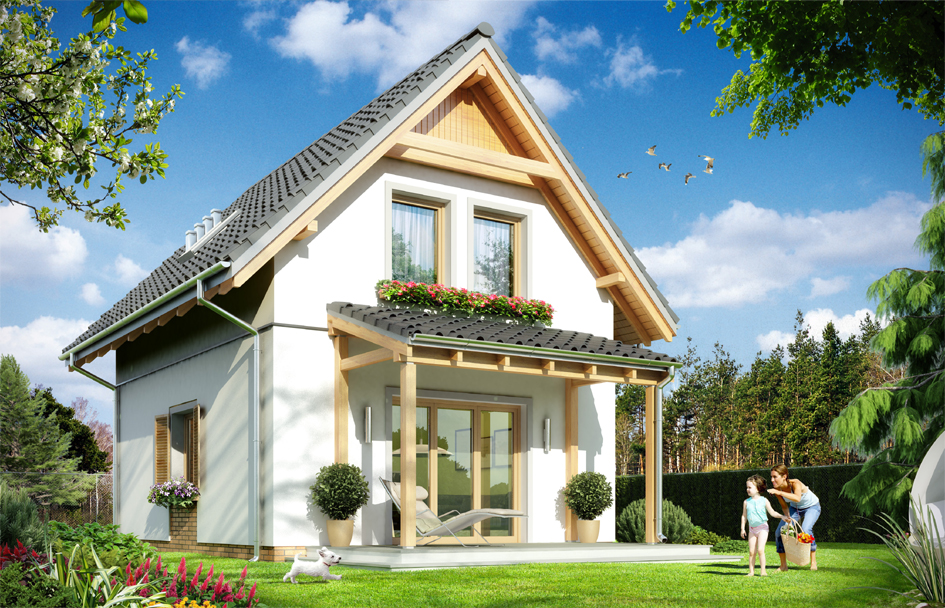

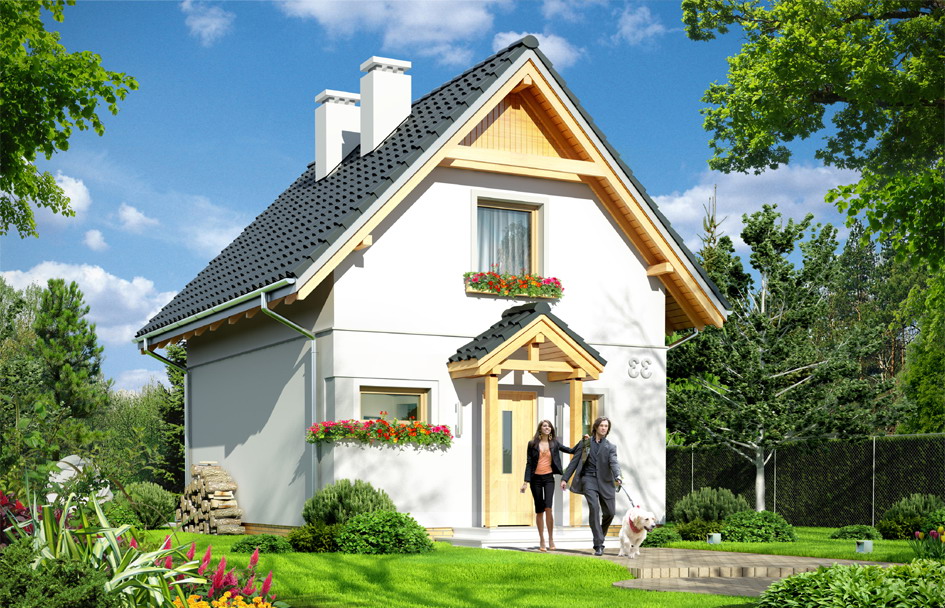

Show mirror image

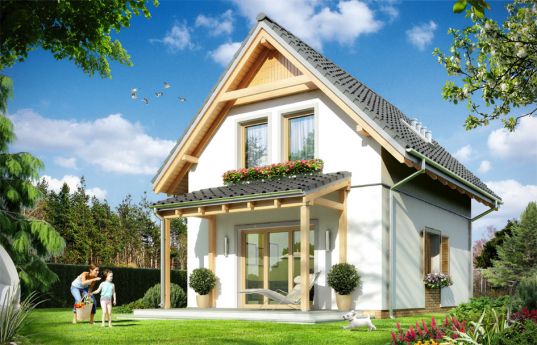

Kid 2 is a proposal for small family house, designed for a family of a three-family of four. Kid 2 is a variant version of the popular house Kid. The new version provides the boiler room, where it can be installed as a solid fuel boiler. The house has been designed on a rectangular plan with an entrance from the top of the building. The lump was covered by asymmetrical gable roof. They add beauty to the house: front porch on wooden small columns, and a comfortable covered veranda facing the garden elevation. Architecture of house Kid 2 is unpretentious, perfectly fit into any environment. The combination of traditional forms and modern materials and technologies offer a harmonious whole. Thanks to shorter front-line of, the house is located on a narrow plot. In turn, the high wall elbow in the attic make the attic has small "slants". Interior is divided into a living area on the ground floor and bedrooms in the attic. At the bottom, living room, kitchen annex and lounge create a combined living space. Next to the hall there are stairs to the attic (with handy storage under the top course of the stairs), bathroom, vestibule with wardrobes and a boiler room. In the attic there are bedrooms - freely: two larger or three smaller, private bathroom, and a dressing room with parents' bedroom. Kid 2 without a doubt, is a project of a small house, but with its functionality accommodates all the rooms allowing for a comfortable life full-size family. At the same time the house is affordable and very simple to implement. Additionally, thanks to energy-efficient solutions costs will be low in the future. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 283 m3 / 9992,73 ft3
  • Built-up area: 48,00 m2 (with arcades: 57,79 m2) / 516,48 ft2 (with arcades: 621,82 ft2)
  • Total area: 77,91 m2 / 838,31 ft2
  • Net area: 59,21 m2 / 637,10 ft2
  • Usable area:
    • 56,17 m2 wg PN-70/B-02365 / 604,39 ft2 wg PN-70/B-02365
    • 59,21 m2 wg PN-ISO 9836:1997 / 637,10 ft2 wg PN-ISO 9836:1997
  • Roof area: 111,53 m2 / 1200,06 ft2
  • Roof slope: 45 degrees
  • Height of the building: 7,42 m (7,72 m with foundation) / 24,34 ft (25,32 ft with foundation)
  • Wide of the building: 6,00 m / 19,68 ft
  • Length of the building: 8,00 m / 26,24 ft
  • Minimum plot width: 13,30 m / 43,62 ft
  • Minimum plot length: 17,00 m / 55,76 ft
  • Height of rooms: 2,6 i 2,5 m / 8,53 and 8,2 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls - aerated concrete 24 cm + foamed polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 20 300,00 EUR
The raw state closed 31 900,00 EUR
The cost of finishing works 29 200,00 EUR
Execution of turnkey home 61 100,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Smyk 2 - detailed file

House plan Smyk 2 - detailed file - mirror

Comment
Kid 2 house plan 4519 Sylwester Duda@
2013.09.28 0 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Kid 2 house plan 4518 Izabela Mazurek
2013.09.14 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Kid 2 house plan 4511 Hanna i Stefan
2013.09.12 0 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.
