Szarejka house plan

Usable area: 63.63 m² / The cost of the realization: 54 300 EUR

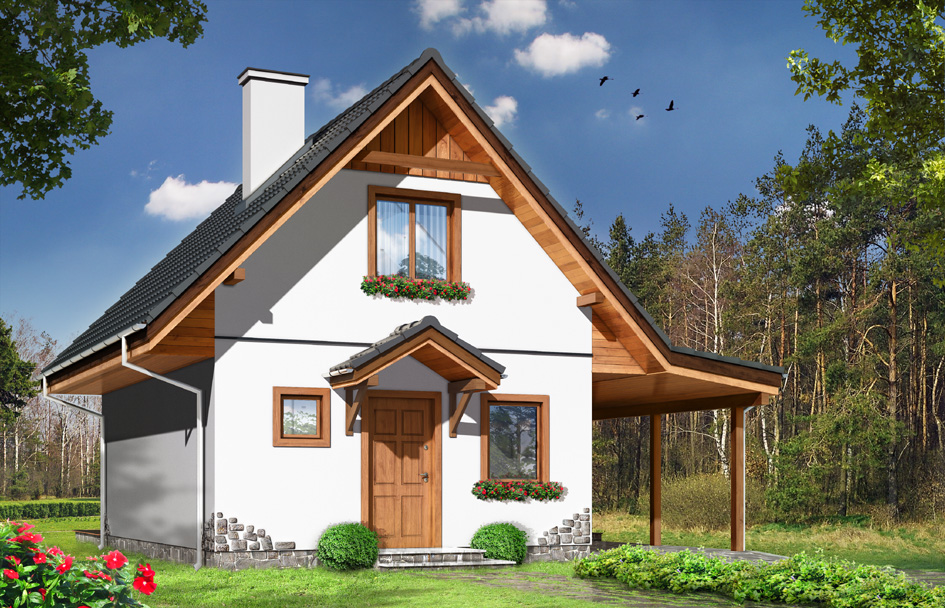

House plan Szarejka - front visualization

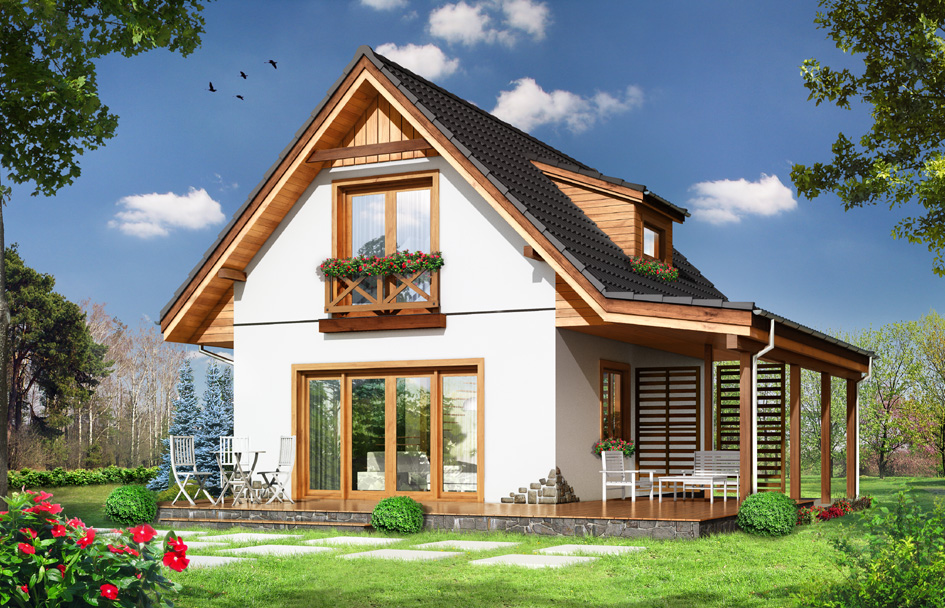

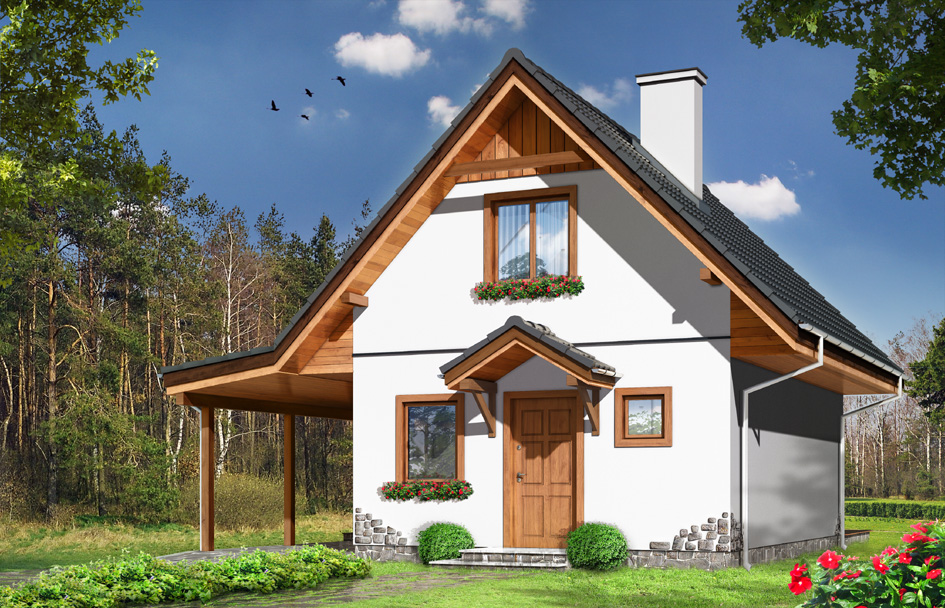

Show mirror image

Price: 870 EUR

Description Plans Elevations Situations Animation Interiors Variants (0) Realizations (9) Detailed drawings List of materials Comments (3)

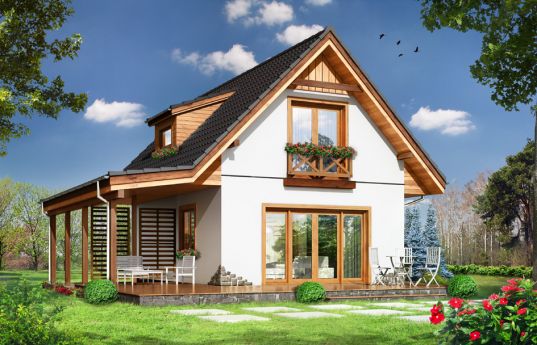

Szarejka house plan is another small detached house. It can serve both as a year-round house or summer house. The house has a very simple structure, built on a rectangular plan. The block is symmetrical covered by gable roof, with built in roof of the carport and terrace arcades. Simple unpretentious form and details of the façade result in a curious appearance of a house. Szarejka has been designed with maximum opening of the interior of the garden - hence the large, partly roofed terrace, to which we reach from the living room through the wide glass doors. Terrace completes the interior - is its extension. You can use is also in bad weather or at too sharp sun - thanks to the large arcaded. Carport - very useful, even if it will not be used for the car, it can provide excellent shelter for wood for the fireplace, and garden equipment. The interior of house is a living room with kitchen annex on the ground floor. In the center of the living room is a fireplace and wooden staircase to the attic. In the attic there are two bedrooms with an extra toilet. Szarejka house was designed in the construction of a wooden frame. The building is heated by a fireplace and electric radiators. Due to the very good thermal insulation of partitions will be economical in later exploitation - it does not require a lot of energy to heat the interior. There is also available mirror version of this house plan.

Specifications:

Cubature: 230 m³ / 8121,3 ft³
Built-up area: 47,31 m²+ car shed / 509,06 ft² + car shed
Total area: 76,87 m² / 827,12 ft²
Net area: 63,63 m² / 684,66 ft²
Usable area: 63,63 m² / 684,66 ft2
Roof area: 126,46 m² / 1360,71 ft²
Roof slope: 45 and 7,9 degrees
Height of the building: 6,77 m (7,07 m with foundation) / 22,21 ft (23,19 ft with foundation)
Wide of the building: 5,68 m (+ car shed 2,8 m) / 18,63 ft (+ car shed 9,18 ft)
Length of the building: 8,33 m / 27,32 ft
Minimum plot widthi: 14,98 m / 49,13 ft
Minimum plot length: 16,33 m / 53,56 ft
Height of rooms: 2,5 m / 8,2 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – wooden skeleton + mineral wool insulation
Ceiling - wooden beams
Elevation - thin-layer plaster
Roof - tile

The costs of implementing:

The raw state open	13 700,00 EUR
The raw state closed	21 700,00 EUR
The cost of finishing works	32 600,00 EUR
Execution of turnkey home	54 300,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Szarejka - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Szarejka - detailed file

House plan Szarejka - detailed file - mirror
