One-storeyed 4 house plan

Usable area: 122.67 m2   /   The cost of the realization: 132 230 EUR

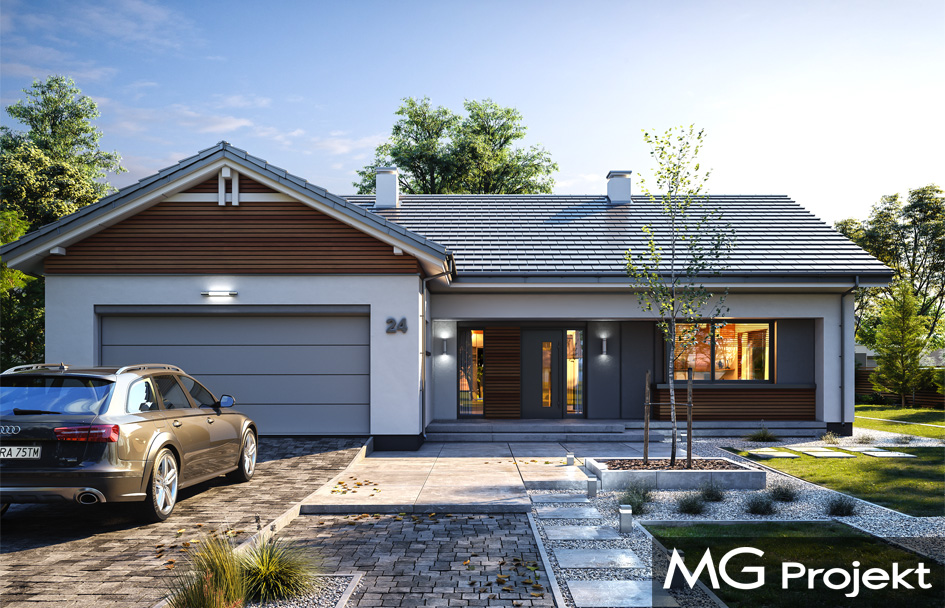

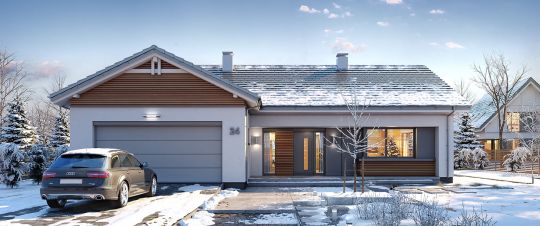

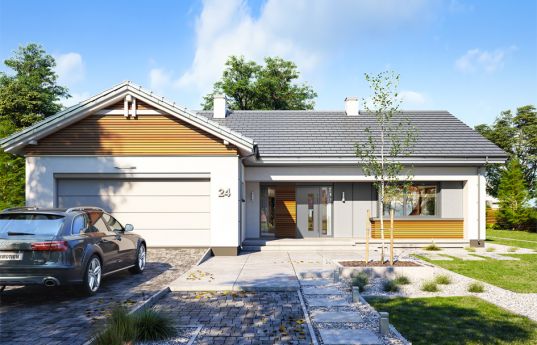

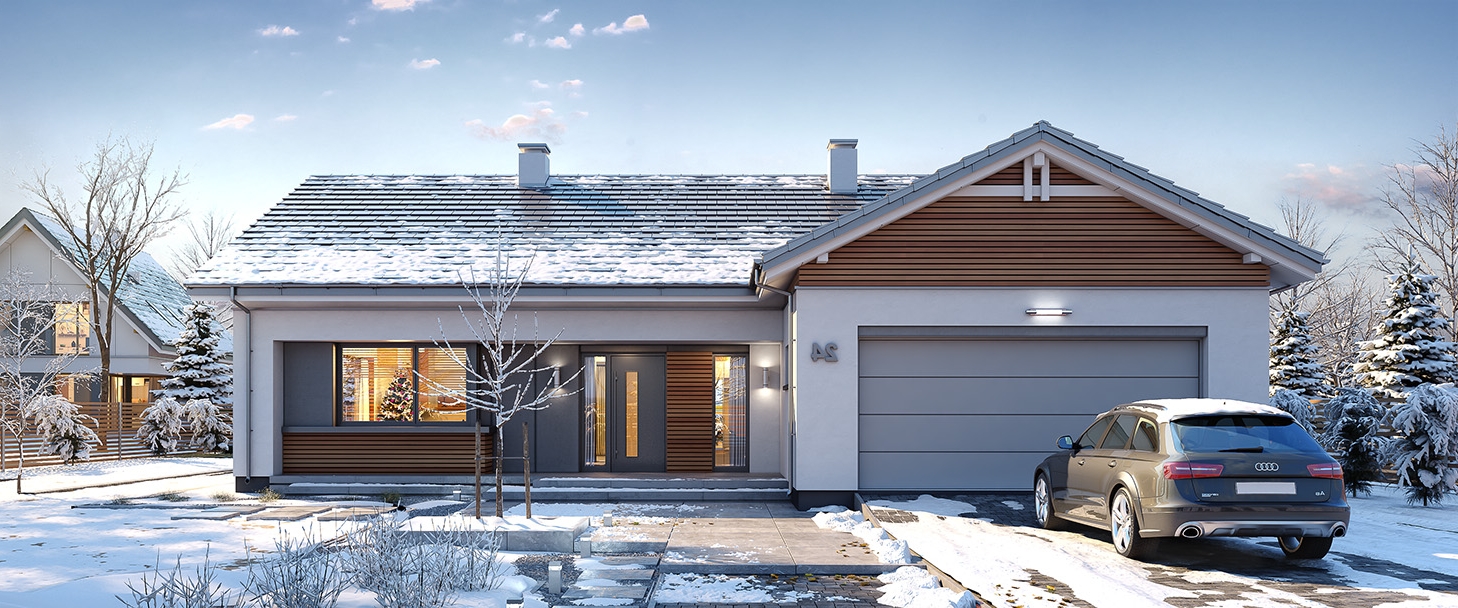

Projekt domu Parterowy 4 - wizualizacja frontu

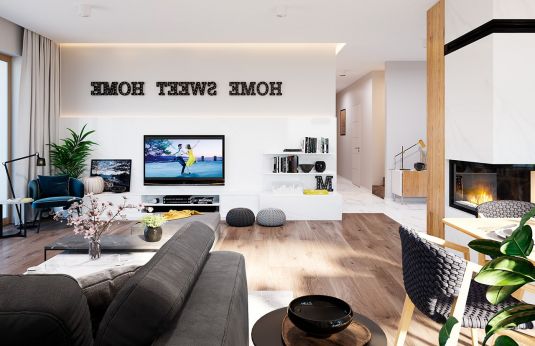

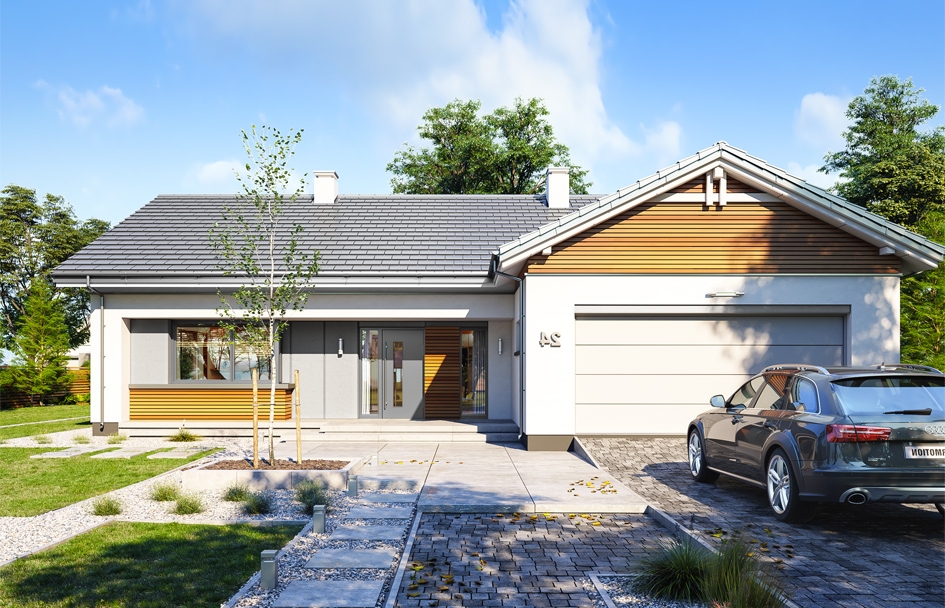

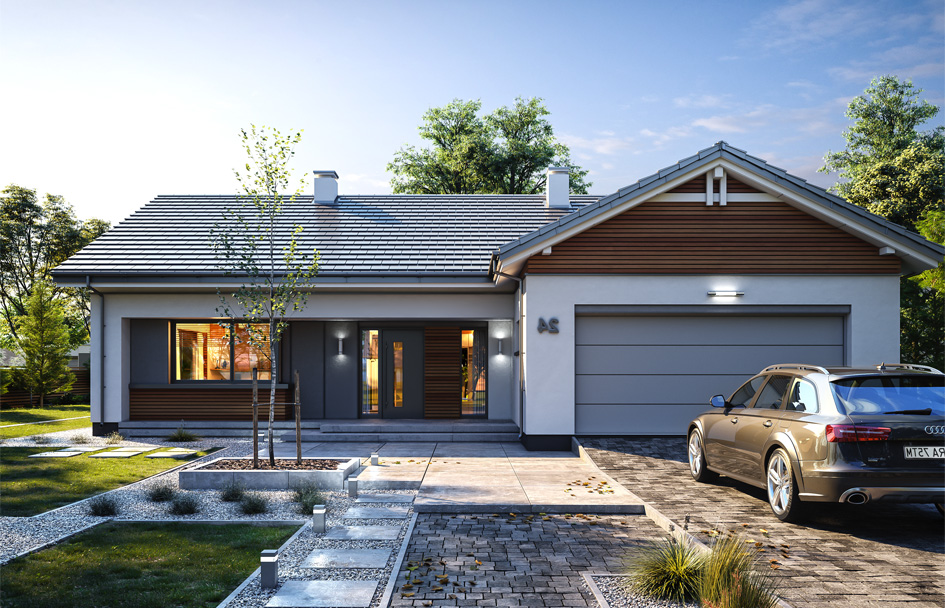

Show mirror image

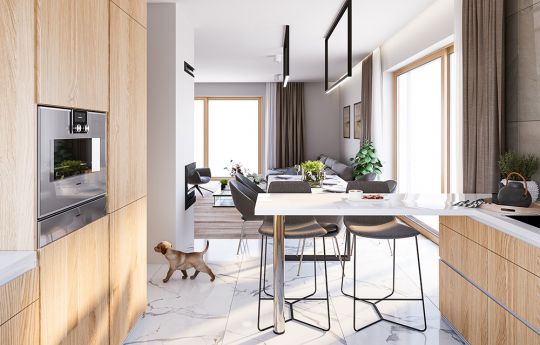

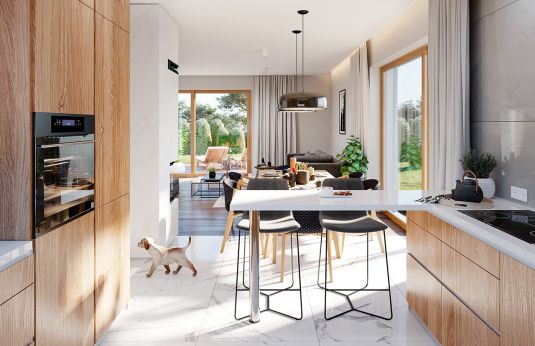

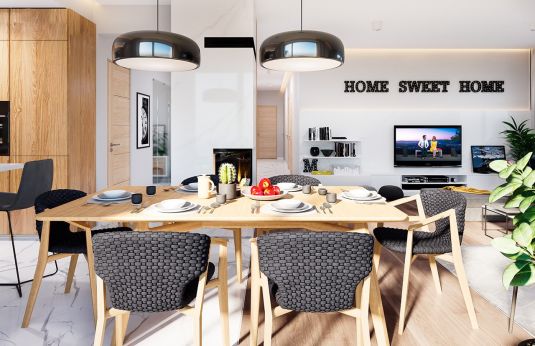

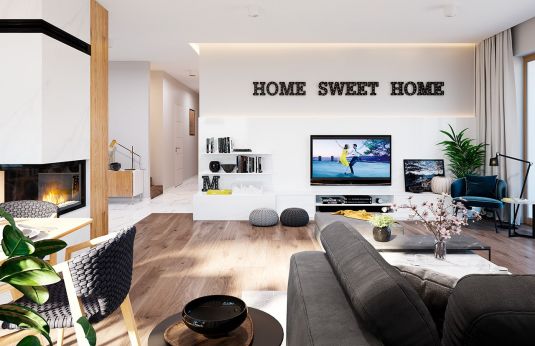

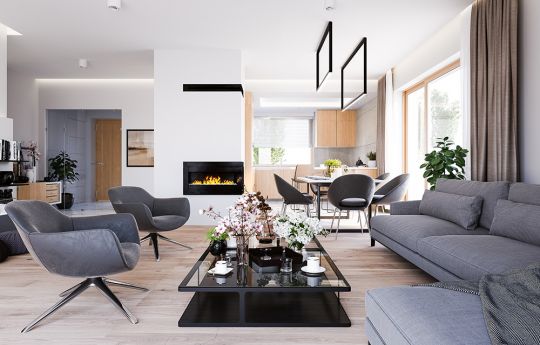

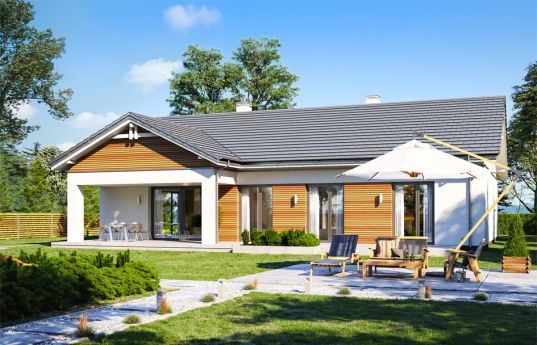

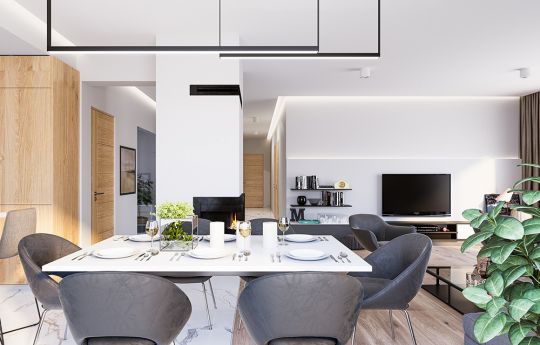

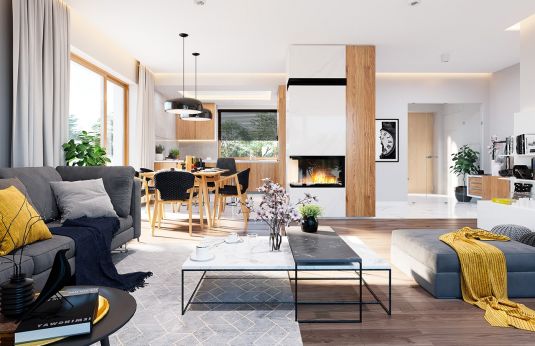

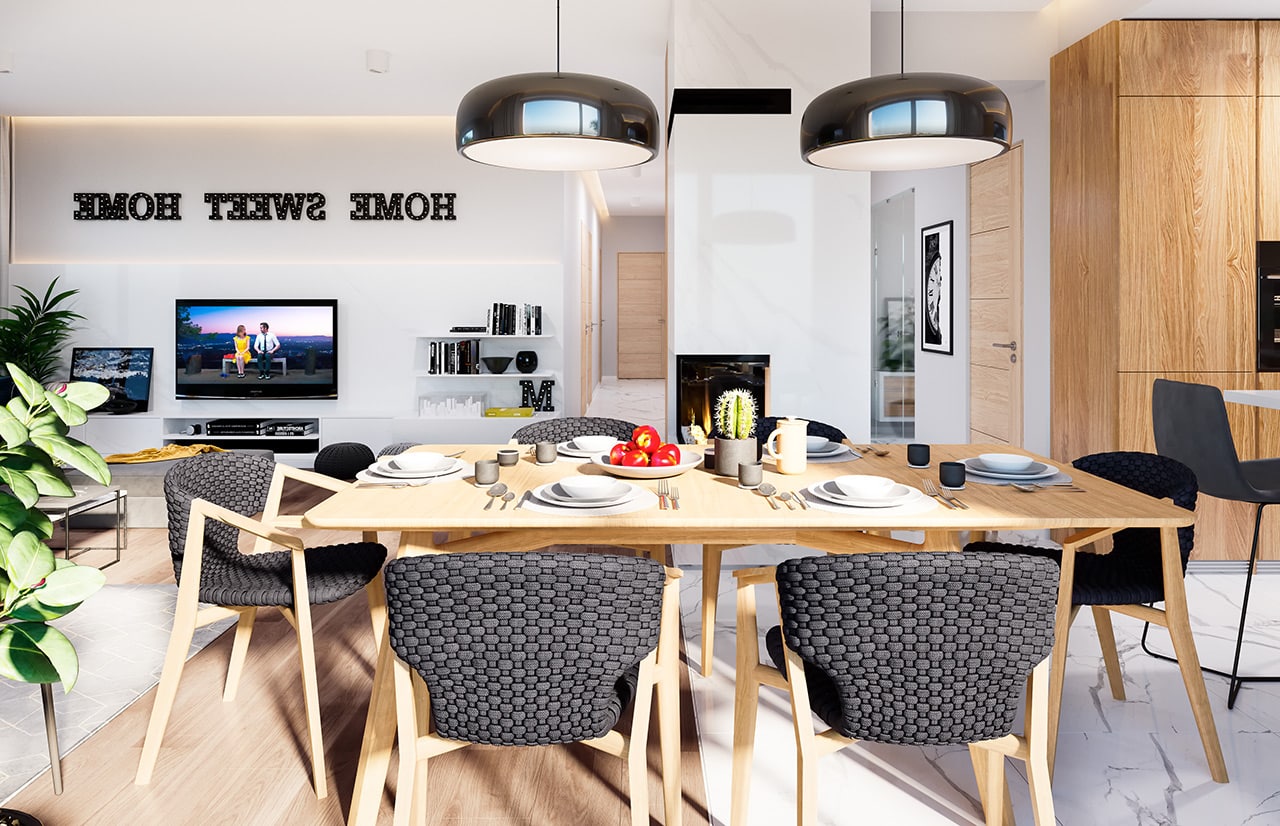

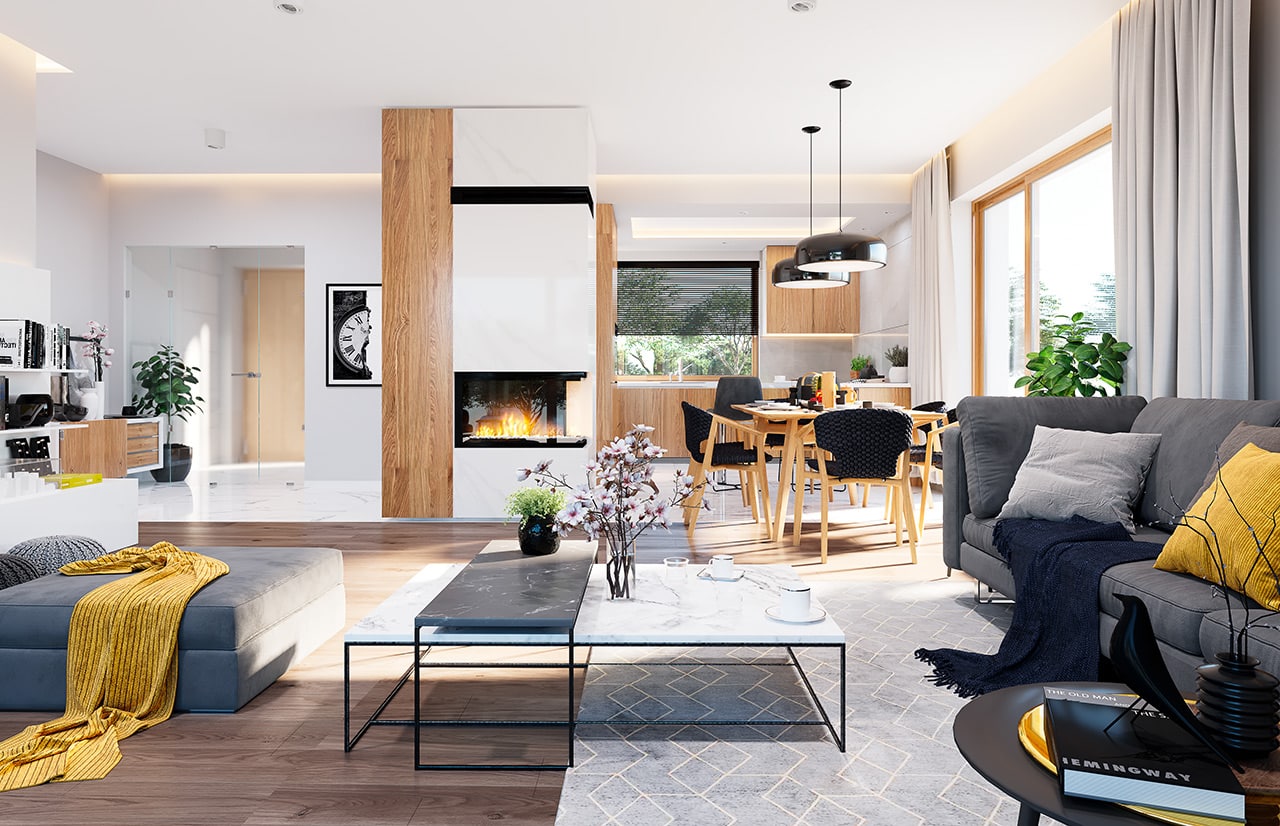

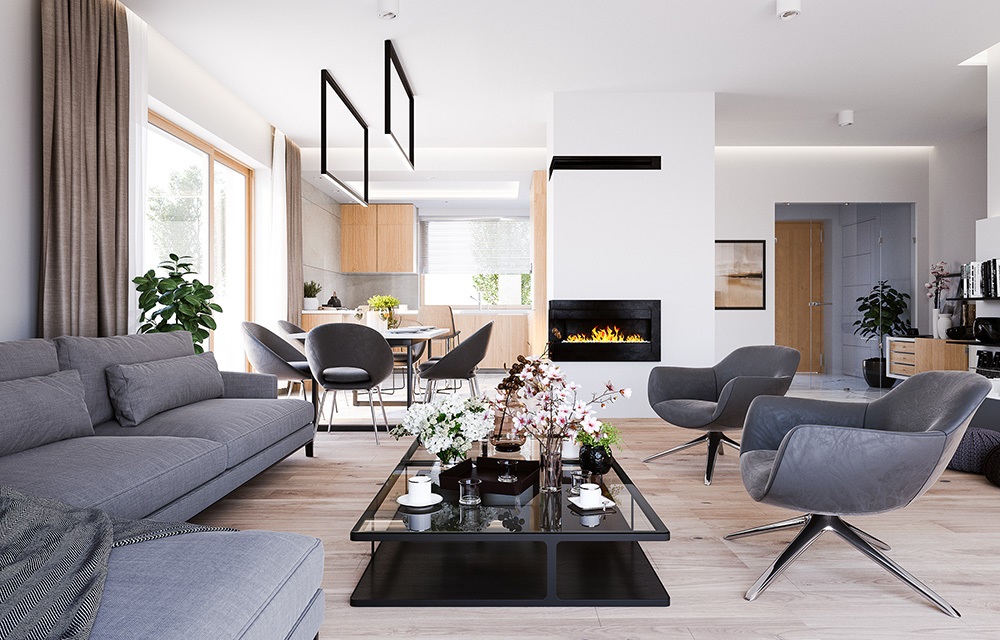

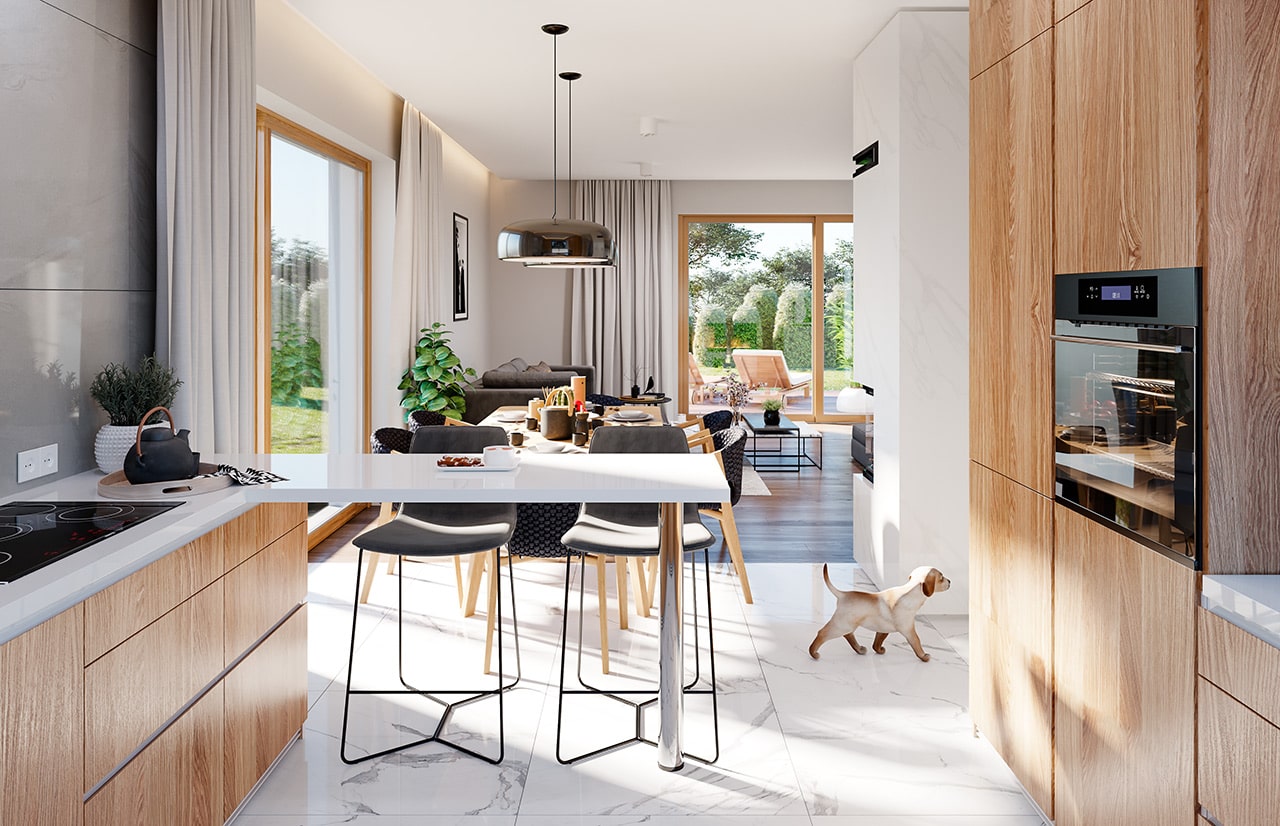

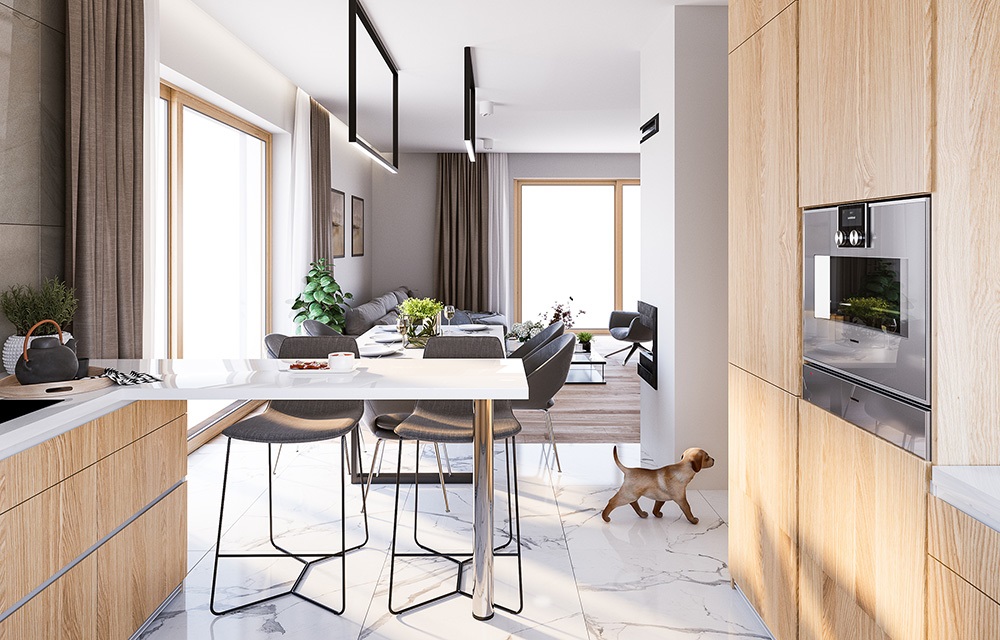

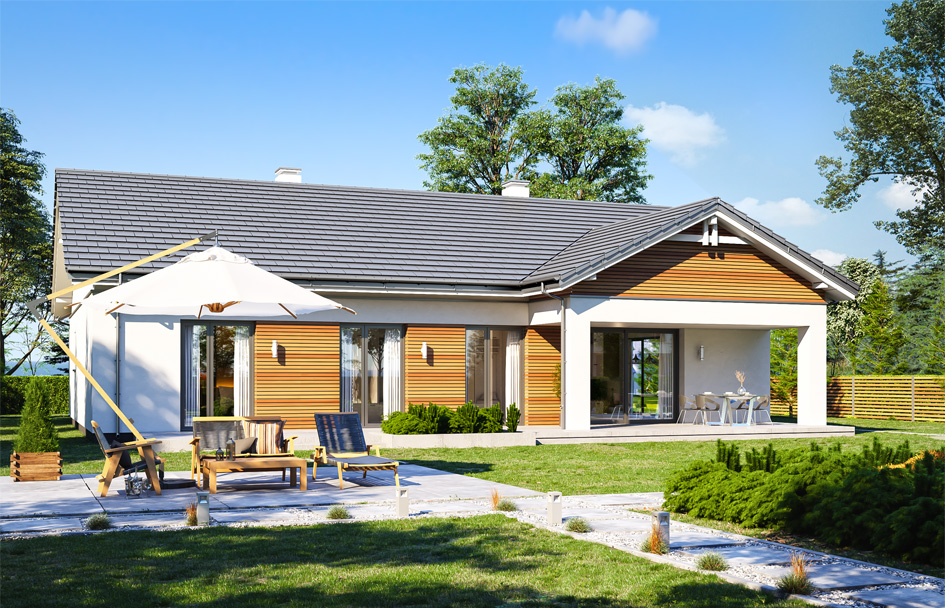

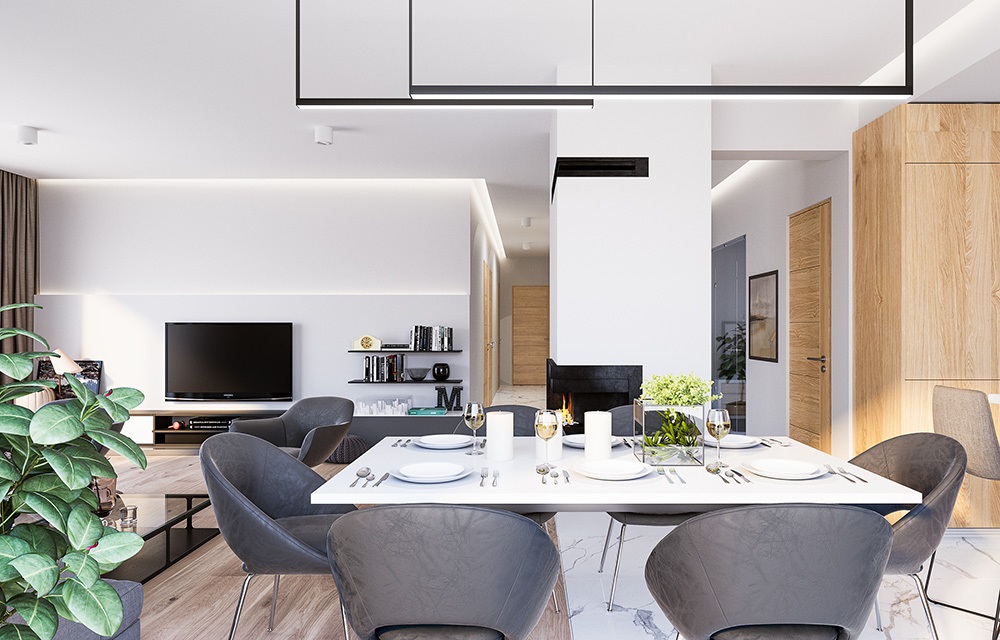

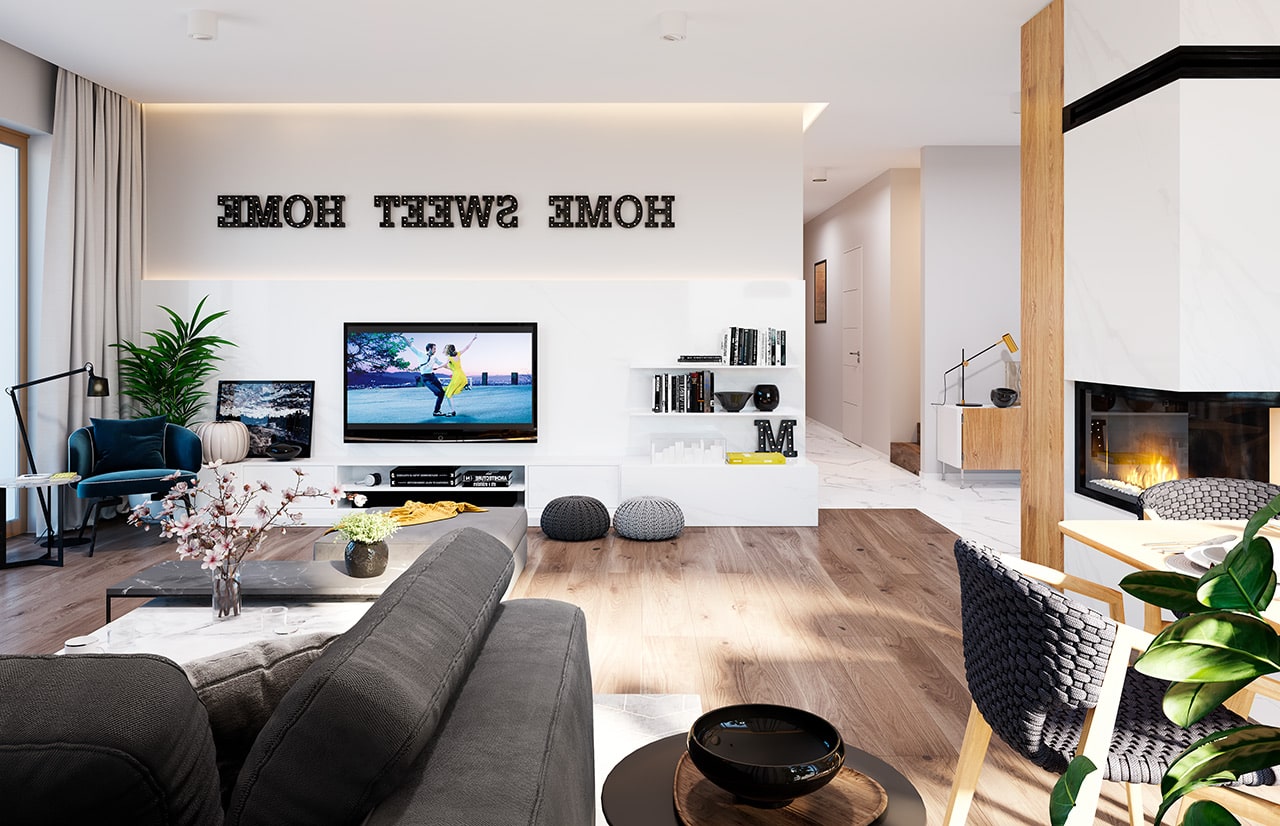

One-storeyed 4 house plan is another proposal from the series of very popular One-storeyed projects from our studio. This time it is a house with a gable roof, simple to build and with a simple shape. A simple block - interesting details, materials, nice glazing that open the interior to the garden create a very attractive single-family house. The whole house is covered with a rectangular gable roof with an inclination of 25 degrees, covering a small attic, which is an additional space in the house - a warehouse. Home interior: all functions are on one level, on the ground floor. From a nice vestibule, we go to the lobby and to the  living room, dining room and kitchen. The kitchen with a corner window opens to the front of the house. There is a pantry next to the kitchen. From the living room we have two large windows - from the dining room to the garden, and sliding balcony doors - to the terrace and a beautiful arcade. From the hall we pass the corridor to the night part with bedrooms. There are bedrooms here: parents with a wardrobe, and two children's rooms with built-in wardrobes. All rooms have exit to the terrace. In addition, a bathroom was designed, as well as a toilet with a corner for a washing machine and a dryer. From the entrance hall we have to go through the cloakroom to the double garage and boiler room. We enter the attic by stairs accessible from the lobby. Attic is more than 60 m2 of additional space. It can be a warehouse, or you can use this area as a usable attic over time - just add a few windows and already! One-storeyed 4 house has been designed in a simple, easy to build solid. The house has a compact plan, it will be cheap in heating and cheap in later operation. The materials and solutions used are energy-saving. One-storeyed 3 house  is a perfect proposition for investors who want to get the maximum effect from the money they have invested. If you want a nice, but also practical and functional apartment for yourself and your family this house will be perfect for you.

Specifications:
  • Cubature: 783 m3 / 27647,73 ft3
  • Built-up area: 202,87 m2 / 2182,88 ft2
  • Total area: 202,87 m2 (246,82 m2 with attic) / 2182,88 ft2 (2655,78 ft2 with attic)
  • Net area: 128,15 m2 + garage 34,67 m2 + attic / 1378,89 ft2 + garage 373,05  m2 + attic
  • Usable area: 122,67 m2 /  1319,93 ft2
  • Roof area: 291,85 m2 / 3140,31 ft2
  • Roof slope: 25 degrees
  • Height of the building: 6,53 m (6,78 m with foundation) / 21,42 ft (22,24 with foundation)
  • Building dimensions: 16,43 m x 17,18 m / 53,89 x 56,35 ft2
  • Plot dimensions: 24,43 (lub 23,43 z luksferami) x 24,18 m / 80,13 (lub 76,85 z luksferami) x 79,3124,18 m
  • Height of rooms 2,80 m / 9,18 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - monolithic
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 46 720,00 EUR
The raw state closed 62 460,00 EUR
The cost of finishing works 69 770,00 EUR
Execution of turnkey home 132 230,00 EUR

Net notified costs, do not include VAT



The project does not yet have the technical drawings.
