Open 2 house plan

Usable area: 165.55 m2   /   The cost of the realization: 144 500 EUR

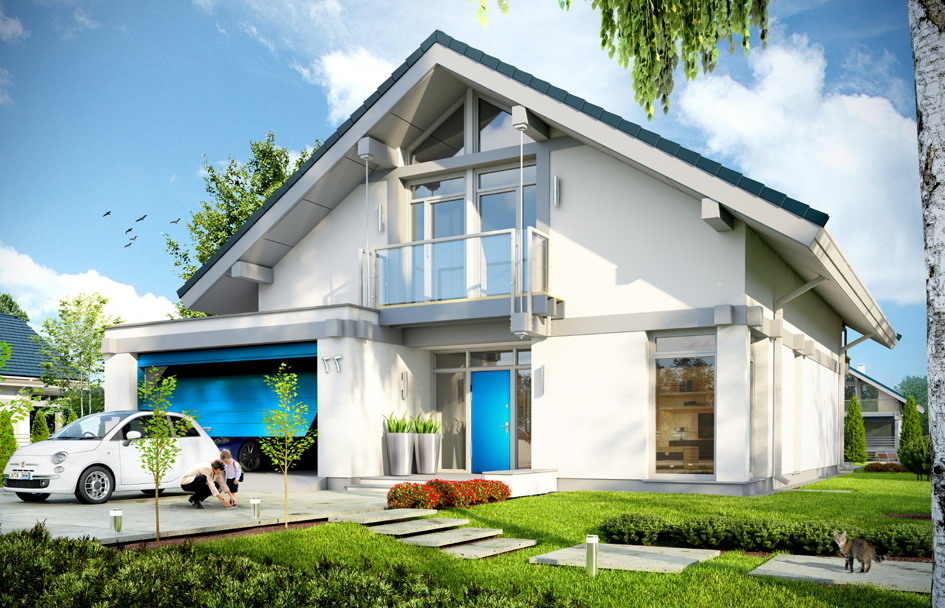

House plan Open 2 - front visualization
Show mirror image

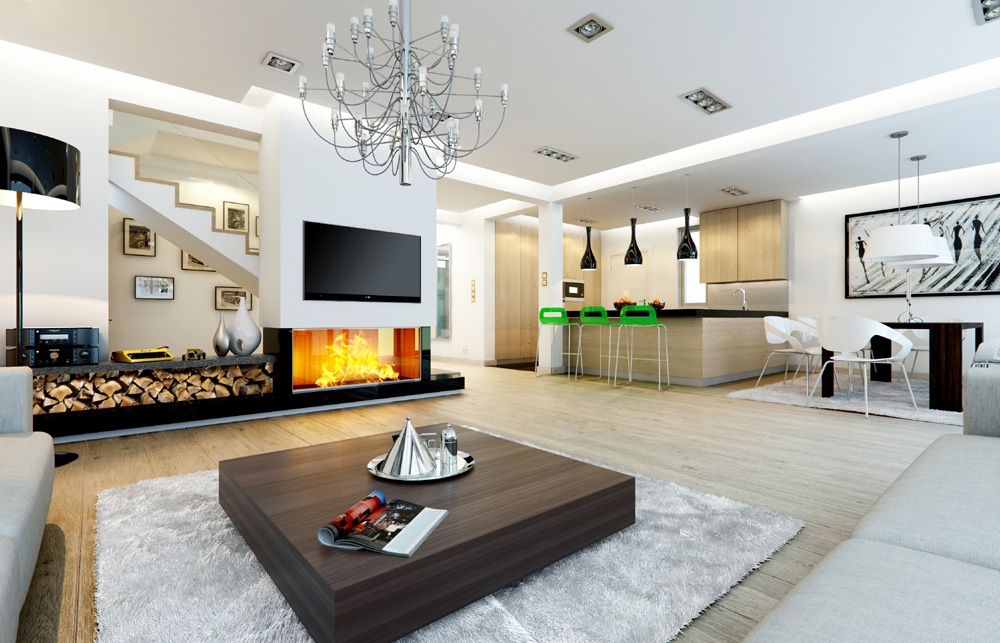

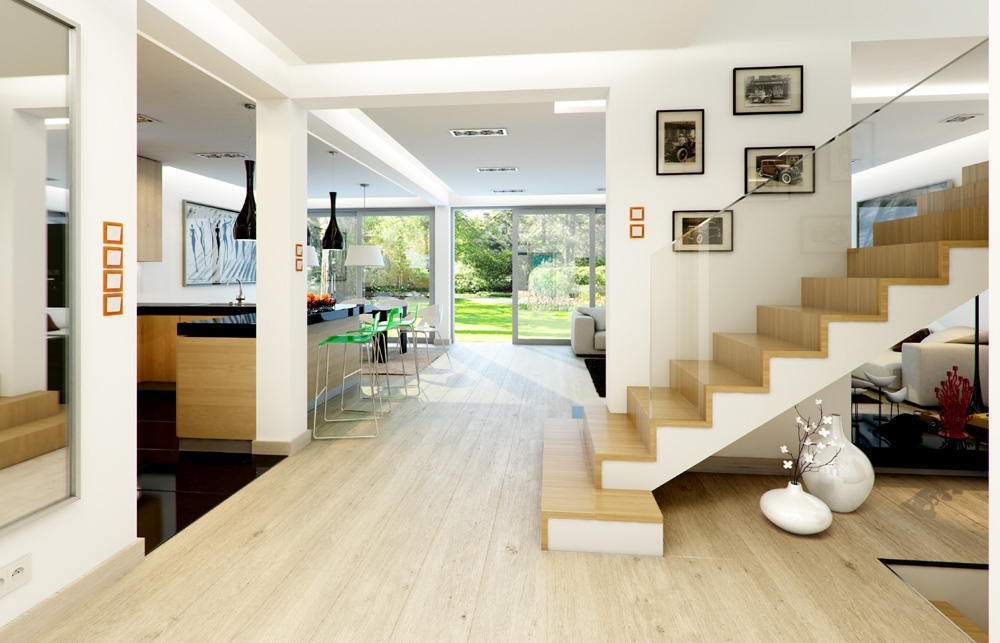

Open 2 is a modern, energy-efficient house for a family of four- to six people. Open 2 is the smaller brother of the popular house Open. It is a modern city villa with beautiful glazing opening the house to the surrounding garden. Architecture of the building combines the simplicity of body covered by a mild gable roof, with modern architectural details and materials used in facades. As a result, the building is very impressive. A rectangular block with a built-in garage is crowned with symmetrical roof covering the attic. Simple shape and logical structural system of the building, allowing for easy construction and - in spite of appearances - low cost of implementation (given the large glassing which is a value in itself). The interior of Open 2 is divided into a living space, with additional room, garage and boiler room on the ground floor and bedrooms in the attic. On the ground floor we enter the beautiful glazed atrium, and then to the hall with nice staircase and a living area - connected of the living room, dining room and open kitchen. Daily space connects with a partly covered terrace and garden through wide sliding doors. From the hall we can go to double garage and through utility room - to kitchen. At the entrance there is an extra room - study or bedroom. On the attic there are four bedrooms, including a master bedroom with its own dressing room and a large covered balcony facing the garden, and a very nice bathroom. The interior of the house is spacious, individual rooms are large and shapely. Open 2 despite a small area can be regarded as a comfortable, even luxurious house for a modern family. There is also available a mirror version of this house plan.

Specifications:
  • Cubature: 862 m3 / 30437,22 ft3
  • Built-up area: 154,95 m2 ( with arcadesi: 178,32 m2) / 1667,26 ft2 ( with arcadesi: 1918,72 ft2)
  • Total area: 246,03 m2 / 2647,28 ft2
  • Net area: 170,80 m2 + garage 32,49 m2 / 761,81 ft2 + garage 349,59 ft2
  • Usable area:
    • 165,55 m2 wg PN-70/B-02365 / 1781,32 ft2 wg PN-70/B-02365
    • 170,80 m2 + garage wg PN-ISO 9836:1997 / 1837,81 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 219,18 m2 / 2358,38 ft2
  • Roof slope: 32 degrees + flat roof
  • Height of the building: 7,78 m (8,03 m with foundation) / 25,52 ft (26,34 ft with foundation)
  • Wide of the building: 12,96 m / 42,51 ft
  • Length of the building: 14,21 m / 46,61 ft
  • Minimum plot width: 19,96 m / 65,47 ft
  • Minimum plot length: 23,23 m / 76,19 ft
  • Height of rooms:  2,8 i 2,7 m / 9,18 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 49 700,00 EUR
The raw state closed 78 800,00 EUR
The cost of finishing works 65 700,00 EUR
Execution of turnkey home 144 500,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Open 2 - detailed file

House plan Open 2 - detailed file - mirror

Comment
Open 2 house plan 6433 ullis
2015.11.13 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Open 2 house plan 6434 wesser33
2015.11.13 0 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.

Open 2 house plan 3089 Joanna Dąbrowska
2012.10.02 1 Pozytywny komentarz Negatywny komentarz

Despite the small area this house has a number of functions and is very nice. I have just order this house plan.
