House plan Rumba

Usable area: 130.27 m2   /   The cost of the realization: 145 060 EUR

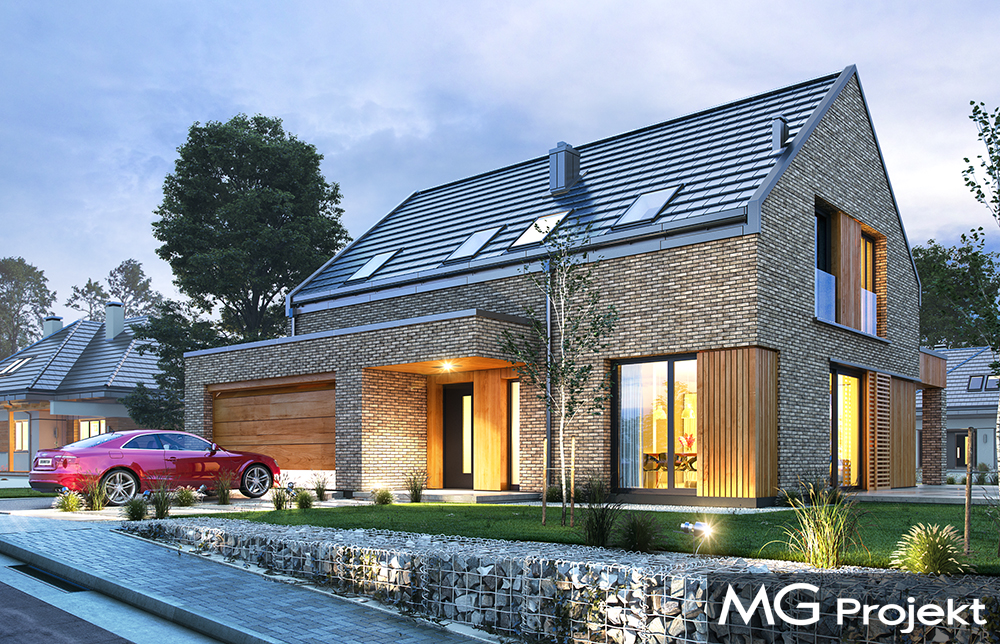

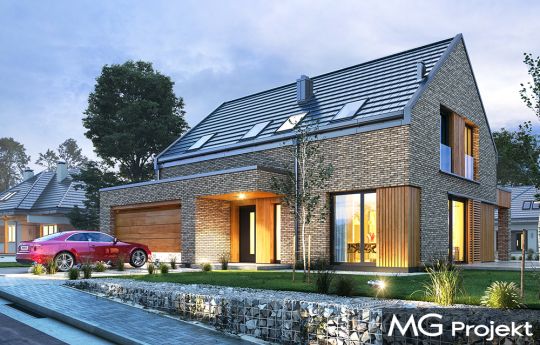

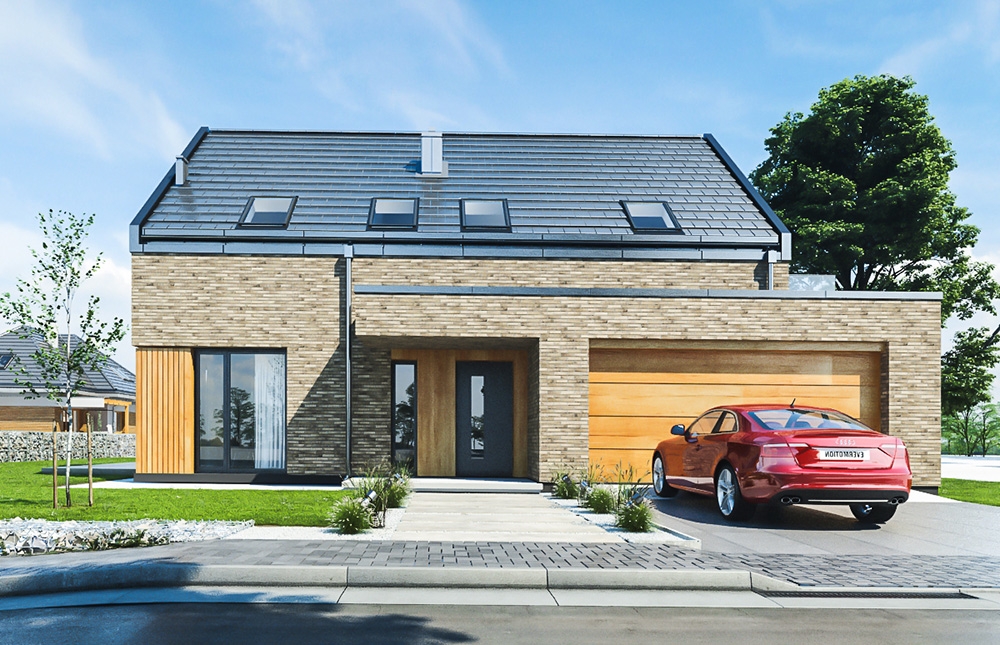

Projekt domu Rumba - front

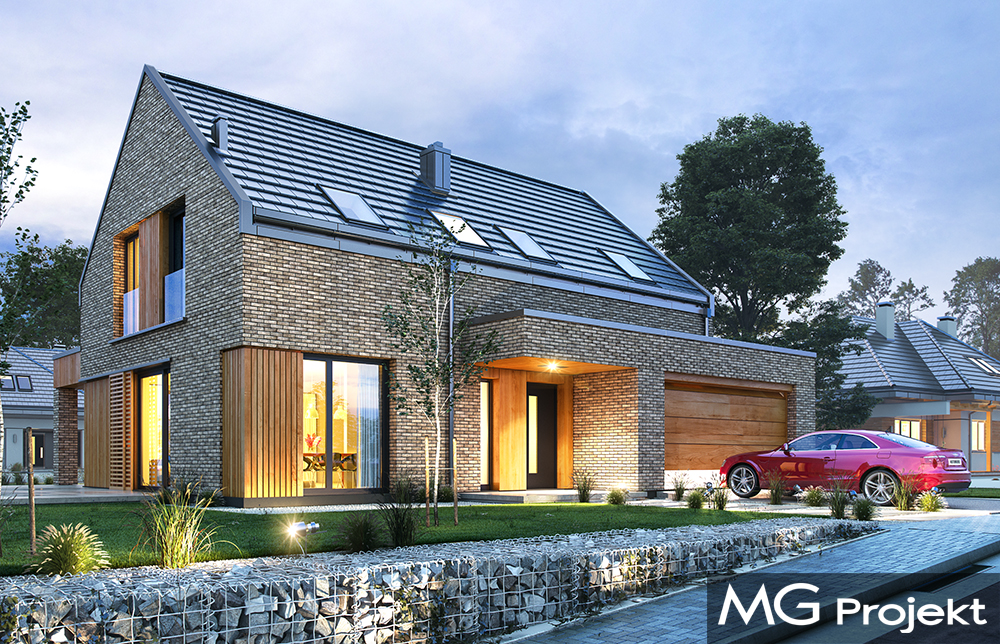

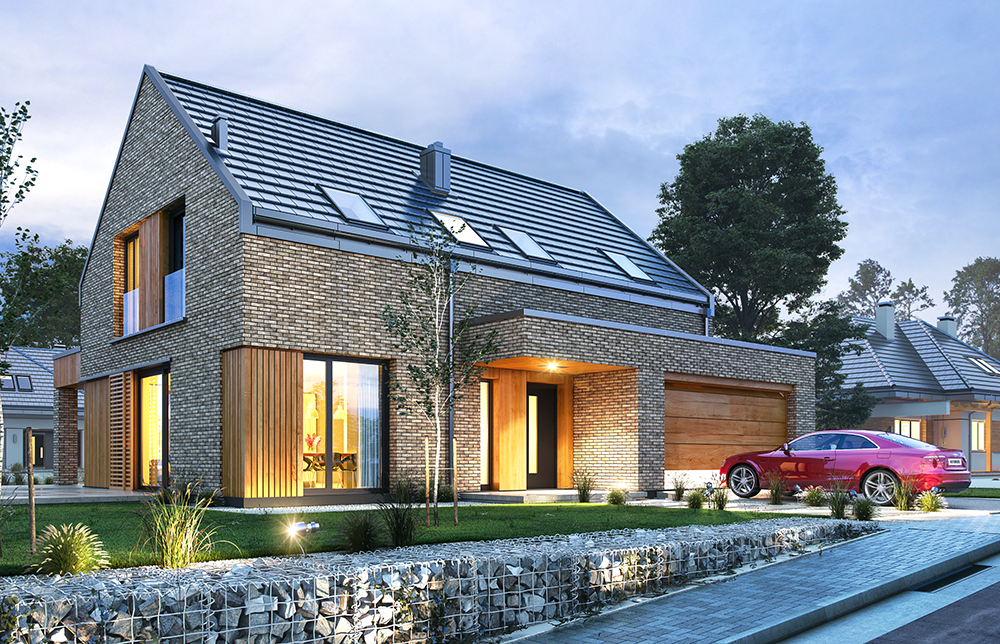

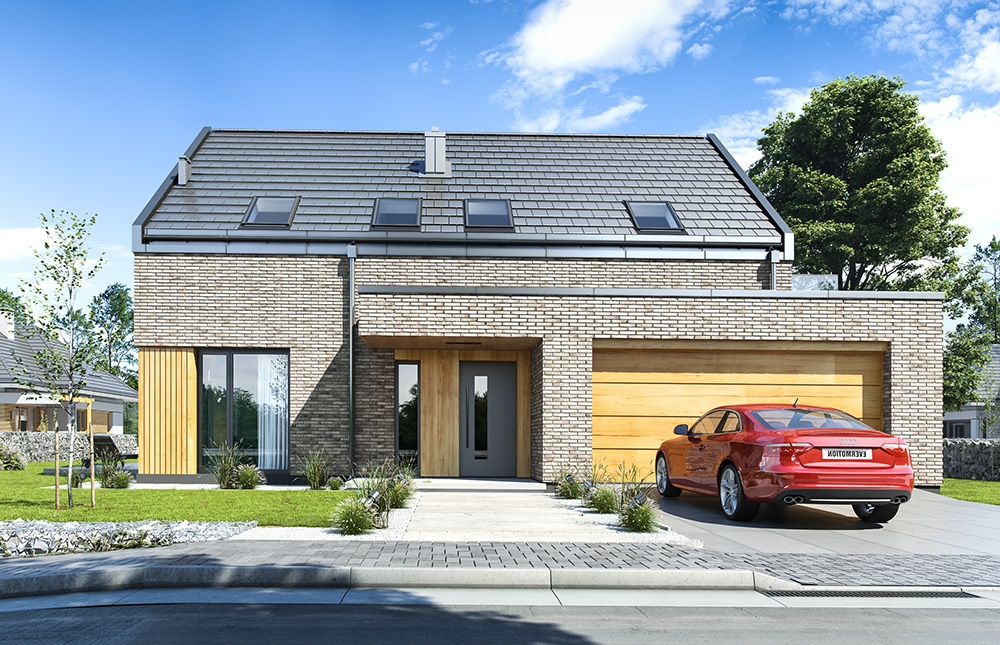

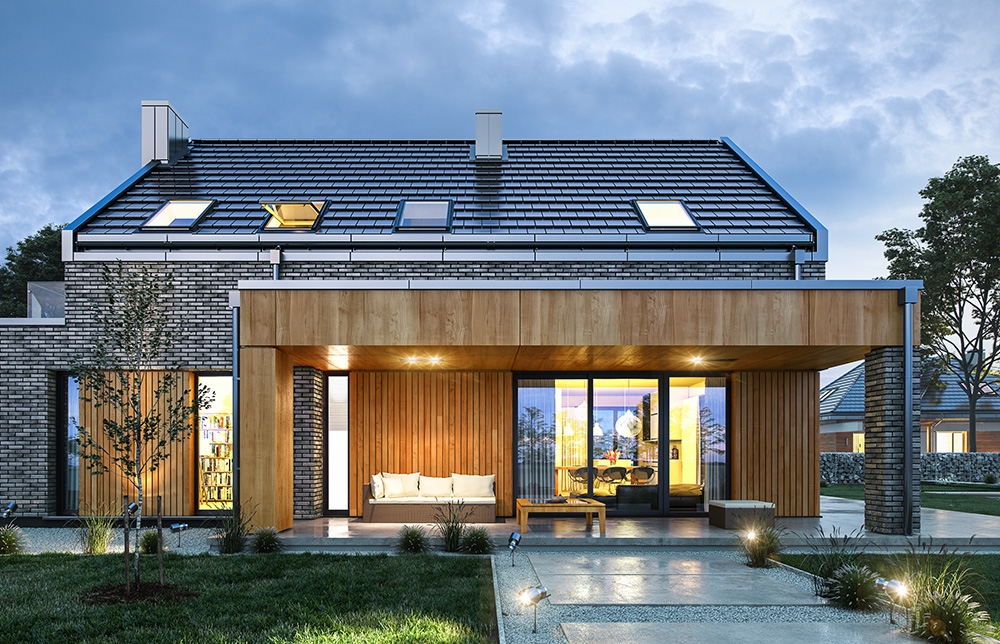

Show mirror image

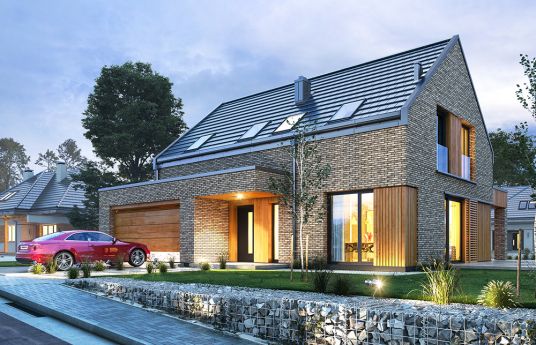

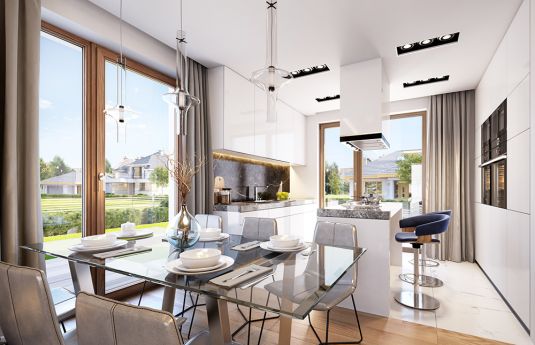

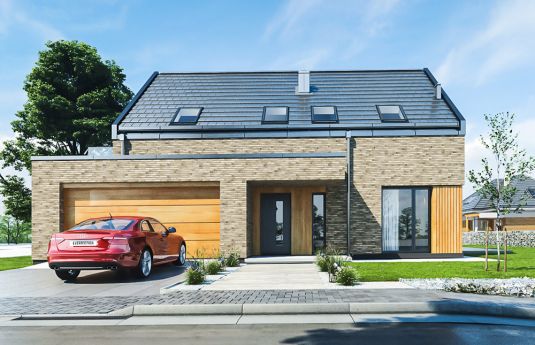

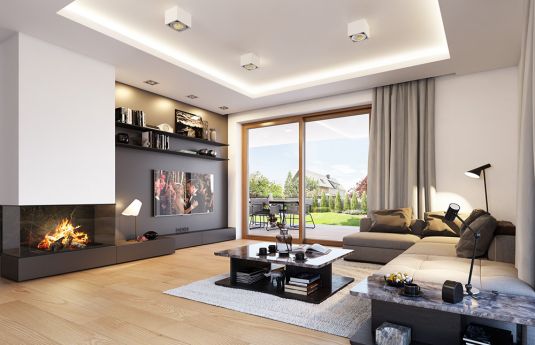

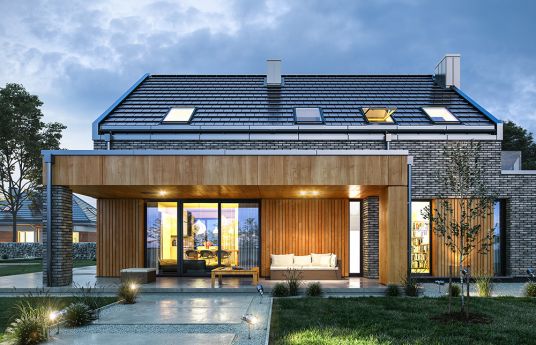

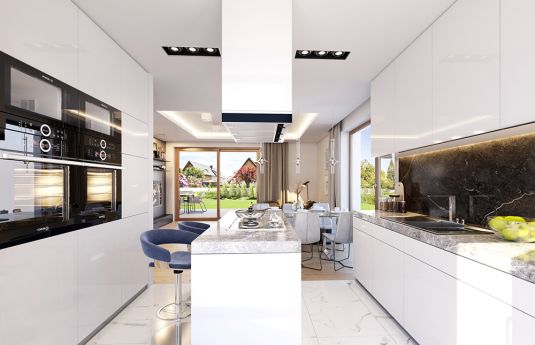

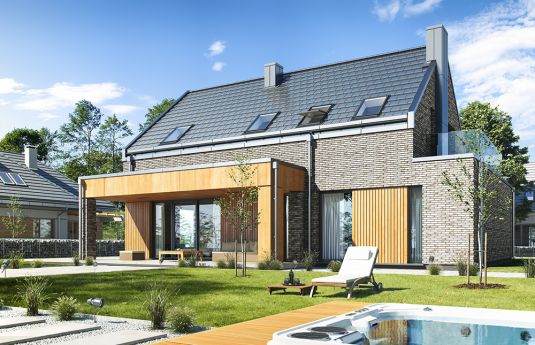

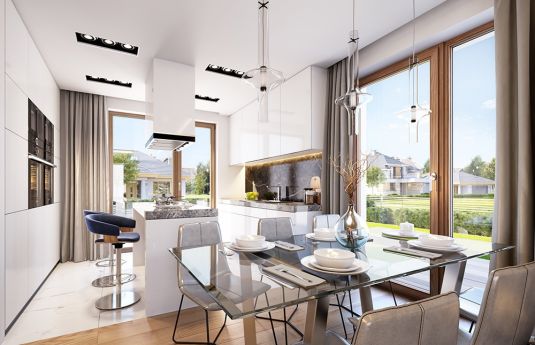

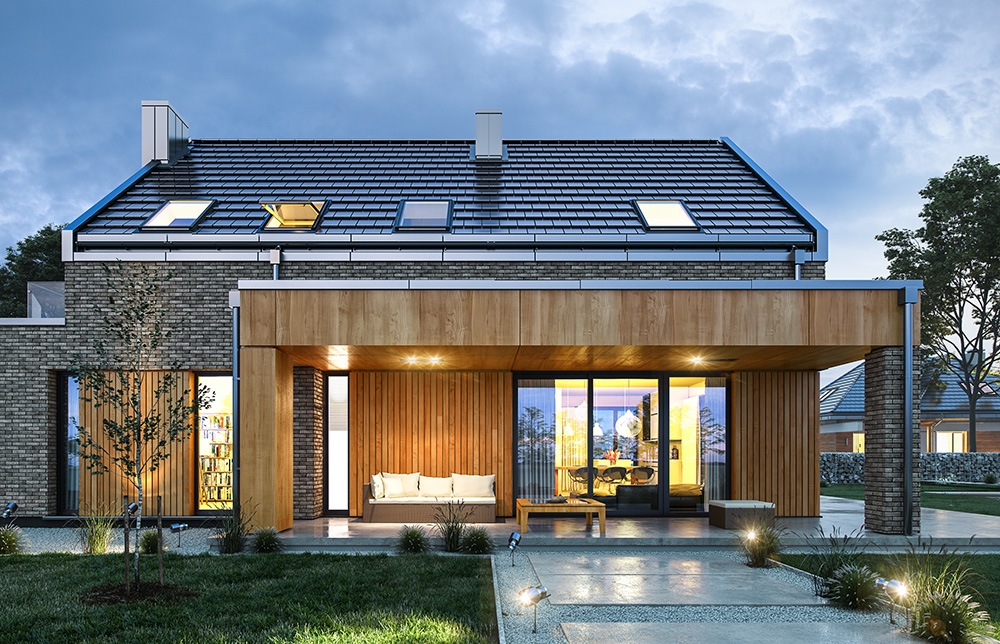

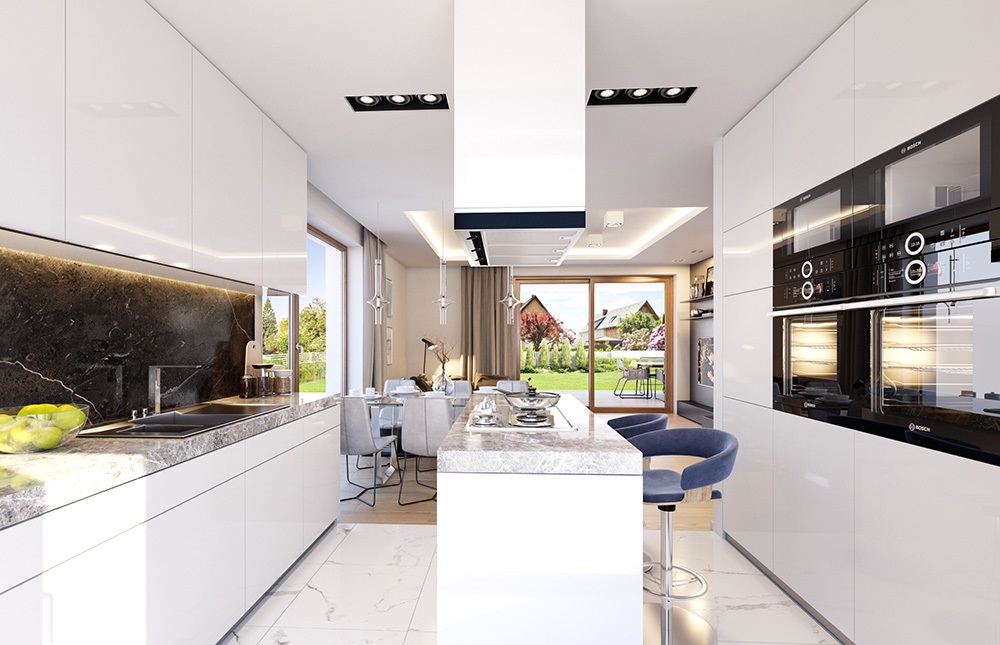

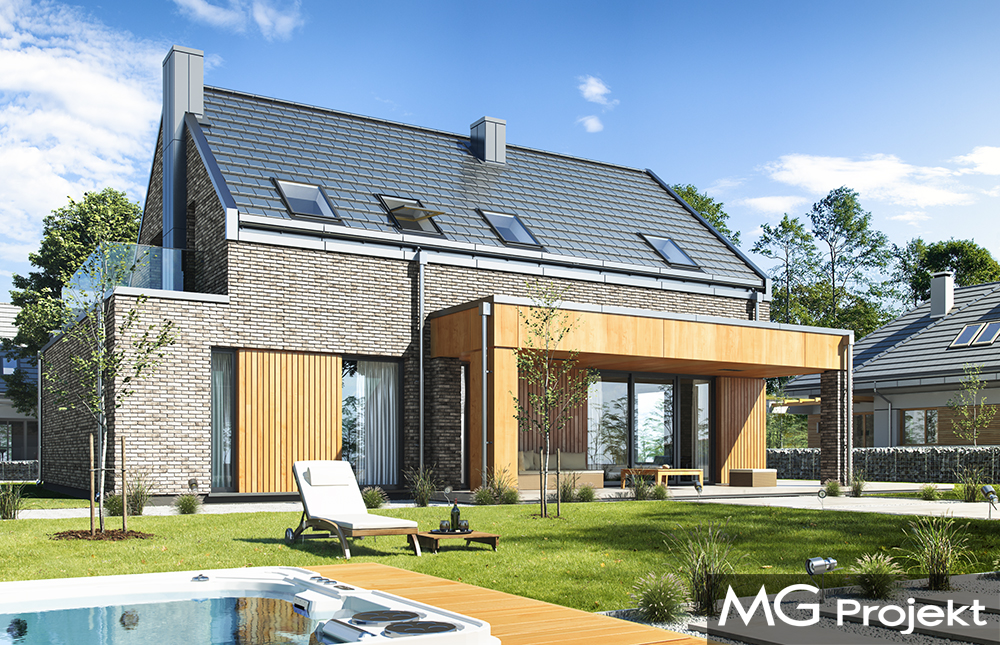

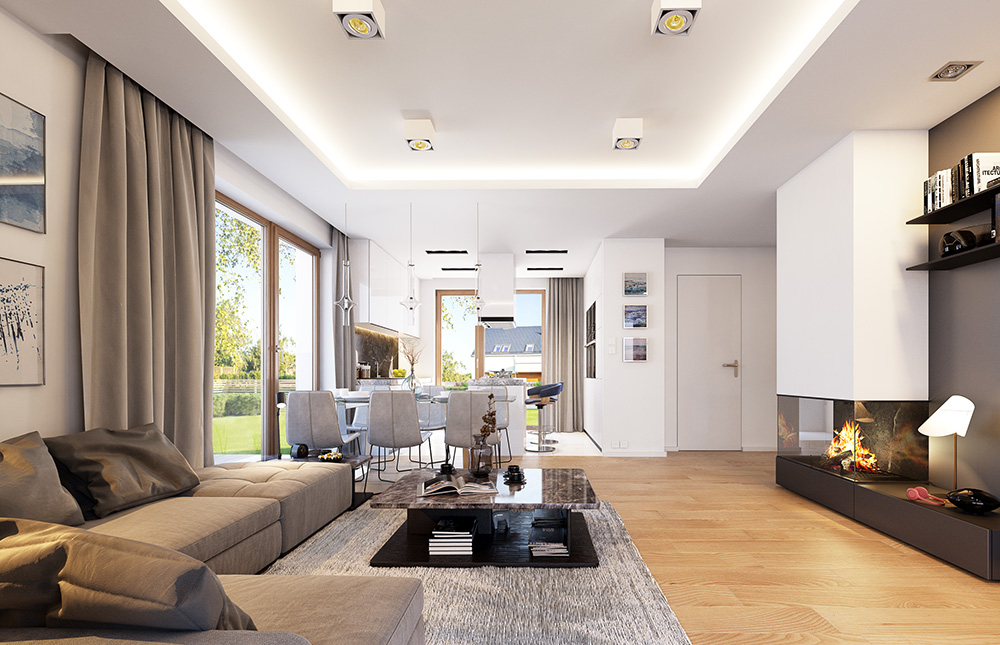

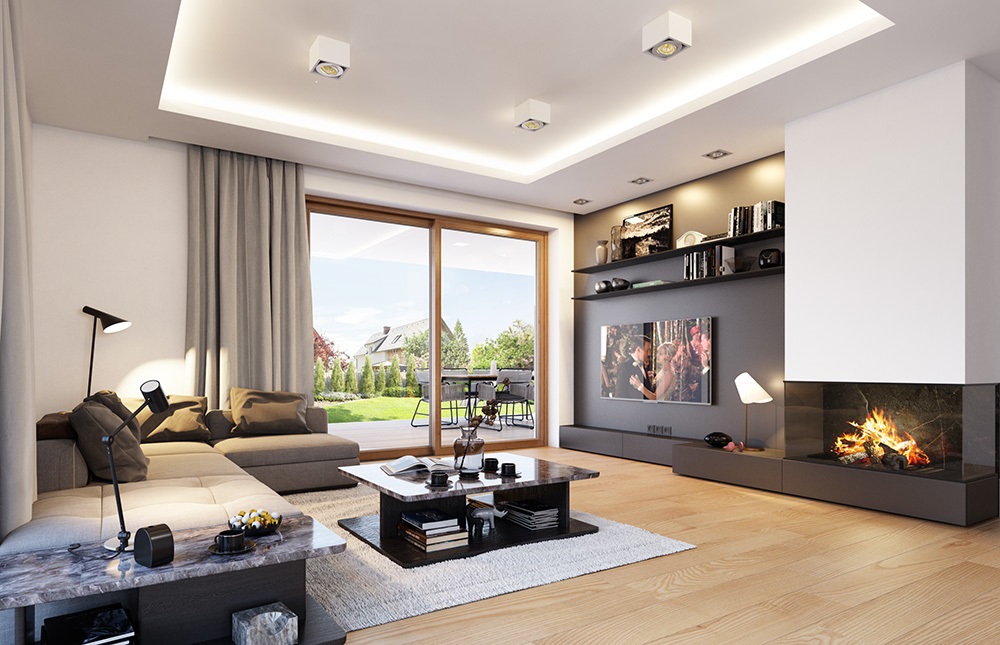

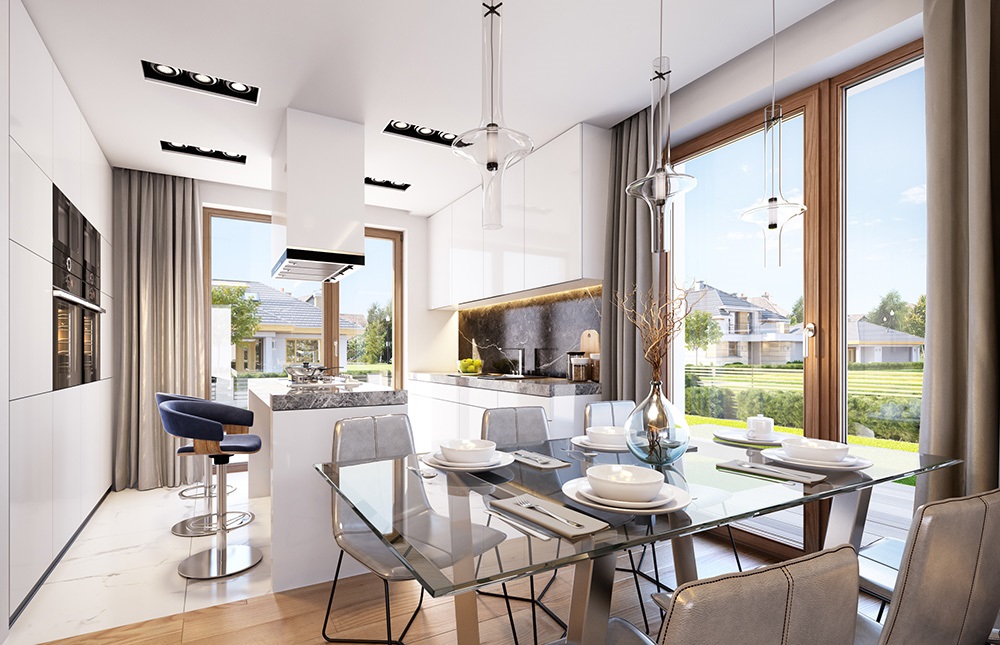

Rumba house plan is a new version of the project belonging to the group of houses originating from the "Party" house (Party, Party2, Fokstrot, Biba, Salsa, Samba, Tango). The house has been designed on a functional plan similar to those of the houses, but its design is completely different and original. The whole body of the building is finished with one material - all walls are clad with clinker tiles. Window openings widened with additional wood claddings create cuts in this uniform brick block. A gable roof made of flat roof tiles without eaves is the closing of the composition. The building is modern, original and will certainly stand out against dozens of similar homes - roofers. At the same time, the applied finishing materials bring to mind: elegance, decent construction, durability and longevity of the building. This effect was achieved despite the high cost of building a house. Rumba has a very simple shape and structure - it will be easy and relatively cheap to build. The interior of the house: on the ground floor, an open living space has been designed for the combined living room, hall and kitchen. A kitchen with an island, a wall in full household appliances, with a front window reaching the floor will be a decoration of the living space. The living room with a wide fireplace and TV wall opens with large glazed windows to the surrounding garden and partly covered terrace. The other rooms on the ground floor are a room (an office or an additional bedroom), a bathroom with a shower and a storage compartment under the staircase, a pantry between the kitchen and the vestibule, and a double garage and boiler room. In the attic, in turn, we have three bedrooms, including: parents suite with bathroom, wardrobe and own terrace, and two bedrooms, children with built-in wardrobes, a separate bathroom and laundry. In total, a small area of the house has been able to design a very comfortable interior for a family of 4-6 people. Rumba is an excellent offer for bold investors who want to stand out in a wise way. The consistently implemented project will be an attraction among the surrounding buildings and certainly no one will pass indifferently around such a pearl.

Specifications:
  • Cubature: 618 m3 / 21821,58 ft3
  • Built-up area:132,54 m2 / 1426,13 ft2
  • Total area: 207,28 m2 / 2230,33 ft2
  • Net area: 134,87 m2 + garaż 33,93 m2 / 1451,20 ft + garage 356,09 ft2
  • Usable area:130,27 m2 /  1401,71 ft2
  • Building dimensions: 14,14 x 10,29 m / 46,38 x 33,75 ft
  • Plot dimensions: 21,14 x 19,59 m / 69,34 x 64,26 ft
  • Height of the building: 8,20 m (8,50 with foundation) /26,90 ft (27,88 ft with foundation)
  • Roof area: 129,5 m2 + flat roof 51,6 m2 / 1393,42 ft2 + flat roof 555,22 ft2
  • Roof slope: 40 degrees
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •  Foundations - concrete bench and foundation walls with concrete blocks
  •  External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  •  Ceiling - Teriva
  •  Elevation - thin-layer plaster on polystyrene
  •  Roof - ceramic tile




The costs of implementing:
The raw state open 36 330,00 EUR
The raw state closed 61 770,00 EUR
The cost of finishing works 83 290,00 EUR
Execution of turnkey home 145 060,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Rumba - pliki szczegółowe

Projekt domu Rumba - pliki szczegółowe lustro
